Usable area: 83.79 m2 / The cost of the realization: 61 000 EUR

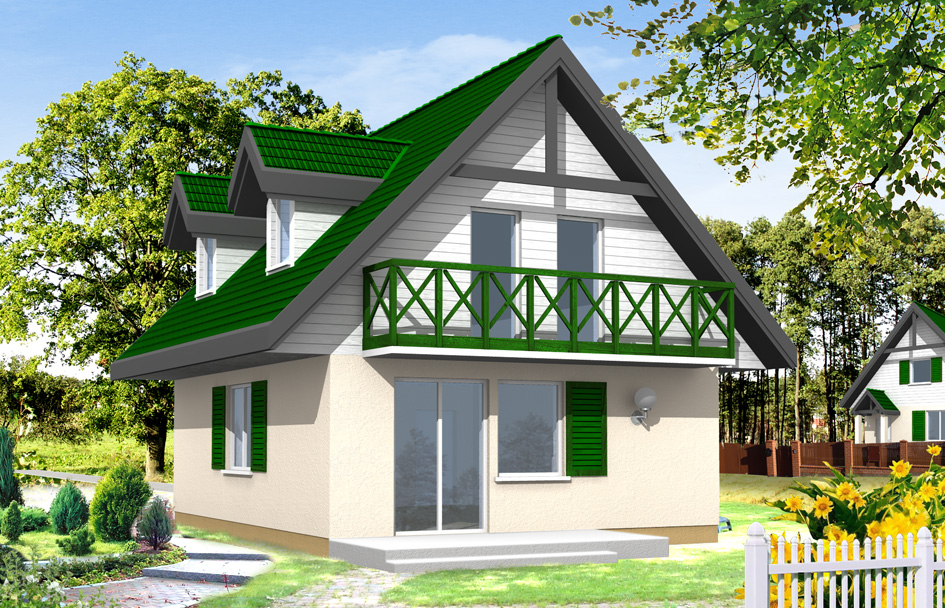

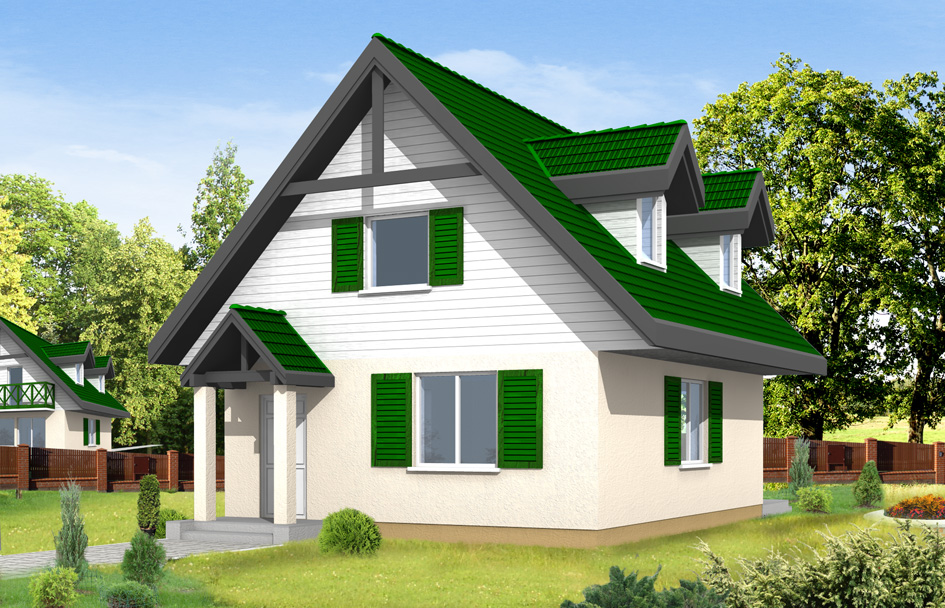

Show mirror image
Price: 830 EUR
Description
Plans
Elevations
Situations
Animation Variants (4)
Realizations (13) Detailed drawings
List of materials
Comments (3)

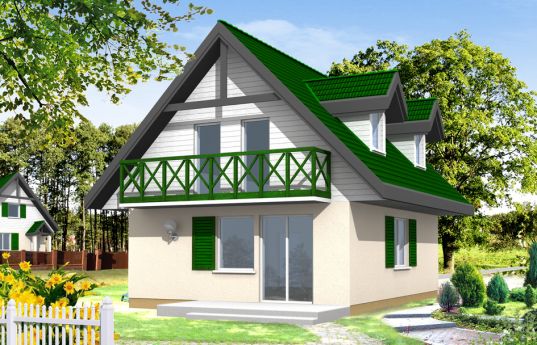

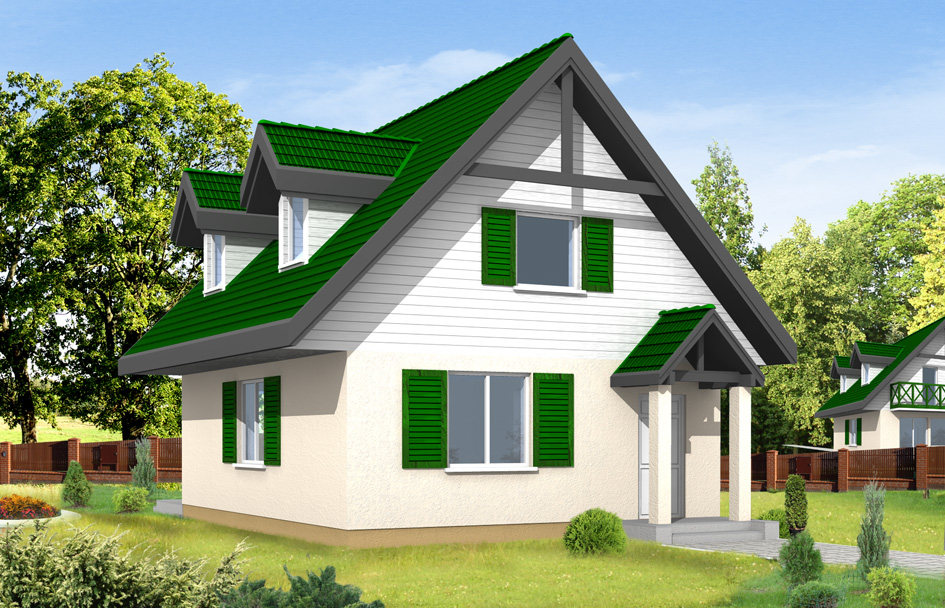

D03 house plan is a single-family house with an attic. This is the house designed for a family of 3 to 4 people. Despite the small space house perfectly meets the requirements. With functional layout of it is very convenient. In the D03 house plan interior is formed with the living area on the ground floor. On the top floor there are three bedrooms. We also have other variant versions of the D03 house, as well as the mirror versions.
Specifications:
- Cubature: 285 m3/ 10063,35 ft3
- Built-up area: 59,5 m2/ 640,22 ft2
- Total area: 102,3 m2/ 1100,75 ft2
- Net area: 83,79 m2/ 901,58 ft2
- Usable area: 83,79 m2/ 901,58 ft2
- Roof area: 139,7 m2/ 1503,17 ft2
- Roof slope: 45 degrees
- Height of the building: 7,67 (7,99 m with foundation)/ 25,16 ft (26,21 ft with foundation)
- Wide of the building: 7 m / 22,96 ft
- Length of the building: 8,70 m / 28,54 ft
- Minimum plot width: 15 m / 49,2 ft
- Minimum plot length: 16,85 m / 55,27 ft
- Height of rooms: 2,58 m / 8,46 ft
Materials:
- Foundations - Concrete
- Exterior walls - brick walls - aerated concrete + polystyrene or wooden skeleton
- Internal walls - aerated concrete or gypsum cardboard plates on the frame
- Ceiling - reinforced concrete or wooden TERIVA
- Elevation - thin-layer plaster
- Roof - ceramic tile, metal roofing tile
The costs of implementing:
| The raw state open | 20 200,00 EUR |
| The raw state closed | 31 100,00 EUR |
| The cost of finishing works | 30 000,00 EUR |
| Execution of turnkey home | 61 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan D03 - detailed file - mirror
House plan D03 - detailed file
