Kid house plan

Usable area: 75.78 m2   /   The cost of the realization: 51 900 EUR

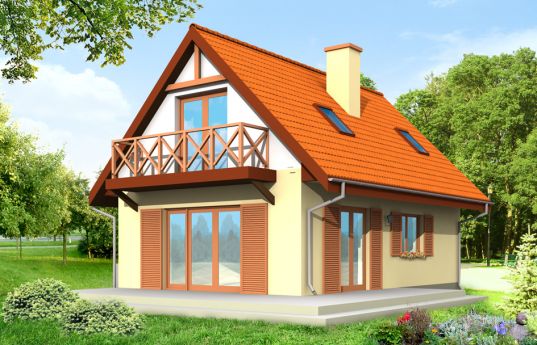

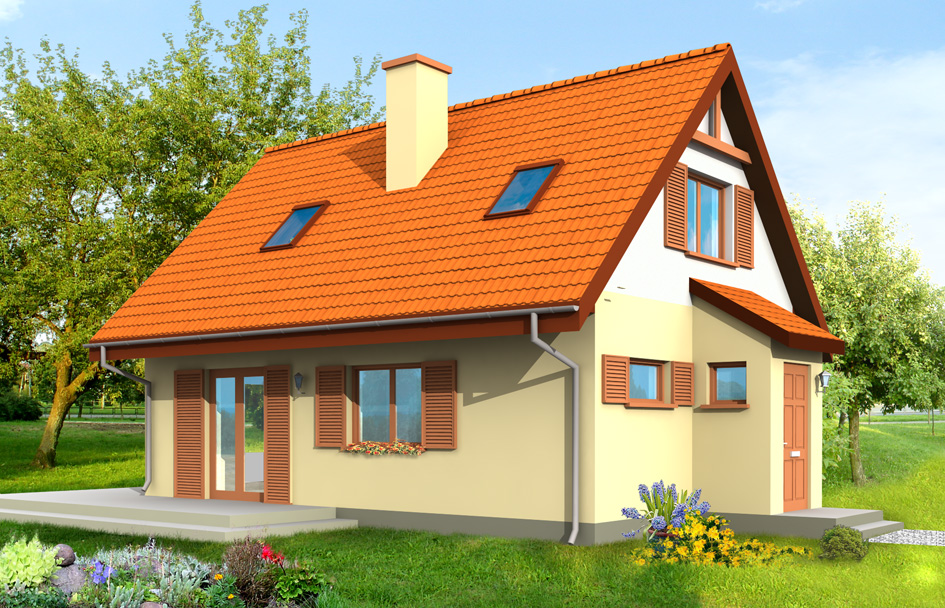

House plan Smyk - front visualization

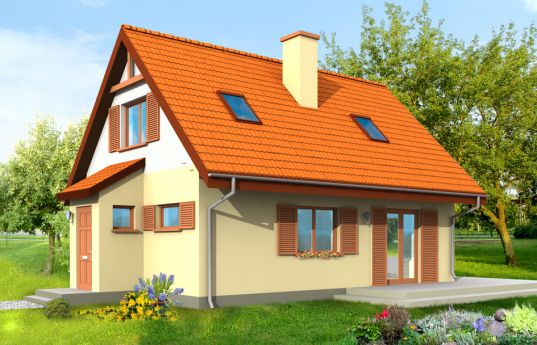

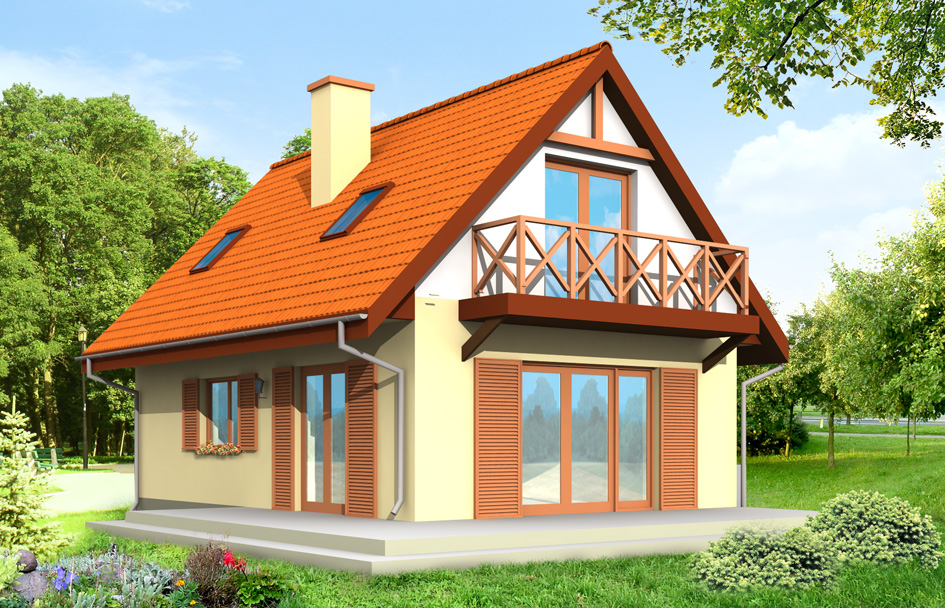

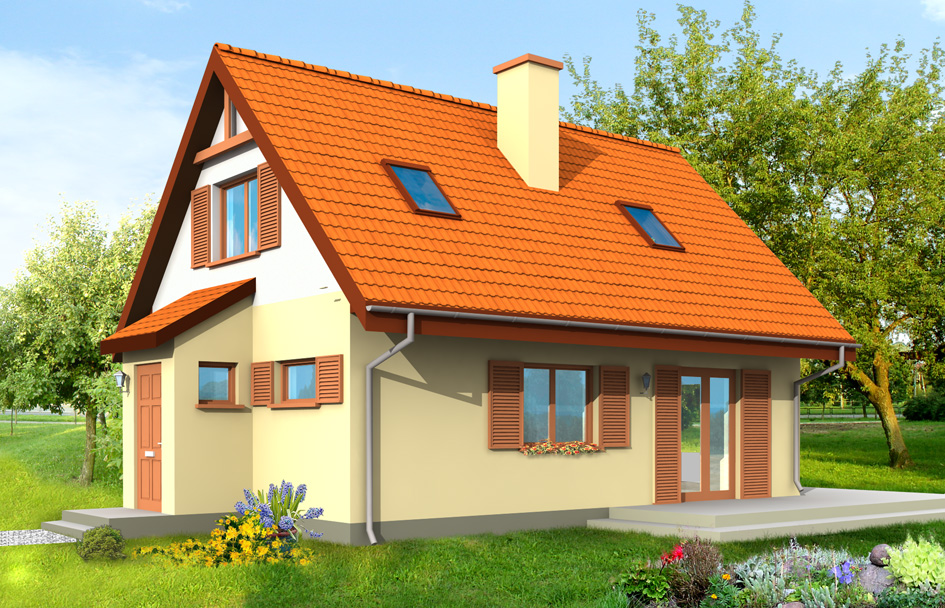

Show mirror image


Kid house is the building of a simple block with a gable roof. Detached house (or summer house), for a family of three to four people. Kid has an unpretentious architecture and functional interior. On the ground floor, besides the living room we designed large hall with stairs to the attic, kitchen and bathroom. At the attic there are two or three bedrooms. House, due to the simple design is inexpensive in construction and subsequent use. There is also a mirror version of the Kid house plan.

Specifications:
  • Cubature: 251 m3 / 8862,81 ft3
  • Built-up area: 59,24 m2 / 637,42 ft2
  • Total area: 93,21 m2 / 1002,94 ft2
  • Net area: 75,78 m2 / 815,07 ft2
  • Usable area:: 75,78 m2 / 815,07 ft2
  • Roof area: 112,31 m2 / 1208,46 ft2
  • Roof slope: 45 degrees
  • Height of the building: 7,07 m (7,37 m with foundation) / 23,19 ft (24,17 ft with foundation)
  • Wide of the building: 6,20 m / 20,34 ft
  • Length of the building: 10,37 m / 34,01 ft
  • Minimum plot width: 13,20 m / 43,30 ft
  • Minimum plot length: 18,37 m / 60,25 ft
  • Height of rooms: 2,61 m / 8,56 ft
Materials:
  • Foundations – poured reinforced concrete
  • External walls - aerated concrete 24 cm + polystyrene or porotherm 25 blocks + polystyrene
  • Ceiling -  wooden beams
  • Elevation - thin-layer acrylic plaster
  • Roof -  tile or meatal roofing tile






The costs of implementing:
The raw state open 13 600,00 EUR
The raw state closed 23 100,00 EUR
The cost of finishing works 28 900,00 EUR
Execution of turnkey home 51 900,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Smyk - detailed file

House plan Smyk - detailed file - mirror

Comment
Kid house plan 3195 Grażyna02
2012.10.12 1 Pozytywny komentarz Negatywny komentarz

I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.

Kid house plan 2371 Joanna Bielińska
2012.02.29 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Kid house plan 733 Kacpi
2012.02.16 0 Pozytywny komentarz Negatywny komentarz

Hi all, I see that this hause plan is very popular, I also chose this one and I do not regret the cottage is very cool and functional. Regards.
