Garage plan BG12

Usable area: 36 m2   /   The cost of the realization: 19 400 EUR

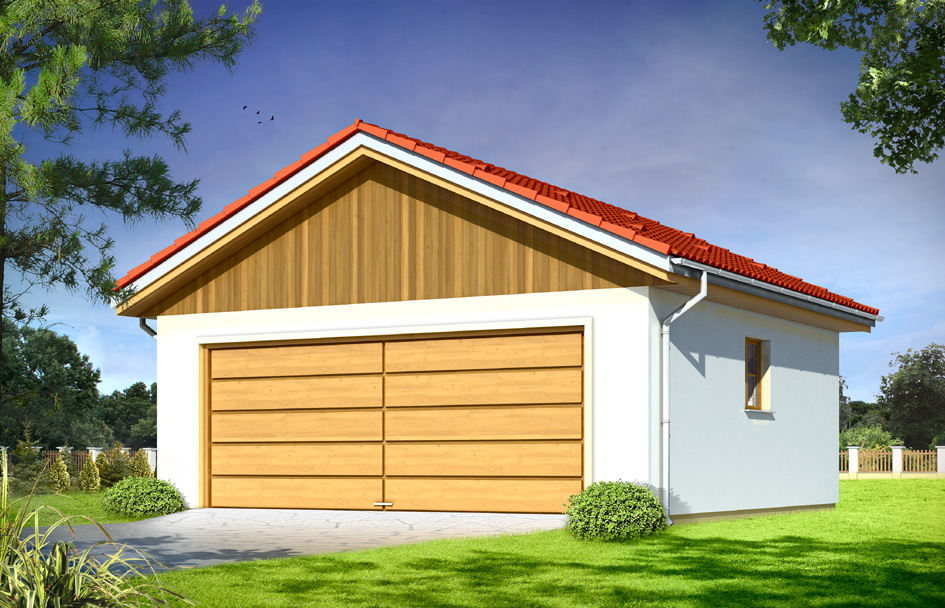

Garage BG12 - front visualization

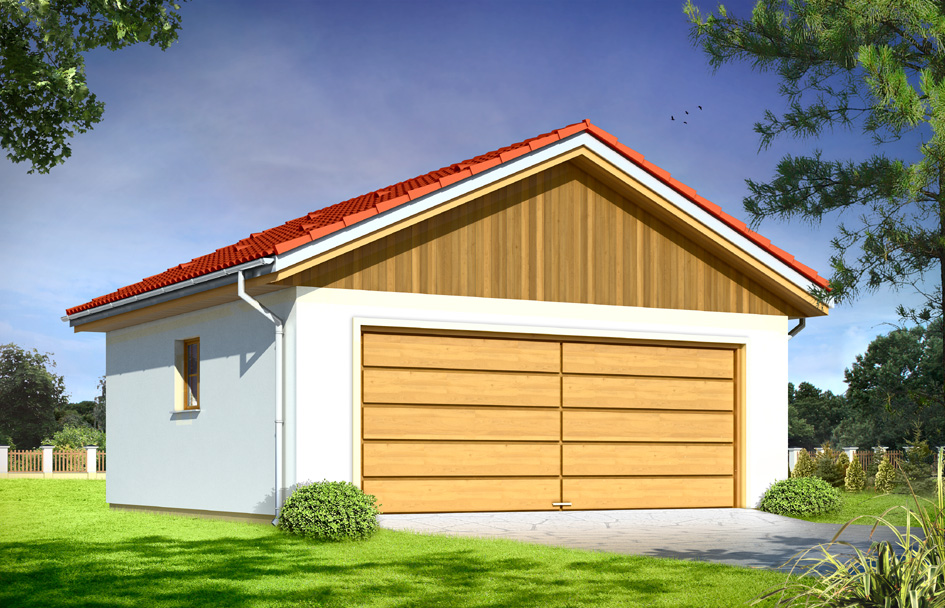

Show mirror image


Garage for two cars covered with a gable roof.

Specifications:
  • Cubature - 122 m3
  • Net area - 36,00 m2
  • Total area - 44,62 m2
  • Built-up area - 44,62 m2
  • Height of the building - 4,30 m / 14,10 ft
  • building dimensions - 6,68 x 6,68 m
  • Roof slope - 24 degrees
Materials:

• Foundations - concrete benches
• Foundation walls - blocks
• Walls - cellular concrete + polystyrene
• Roof trusses - wooden structure
• Elevation - thin-layer plaster
• Roof covering – tile




The costs of implementing:
The raw state open 8 000,00 EUR
The raw state closed 11 100,00 EUR
The cost of finishing works 8 400,00 EUR
Execution of turnkey home 19 400,00 EUR

Net notified costs, do not include VAT


Additions to the project:

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Garage BG12 - detailed file
