Usable area: 215.41 m2 / The cost of the realization: 187 700 EUR

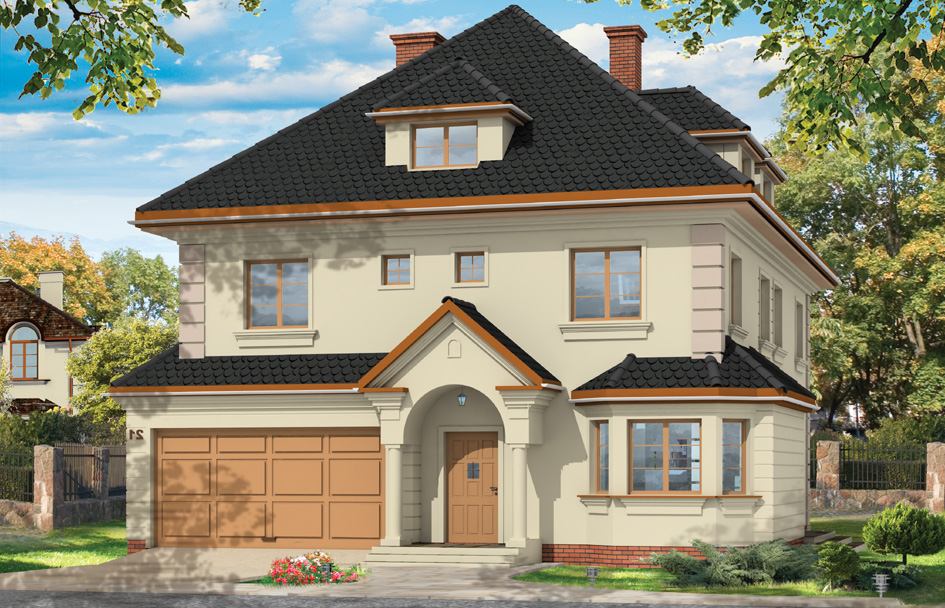

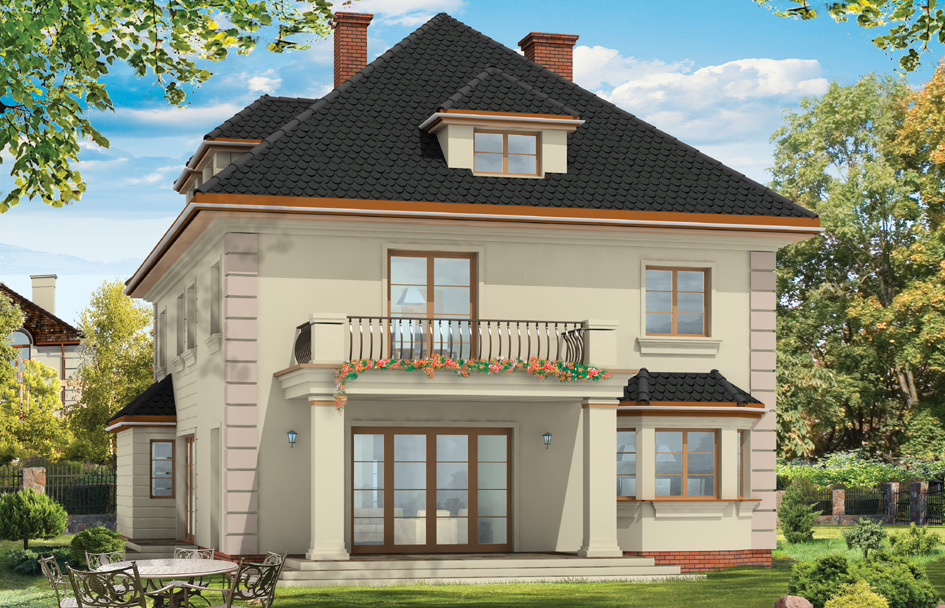

Show mirror image
Price: 1250 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

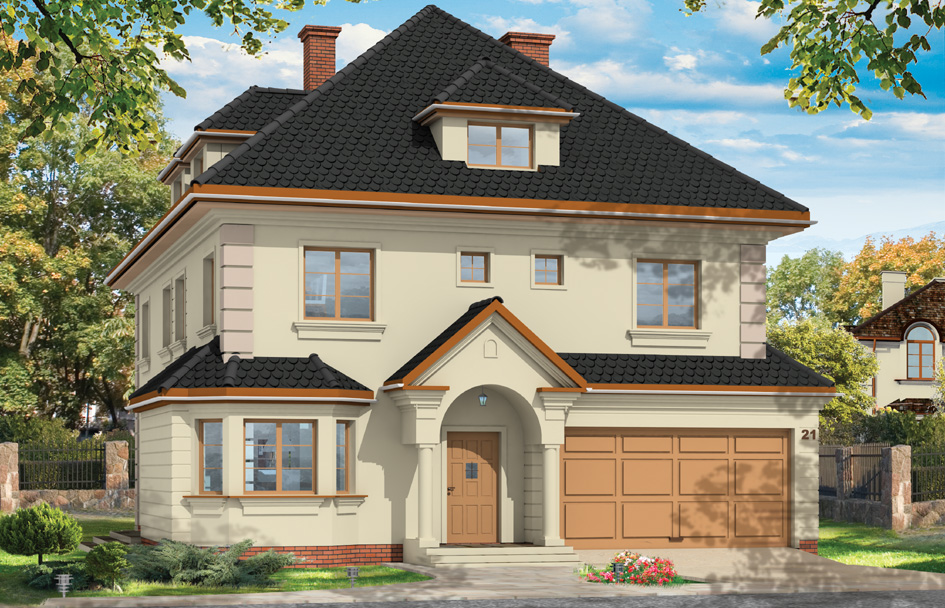

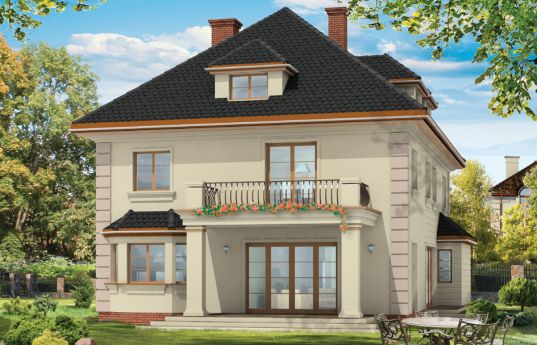

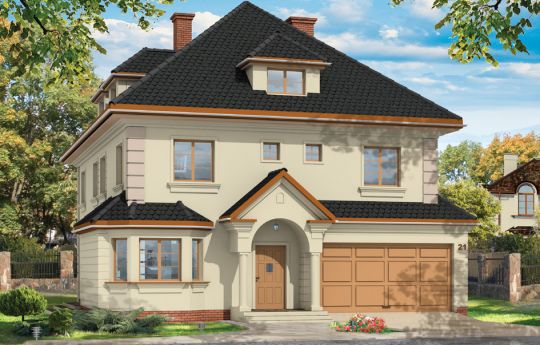

Agate house plan is particularly suited to small plots with a small possible building surface. Agate is a project of urban villa having architecture similar to prewar residence with classical details. The interior of house is an open living space on the ground floor and bedrooms on the first floor. The house has a large attic, which could serve as a utility attic. Noteworthy is in particular separate service entrance, which due to the proximity of the stairs can be used as a separate entrance to a separate apartment on the first floor. Agate house plan is also available in mirror versions.
Specifications:
- Cubature: 1218 m3 / 43007,58 ft3
- Built-up area: 173,28 m2 / 1864,49 ft2
- Total area: 412,71 m2 / 4451,52 ft2
- Net area: 232,14 m2 + attic + garage/ 2497,83 ft2 + attic + garage
- Usable area: 215,41 m2 + attic/ 2317,81 ft2 + attic
- Roof area: 301 m2 / 3238,76 ft2
- Roof slope: 40 degrees / 40 degrees
- Height of the building: 11,73 m (12,13 m with foundation)/ 38,47 ft (39,79 ft with foundation)
- Wide of the building: 12,9 m/ 42,31 ft
- Length of the building: 15,53 m / 50,94 ft
- Minimum plot width: 18,9 m/ 61,99 ft
- Minimum plot length: 24,63 m/ 80,79 ft
- Height of rooms: 3,0 i 2,6 m/ 9,84 and 8,53 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls – bilayer: porotherm + wool
• Internal walls - porotherm
• Ceiling - Teriva
• Elevation - thin-layer plaster
• Roof - tile
The costs of implementing:
| The raw state open | 65 400,00 EUR |
| The raw state closed | 94 200,00 EUR |
| The cost of finishing works | 93 600,00 EUR |
| Execution of turnkey home | 187 700,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Agate - detailed file
House plan Agate - detailed file - mirror
