Houze plan Dream 7

Usable area: 121.67 m2   /   The cost of the realization: 135 630 EUR

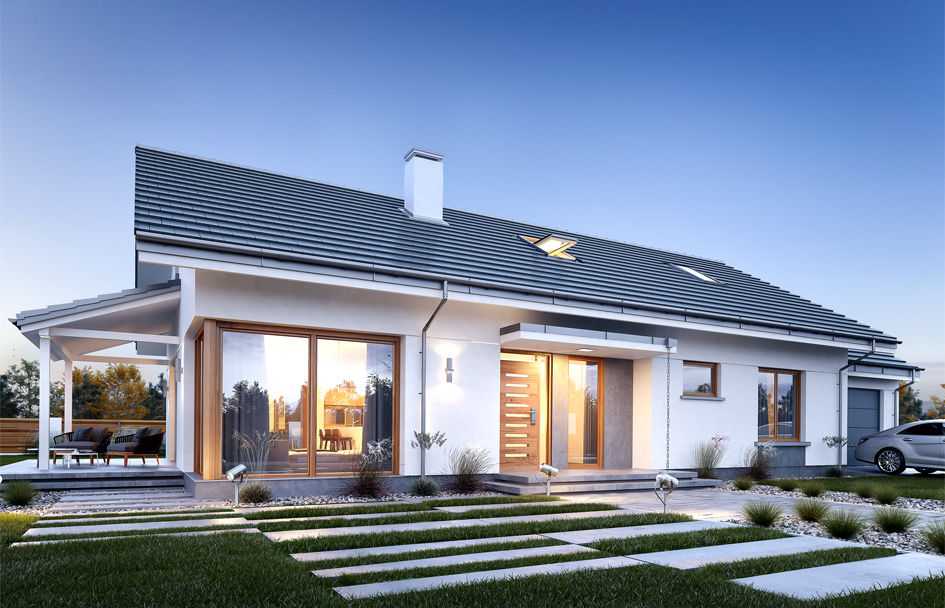

Projekt domu Wymarzony 7 - wizualizacja frontu

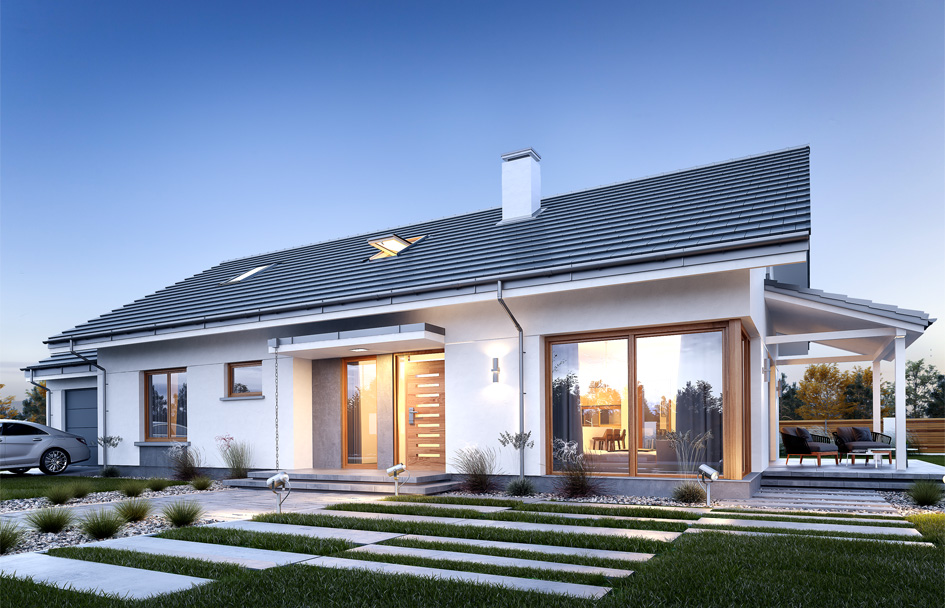

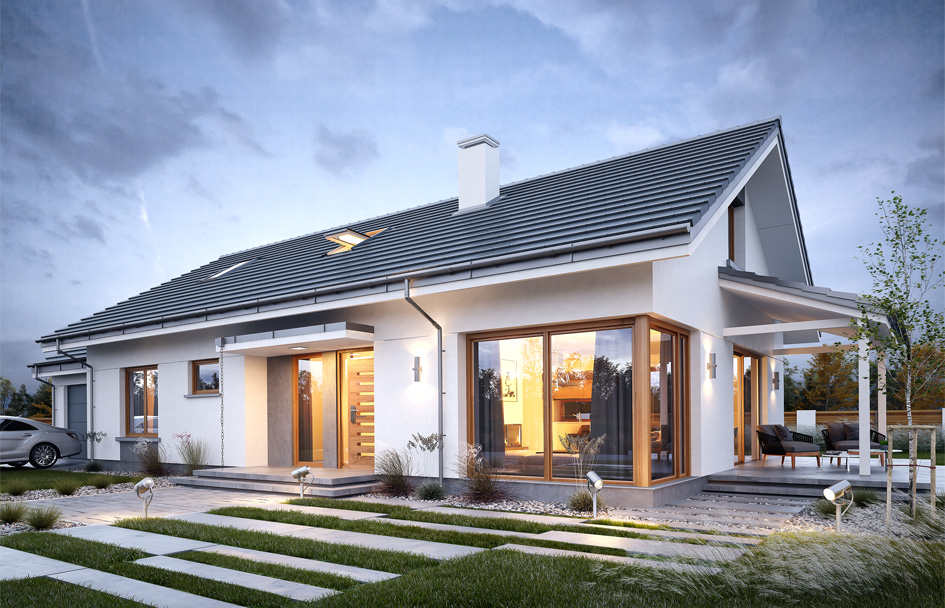

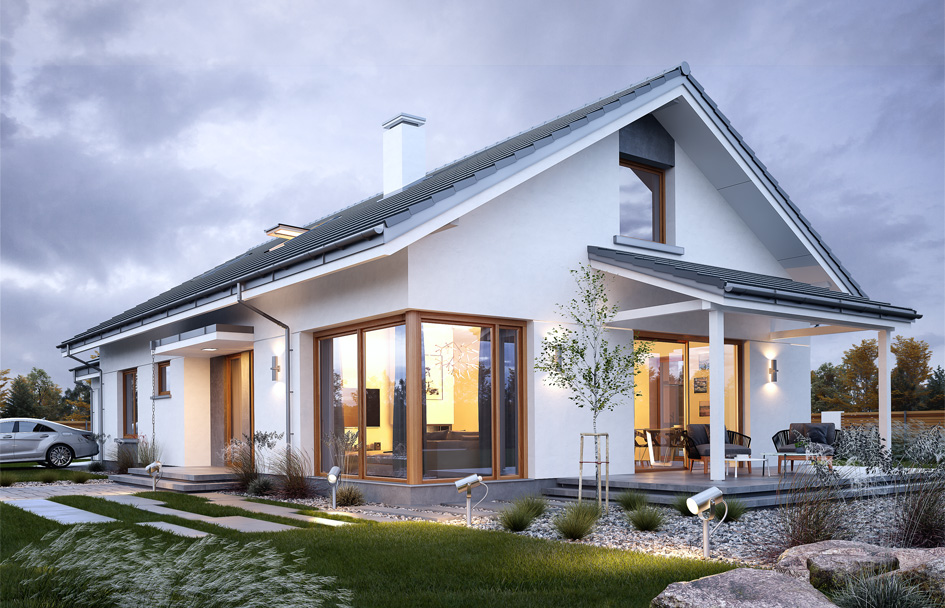

Show mirror image

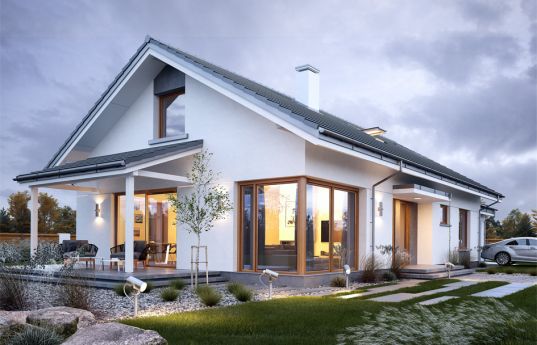

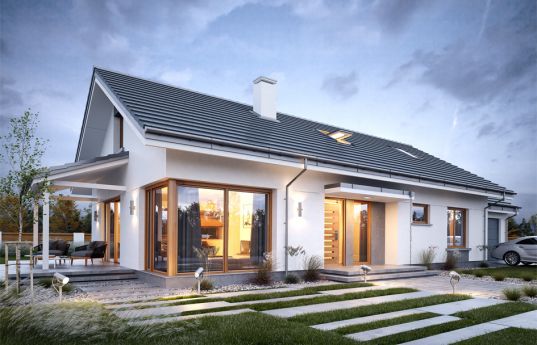

Dream 7 house plan is a project from a series of Dream houses. The building was designed as a one-story house with an attic - a sub-base for any development. A rectangular shape with a built-in garage was covered with two gable roofs with a slope angle of 30 degrees. The design has a modern style and combines a traditional shape with a classic roof, with modern finishing materials and details. The combination of white plastered walls with cladding imitating concrete, gray or graphite roof tiles, and wooden window frames, give the elegant and representative appearance of the building. The main stylistic details of the project are: entrance zone, with a roof and nice entrance doors, corner windows of the living room, partially covered garden terrace. The house is designed in such a way that the living room has lighting from three sides of the building, which allows locating the project on unfavourable plots - with entry from the south, with the garden on the side or even in front of the house (in the corner). Interior: Designing the interior we tried to meet basic task - arrange a comfortable interior with a living room and four rooms, as well as all necessary additional rooms. We enter the house with a comfortable vestibule right into the living area, with a living room, dining room, semi-enclosed kitchen. The kitchen is connected with a pantry, and a laundry room with an economic outlet to the back of the house. On the other side of the house we have three bedrooms, including a parents' bedroom with a wardrobe, a bathroom and an extra room - a study or an extra bedroom. Through a double door and an additional corridor, the house connects with the garage and boiler room. Above the ground floor there is an attic - an attic that can remain a non-usable attic (home storage), or it can be developed into utility rooms - according to the wishes and needs of the owners. Dream 7 house plan is a comfortable, comfortable home for a family of four and five - functional and practical. The building is energy-saving, has a simple construction, will be easy to build and cheap to maintain.

Specifications:
  • Cubature: 934 m3 / 32979,54 ft
  • Built-up area: 186,96 m2 / 2011,69 ft
  • Total area: 233,98 m2 / 2517,62 ft2
  • Net area: 128,67 m2 + garage 20,27 m2 + attic 50,36 m2 / 1384,49 ft2 + garage 218,11 ft2 + attic 541,87 ft2
  • Usable area: 121,67 m2 / 1309,17 ft2
  • Roof area: 290,7 m2 / 3127,93 ft
  • Roof slope: 30 degrees
  • Height of the building: 6,57 m (6,87 m with foundation) / 21,55 ft (22,53 ft with foundation)
  • Building dimensions: 21,67 x 10,30 m / 71,08 x 33,78 ft
  • Plot dimensions: 27,67 x 18,30 m / 90,76 x 60,02 ft
  • Height of rooms: 2,7 m / 8,86 ft
Materials:
  •        Foundations - concrete bench and foundation walls with concrete blocks
  •         External walls – brick walls – aerated 24 blocks + polystyrene + thin-layer plaster
  •         Ceiling - monolithic reinforced concrete
  •         Elevation - thin-layer plaster on polystyrene
  •         Roof - ceramic tile




The costs of implementing:
The raw state open 42 260,00 EUR
The raw state closed 66 830,00 EUR
The cost of finishing works 68 810,00 EUR
Execution of turnkey home 135 630,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



Projekt domu Wymarzony 7 - pliki szczegółowe

Projekt domu Wymarzony 7 - pliki szczegółowe- odbicie lustrzane
