Usable area: 181.11 m2 / The cost of the realization: 134 000 EUR
Show mirror image
Price: 1000 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (23) Detailed drawings
List of materials
Comments (3)

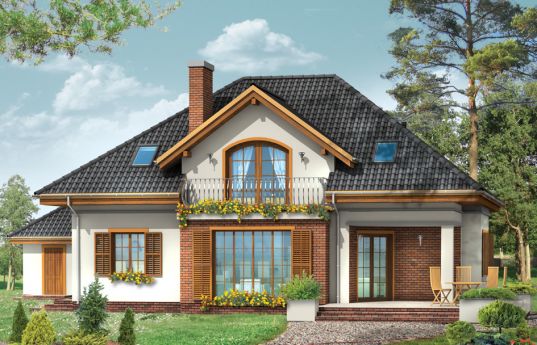

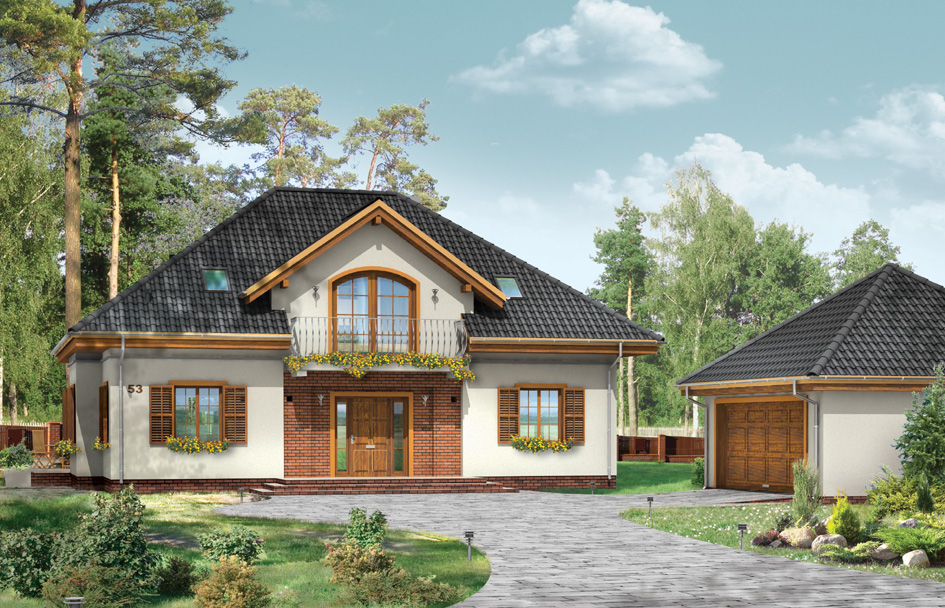

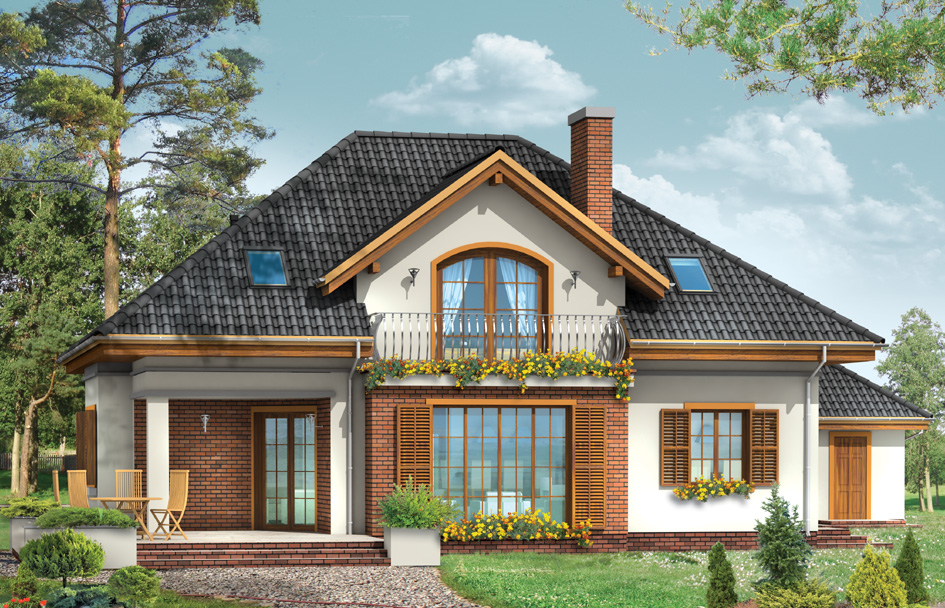

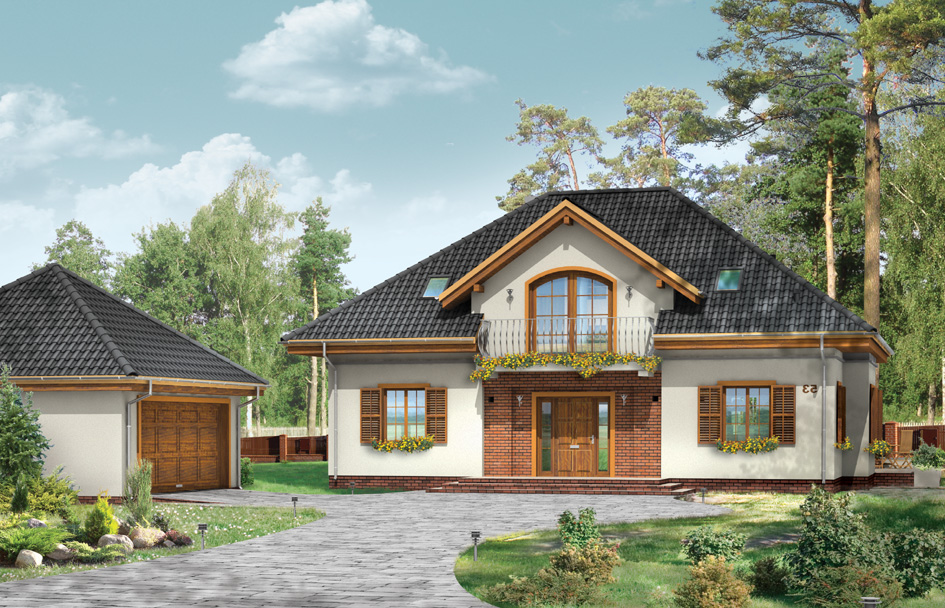

Philip house plan is full of charm single-family house with a detached garage for two cars. The building has an attractive lump of soft, hipped roof, which is adorned with a large dormer windows with balconies. The area of villa will be comfortable to live for the family of four. From the garden there is an arcade, on the ground floor in addition to a spacious living room with an open dining area an extra room - office room or guest bedroom was designed. On the top floor there are bedrooms with dressing room and a large comfortable bathroom. Detached garage refers to the architectural form of the building. There is a mirror version of this house plan.
Philip house design is available in a version without the garage - price 2 900,00 zł, and with a free-standing garage this project is dedicated to Philip house plan- price per set: house + garage 3 500,00 zł.
Specifications:
- Cubature: 719 m3 / 25387,89 ft3
- Built-up area: 135,2 m2 / 1454,75 ft2
- Total area: 231,15 m2 / 2487,17 ft2
- Net area: 187,26 m2 / 2014,92 ft2
- Usable area: 181,11 m2 / 1948,74 ft2
- Roof area: 235 m2 / 2528,60 ft2
- Roof slope: 36 and 38 degrees
- Height of the building: 8,12 m (8,54 m with foundation) / 26,63 ft (28,01 ft with foundation)
- Wide of the building: 13,87 m / 45,49 ft
- Length of the building: 11,32 m / 37,13 ft
- Minimum plot width: 21,87 m / 71,73 ft
- Minimum plot length: 19,32 m / 63,37 ft
- Height of rooms: 2,8 m / 9,18 ft
Materials:
• Foundations - Concrete benches, walls of concrete blocks
• External walls - bilayer: porotherm + polystyrene
• Internal walls – porotherm
• Ceiling – Teriva
• Roof – tile
• Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 45 700,00 EUR |
| The raw state closed | 67 900,00 EUR |
| The cost of finishing works | 66 200,00 EUR |
| Execution of turnkey home | 134 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Philip - detailed file
House plan Philip - detailed file - mirror
Garage BG 100 - detailed file
