Usable area: 173.56 m2 / The cost of the realization: 167 700 EUR
Show mirror image
Price: 1000 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

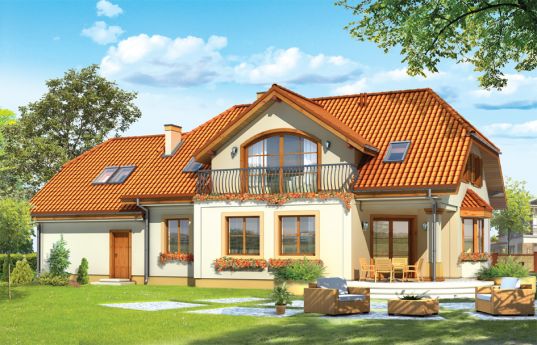

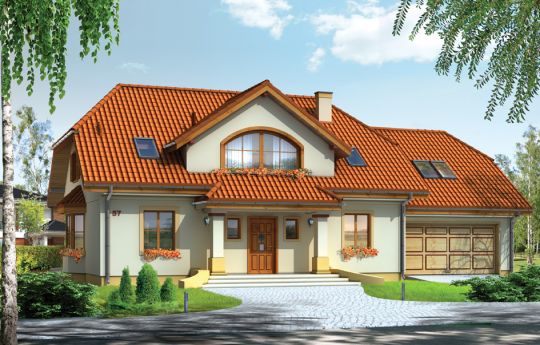

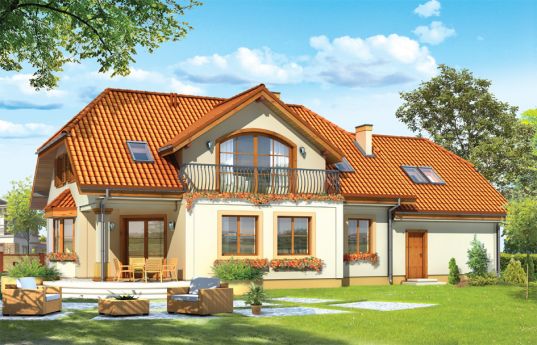

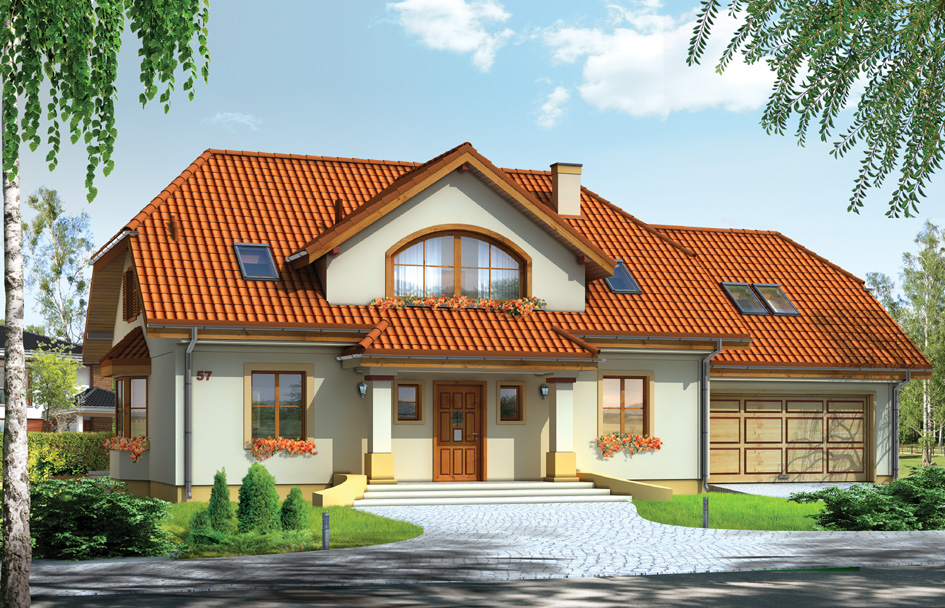

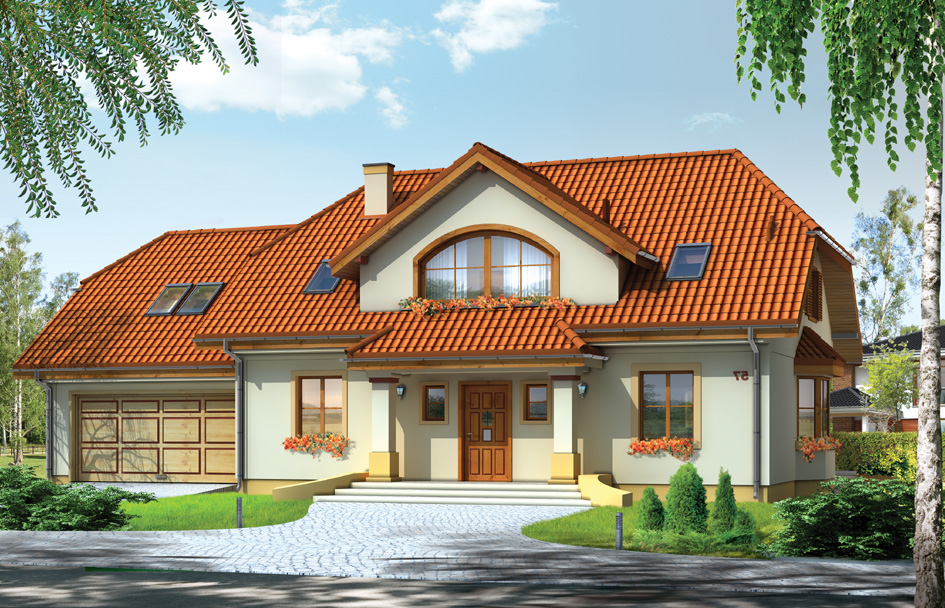

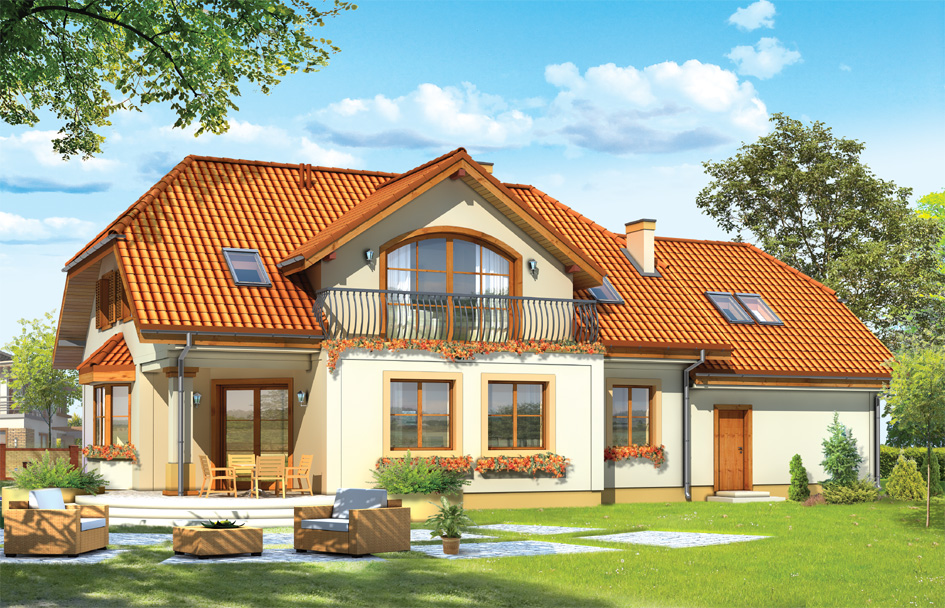

Focus 2 house plan is the next variant version of the Focus house plan - with double garage and an extended attic over the garage part. The building has been planned for a family of four-six people. Storey house with usable attic, covered by symmetrical gable roofs. Outside architecture of the house refers to the tradition of Polish manor house - in the modern sense. Compact form of house with an added garage part is decorated with a large front and rear dormers and balconies and with roofed entrance on the massive columns. Corner arcade from the garden is a diversity of the rectangular floor plan. The interior of the Focus 2 house plan creates one space on the ground floor living area, which consists of: living room, a dining room, a large hall with exposed stairs, and partly open kitchen. On the ground floor there are two additional rooms and a garage for two cars and a boiler room. On the top floor you will find three comfortable bedrooms with dressing rooms, spacious bathroom, and an attic, which can also be adapted for utility purposes. There is also a mirror version of the Focus 2 house plan.
Specifications:
- Cubature: 898,8 m3/ 31736,62 ft3
- Built-up area : 182,2 m2/ 1960,47 ft2
- Total area: 310,4 m2/ 3339,90 ft2
- Net area: 255,5 m2 + garage/ 2749,18 ft2 + garage
- Usable area: 173,56 m2/ 1867,51 ft2
- Roof area: 290,8 m2/ 3129,01 ft2
- Roof slope: 34, 38 and 45 degrees
- Height of the building: 7,87 m (8,27 m with foundation)/ 25,81 ft (27,13 ft with foundation)
- Wide of the building: 19,15 m/ 62,81 ft
- Length of the building: 11,5 m/ 37,72 ft
- Minimum plot width: 27,15 m/ 89,05 ft
- Minimum plot length: 19,15 m/ 62,81 ft
- Height of rooms: 2,7 m/ 8,86 ft
Materials:
• Foundations - concrete benches and foundation walls with concrete blocks
• Exterior walls - brick walls - airbrick porotherm 25 + polystyrene + thin-layer plaster
• Ceiling – TERIVA
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 63 000,00 EUR |
| The raw state closed | 91 200,00 EUR |
| The cost of finishing works | 76 600,00 EUR |
| Execution of turnkey home | 167 700,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Focus 2 - detailed file
House plan Focus 2 - detailed file - mirror
