Usable area: 142.2 m2 / The cost of the realization: 144 200 EUR

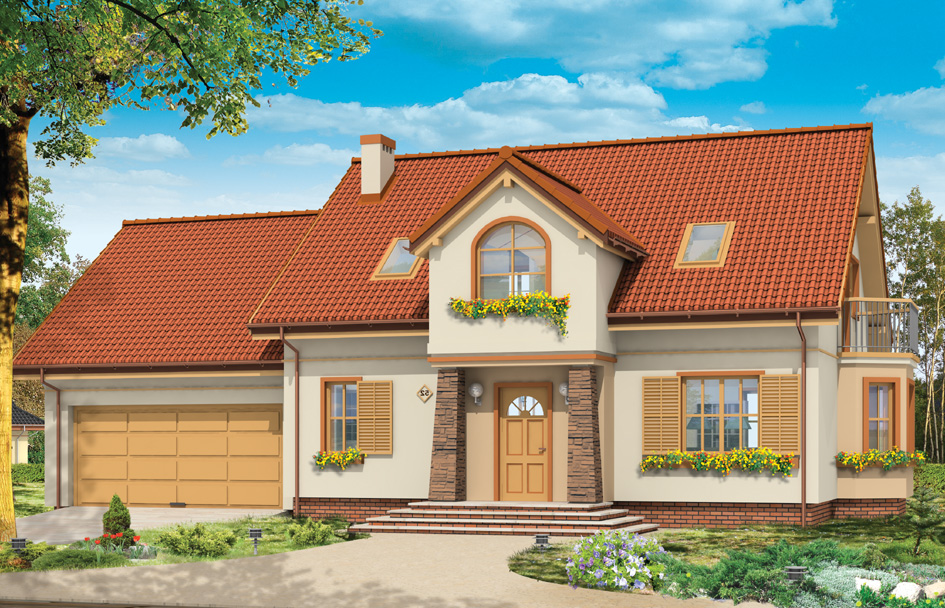

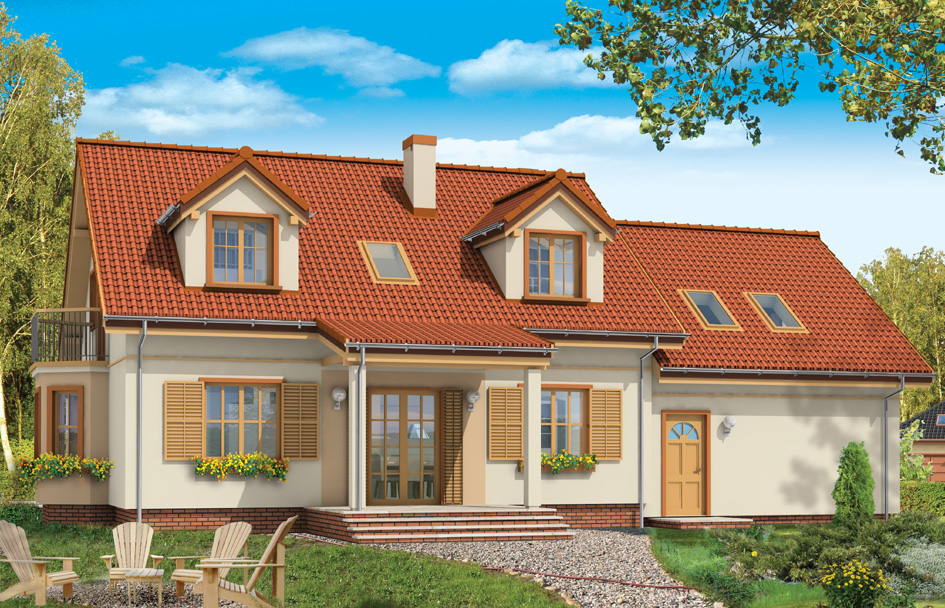

Show mirror image
Price: 1040 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (10) Detailed drawings
List of materials
Comments (3)

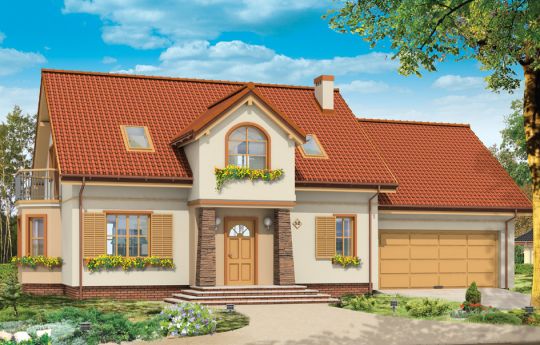

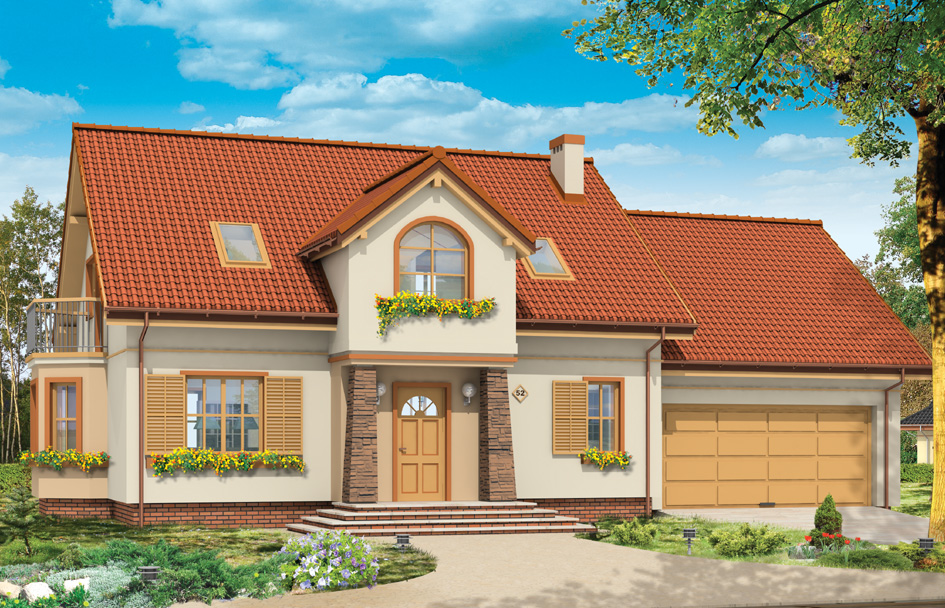

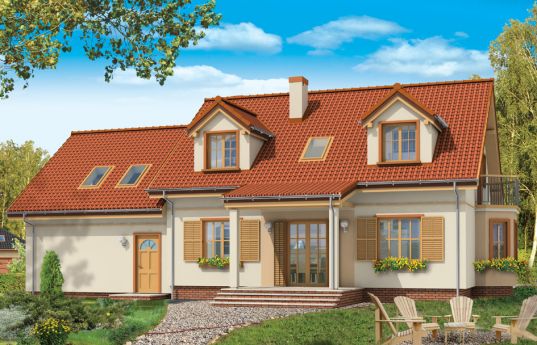

Natty 5 is variant version of one of the most popular projects of our stuido i.e. Natty house plan. This house plan has a garage for two cars and an extensive residential part. On the ground floor is designed living room with dining area, kitchen, and an additional room - a bedroom or office. In the attic there are three spacious bedrooms with en-suite bathrooms, and a large, universal room above the garage. By raising the elbow walls in the attic rooms are larger. Dormers allowed placement the windows in each room. The house is a reasonable proposition for a family of 4 to 6 people. You can also live in this house with your grandparents. Large garage with utility room is an additional advantage of this project. You can also order a mirror version of this house plan.
Specifications:
- Cubature: 811 m3 / 28636,41 ft3
- Built-up area: 163,91 m2 / 1763,67 ft2
- Total area: 280,55 m2 / 3018,72 ft2
- Net area: 158,40 m2 + garage 34,56 m2 + attic 26,87 m2 / 1704,38 ft2 + garage 371,87 ft2 + attic 289,12 ft2
-
Usable area:
- 142,20 m2 (wg PN-70/B-02365) / 1530,07 ft2 (wg PN-70/B-02365)
- 158,40 m2 + garage 34,56 m2 (wg PN-ISO 836:1997) / 1704,38 ft2 + garage 371,87 ft2 (wg PN-ISO 836:1997)
- Roof area: 262 m2 / 2819,12 ft2
- Roof slope: 38 degrees
- Height of the building: 7,87 m (8,27 m with foundation) / 25,81 ft (27,12ft with foundation)
- Wide of the building: 18,75 m / 61,5 ft
- Length of the building: 10,01 m / 32,83 ft
- Minimum plot width: 26,75 m / 87,74 ft
- Minimum plot length: 18,83 m / 61,76 ft
- Height of rooms: 2,68 m / 8,79 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – porotherm blocks + polystyrene
- Ceiling - Teriva
- Roof - tile
- Elevation - thin-layer plaster on polystyrene
The costs of implementing:
| The raw state open | 52 700,00 EUR |
| The raw state closed | 73 900,00 EUR |
| The cost of finishing works | 70 400,00 EUR |
| Execution of turnkey home | 144 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Natty 5 - detailed file
House plan Natty 5 - detailed file - mirror
