Garage plan BG20

Usable area: 60 m² / The cost of the realization: 33 600 EUR

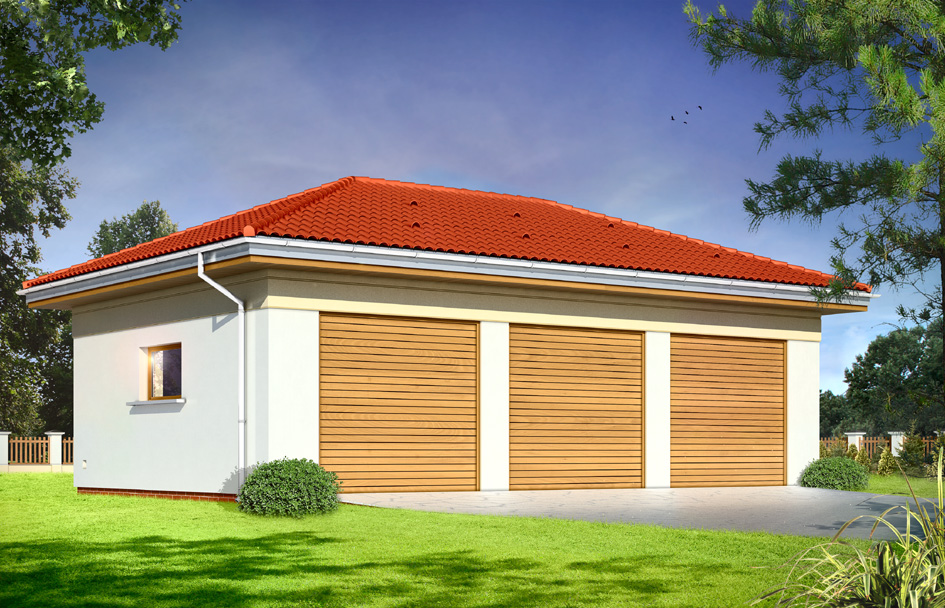

Show mirror image

Price: 330 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Variants (0) Detailed drawings List of materials Comments (0)

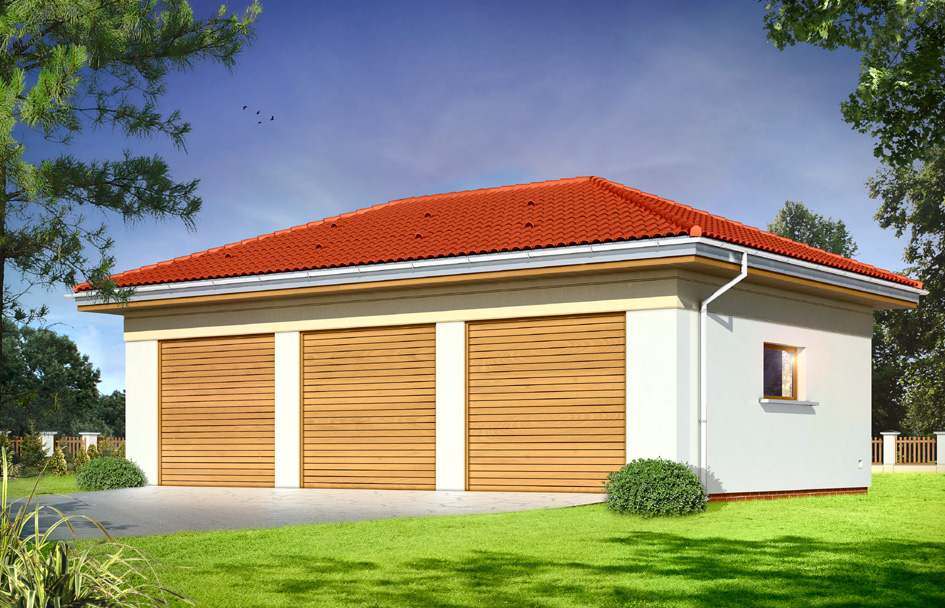

Garage for three cars covered with a hipped roof.

Specifications:

Cubature - 300 m³
Net area - 60,00 m²
Total area - 73,44 m²
Built-up area - 73,44 m²
Height of the building - 4,97 m / 16,30 ft
building dimensions - 10,80 x 6,80 m
Roof slope - 22 degrees

Materials:

• Foundations - concrete benches
• Foundation walls - blocks
• Walls - cellular concrete + polystyrene
• Roof trusses - wooden structure
• Elevation - thin-layer plaster
• Roof covering – tile

The costs of implementing:

The raw state open	13 800,00 EUR
The raw state closed	19 200,00 EUR
The cost of finishing works	14 500,00 EUR
Execution of turnkey home	33 600,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Projekt Garażu BG20 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
