Garage plan BG23

Usable area: 61.47 m² / The cost of the realization: 24 260 EUR

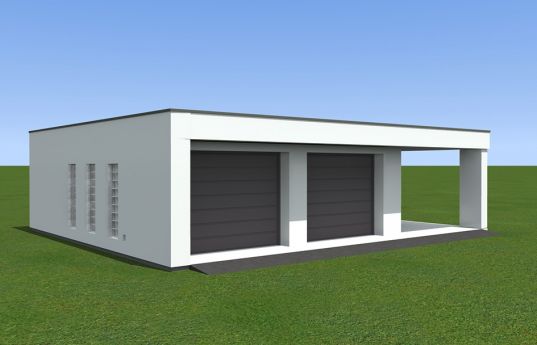

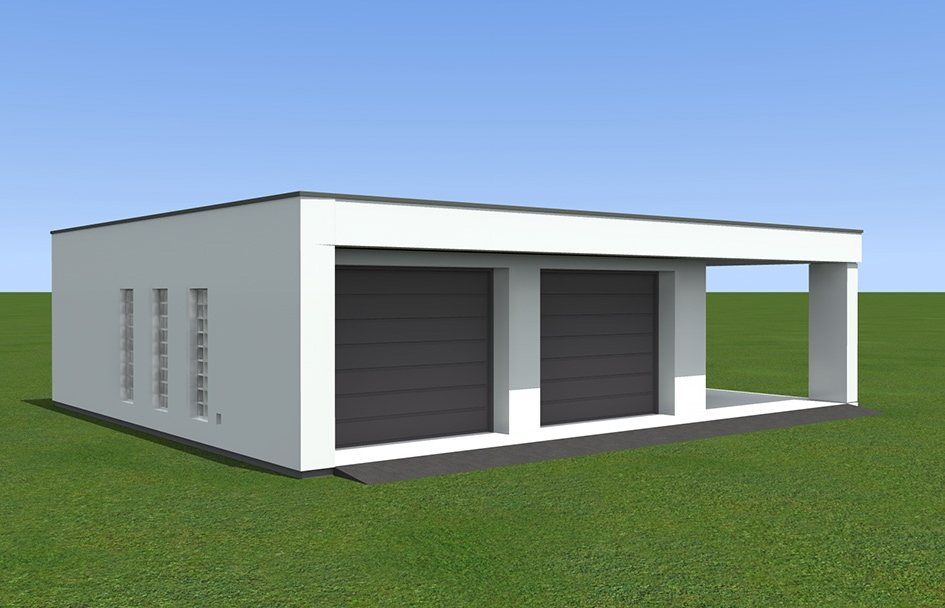

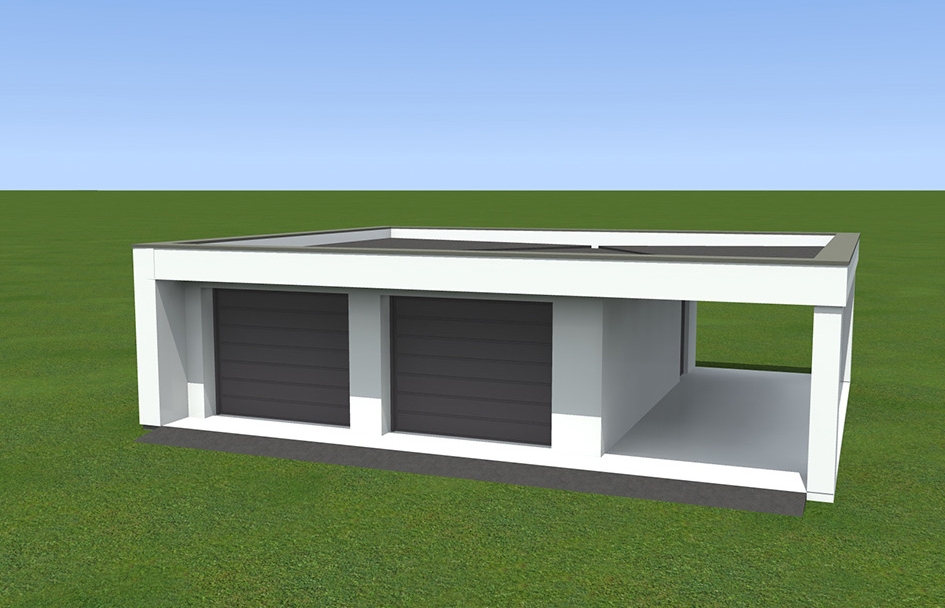

Show mirror image

Price: 350 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Variants (0) Detailed drawings List of materials Comments (0)

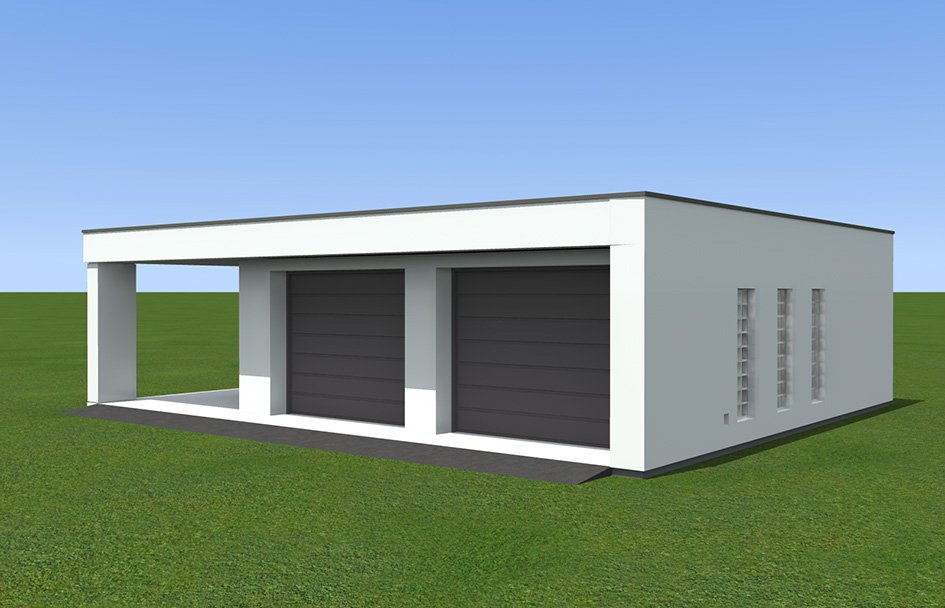

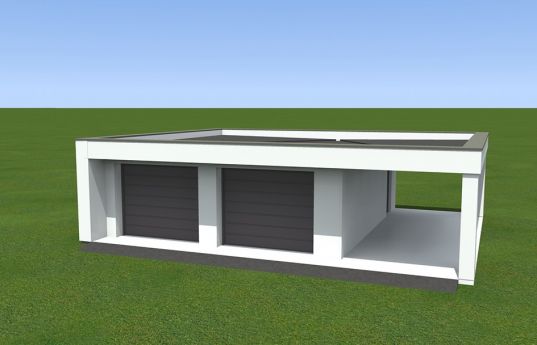

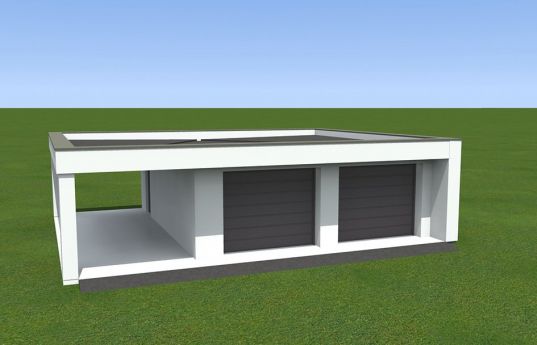

Garage for two cars covered with a flat roof with an additional position in the carport.

Specifications:

Cubature - 340 m³
Net area - 61,47 m²
Total area - 73,30 m²
Built-up area - 73,30 m²(113,44 m²⁾
Height of the building - 3,40 m/ 11,15 ft
Building dimensions - 8,20 (11,70) x 9,70 m
Roof slope - flat roof

Materials:

Foundations - concrete benches and foundation walls with concrete blocks
Walls - porotherm + polystyrene
Ceiling - reinforced concrete slab
Roof - Top membrane
Elevation - thin-layer plaster

The costs of implementing:

The raw state open	9 950,00 EUR
The raw state closed	13 590,00 EUR
The cost of finishing works	10 680,00 EUR
Execution of turnkey home	24 260,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Garaż BG23 - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

Garaż BG23 - pliki szczegółowe

Garaż BG23 - pliki szczegółowe - odbicie lustrzane
