Abode house plan

Usable area: 202.12 m2   /   The cost of the realization: 188 300 EUR

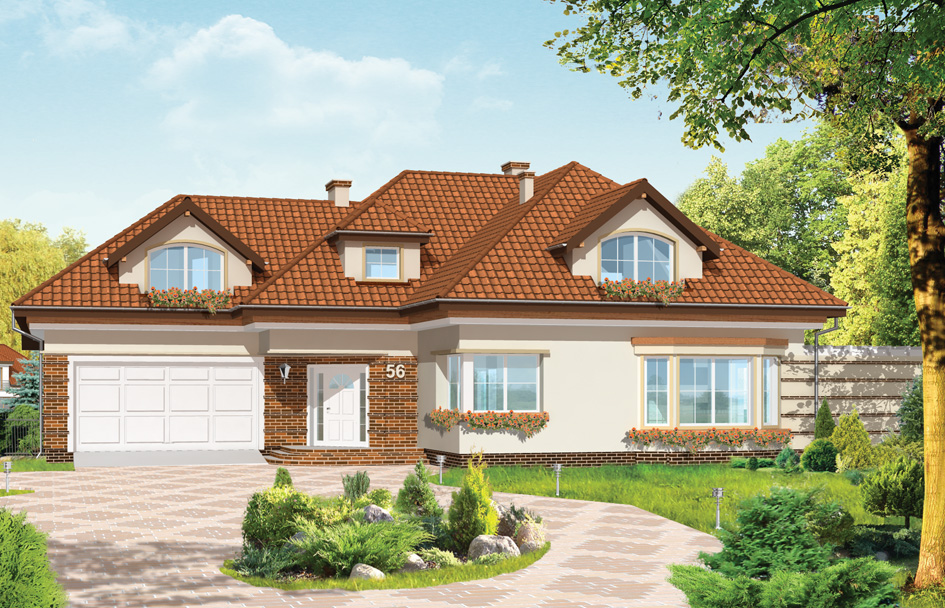

House plan Abode - front visualization

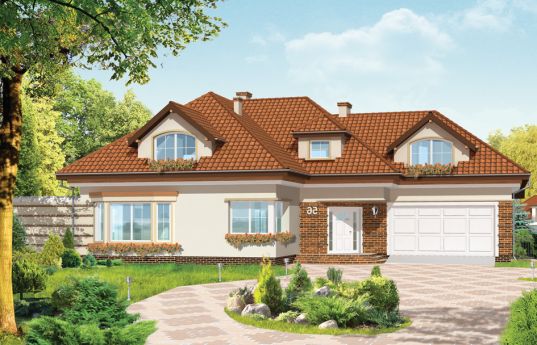

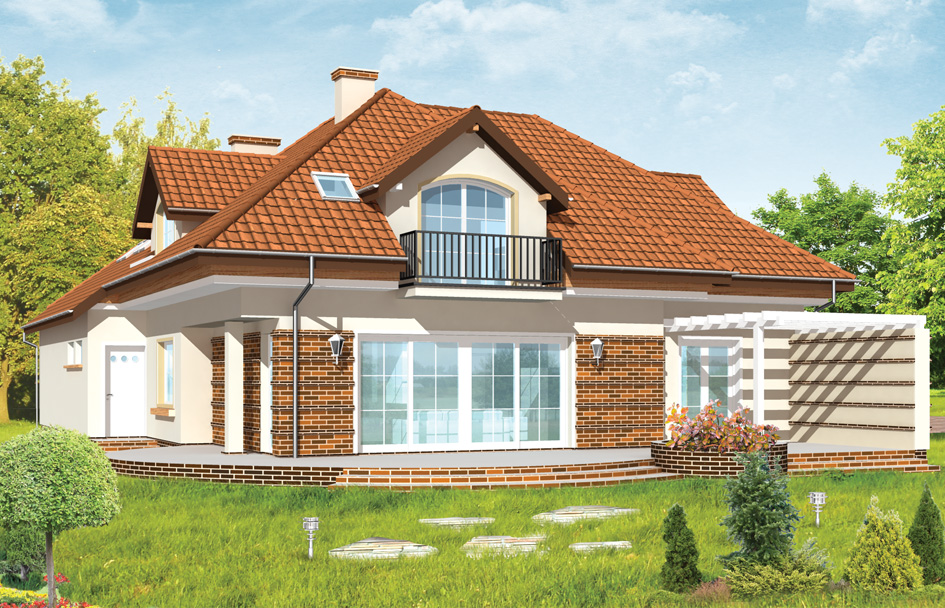

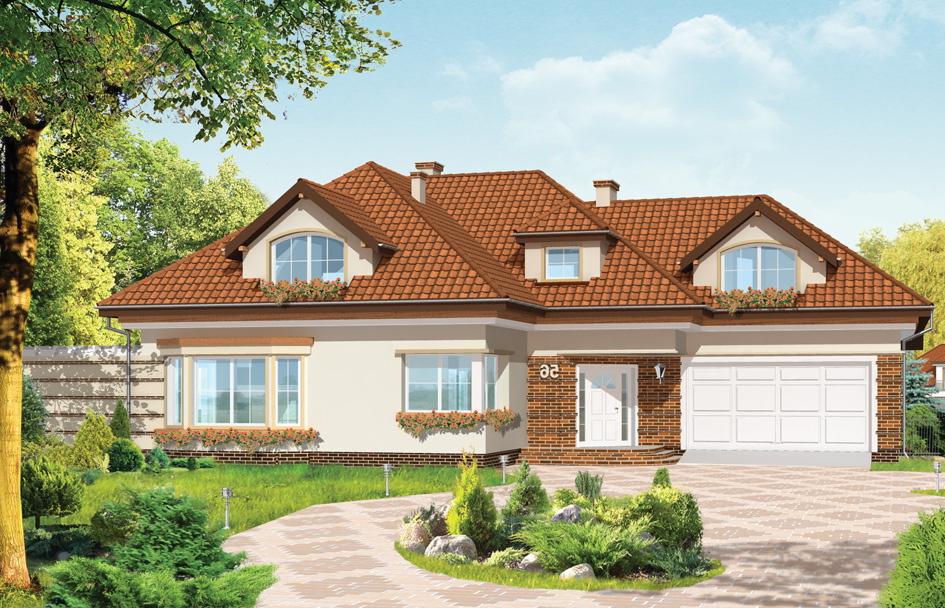

Show mirror image

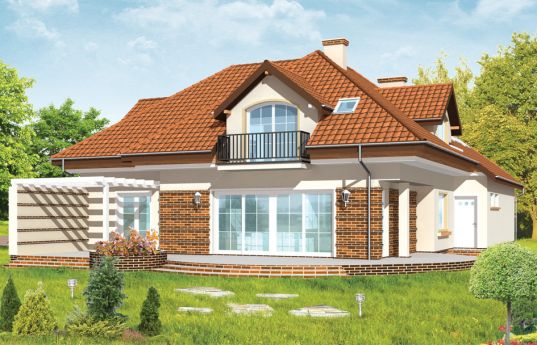

Abode house plan, is a comfortable house for a family of 4-5 people. It combines elements of traditional architecture with modern facilities. Attractive, extended solid with dormer windows with bay window, dining room, terrace with pergola, or arcade entrance are combined into a harmonious whole. It gives the impression of stability and peace. The interior of house Abode with a comfortable entrance hall entrance, nice lobby with stairs treatment rooms, a large open living room to the garden - is functional and interesting. In addition, we designed a room on the ground floor and comfortable bedrooms in the attic - with separate apartment parents - complete the whole. The building is large, but its interiors are logically designed and thought out - without wasting space. There is also available mirror version of this house plan.

  • Cubature: 998 m3 / 35239,38 ft3
  • Built-up area: 219,5 m2 / 2361,82 ft2
  • Total area: 360,95 m2 / 3883,82 ft2
  • Net area: 264,98 m2 + garage / 2851,18 ft2 + garage
  • Usable area: 202,12 m2 / 2174,81 ft2
  • Roof area: 400 m2 / 4304,00 ft
  • Roof slope: 38 degrees
  • Height of the building: 8,81 m (9,21 m with foundation) / 28,90 ft (30,21 ft with foundation)
  • Wide of the building: 19,67 m / 64,52 ft
  • Length of the building: 15,38 m / 50,45 ft
  • Minimum plot width: 27,67 m / 90,76 ft
  • Minimum plot length: 22,38 m / 73,41 ft
  • Height of rooms: 3,00 m / 9,84 ft
  • Foundations – concrete
  • External walls –  brick walls –porotherm + polystyrene
  • Ceiling - Teriva
  • Roof -  tile or meatal roofing tile


The costs of implementing:
The raw state open 59 700,00 EUR
The raw state closed 89 300,00 EUR
The cost of finishing works 99 000,00 EUR
Execution of turnkey home 188 300,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Abode - detailed drawings

House plan Abode - detailed file - mirror

Abode house plan 2365 Francisco1
2012.03.23 0 Pozytywny komentarz Negatywny komentarz

Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.

Abode house plan 713 kamiladarska
2012.02.14 0 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Abode house plan 714 Francisco1
2012.02.14 0 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.
