Usable area: 213.45 m2 / The cost of the realization: 170 900 EUR
Show mirror image
Price: 1110 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (37) Detailed drawings
List of materials
Comments (3)

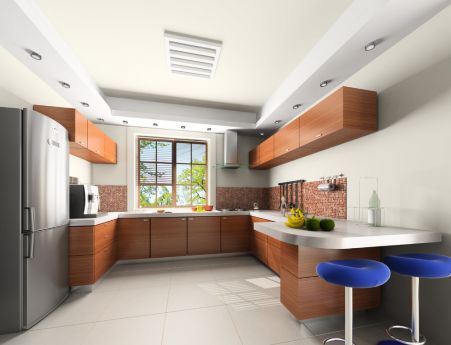

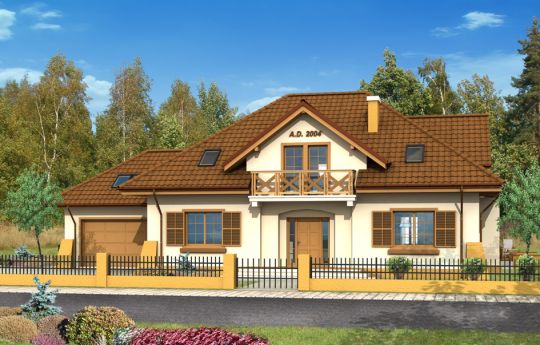

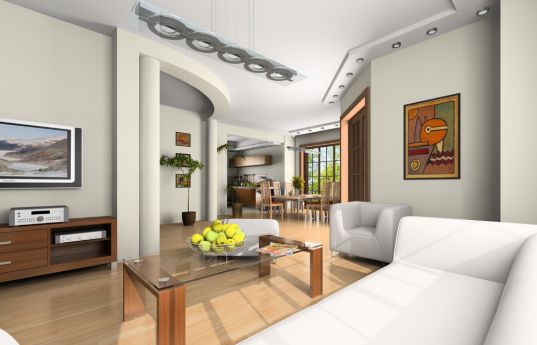

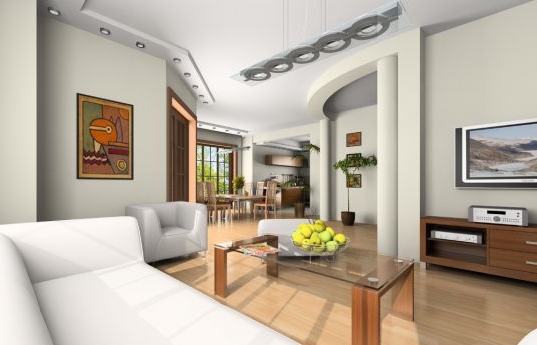

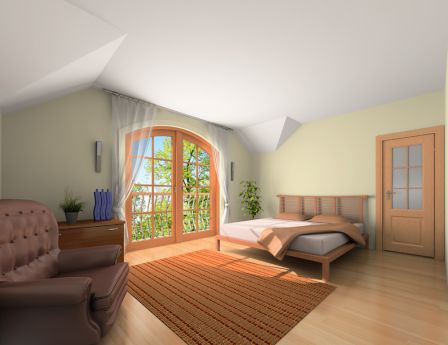

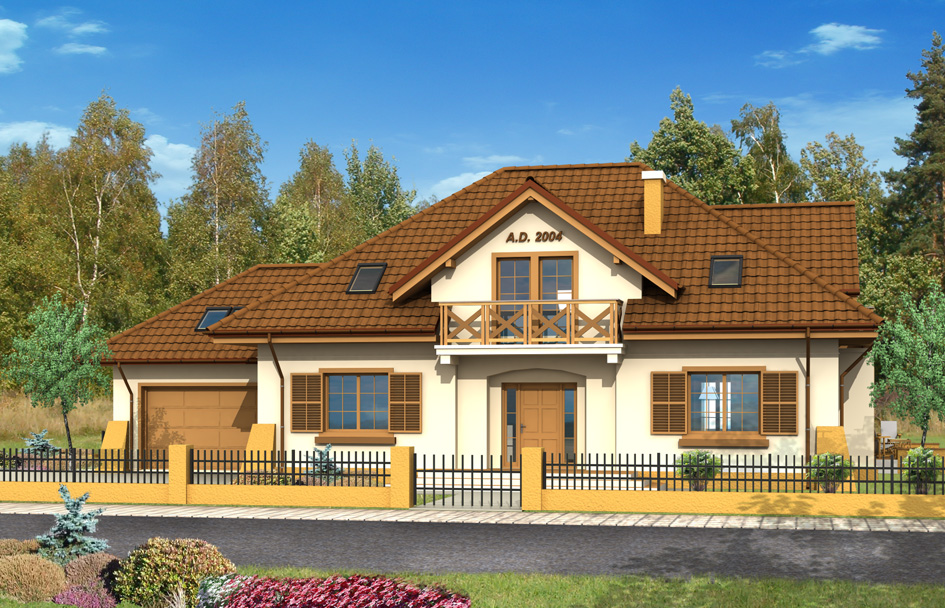

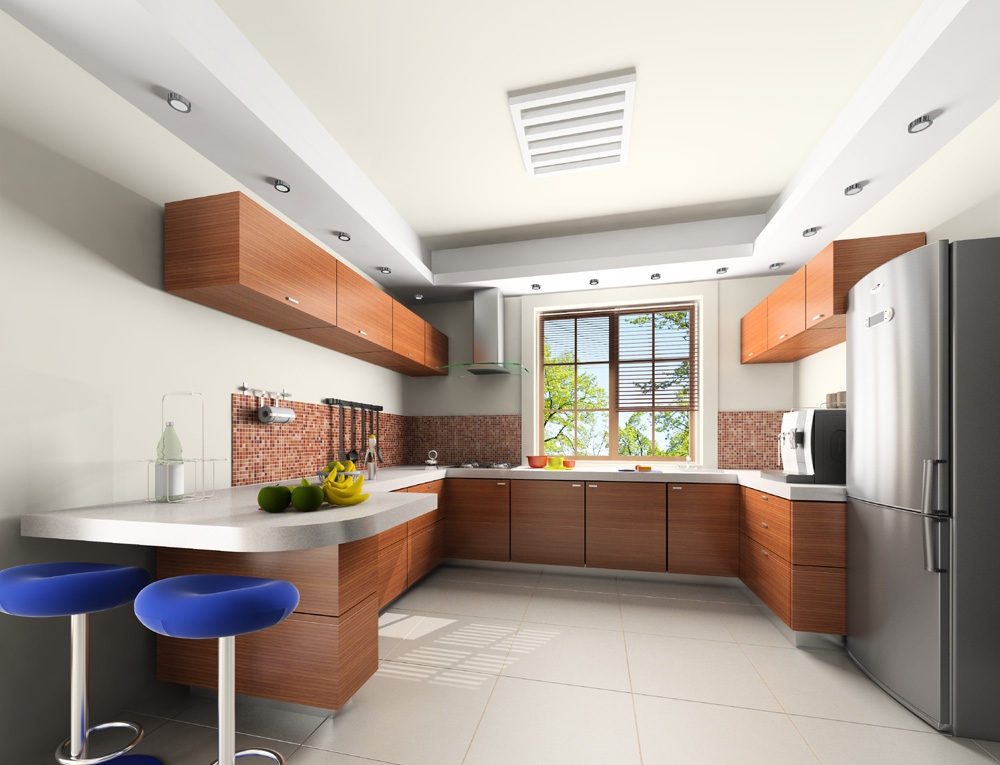

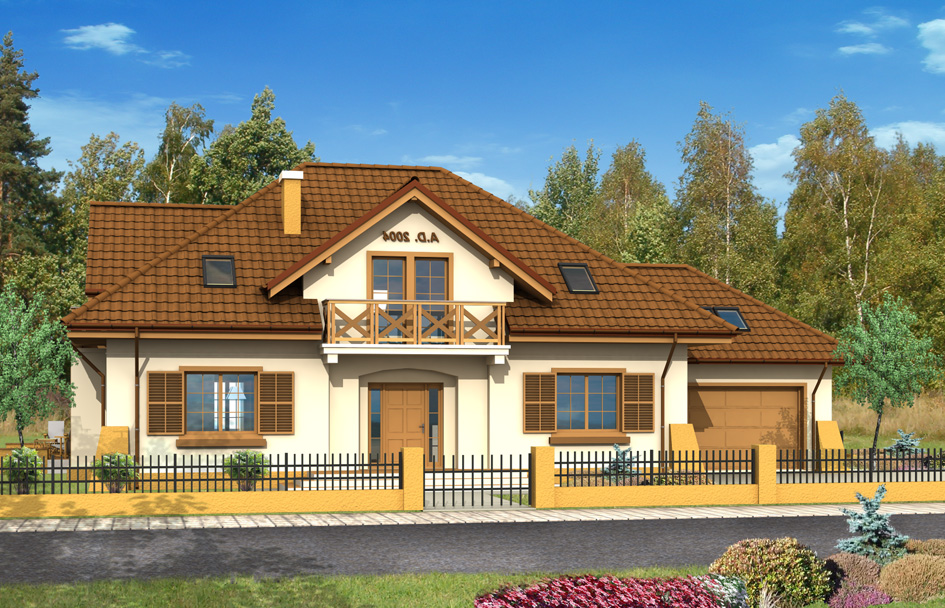

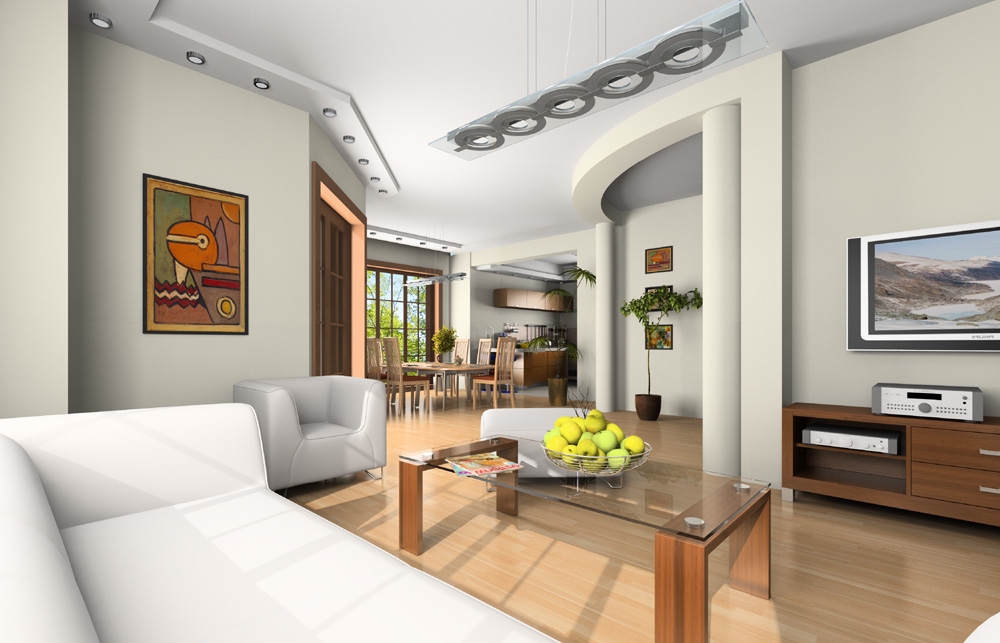

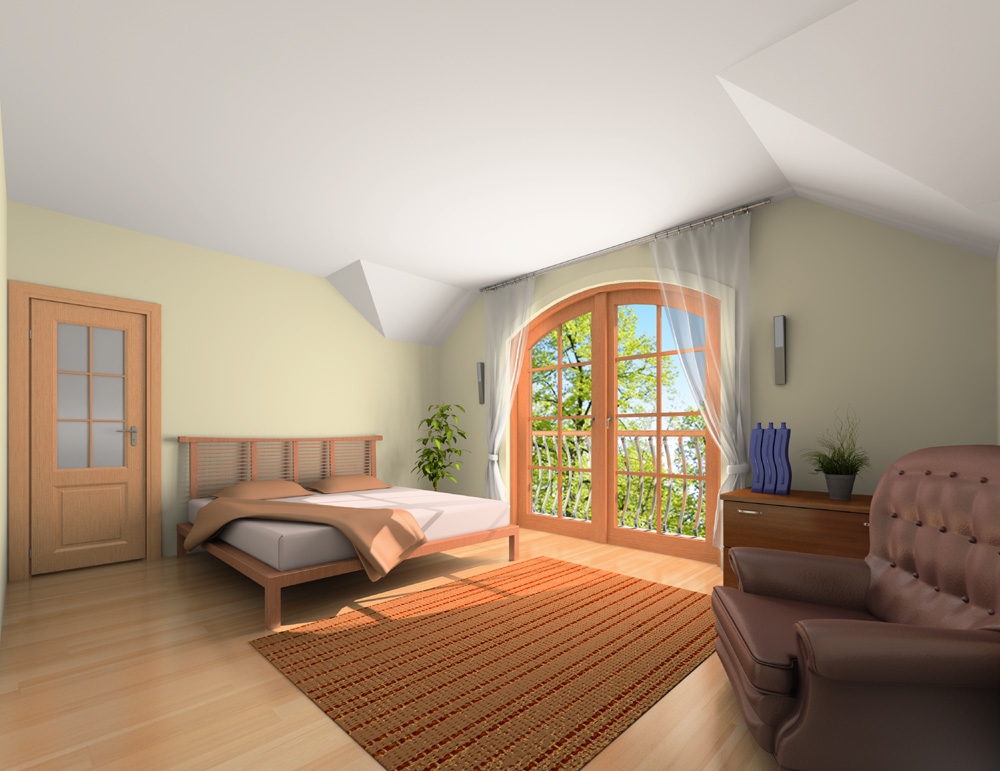

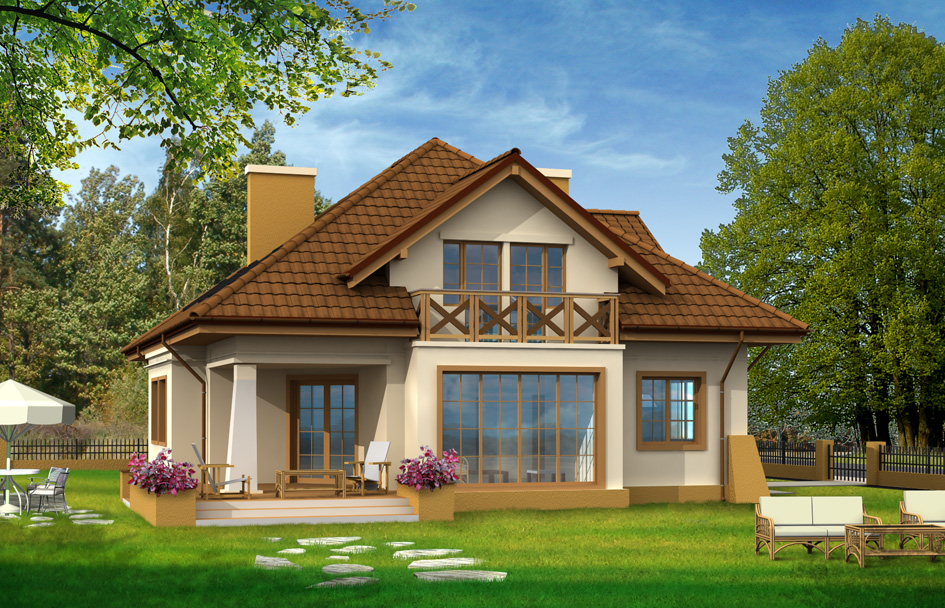

Benedict house plan is a large, elegant family house referring to the residence architecture - but in more modern terms. Broad, centrally located home entrance emphasize axial division of the front facade. The body of building was covered with large, hip roof, interesting dormer windows cut by great balconies. Inside the Benedict house a large lobby with a lounge, separate dining room and a large lockable kitchen was planned. On the ground floor there is a study and a technical room and a garage for two cars. In the attic you can find the parents' bedroom with its own dressing room and bathroom as well as three children bedrooms and a bathroom. In this house plan the attic above the garage can be adapted for additional storage room. We has also a mirror version of this project. There is also a version of the Benedict house plan with the facade on the columns instead of the balcony.
Specifications:
- Cubature: 962 m3/ 33968,22 ft3
- Built-up area: 199,12 m2/ 2142,53 ft2
- Total area: 324,09 m2/ 3487,21 ft2
- Net area: 273,74 m2/ 2945,44 ft2
- Usable area: 213,45 m2/ 2296,72 ft2
- Roof area: 371 m2/ 3991,96 ft2
- Roof slope: 36 degrees
- Height of the building: 8,41 m (8,81 m with foundation) / 27,59 ft (28,90 ft with foundation)
- Wide of the building: 21,23 m / 69,63 ft
- Length of the building: 12,2 m / 40,02 ft
- Minimum plot width: 28,23 m / 92,60 ft
- Minimum plot length: 20,2 m / 66,26 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
- Foundations - poured concrete
- External walls - aerated concrete 24or brick blocks of porotherm 25 or U220 + polystyrene 12 cm
- Ceiling - reinforced concrete Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - ceramic tile, metal roofing tile
The costs of implementing:
| The raw state open | 56 800,00 EUR |
| The raw state closed | 85 900,00 EUR |
| The cost of finishing works | 85 100,00 EUR |
| Execution of turnkey home | 170 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Benedict - detailed file
House plan Benedict - detailed file - mirror
