Usable area: 232.51 m2 / The cost of the realization: 185 800 EUR
Show mirror image
Price: 1110 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (1)
Realizations (15) Detailed drawings
List of materials
Comments (3)

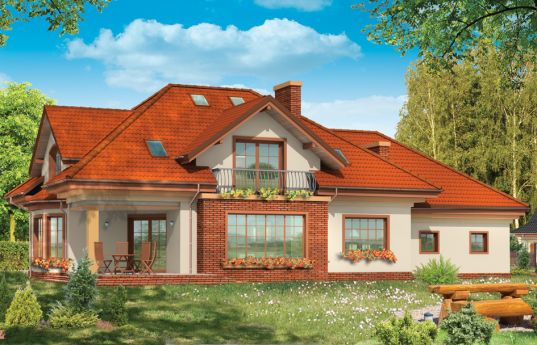

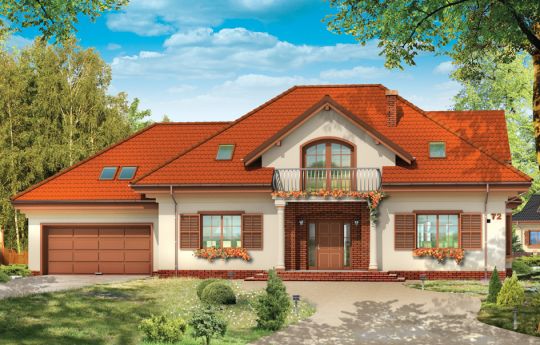

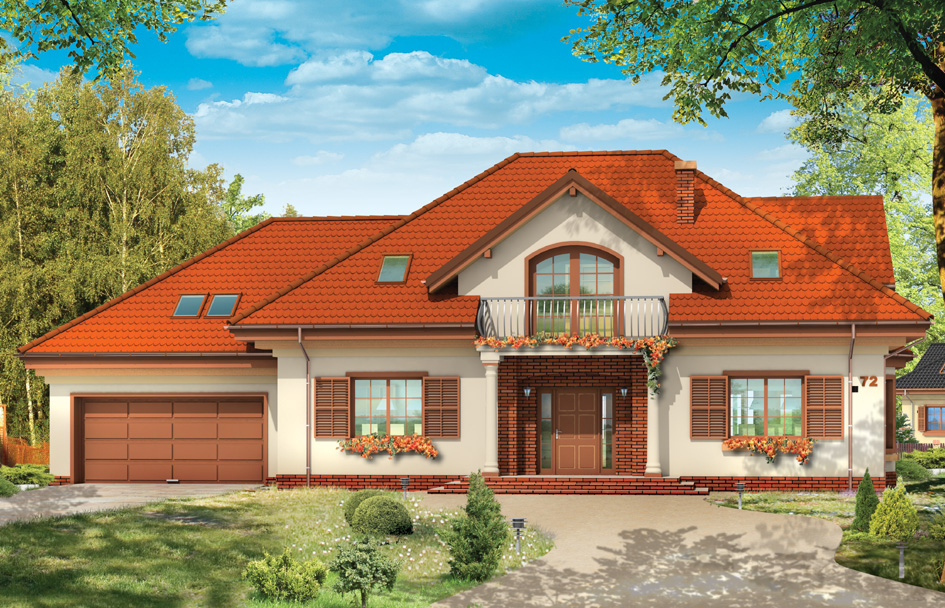

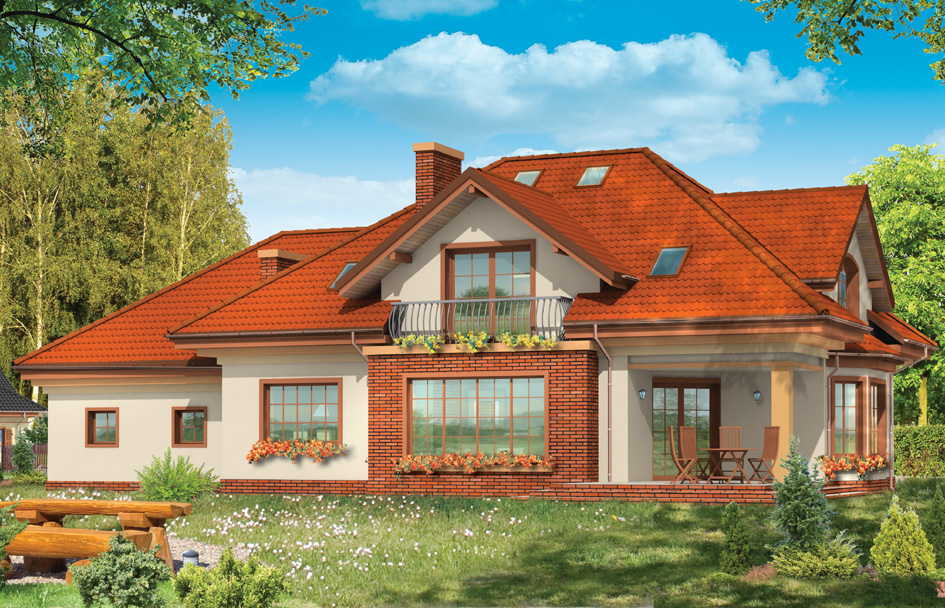

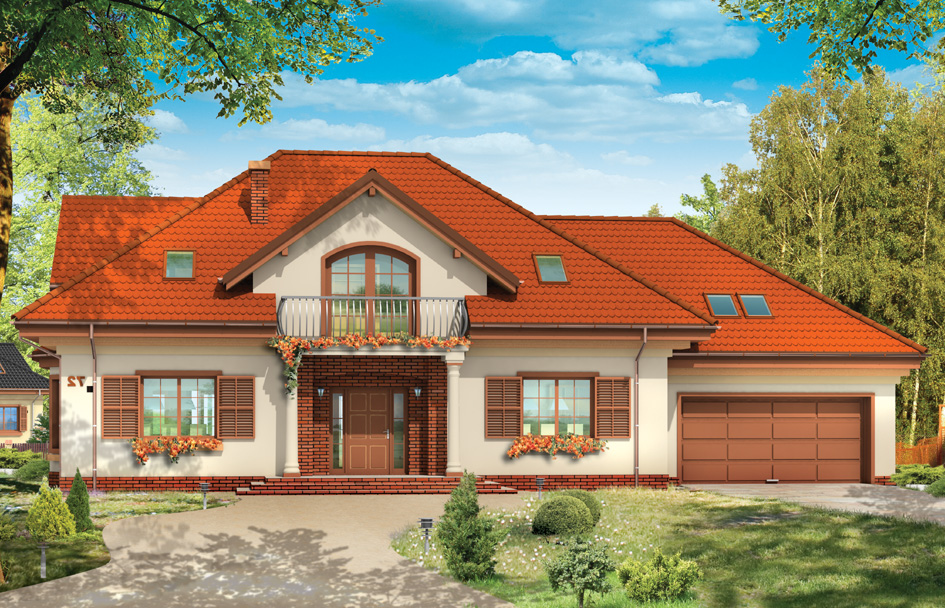

Benedict 5 house plan is the next edition of the popular house plan Benedict. From the basic version of the Benedict 5 differs double garage, three dormer windows on the top floor, facing on each side of the building. Benedict 5 has additionally columned entrance with the little balcony, and a bay window in the dining room. In this house plan by increasing the garage part and transfer the boiler room an extra room on the ground floor has been obtained. In the attic, above the garage a large recreation part was designed. The attic is greater than in the basic version of the house plan, by increasing the height of the elbow walls. There is also a mirror version of the Benedict 5 house plan.
Specifications:
- Cubature: 998 m3/ 35239,38 ft3
- Built-up area: 221,96 m2/ 2388,29 ft2
- Total area: 366,04 m2/ 3938,59 ft2
- Net area: 260,05 m2 + garage / 2809,98 ft2 + garage
-
Usable area:
- 232,51 m2 by PN-70/B-02365/ 2501,81 ft2 by PN-70/B-02365
- 266,28 m2 + garage by PN-ISO 9836:1997/ 2865,17 ft2 + garage by PN-ISO 9836:1997
- Roof area: 362 m2/ 3895,12 ft2
- Roof slope: 36 and 38 degrees
- Height of the building: 8,58 m (8,98 m with foundation) / 28,14 ft (29,45 ft with foundation)
- Wide of the building: 21,65 m / 71,01 ft
- Length of the building: 12,38 m / 40,61 ft
- Minimum plot width: 28,95 m / 94,96 ft
- Minimum plot length: 21,09 m / 69,17 ft
- Height of rooms: 2,6 i 2,8 m / 8,53 ft and 9,18 ft
Materials:
• Foundations - Concrete benches and walls of concrete blocks
• External walls - bilayer porotherm + wool
• Internal walls - porotherm
• Ceiling - Teriva
• Elevation - thin-layer plaster
• Roof – tile
The costs of implementing:
| The raw state open | 69 200,00 EUR |
| The raw state closed | 99 900,00 EUR |
| The cost of finishing works | 86 000,00 EUR |
| Execution of turnkey home | 185 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Benedict 5 - detailed file
House plan Benedict 5 - detailed file - mirror
