Ladybug 2 house plan

Usable area: 57.38 m² / The cost of the realization: 65 300 EUR

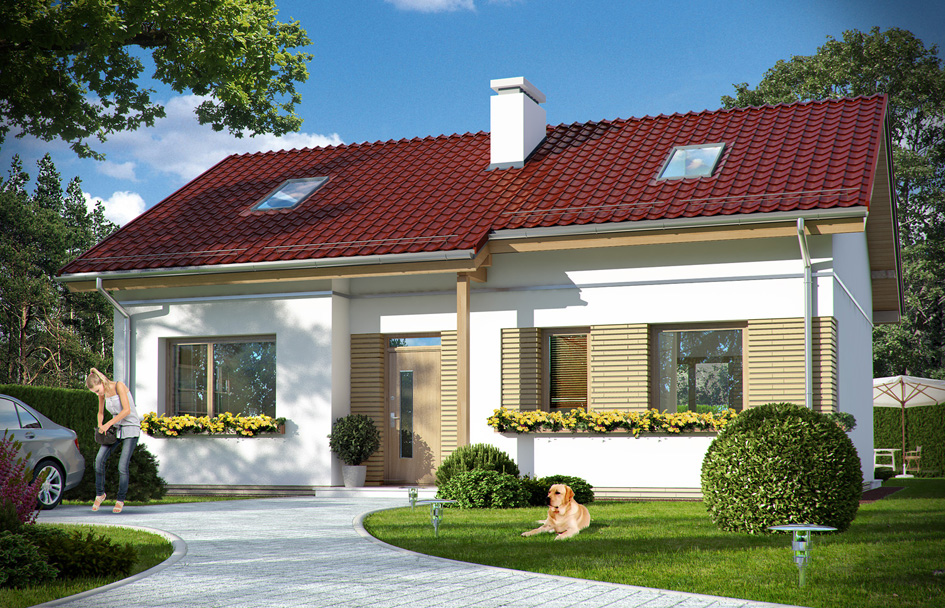

House plan Ladybug 2 - front visualization

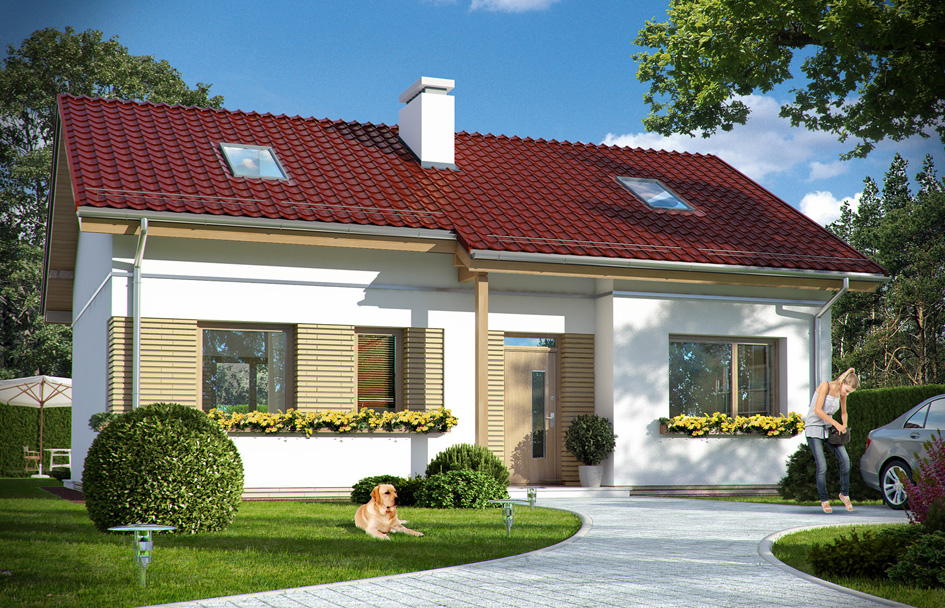

Show mirror image

Price: 830 EUR

Description Plans Elevations Situations Animation Variants (0) Detailed drawings List of materials Comments (0)

Ladybug 2 house plan is a variant version of popular house plan Ladybug. It is a small one-story detached house for the family of three – four people, covered by a gable roof with an attic to adapt. The house has a simple form and construction. It is easy to build and cheap to future exploitation. The house has a simple form and construction. It is easy to build and cheap to future exploitation. Thanks to the very good thermal insulation and modern installations, Ladybug is more energy efficient building. External appearance is a combination of modernity with traditional form. Modern finishing materials and architectural details connect with the traditional form of one-story house on a rectangular plan, with a gable roof. Front and garden facades have been varied by roofed arcades, and wood wall Elevations. The original roof covered with a sheet, you can be easily replaced by tiles or metal roofing tiles. The ground floor of the house consists of a living area with lounge, kitchen, hall and two bedrooms with a bathroom. Next to the porch is a gas boiler, which can be easily changed to boiler room with solid fuel stove. Despite its small area the house has a spacious and comfortable interior. Ladybug house plan is a year-round house, it can also be used as a holiday home. The simple and easy construction will save you on construction costs. Ladybug house plan is certainly a reasonable proposition for the thinking customer.

Specifications:

Cubature: 378 m³ / 13347,18 ft³
Built-up area:
- without arcades 80,95 m² / 871,02 ft²
- with arcades 89,89 m² / 967,22 ft²
Total area: 114,73 m² / 1234,49 ft²
Net area: 60,88 m² + attic 33,78 m² / 655,07 ft² + attic 363,47 ft²
Usable area:
- 57,38 m² wg PN-70/B-02365 / 617,41 ft² wg PN-70/B-02365
- 60,88 m² + garage wg PN-ISO 9836:1997 / 655,07 ft² + garage wg PN-ISO 9836:1997
Roof area: 133,72 m² / 1438,83 ft²
Roof slope: 30 degrees
Height of the building: 6,14 m (6,34 m with foundation) / 20,14 ft (20,79 ft with foundation)
Wide of the building: 11,04 m / 36,21 ft
Length of the building: 8,04 m / 26,37 ft
Minimum plot width: 17,04 m / 55,89 ft
Minimum plot length: 16,04 m / 52,61 ft
Height of rooms: 2,6 m / 8,53 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
Ceiling - wooden beams
Elevation - thin-layer plaster on polystyrene
Roof - sheet metal seam or ceramic tile

The costs of implementing:

The raw state open	26 200,00 EUR
The raw state closed	36 100,00 EUR
The cost of finishing works	29 200,00 EUR
Execution of turnkey home	65 300,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

House plan Ladybug 2 - bill of materials

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Ladybug 2 - detailed file

House plan Ladybug 2 - detailed file - mirror
