By using this website you consent to the use of cookies, according to the current browser settings.Boniface house plan
Usable area: 58.98 m2 / The cost of the realization: 67 200 EUR
Show mirror image
Price: 830 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Realizations (2) Detailed drawings
List of materials
Comments (3)

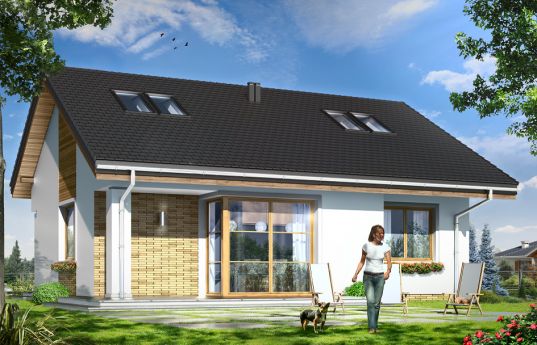

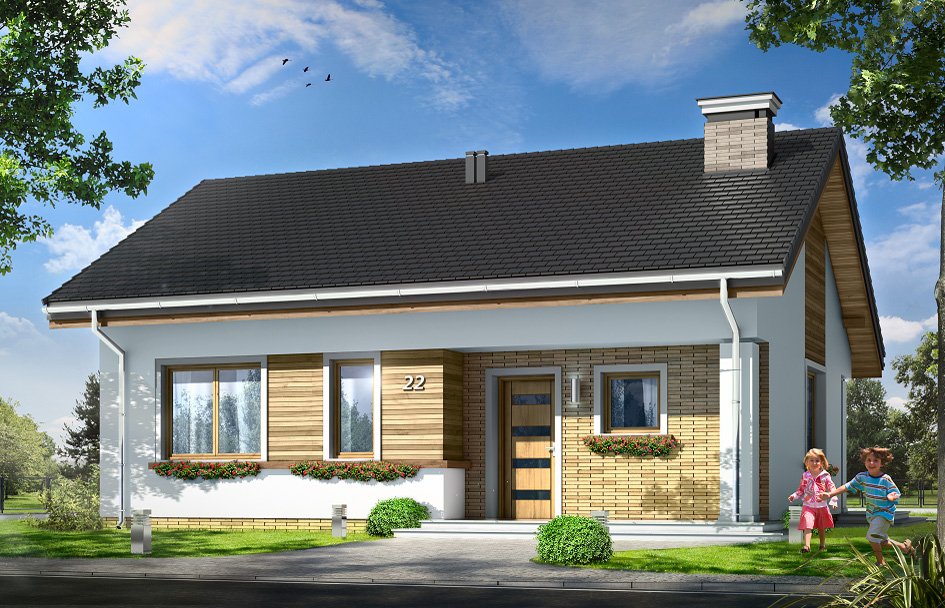

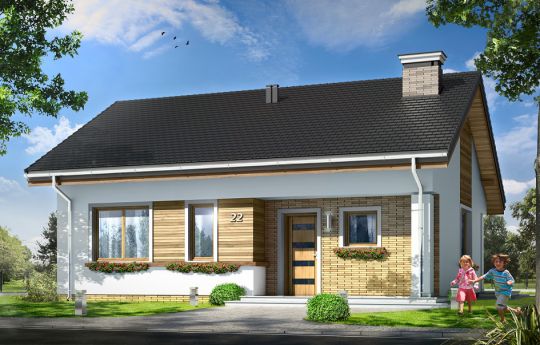

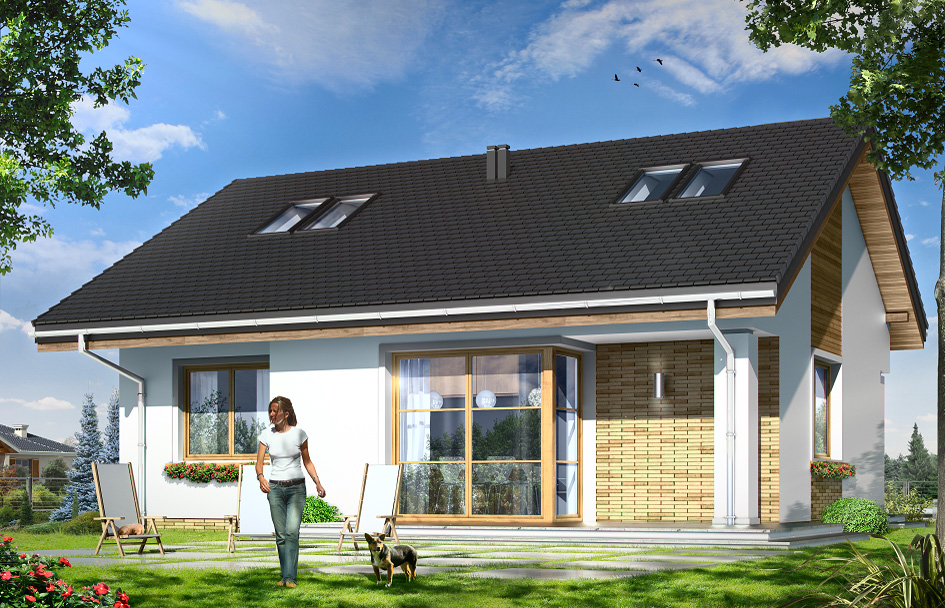

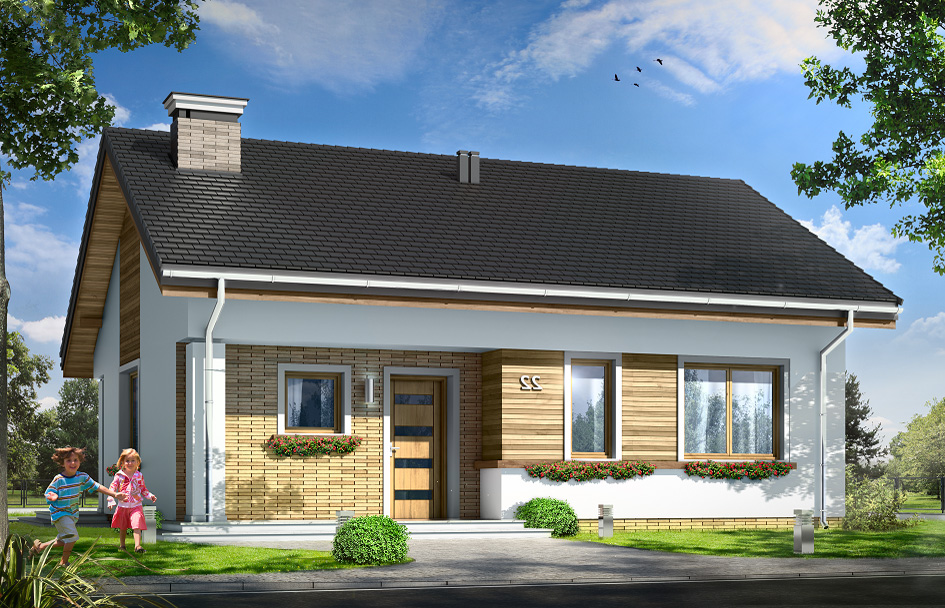

Boniface house plan is a small, family semi-detached house for the family of 3-4 people. The house is covered with a gable roof. Above the ground floor not usable attic was designed, which can be easily adapted to the attic with additional rooms. Boniface house plan, thanks to a simple block is easy and inexpensive to build. Nicely accented input platform, fragments of walls with wooden elevation and clinker tiles, an arcade and a garden terrace with a lovely corner window of the living room - all these elements make that we look to the house with pleasure. In the interior three rooms - two bedrooms and a living room, connected to the lobby and a kitchen with dining area were designed. There are also additional rooms, the boiler room available from the porch and bathroom. The attic, for which we enter by stairs from the lobby can be adapted to the usable attic, or it can be at all close by eliminating a staircase. There is also a mirror version of the Boniface house plan.
Specifications:
- Cubature: 359 m3/ 12676,29 ft 3
- Built-up area: 82,94 m2/ 892,43 ft2
- Total area: 109,6 m2/ 1179,30 ft2
- Net area: 63,03 m2/ 678,20 ft2
- Usable area: 58,98 m2/ 634,62 ft2
- Roof area: 132,94 m2/ 1430,43 ft2
- Roof slope: 30 degrees
- Height of the building: 6,10 m (6,35 m with foundation) / 20,00 ft (20,83 ft with foundation)
- Wide of the building: 8,74 m / 28,67 ft
- Length of the building: 10,58 m / 34,70 ft
- Minimum plot width: 17,58 m / 57,66 ft
- Minimum plot length: 16,74 m / 54,90 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 25 700,00 EUR |
| The raw state closed | 36 200,00 EUR |
| The cost of finishing works | 31 100,00 EUR |
| Execution of turnkey home | 67 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Boniface - detailed file
House plan Boniface - detailed file - mirror
Related Projects
2013.11.04 0
I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.
2012.01.31 3
This house is terrific and turned out to be the fulfillment of our needs in 100%.
2012.01.31 3
I'll also build this house, in my case decided minimalism: simple and easy to build body of curiously designed interior.
