Usable area: 84.57 m2 / The cost of the realization: 87 800 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (10) Detailed drawings
List of materials
Comments (3)

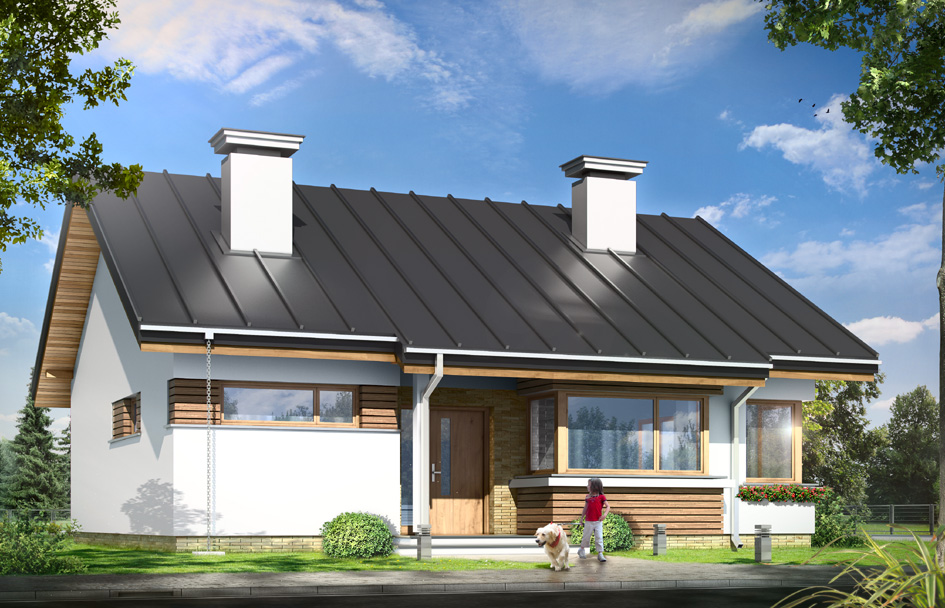

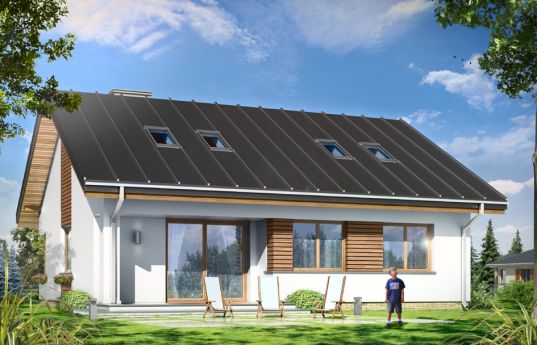

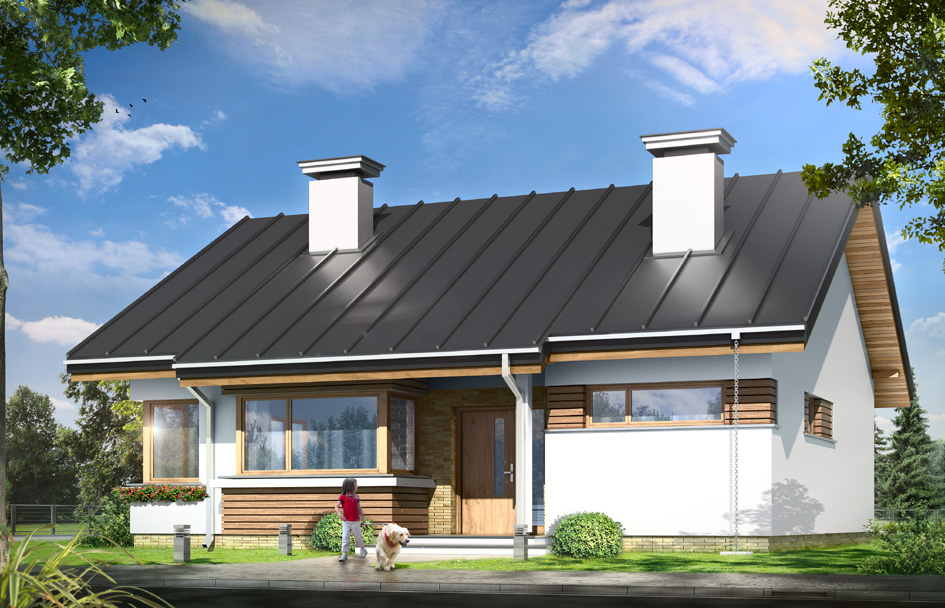

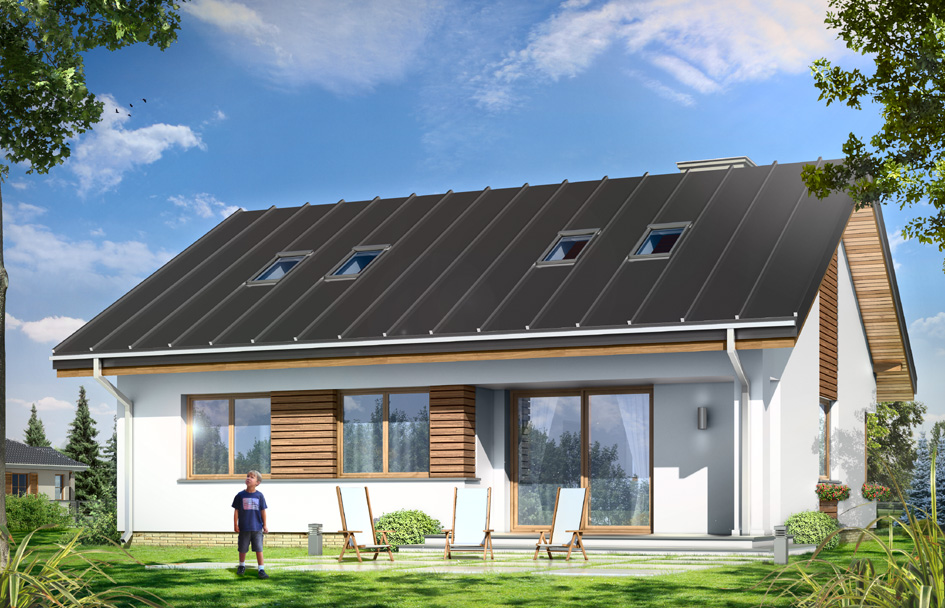

House for three is a modern small house for the family of 3 - 4 people. This is a bungalow, covered by a gable roof. On the rectangular ground floor plan a spacious living room with dining area, combined with a partially open kitchen and hall was designed. Next we can find two bedrooms, bathroom and toilet, and a wide porch and a boiler room. From the porch by stairs you can get to the attic. In this house the attic is not usable, but you can easily adapt it to the attic with additional rooms. Nice large interior, a large part of the utility room this is something what distinguished this house from other small house plans. Outside the entrance to the house was highlighted by the arcade platform and bay kitchen window. From the garden wide glass doors from the living room to the terrace and garden was designed. The terrace is partly covered by arcade. Extras in modern style, as a fragments of walls cladding by wood forming together with windows division of the elevation into strips. Corner windows emphasize a modern but not pretentious architectural character. There is also a mirror version of this house plan
Specifications:
- Cubature: 529 m3/ 18678,99 ft3
- Built-up area: 114,32 m2/ 1230,08 ft2
- Total area: 114,32 m2/ 1230,08 ft2
- Net area: 89,24 m2/ 960,22 ft2
- Usable area: 84,57 m2/ 909,97 ft2
- Roof area: 187,85 m2/ 2021,27 ft2
- Roof slope: 30 degrees
- Height of the building: 6,65 m (6,95 m with foundation)/ 21,81 ft (22,80 ft with foundation)
- Wide of the building: 11,63 m / 38,15 ft
- Length of the building: 10,87 m / 35,65 ft
- Minimum plot width: 19,63 m / 64,39 ft
- Minimum plot length: 18,87 m / 61,89 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - porotherm blocks 25 + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 31 600,00 EUR |
| The raw state closed | 46 200,00 EUR |
| The cost of finishing works | 41 700,00 EUR |
| Execution of turnkey home | 87 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan House for three - detailed file
House plan House for three - detailed file - mirror
