Usable area: 100.73 m2 / The cost of the realization: 106 400 EUR
Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (1)
Realizations (29) Detailed drawings
List of materials
Comments (3)

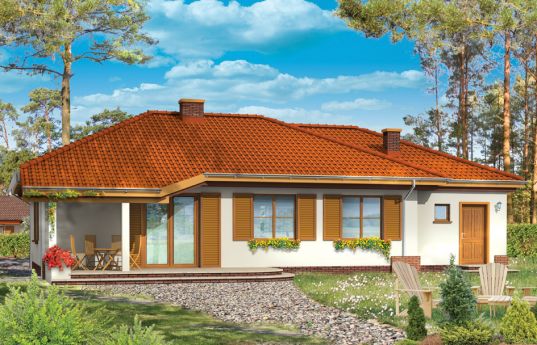

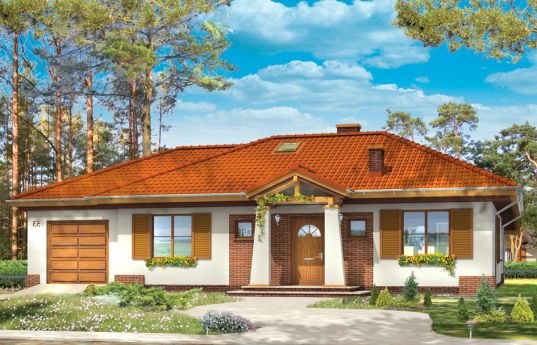

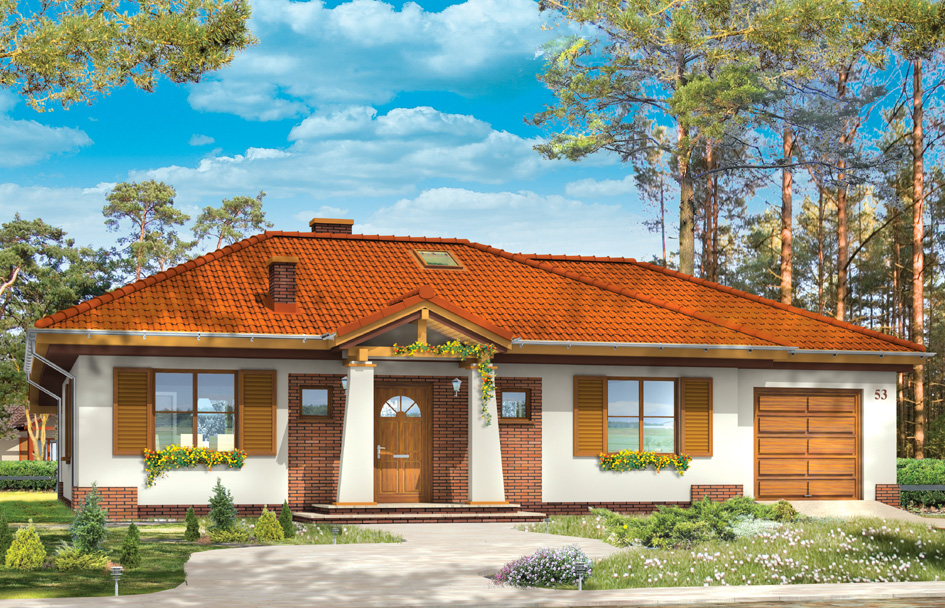

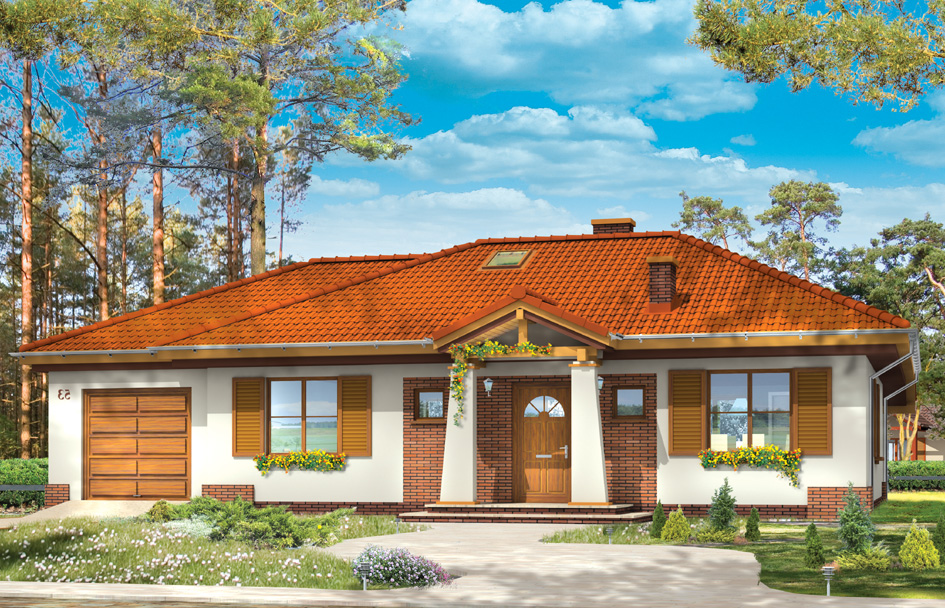

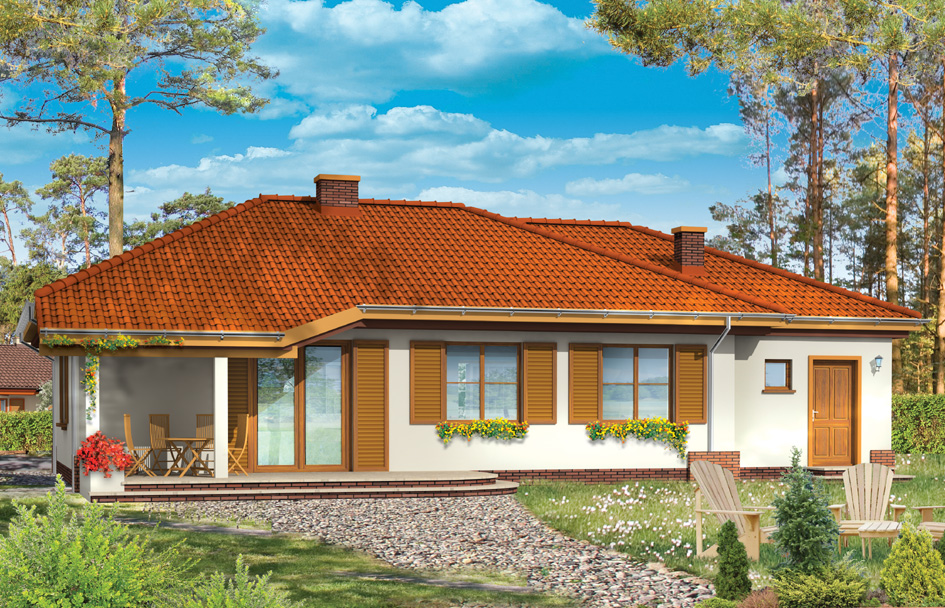

Four corners 2 is a variant of the Four corners house plan, this time with a single garage. This is a proposed for less motorists, but especially for investors with a narrower plot, making up less space for the house itself. The residential part is identical to the basic house plan, only the garage has decreased. It was also designed an attic over the part of the house that can be used as a storage room. This house plan is a proposal for a family of 4-5 people who likes life on one level, close to the garden. There is also a mirror version of Four corners 2.
Specifications:
- Cubature: 458 m3/ 16,171,98 ft3
- Built-up area: 154,25 m2/ 1659,73 ft2
- Total area: 154,25 m2/1659,73 ft2
- Net area: 109,54 m2 + garage 19,77 m2/ 1178,65 ft2 + garage 212,73 ft2
-
Usable area:
- 100,73 m2 wg PN-70/B-02365/ 1083,85 ft2 by PN-70/B-02365
- 109,54 m2 + garaż wg PN-ISO 9836:1997/ 1178,65 ft2 + garage by PN-ISO 9836-1997
- Roof area: 211,9 m2/ 2280,04 ft2
- Roof slope: 24 i 26,2 stopni / 24 and 26,2 degrees
- Height of the building: 5,55 m (5,85 m with foundation)/ 18,20 ft (19,19 ft with foundation)
- Wide of the building: 15,78 m / 51,76 ft
- Length of the building: 9,84 m / 32,28 ft
- Minimum plot width:: 22,78 m / 74,72 ft
- Minimum plot length: 19,16 m / 62,84 ft
- Height of rooms: 2,6 m / 8,53 ft
Materials:
• Foundations - Concrete benches, walls of concrete blocks
• External walls – bilayer aerated concrete + polystyrene
• Internal walls - aerated concrete
• Ceiling - wooden truss girders + partially ceiling
• Elevation - thin-layer plaster
• Roof - tile
The costs of implementing:
| The raw state open | 30 400,00 EUR |
| The raw state closed | 46 200,00 EUR |
| The cost of finishing works | 60 300,00 EUR |
| Execution of turnkey home | 106 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Four corners 2 - detailed file
House plan Four corners 2 - detailed file - mirror
