Usable area: 94.76 m2 / The cost of the realization: 104 300 EUR
Show mirror image
Price: 1000 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (10) Detailed drawings
List of materials
Comments (3)

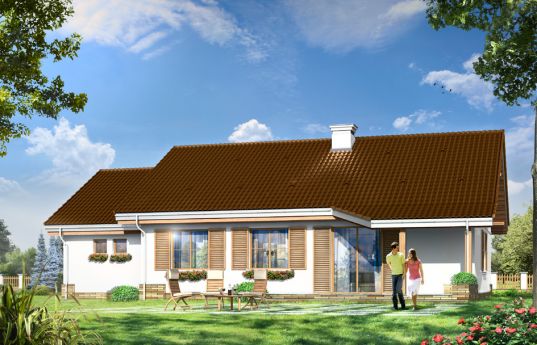

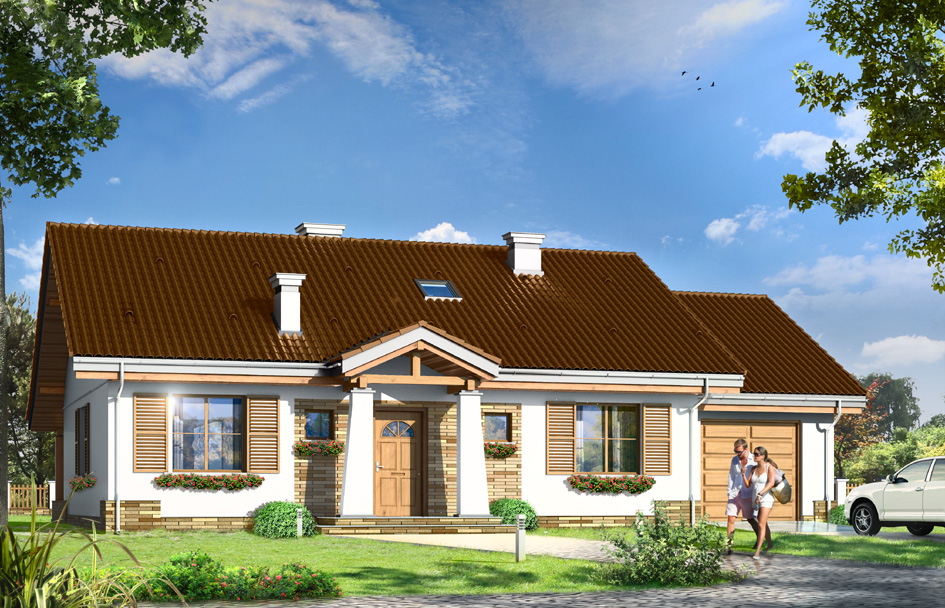

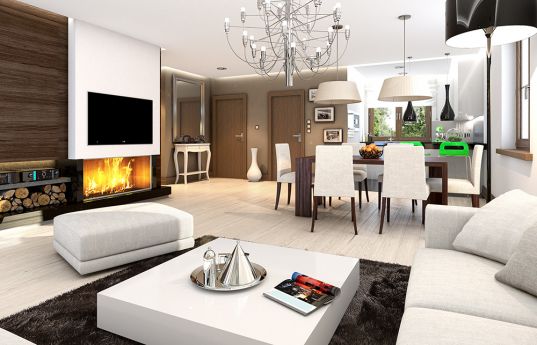

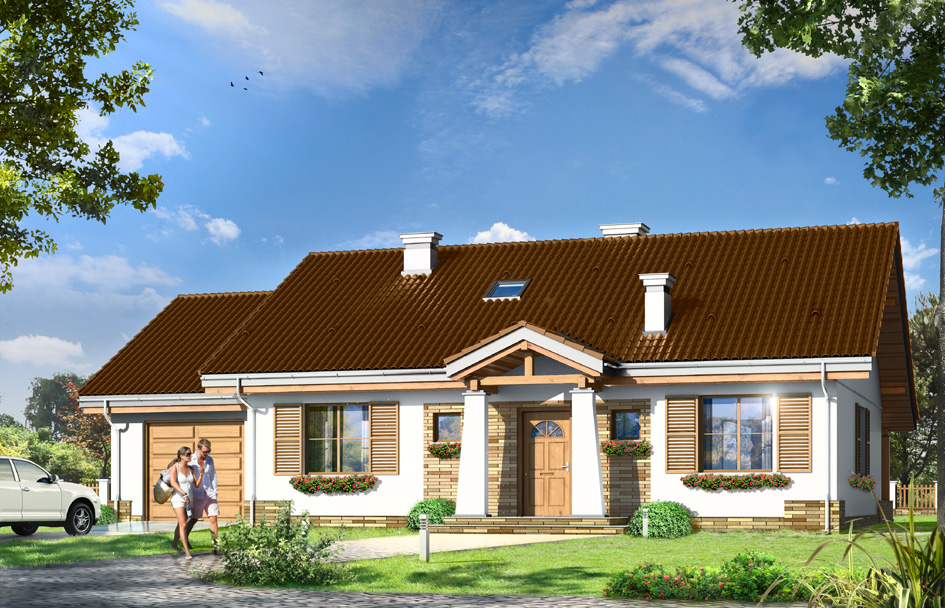

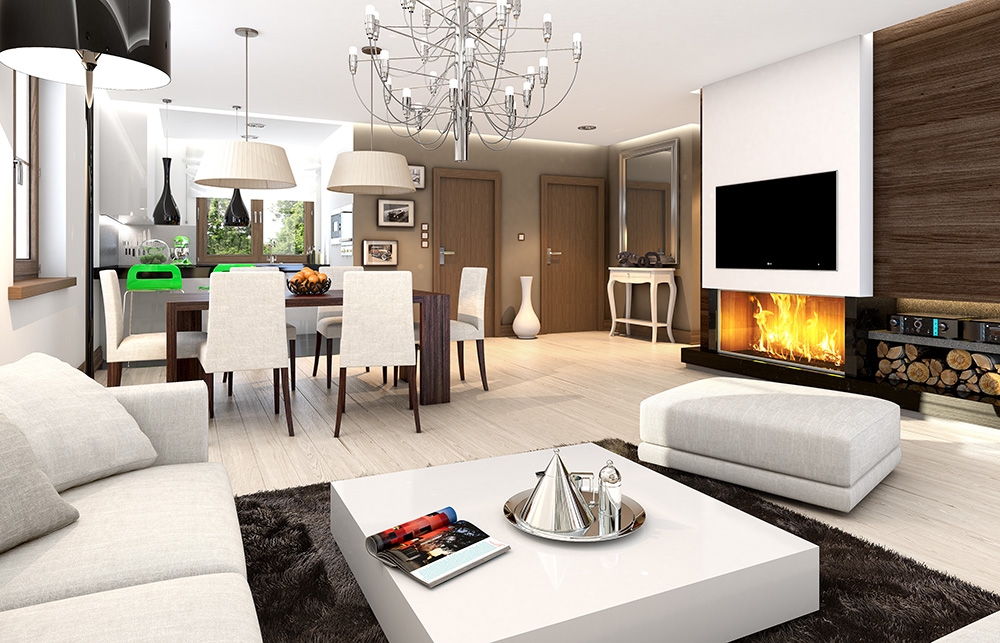

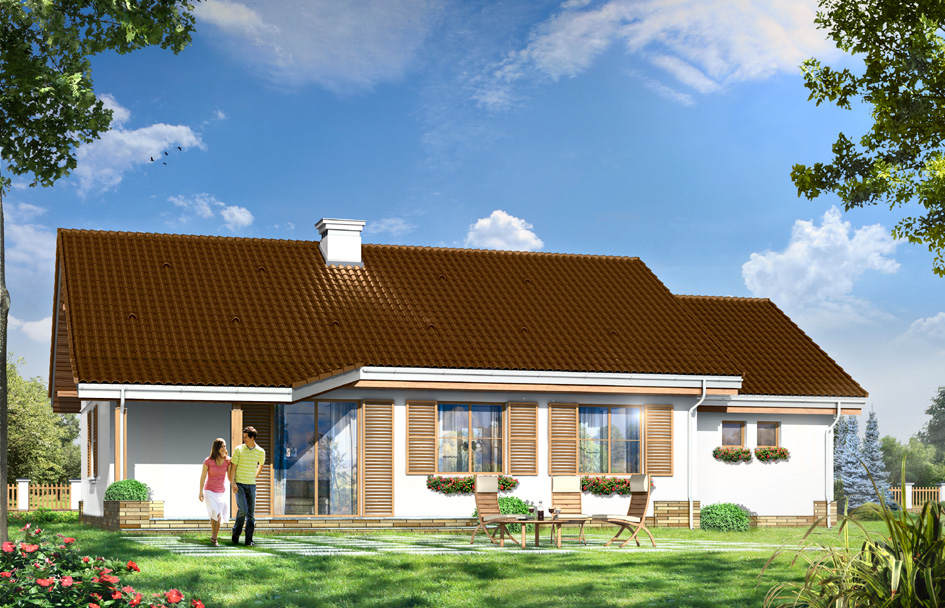

Forget-me-not with garage house plan is a variant version of Forget-me-not house plan. This single-story house, was designed for a family of four people. The rectangular shape of the building was covered by a gable roof. Not usable attic above the ground floor can be easily adapted to the attic. The project refers to the typical traditional style. Front of the house with accentuated entrance porch supported by two columns, with windows on the sides, reminds Polish manor house. Back elevation is rather functional with symmetrical layout - partially covered garden terrace is an extension of the living room. House interior was divided into a living area, with a living room, hall with partially open kitchen, and the night part with three bedrooms and a bathroom. In a small boiler room gas furnace can be easily installed, or you can move the boiler room to the room behind the garage and put there a solid fuel boiler. House is a great proposition for investors who want to inexpensively build a house, while leaving the possibility to finish in the second stage the additional space in the attic - or just have a big useful attic. There is also available a mirror version of the Forget-me-not with garage house plan.
Specifications:
- Cubature: 611 m3 / 21574,41 ft3
- Built-up area: 151,41 m2 / 1629,17 ft2
- Total area: 151,41 m2 / 1629,17 ft2
- Net area: 103,57 m2 + garage / 1114,41 ft2 + garage
- Usable area: 94,76 m2 / 1019,62 ft2
- Roof area: 233,66 m2 / 2514,18 ft2
- Roof slope: 30 degrees
- Height of the building: 6,18 m (6,48 m with foundation) / 20,27 ft (21,25 ft with foundation)
- Wide of the building: 15,98 m / 52,41 ft
- Length of the building: 9,84 m / 32,27 ft
- Minimum plot width: 22,98 m / 75,37 ft
- Minimum plot length: 19,16 m / 62,84 ft
- Height of rooms: 2,65 m / 8,69 ft
Materials:
- Foundations - concrete bench and foundation walls with concrete blocks
- External walls – brick walls – aerated concrete + polystyrene + thin-layer plaster
- Ceiling - Teriva
- Elevation - thin-layer plaster on polystyrene
- Roof - tile
The costs of implementing:
| The raw state open | 40 300,00 EUR |
| The raw state closed | 53 300,00 EUR |
| The cost of finishing works | 51 100,00 EUR |
| Execution of turnkey home | 104 300,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Niezapominajka with garage - detailed file
House plan Niezapominajka with garage - detailed file - mirror
Related Projects
2012.03.19 0
This is a hit project. I appeal to people who have already built it or are during the building of the opportunity to see it in live. Thank you in advance!
2012.03.16 0
Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.;)
2012.03.11 0
We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.
