Usable area: 205.69 m2 / The cost of the realization: 168 800 EUR

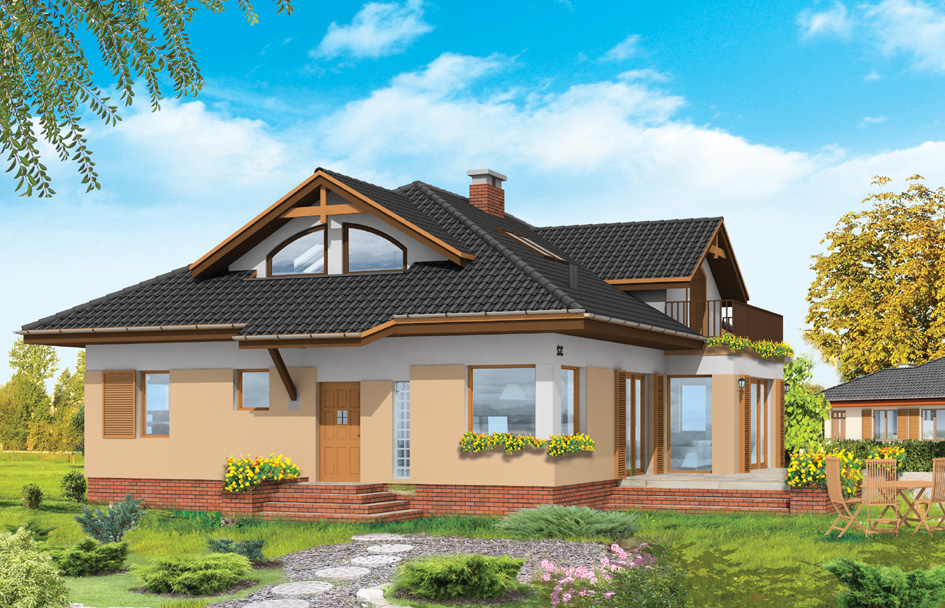

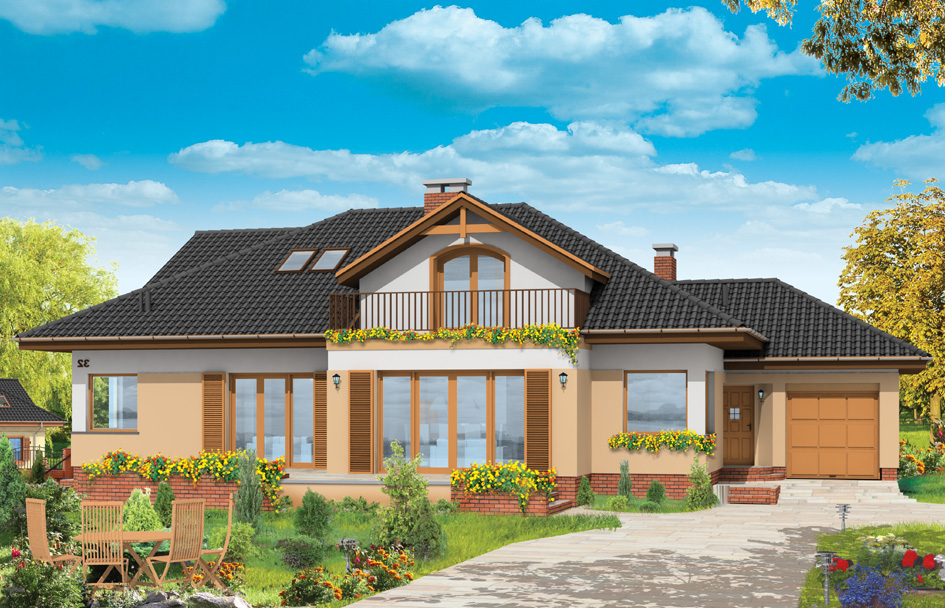

Show mirror image
Price: 1070 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (9) Detailed drawings
List of materials
Comments (3)

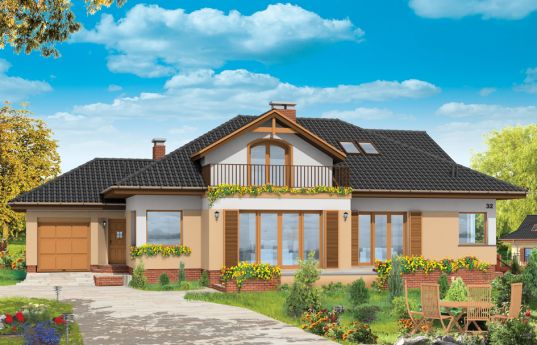

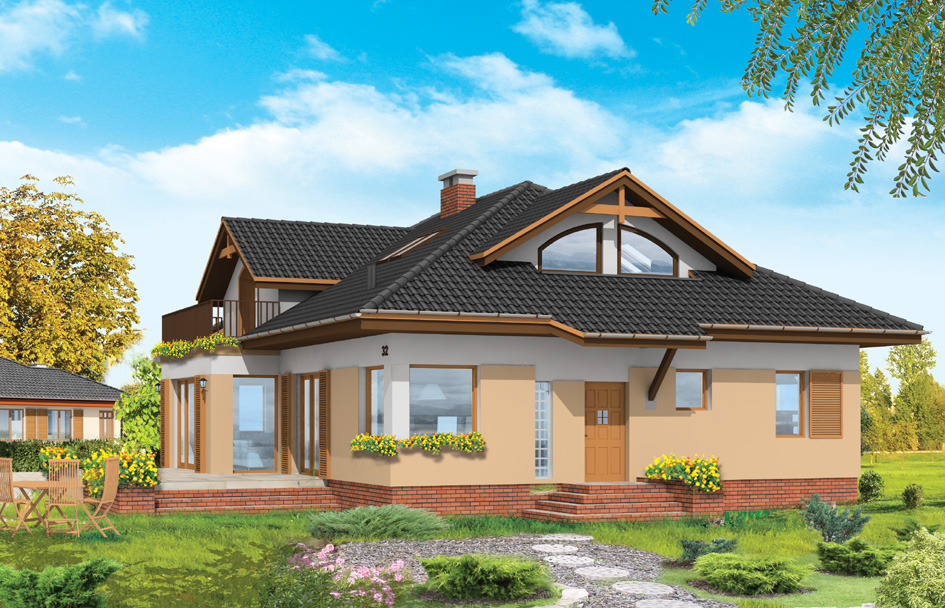

Family house plan is a proposition of villa for three generations family with a separate apartment for grandparents or a child with his/her family. Family house is an extensive body covered by not high hipped roof. The layout of the rooms and the entrance to the two parts of the house is designed to fit the house to the plot with an adverse position in relation to the world. This house perfectly suited to the plot where the garden from the entrance is planned. We also have this house plan in a mirror version.
Specifications:
- Cubature:: 972 m3/ 34321,32 ft3
- Built-up area: 223,53 m2/ 2405,18 ft2
- Total area: 335,3 m2/ 3607,83 ft2
- Net area: 218,49 m2 + garage and boiler room/ 2350,95 ft2 + garage and boiler room
- Usable area: 205,69 m2/ 2213,22 ft2
- Roof area: 356,4 m2/ 3834,86 ft2
- Roof slope: 30 degrees
- Height of the building: 7,14 m (7,84 m with foundation)/ 23,42 ft (25,72 ft with foundation)
- Wide of the building: 20,62 m/ 67,63 ft
- Length of the building: 13,01 m/ 42,67 ft
- Minimum plot width: 27,62 m/ 90,59 ft
- Minimum plot length: 21,01 m/ 68,91 ft
- Height of rooms: 2,8 m/ 9,18 ft
Materials:
• Foundations - Concrete benches, walls of concrete blocks
• External walls - bilayer: porotherm + polystyrene
• Internal walls – porotherm
• Ceiling – Teriva
• Roof – tile
• Elevation - thin-layer plaster
The costs of implementing:
| The raw state open | 57 800,00 EUR |
| The raw state closed | 86 800,00 EUR |
| The cost of finishing works | 82 000,00 EUR |
| Execution of turnkey home | 168 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Family - detailed file
House plan Family - detailed file - mirror
