For three generations house plan

Usable area: 256.9 m² / The cost of the realization: 184 400 EUR

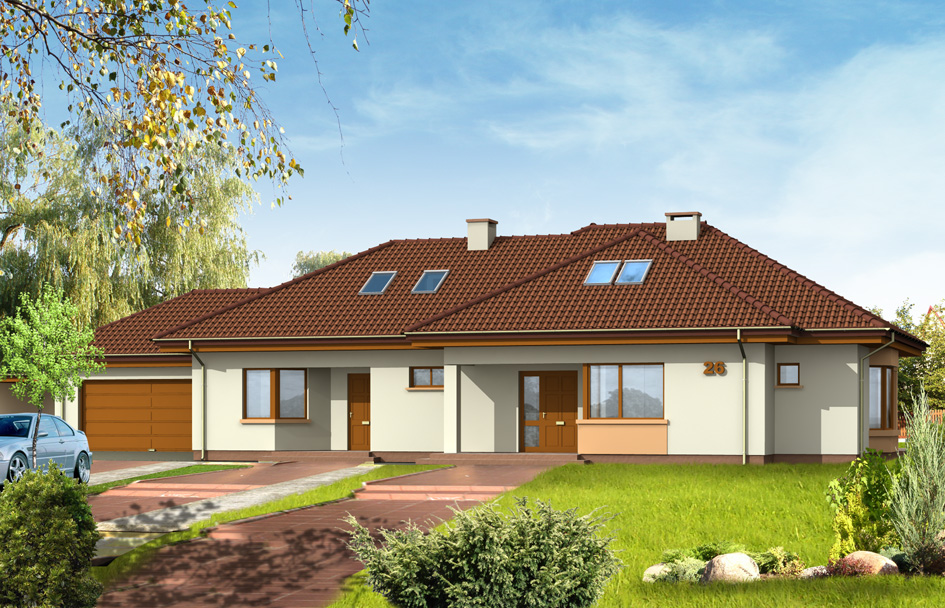

House plan For three generations - front visualization

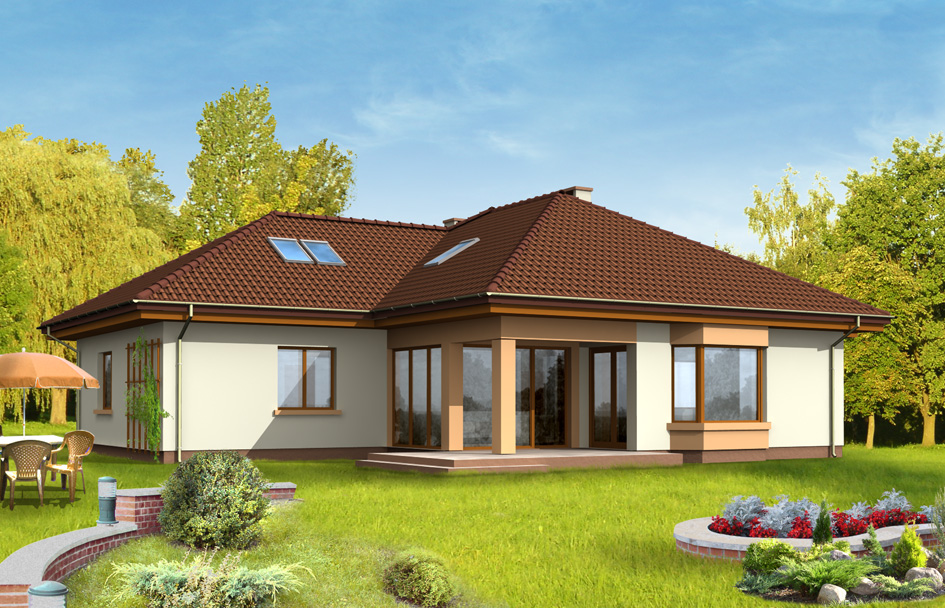

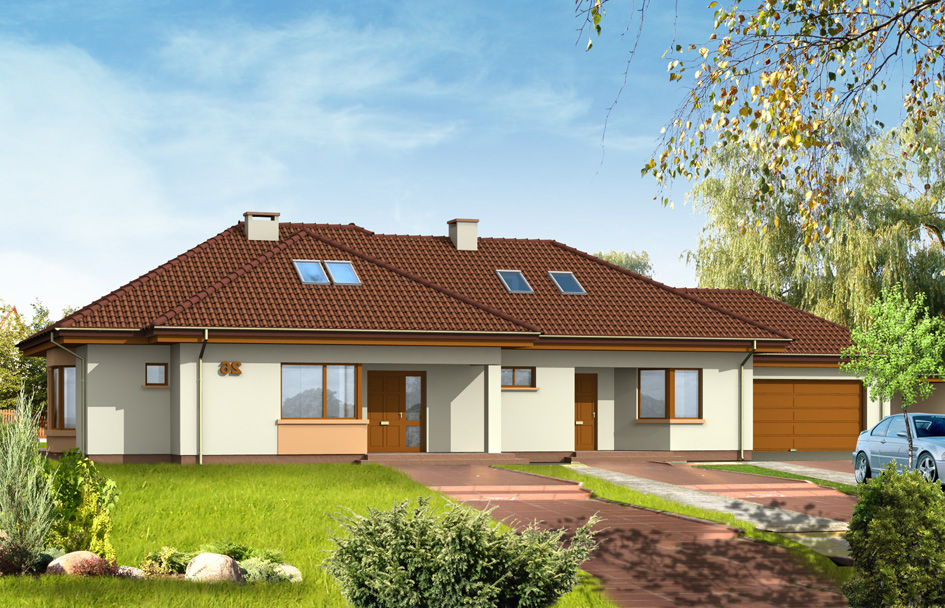

Show mirror image

Price: 1250 EUR

Description Plans Elevations Situations Animation Variants (0) Detailed drawings List of materials Comments (3)

For three generations house plan an extensive house. The house is designed for large, three-generation family. It includes a separate apartment for grandparents or adult children. Separate apartment can also serve as a studio or office. For three generations house plan was designed so that residents have maximum contact with the garden by large glazing and doors to the surrounding terraces. On the ground floor in addition to the living area is parents’ bedroom, while in the attic is planned children bedrooms. Living room has been heightened by emptiness and a mezzanine in the attic. In a separate wing of the house is a an independent apartment and a garage for two cars. House is also available in a version without a covered terrace and in the mirror version.

Specifications:

Cubature: 976 m³ / 34462,56 ft³
Built-up area: 267,98 m² / 2883,46 ft²
Total area: 344,91 m²/ 3711,23 ft²
Net area: 256,9 m²+ garage / 2764,24 ft² + garage
Usable area: 256,9 m² / 2764,24 ft²
Roof area: 403,52 m² / 4341,88 ft²
Roof slope: 30 degrees
Height of the building: 6,71 m (6,96 m with foundation) / 22,01 ft (22,83 ft with foundation)
Wide of the building: 25,79 m / 84,59 ft
Length of the building: 17,35 m / 56,90 ft
Minimum plot width: 32,79 m / 107,55 ft
Minimum plot lengthi:: 25,35 m / 83,15 ft
Height of rooms: 2,75 m / 9,02 ft

Materials:

Foundations - monolithic concrete
External walls - aerated concrete + polystyrene
Internal walls - aerated concrete
Ceiling - reinforced concrete Teriva
Elevation - thin-layer plaster
Roof - tile or meatal roofing tile

The costs of implementing:

The raw state open	58 600,00 EUR
The raw state closed	91 200,00 EUR
The cost of finishing works	93 200,00 EUR
Execution of turnkey home	184 400,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Trzypokoleniowy - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan For three generations - detailed file

House plan For three generations - detailed file - mirror
