Gabriela house plan

Usable area: 308.1 m2   /   The cost of the realization: 243 300 EUR

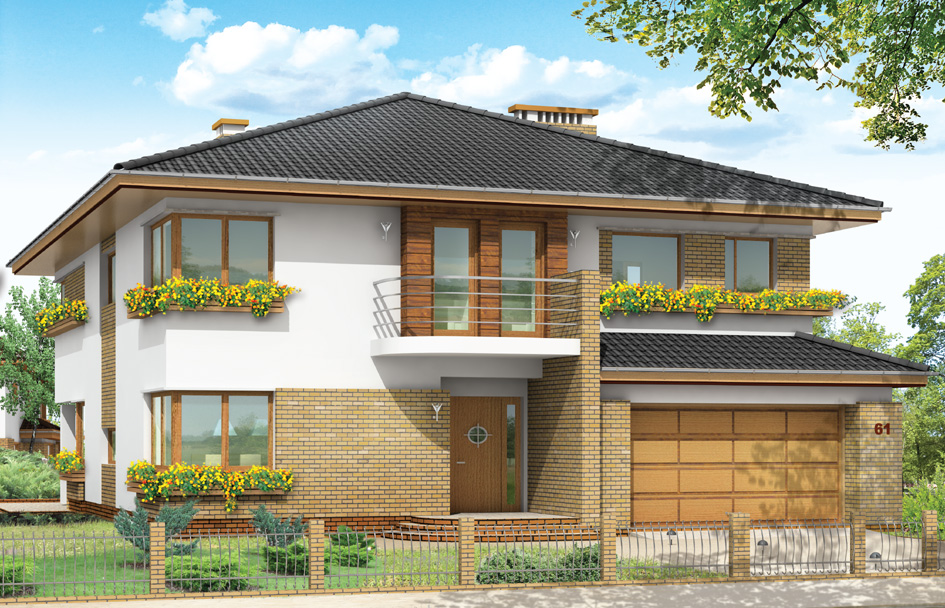

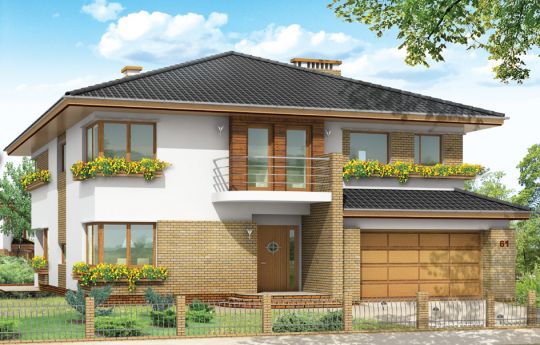

House plan Gabriela - front visualization

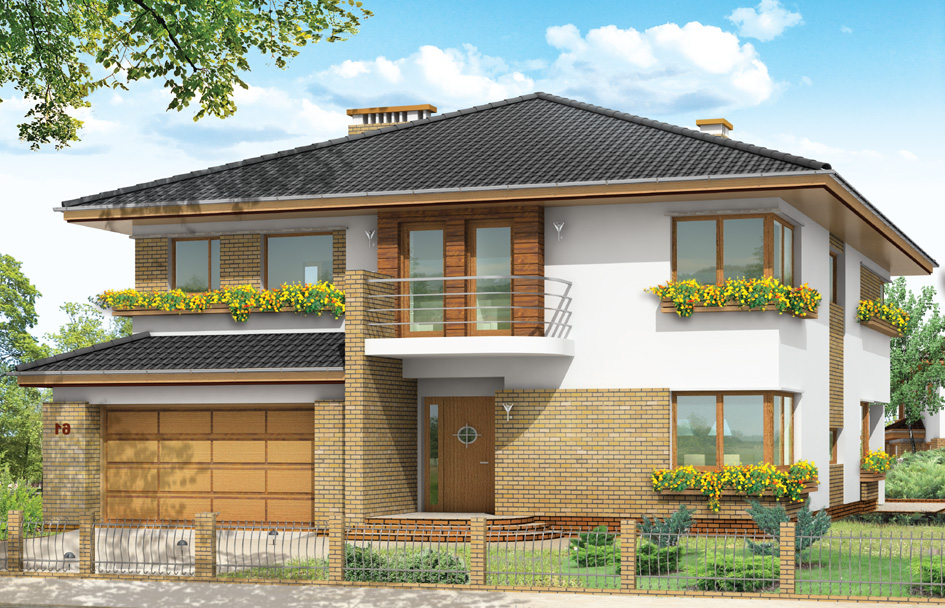

Show mirror image

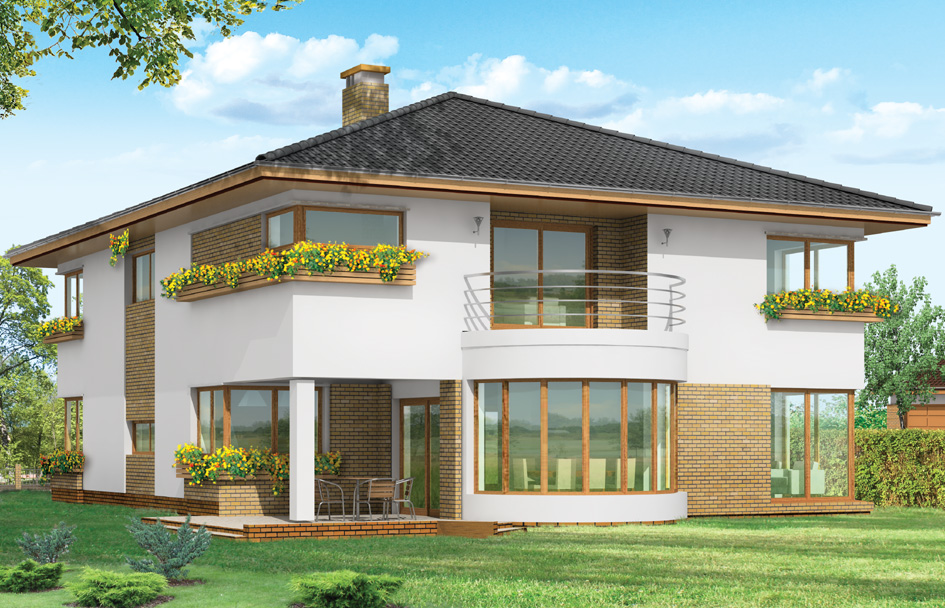

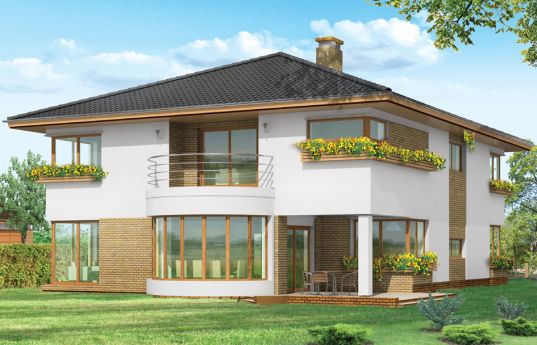

Gabriela's house plan is a prestigious villa, with one-storey block covered with a hipped roof. House is designed for a family of 4 – 6 people. The architecture of Gabriela's house refers to the modernist style, in the modern sense. Elements such as corner windows, balconies with rounded railings, curved bay window of the dining room, the division of the facade into horizontal stripes create an interesting styling of external architecture of the building. For this house plan several different variants of the arrangement of the facade was provided. The interior of the house: on the ground floor living space consists of a living room, dining room with beautiful bay window, a spacious lobby with comfortable stairs to the first floor, large kitchen with kitchenette for quick meals. From the living room we go to the arcade and on the terrace. On the ground floor there is also designed an office room, garage and boiler room. On the first floor there is a parent’s apartment with bathroom, dressing room and terrace overlooking the garden; three bedrooms for children with bathroom, a laundry room and sports room. This house plan is also partial basement - cellar accessible from outside the house, by the steps from the garden. You can resign from the basement if the ground conditions do not allow for its construction. Gabriela house plan is also available in mirror version.

  • Cubature: 1412 m3/ 49857,72 ft3
  • Built-up area : 235,82 m2/ 2537,42 ft2
  • Total area: 451,92 m2 + basement/ 4862,66 ft2+ basement
  • Net area: 321,79 m2 + garage + basement/ 3462,46 ft2+ garage + basement
  • Usable area: 308,1 m2/ 3315,16 ft2
  • Roof area: 331,6 m2/ 3568,02 ft2
  • Roof slope: 22 degrees
  • Height of the building: 9,25 m (9,57 m with foundation)/ 30,34 ft ( 31,39 ft with foundation)
  • Wide of the building: 14,64 m/ 48,02 ft
  • Length of the building: 20,51 m/ 67,28 ft
  • Minimum plot width: 21,64 m/ 70,98 ft
  • Minimum plot length: 28,51 m/ 93,51 ft
  • Height of rooms: 3,0 and 2,7 m/ 9,84 and 8,86 ft


• Foundations - Poured concrete
• Exterior walls - bilayer porotherm 25 or U220 + 15 polystyrene
• Ceiling – monolithic reinforced concrete panels
• Elevation - thin-layer plaster
• Roof – tile or metal roofing tile


The costs of implementing:
The raw state open 85 800,00 EUR
The raw state closed 121 500,00 EUR
The cost of finishing works 121 900,00 EUR
Execution of turnkey home 243 300,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Gabriela - detailed file

House plan Gabriela - detailed file - mirror

Gabriela house plan 1455 Edmy
2012.03.01 0 Pozytywny komentarz Negatywny komentarz

I was looking for a simple, functional home, and reviewing the offers of various architectural studios. This house is quite ok. The area of the house and the layout of the rooms perfectly suits us. I think that will be just right for my family.

Gabriela house plan 1453 Japus88
2012.02.18 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Gabriela house plan 1450 Maarta001
2012.02.15 0 Pozytywny komentarz Negatywny komentarz

Nice house plan, we really like it, we will not make any changes.
