Forest Residence

Usable area: 312.99 m2   /   The cost of the realization: 187 800 EUR

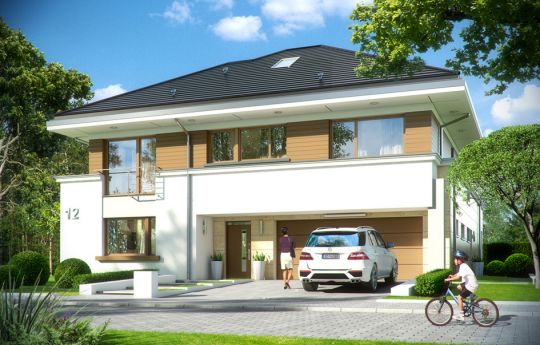

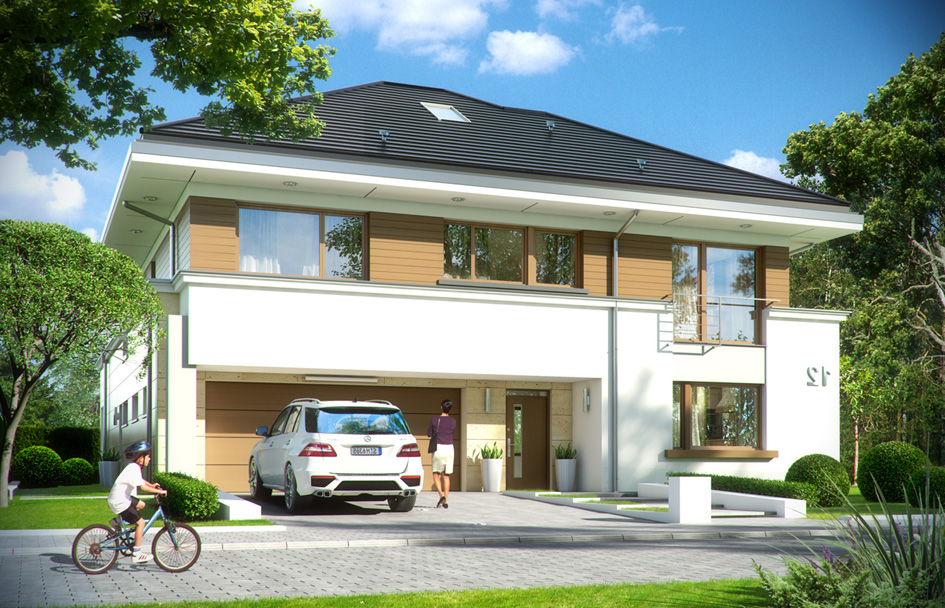

House plan Forest Residence - front visualization

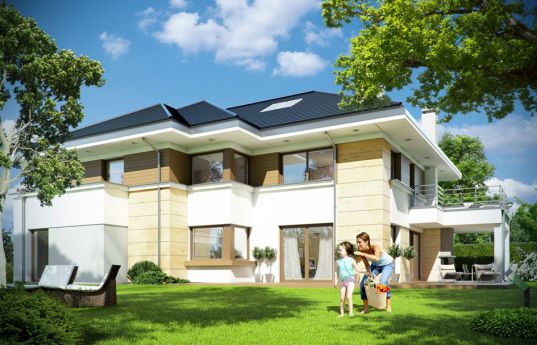

Show mirror image

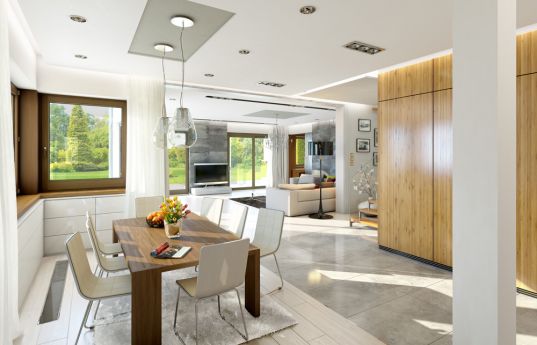

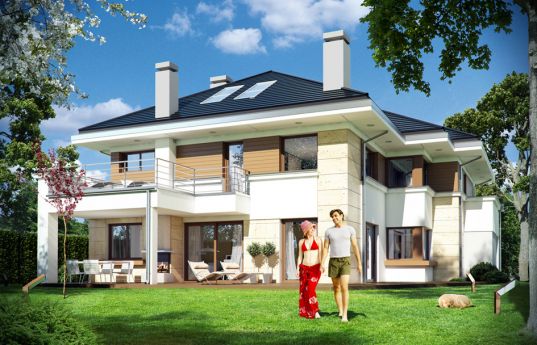

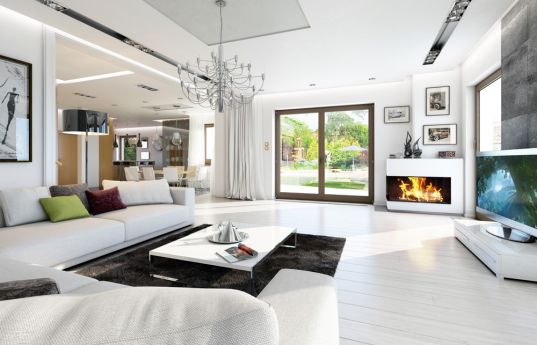

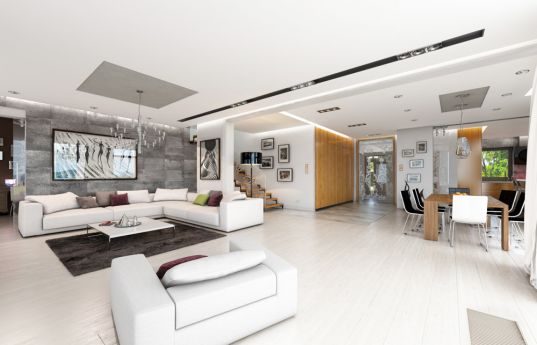

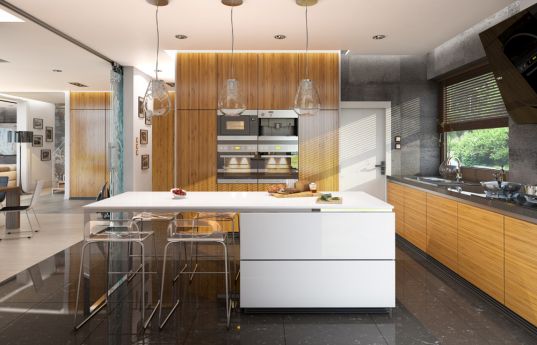

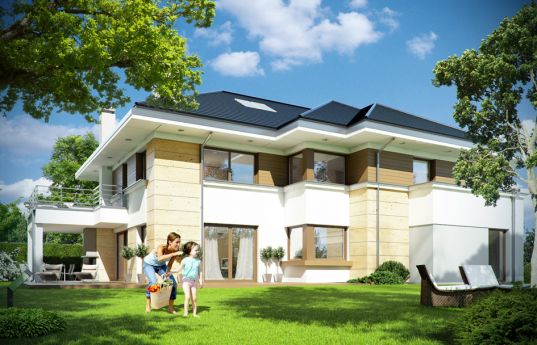

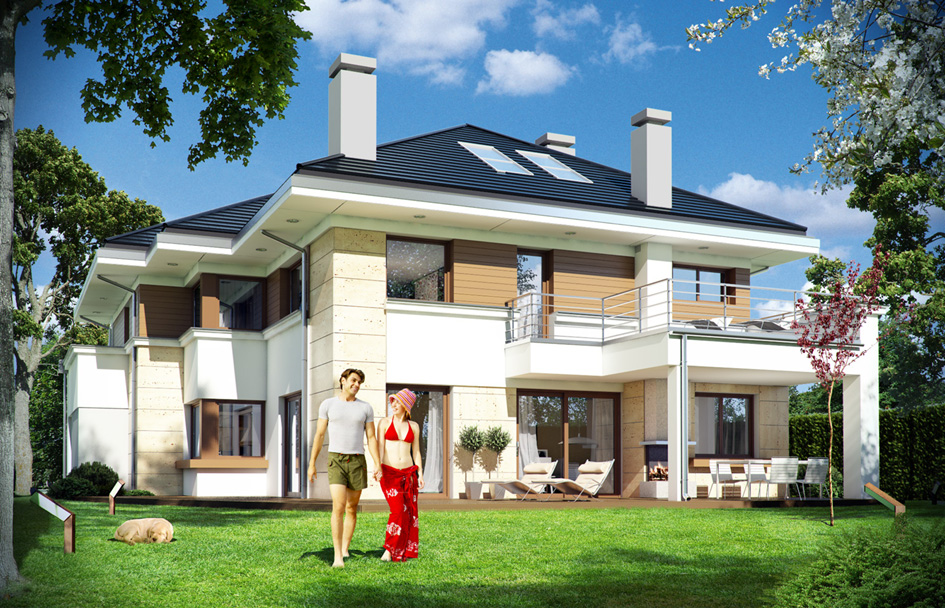

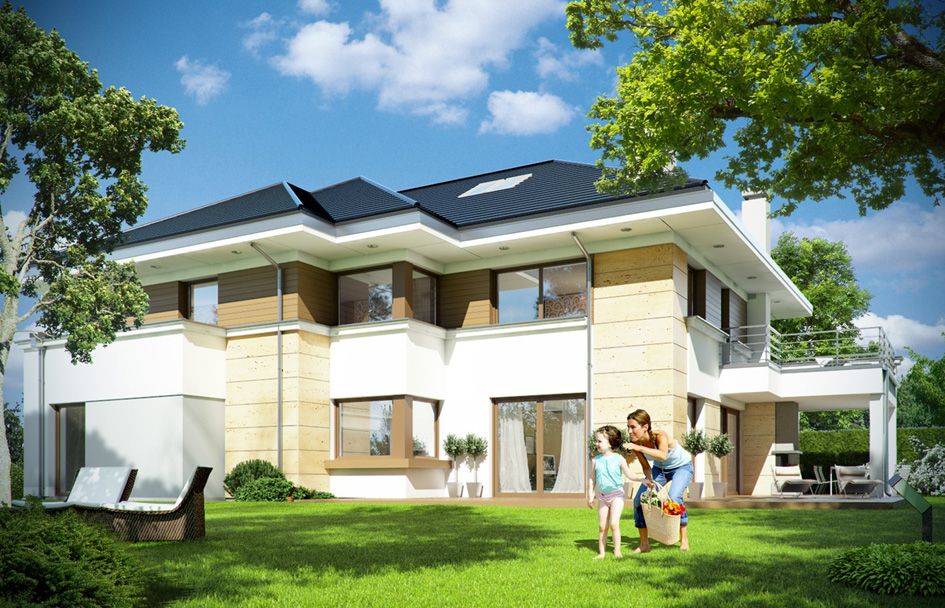

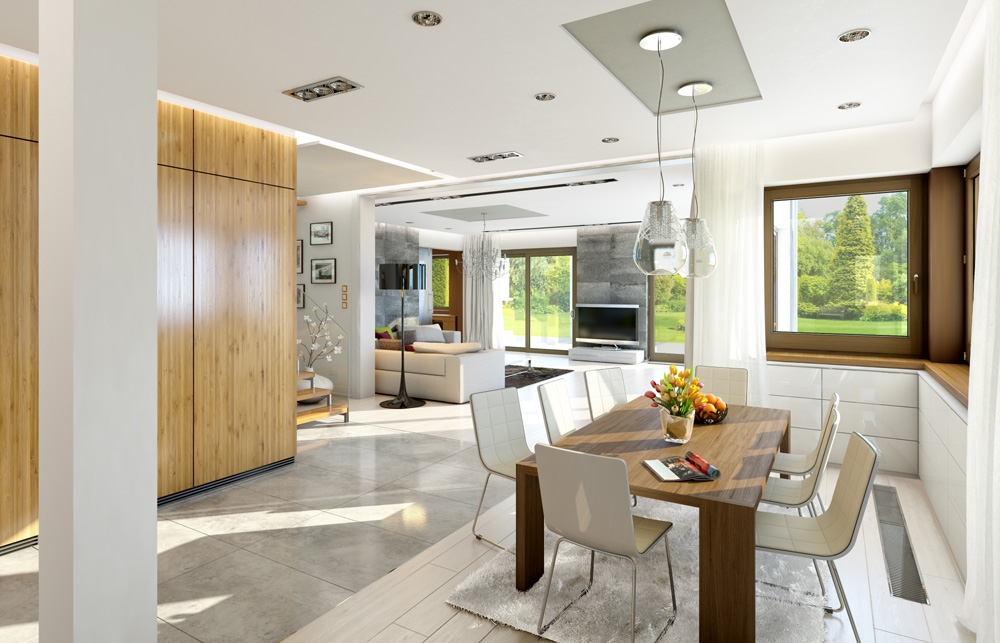

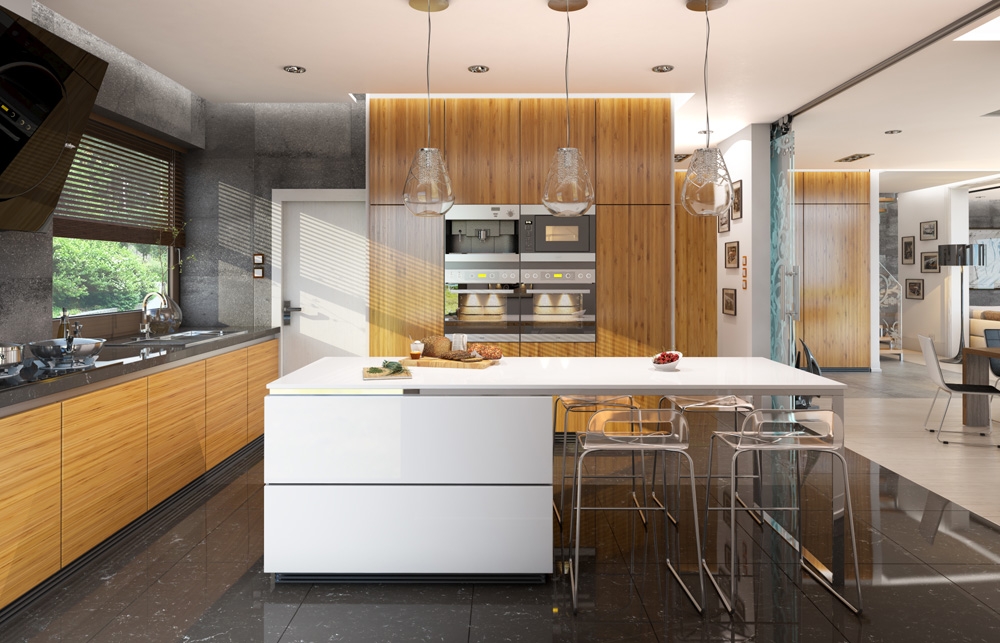

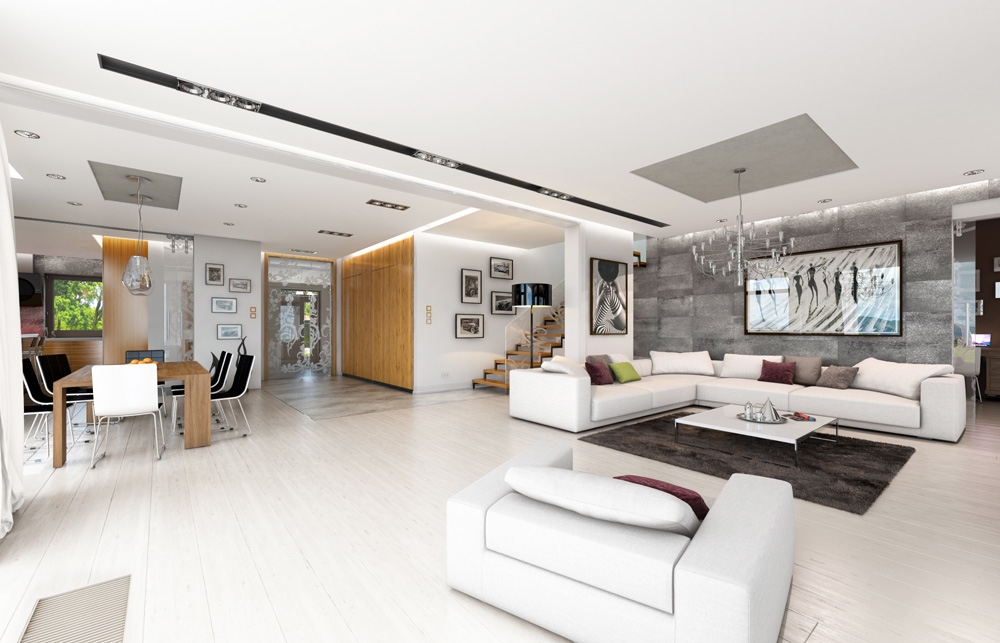

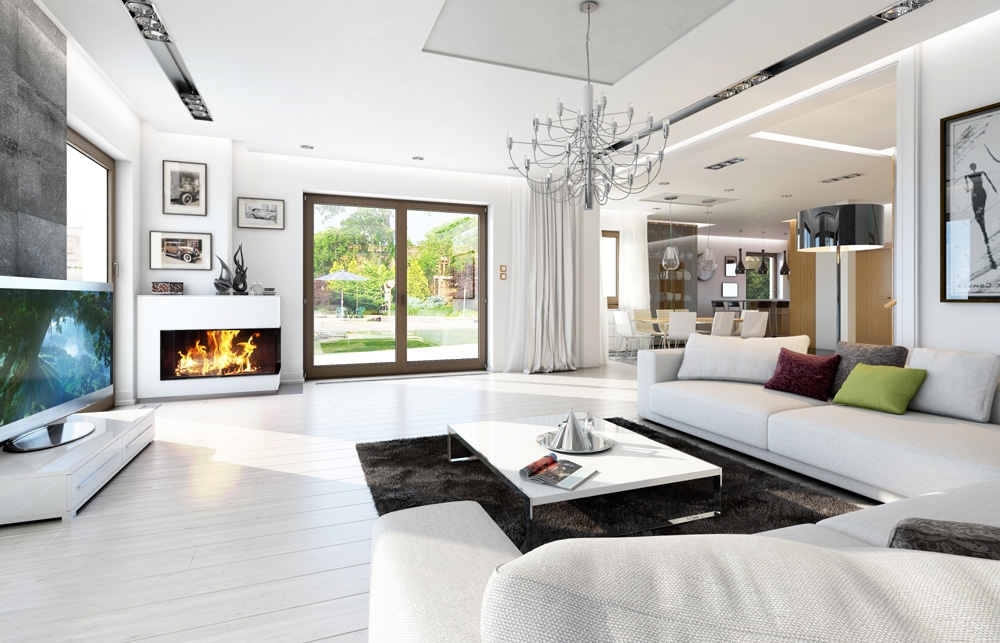

We present you with a single family house Forest Residence. It is the story, a large, comfortable house, designed for a family of family 4-6 people. The building is modern, has a compact body, and a functional interior. It was designed in the style of urban storey villa. The main body is covered by a hipped roofs - front elevation is wider and tapers towards to the garden so house has two faces: a massive representative in front and rear with a more fragmented and with failures outhouse, maintaining a human scale. Elevations were divided into horizontal stripes allows to obtain lighter and more interesting silhouette of the building. Large glazing, corner windows and protruding bay windows decorate the house and give it a modern dynamic character. The interior of the house is very comfortable and includes everything what owners could ever hope to have. On the ground floor with large glass entrance from vestibule we enter to the living room with dining area and hall. The living room is connected with beautiful glazing terrace and garden. Partially open to the dining area, kitchen with island and pantry is located at the front - with a large window. On the ground floor there are also: double garage, boiler room, and a study. Terrace facing the garden and is partly roofed. Floor includes four large bedrooms, a comfortable parents apartment with bathroom, dressing room and a garden terrace. In addition, here are two bathrooms with a laundry room. At the very top of the house is located attic, which can be used as a usable attic e.g. a recreation room. The house was designed with the use of energy-saving materials and technologies, so that, despite the considerable surface, its maintenance costs are not high.

Specifications:
  • Cubature: 1577,13 m3 / 55688,46 ft3
  • Built-up area:
    • without arcades 204,14 m2 / 2196,55 ft2
    • with arcades 216,60 m2 / 2330,62 ft2
  • Total area: 440,66 m2 / 4741,50 ft2
  • Net area: 323,29 m2 + garage 38,40 m2 / 3478,60 ft2 + garage 413,18 ft2
  • Usable area:
    • 312,99 m2 wg PN-70/B-02365 / 3367,77 ft2 wg PN-70/B-02365
    • 323,29 m2 + garage wg PN-ISO 9836:1997 / 3478,60 ft2 + garage wg PN-ISO 9836:1997
  • Roof area: 283,25 m2 / 3047,77 ft2
  • Roof slope: 30 degrees
  • Height of the building: 9,86 m (10,03 m with foundation) / 32,34 ft (32,90 ft with foundation)
  • Wide of the building: 15,24 m / 49,99 ft
  • Length of the building: 17,10 m / 56,09 ft
  • Minimum plot width: 22,24 m / 72,95 ft
  • Minimum plot length: 27,10 m / 88,89 ft
  • Height of rooms: 2,9 i 2,7 m / 9,51 and 8,86 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  monolithic reinforced concrete
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile






The costs of implementing:
The raw state open 76 600,00 EUR
The raw state closed 98 100,00 EUR
The cost of finishing works 89 800,00 EUR
Execution of turnkey home 187 800,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Forest Residence - detailed file - mirror

House plan Forest Residence - detailed file

Comment
Forest Residence 5535 Witkowska A.
2014.04.25 0 Pozytywny komentarz Negatywny komentarz

I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?

MG Projekt answer
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
Forest Residence 5517 Grzegorz
2014.04.24 1 Pozytywny komentarz Negatywny komentarz

I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.

Forest Residence 5518 Grzegorz
2014.04.24 0 Pozytywny komentarz Negatywny komentarz

Despite the small area this house has a number of functions and is very nice. I have just order this house plan.
