Usable area: 205.05 m2 / The cost of the realization: 165 000 EUR
Show mirror image
Price: 1110 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (39) Detailed drawings
List of materials
Comments (3)

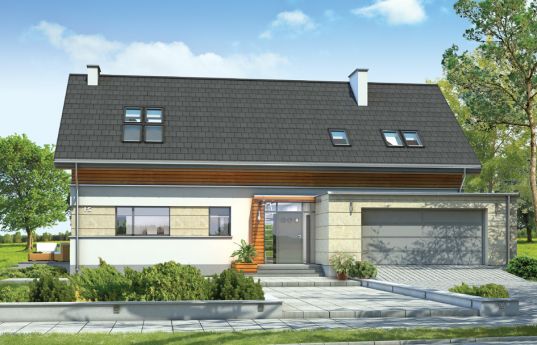

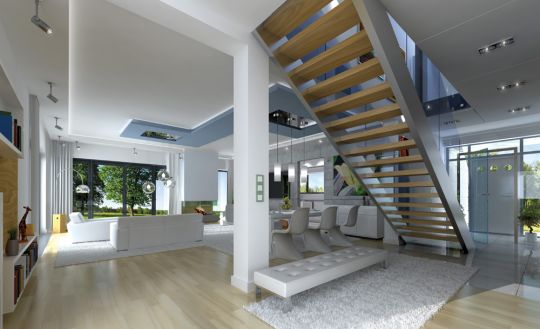

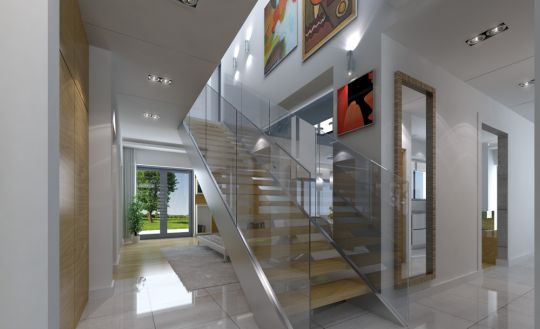

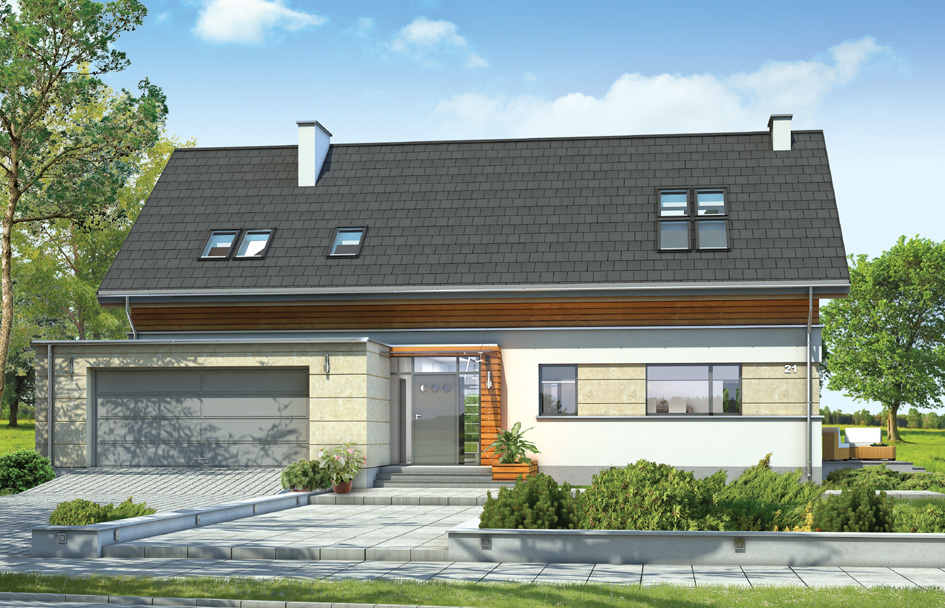

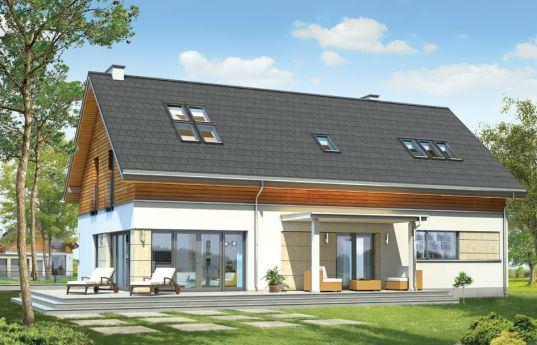

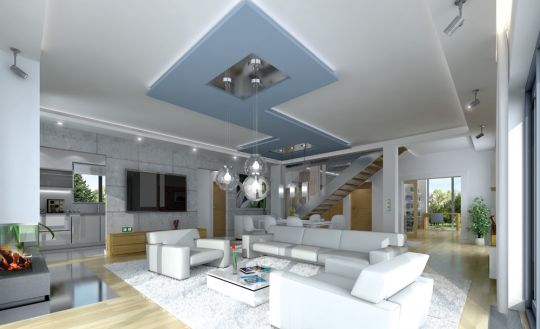

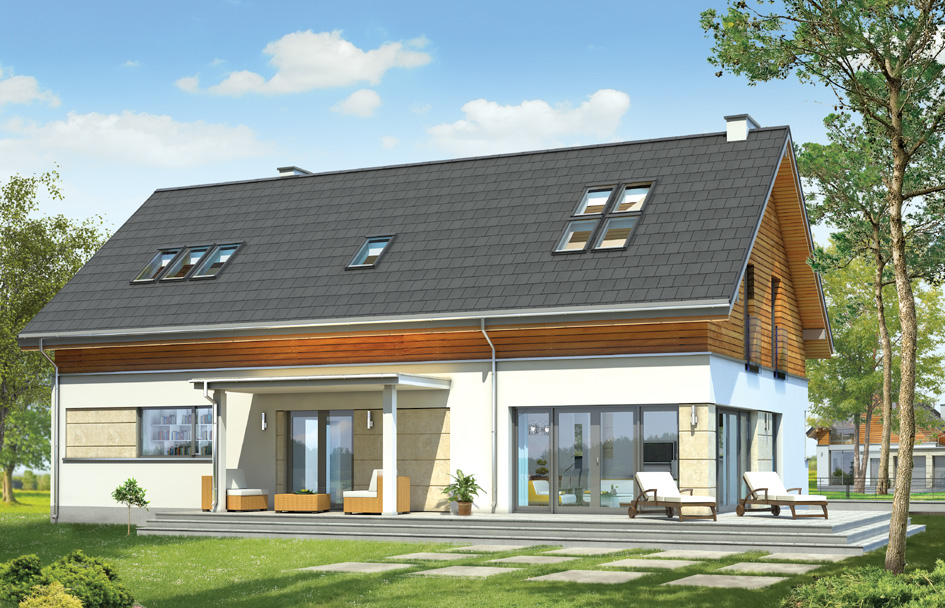

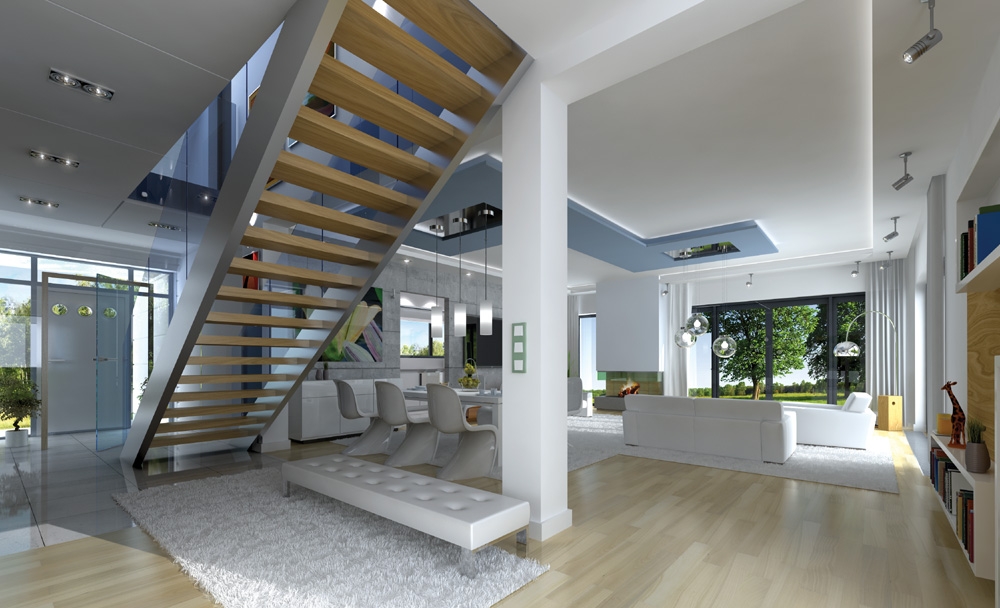

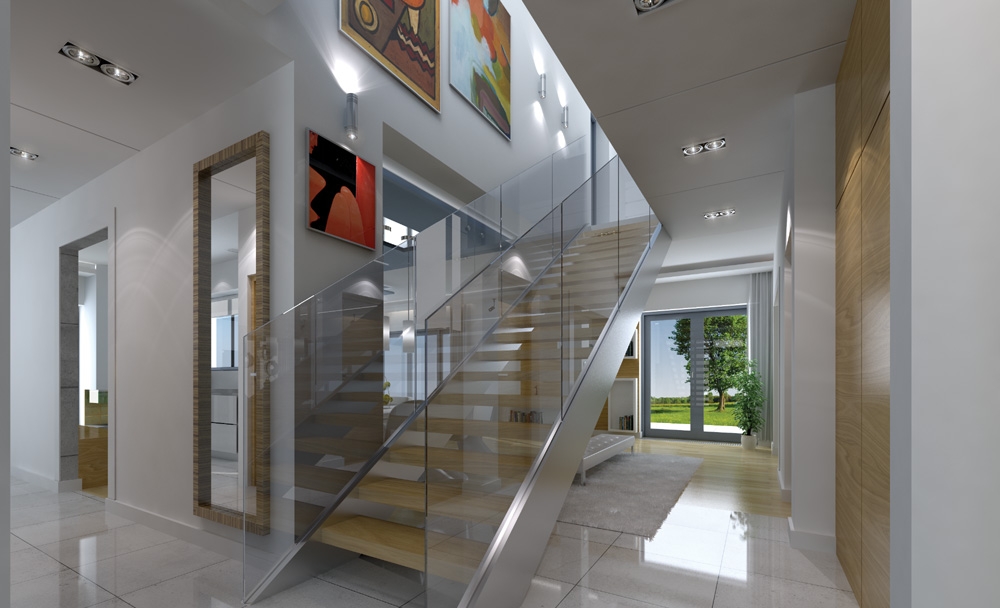

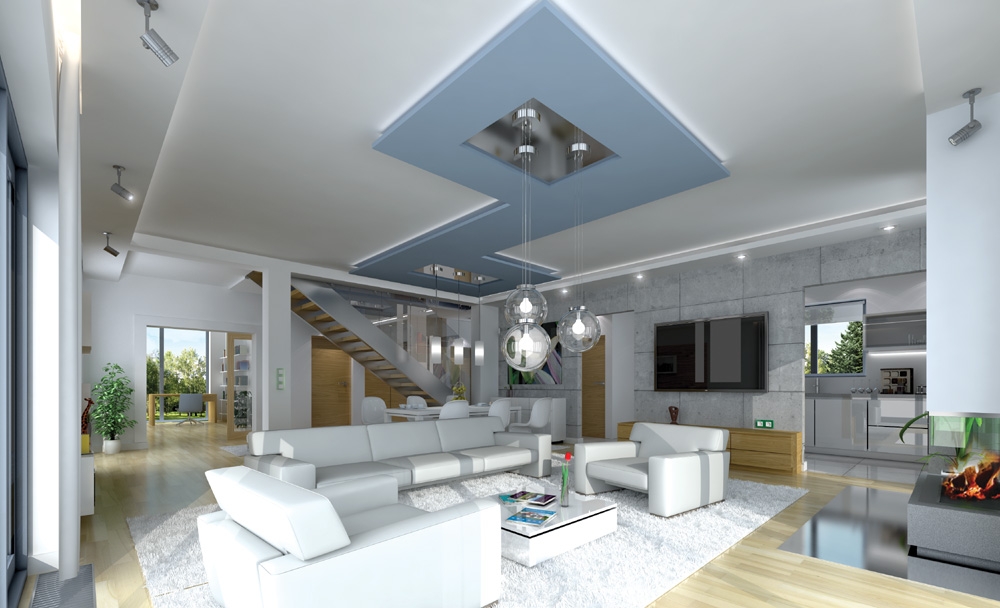

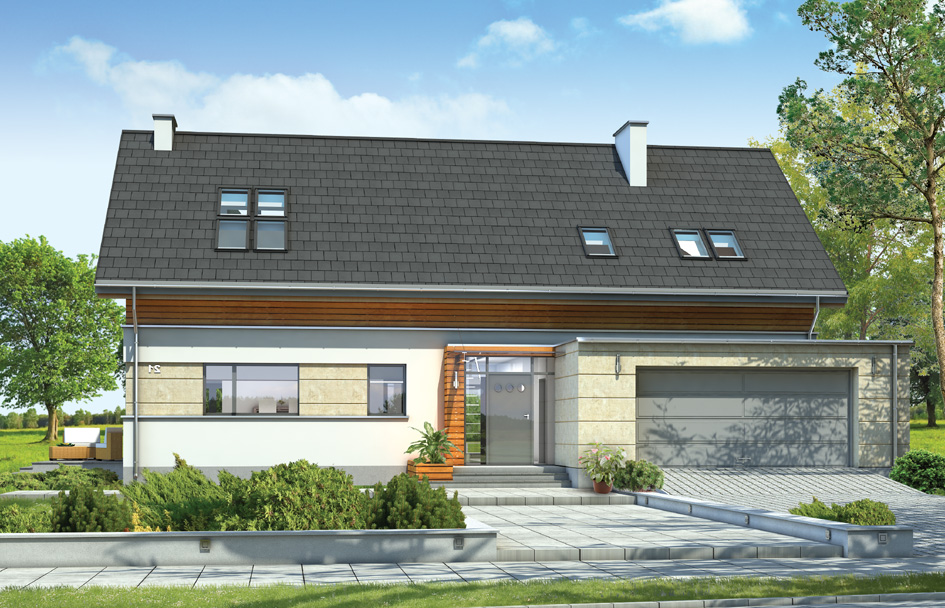

Gala house plan is a convenient, modern villa for four to six people. Solid of the building is designed as a single-storey with an attic. The house has a rectangular shape and it is covered by a gabled roof, with added one –storey garage extension, entry, or arcade at the garden terrace. Gala combines traditional form of avant-garde, modern solutions of the materials used, flat roofs, or large glazed opening inside the garden. Thanks to this architecture, the house is well presented among trendy urban villas as well as on a typical Polish village. The interior of the house on the ground floor was divided transversely to the body by a lobby with a single-speed, very attractive stairs. On one side was planned living area comprising living room, dining room, kitchen, on the other – the utility part with a garage and a boiler room, and an additional room or office. At the attic there are children's bedrooms with wardrobes and a bathroom, and a suite for parents with bathroom and dressing-room. Gala house plan is also available in mirror version. There is also the opportunity to purchase this house plan in a NF40 standard.
Specifications:
- Cubature: 912 m3/ 32202,72 ft3
- Built-up area: 181,52 m2/ 1953,16 ft2
- Total area: 302,9 m2/ 3259,20 ft2
- Net area : 212,34 m2 + garage/ 2284,78 ft2
- Usable area: 205,05 m2/ 2206,34 ft2
- Roof area: 224,5 m2/ 2415,62 ft2
- Roof slope: 40 degrees
- Height of the building: 8,64 m (9,09 m with foundation)/ 28,34 ft (29,82 ft with founadtion)
- Wide of the building: 17,19 m/ 56,38 ft
- Length of the building: 12,5 m/ 41ft
- Minimum plot width: 24,19 m/ 79,35 ft
- Minimum plot length: 21,52 m/ 70,59 ft
- Height of rooms: 2,77 and 2,5 m/ 9,09 ft and 8,2 ft
Materials:
- Foundations: concrete benches and foundation walls of concrete blocks
- External walls: brick walls - ceramic airbrick max + polystyrene + thin-layer plaster
- Ceiling: Teriva
- Elevations: thin-layer plaster on polystyrene
- Roofing: tile
The costs of implementing:
| The raw state open | 54 000,00 EUR |
| The raw state closed | 83 100,00 EUR |
| The cost of finishing works | 81 900,00 EUR |
| Execution of turnkey home | 165 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Gala - detailed file
House plan Gala - detailed file - mirror
