Simple house plan

Usable area: 137.81 m² / The cost of the realization: 108 300 EUR

Show mirror image

Price: 1000 EUR

Order the project! Add to briefcase

Description Plans Elevations Situations Animation Interiors Variants (0) Detailed drawings List of materials Comments (3)

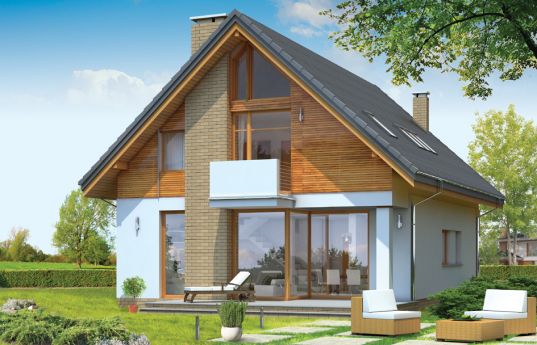

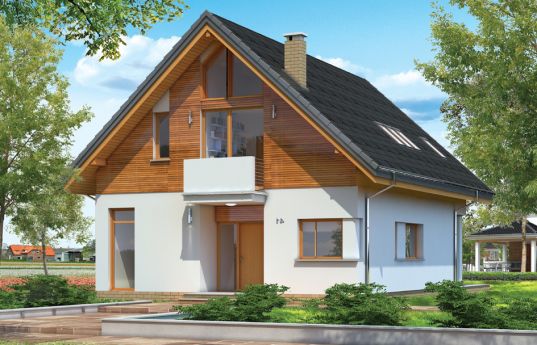

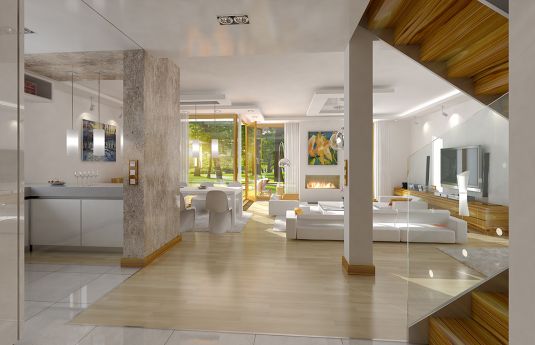

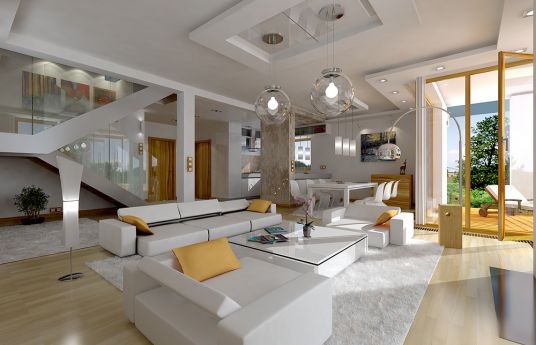

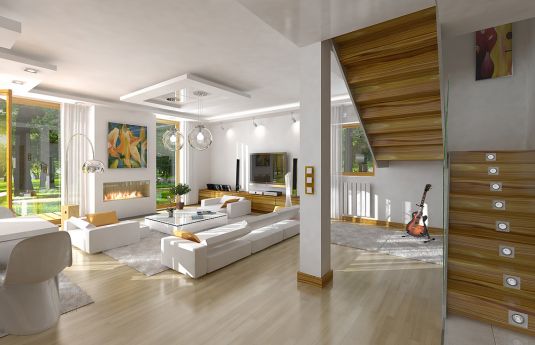

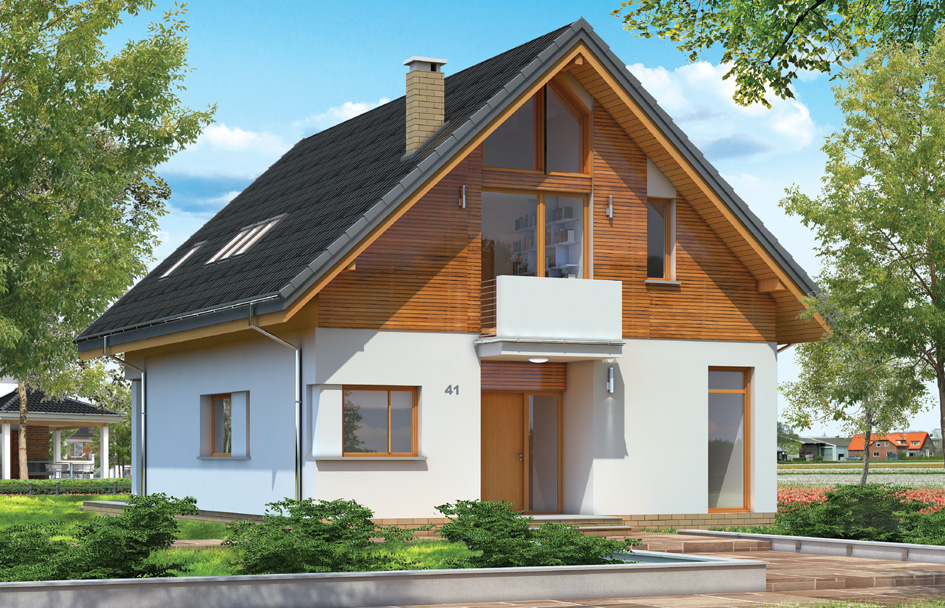

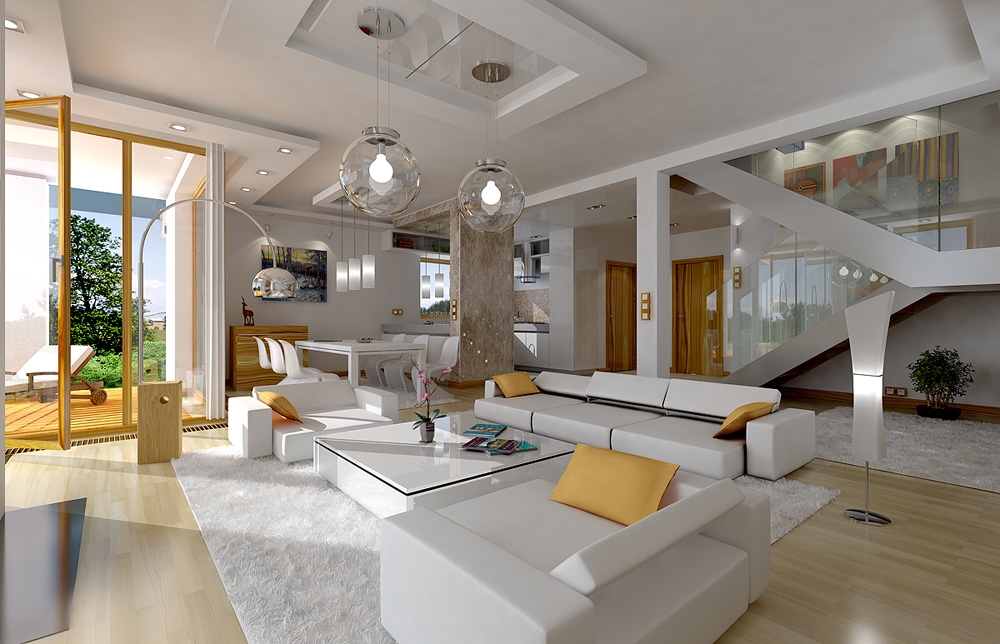

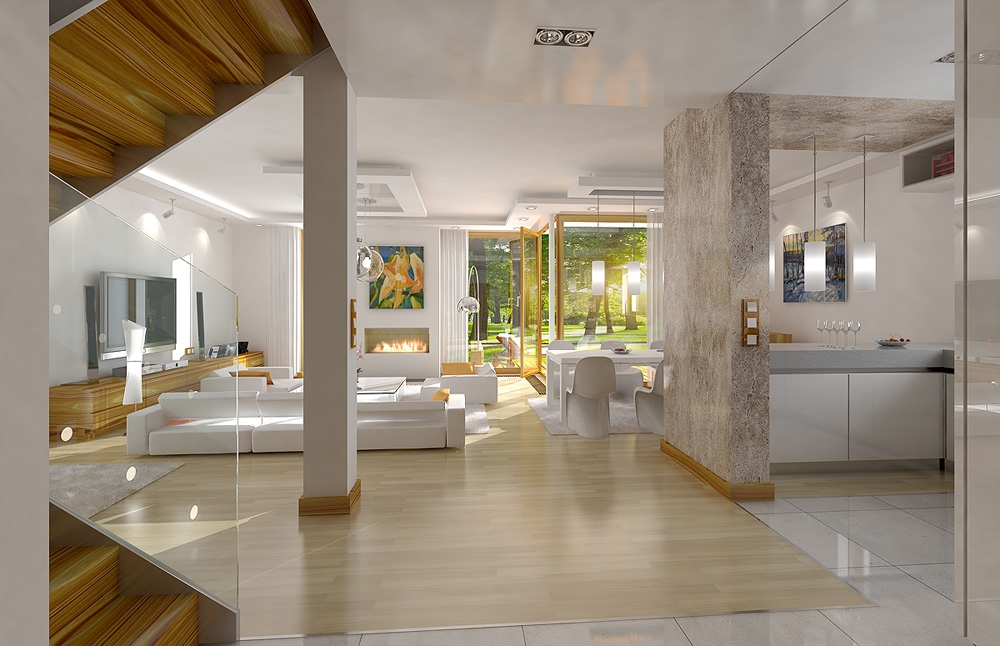

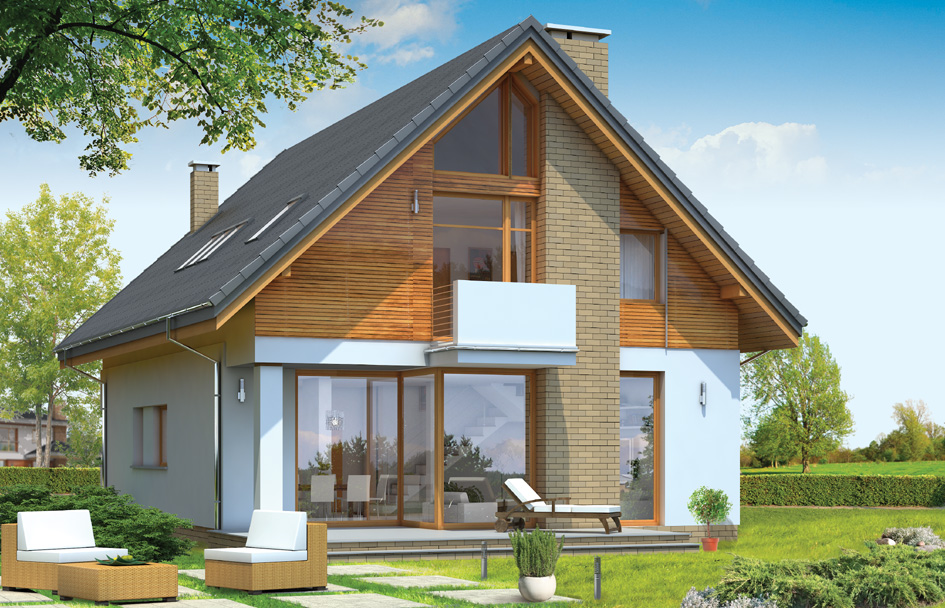

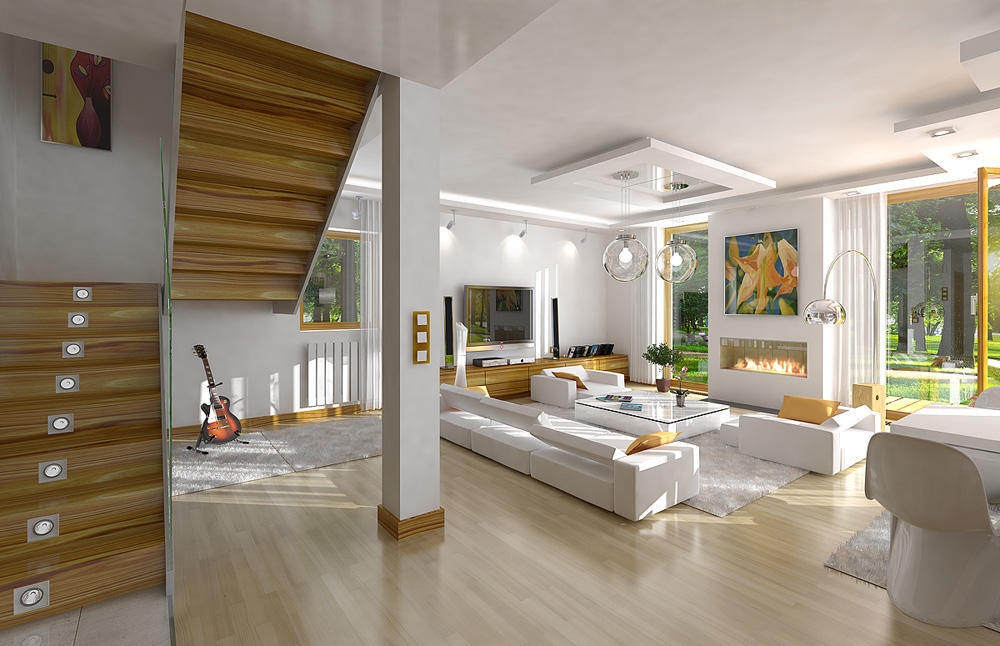

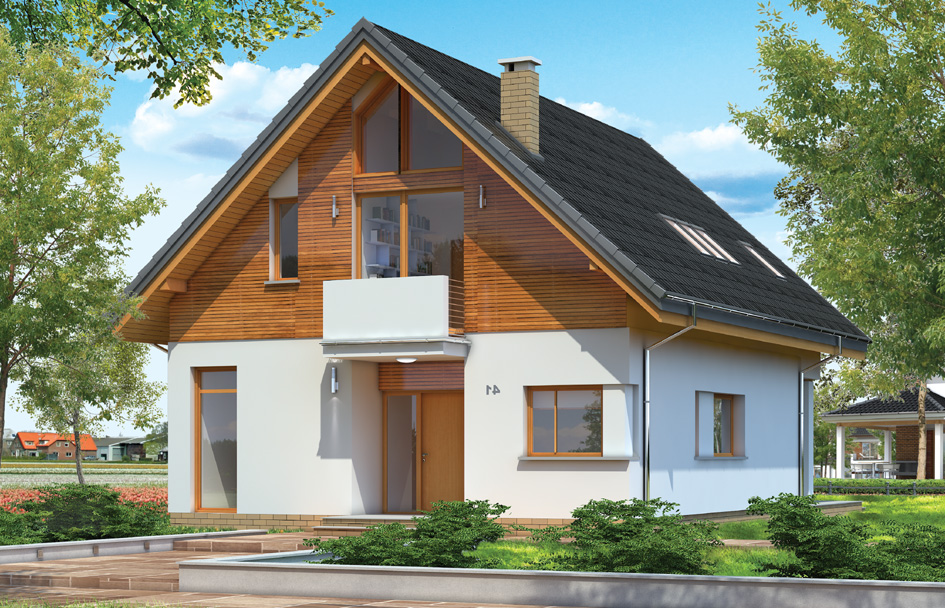

Simple house plan is a detached house for a family of four to six people, covered by a gable roof. The house is a suburban villa with a modern but quiet architecture. The compact shape of the building with a large roofed arcade on the back of the house, was curiously decorated with clinker and wooden cladding façade and loggias and arcade entrance. The massive ornamental fireplace of internal chimney or corner windows - it's extra ornaments. All elements form a coherent, calm compositionally whole. In the house Simple, on the ground floor is a large living room with dining area and hall, with a partially open kitchen, and an extra room - office or guest bedroom. In the attic there were bedrooms, with a separate parents apartment, and its own bathroom, dressing room and balcony overlooking the garden. On the ground floor by a wide glazing planned exit from the living room to a large arcades and on the garden terrace. There is also available mirror version of this house plan.

Specifications:

Cubature: 533 m³ / 18820,23 ft³
Built-up area: 98,13 m² / 1055,88 ft²
Total area: 176,92 m² / 1903,66 ft²
Net area: 142,01 m² / 1528,03 ft²
Usable area: 137,81 m² / 1482,84 ft²
Roof area: 184,08 m² / 1980,70 ft²
Roof slope: 42 degrees
Height of the building: 8,42 m (8,72 m with foundation) / 27,62 ft (28,60 ft with foundation)
Wide of the building: 8,86 m / 29,06 ft
Length of the building: 12,06 m / 39,56 ft
Minimum plot width: 16,86 m / 55,30 ft
Minimum plot lengthi: 20,06 m / 65,80 ft
Height of rooms: 2,7 i 2,5 m / 8,86 and 8,2 ft

Materials:

Foundations - concrete bench and foundation walls with concrete blocks
External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
Ceiling - Teriva
Elevation - thin-layer plaster on polystyrene
Roof - tile

The costs of implementing:

The raw state open	35 200,00 EUR
The raw state closed	55 200,00 EUR
The cost of finishing works	53 200,00 EUR
Execution of turnkey home	108 300,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Prosty - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Simple - detailed file

House plan Simple - detailed file - mirror
