Usable area: 107.39 m2 / The cost of the realization: 105 100 EUR

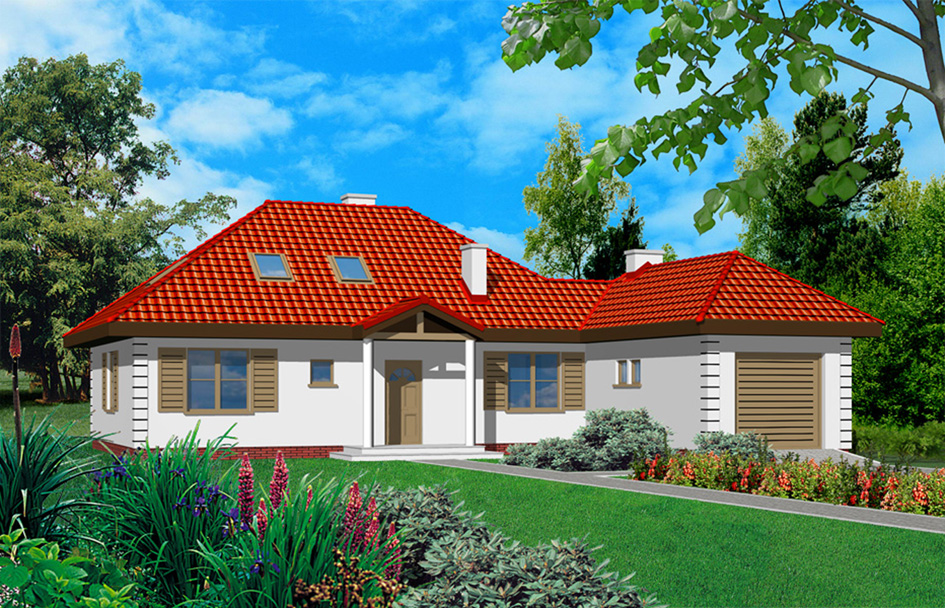

Show mirror image
Price: 900 EUR
Description
Plans
Elevations
Situations
Variants (0)
Detailed drawings
List of materials
Comments (3)

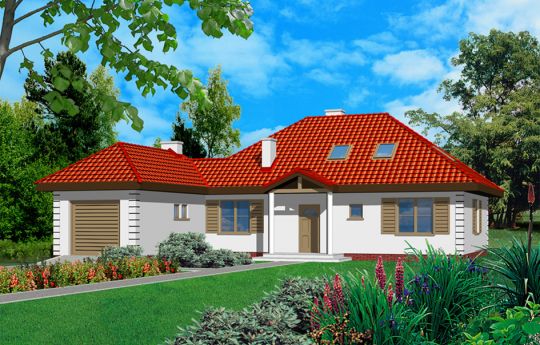

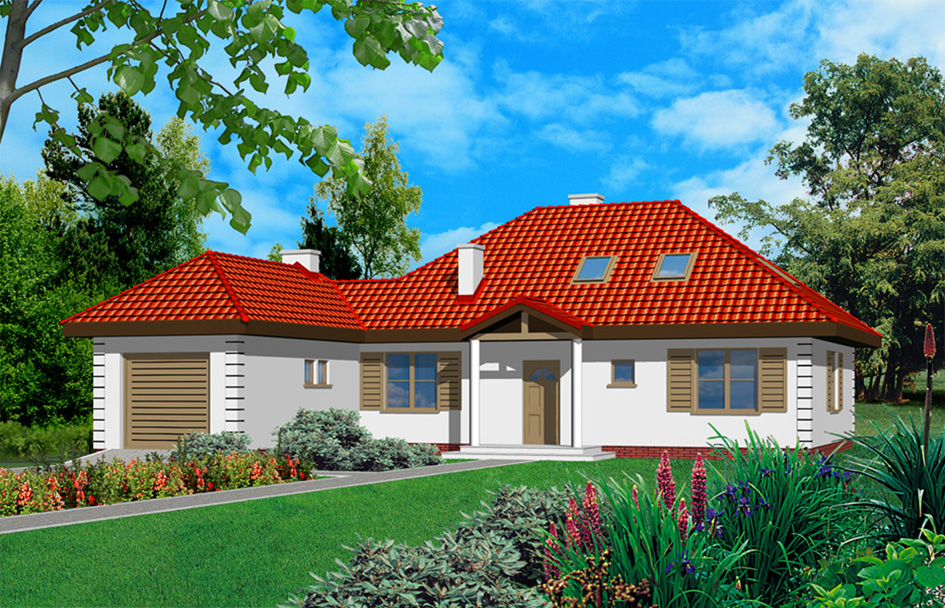

Like a dream 2 house plan is an enlarged variant version of the Like a dream house plan. In addition to the functional layout on the ground floor, also the attic is designed to free adaptation and the garage with utility room was built on. The building stands out is has interesting, traditional solid. The hipped roofs and entrance portico refer to the aesthetics of Polish manor house. Simple construction of house allows for possible changes in the interior, and for the construction stages. This house plan is also available in mirror version.
Specifications:
- Cubature: 456 m3/ 16101,36 ft3
- Built-up area: 133,66 m2/ 1438,18 ft2
- Total area: 157,24 m2/ 1691,90 ft2
- Net area: 131,87 m2/ 1418,92 ft2
- Usable area: 107,39 m2/ 1155,52 ft2
- Roof area: 247 m2/ 2657,72 ft2
- Roof slope: 36 degrees
- Height of the building: 6,51 m (6,88 m with foundation)/ 21,35 ft (22,57 with foundation)
- Wide of the building: 15,34 m/ 50,32 ft
- Length of the building: 14,48 m/ 47,49 ft
- Minimum plot width: 23,34 m/ 76,55 ft
- Minimum plot length: 22,48 m/ 73,73 ft
- Height of rooms: 2,60 m/ 8,53 ft
Materials:
- Foundations – concrete
- Exterior walls - brick walls - aerated concrete + polystyrene or porotherm + mineral wool
- Internal walls – brick walls - brick or aerated concrete
- Celling - reinforced concrete TERIVA
- Elevation - thin-layer plaster
- Roofing - ceramic or concrete tile
The costs of implementing:
| The raw state open | 33 700,00 EUR |
| The raw state closed | 52 100,00 EUR |
| The cost of finishing works | 53 000,00 EUR |
| Execution of turnkey home | 105 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Like a dream 2 - detailed file
House plan Like a dream 2 - detailed file - mirror
