Usable area: 89.78 m2 / The cost of the realization: 85 500 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (2) Detailed drawings
List of materials
Comments (3)

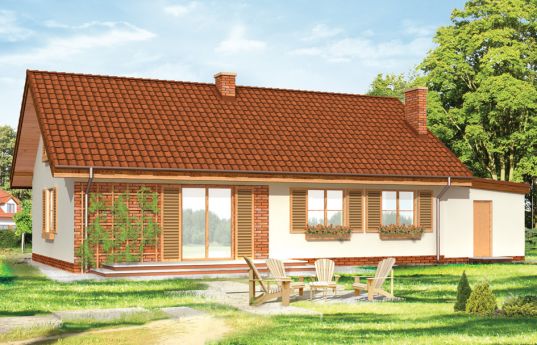

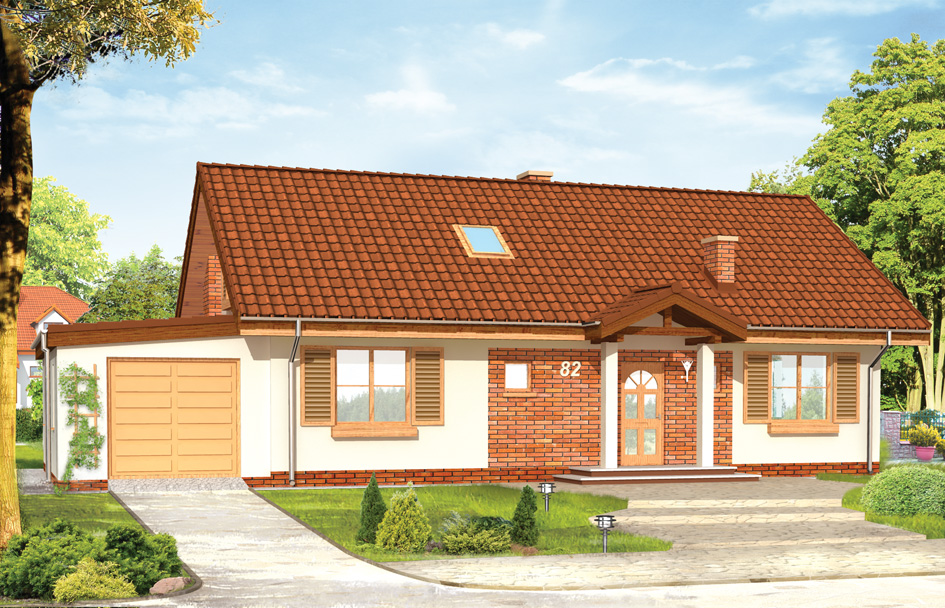

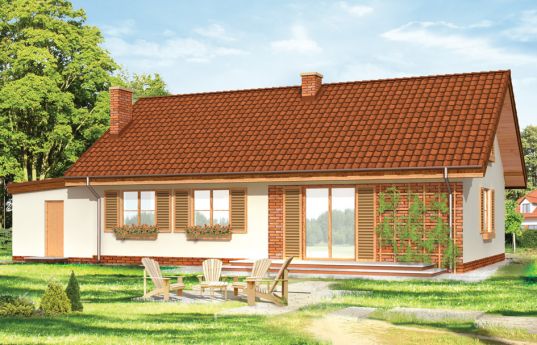

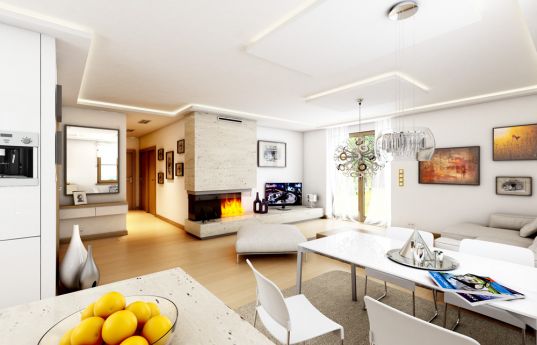

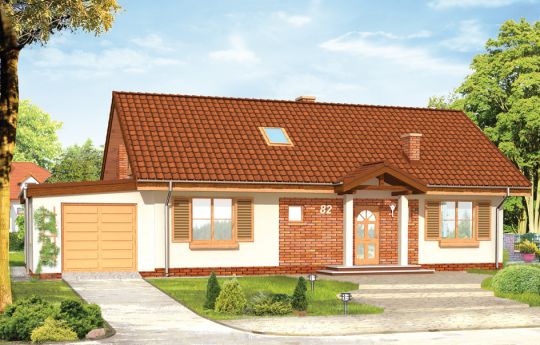

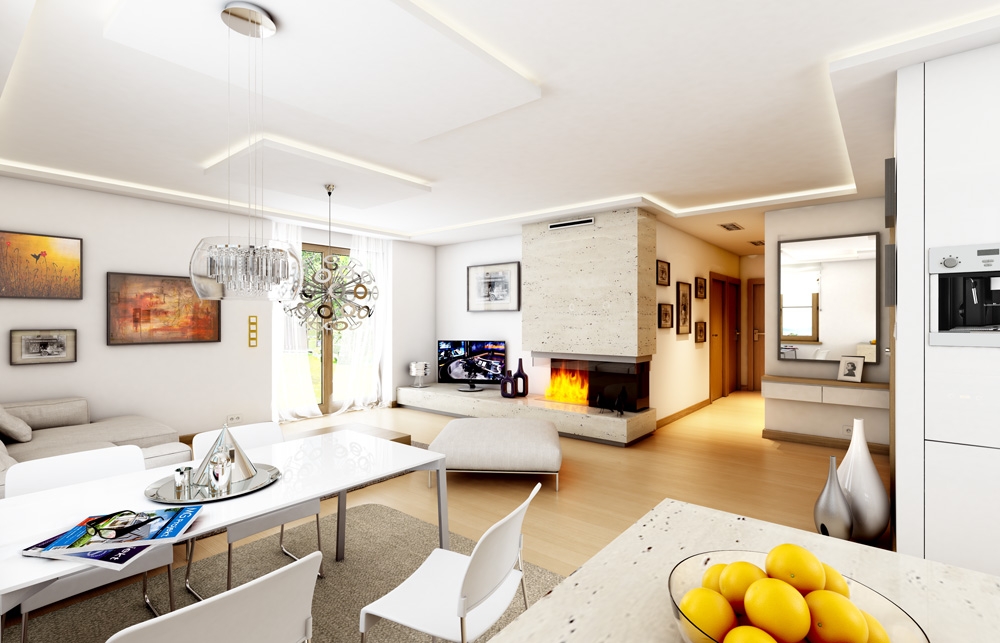

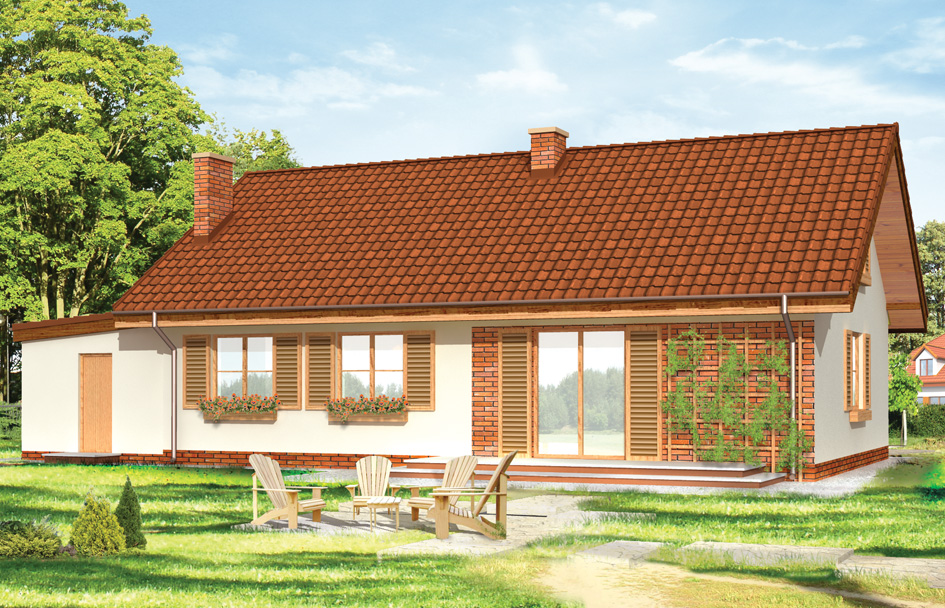

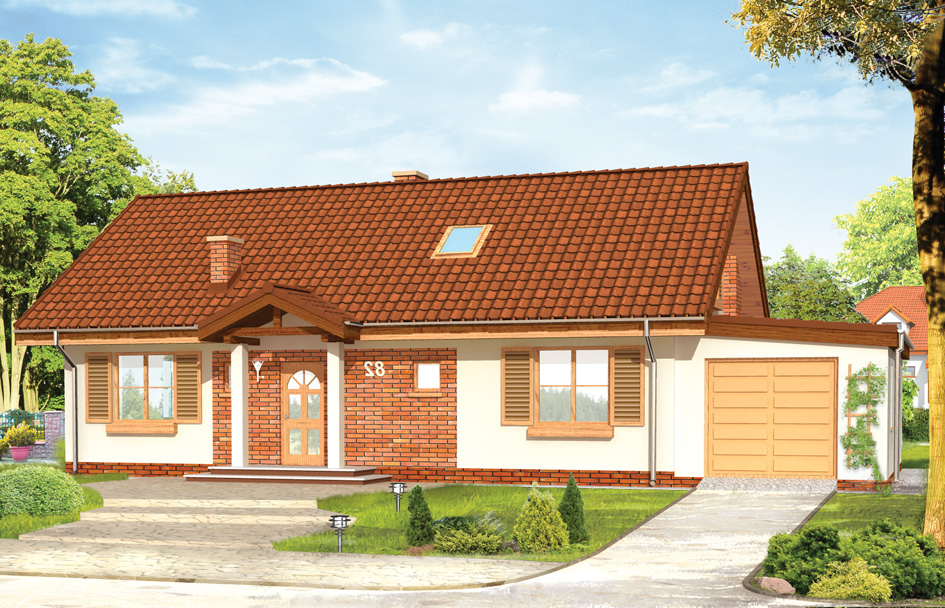

Sunny house plan with an attic is a version of Sunny with the lifted roof. Thanks to this in the project foresees an attic to adapt to a usable attic. On the ground floor besides a living room with spatially hall and kitchen, three bedrooms, utility room, was designed a garage with a boiler room. Above the ground floor was designed attic, which in the second stage of building a house can be used as a loft with two bedrooms and a bathroom. Then, in place of the pull-out folding steps should be planned in the lobby with stairs to the attic. Architecture of the building: unpretentious, simple and economical in expression in the detail. Simple design of Sunny house with an attic allows for economical and easy construction. There is also available mirror version of this house plan.
Specifications:
- Cubature: 439 m3 / 15501,09 ft3
- Built-up area: 141,66 m2 / 1524,26 ft2
- Total area: 141,66 m2 + garage+ attic / 1524,26 ft2 + garage+ attic
- Net area: 115,67 m2 / 1244,61 ft2
- Usable area: 89,78 m2 + attic / 966,03 ft2 + attic
- Roof area: 213,2 m2 / 2294,03 ft2
- Roof slope: 35 degrees
- Height of the building: 6,60 m (6,90 m with foundation) / 21,6 ft (22,63 ft with foundation)
- Wide of the building: 17,04 m / 55,89 ft
- Length of the building: 8,34 m / 27,36 ft
- Minimum plot width: 24,04 m / 78,85 ft
- Minimum plot length: 16,34 m / 53,60 ft
- Height of rooms: 2,60 m / 8,53 ft
Materials:
- Foundations – concrete
- External walls - bilayer aerated concrete + foamed polystyrene or mineral wool
- Ceiling - wooden beams
- Roof - ceramic tile
The costs of implementing:
| The raw state open | 25 800,00 EUR |
| The raw state closed | 39 200,00 EUR |
| The cost of finishing works | 46 300,00 EUR |
| Execution of turnkey home | 85 500,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Sunny with an attic - detailed file
House plan Sunny with an attic - detailed file - mirror
