Usable area: 89.16 m2 / The cost of the realization: 75 800 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (4) Detailed drawings
List of materials
Comments (3)

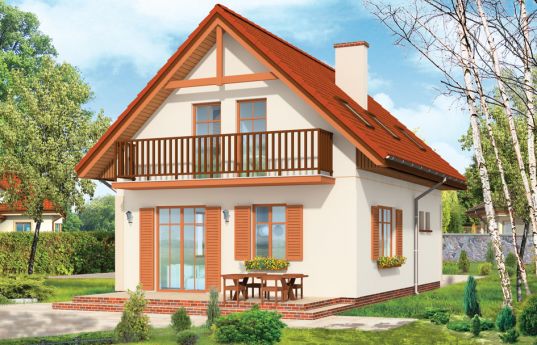

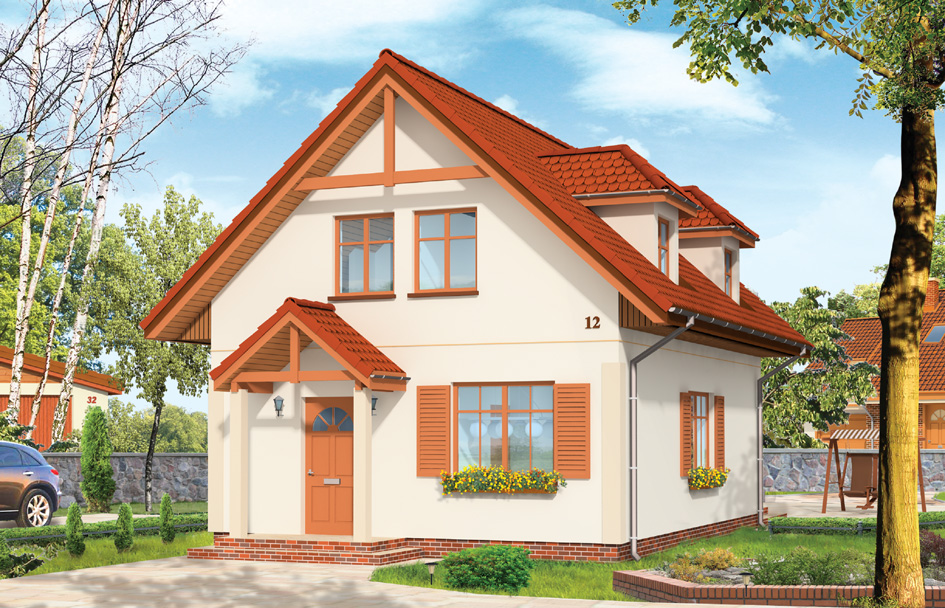

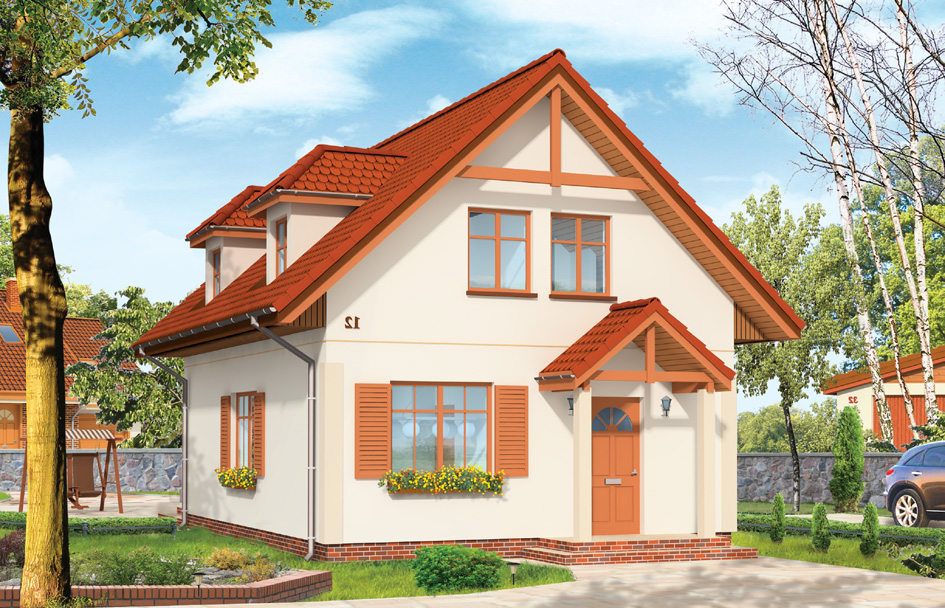

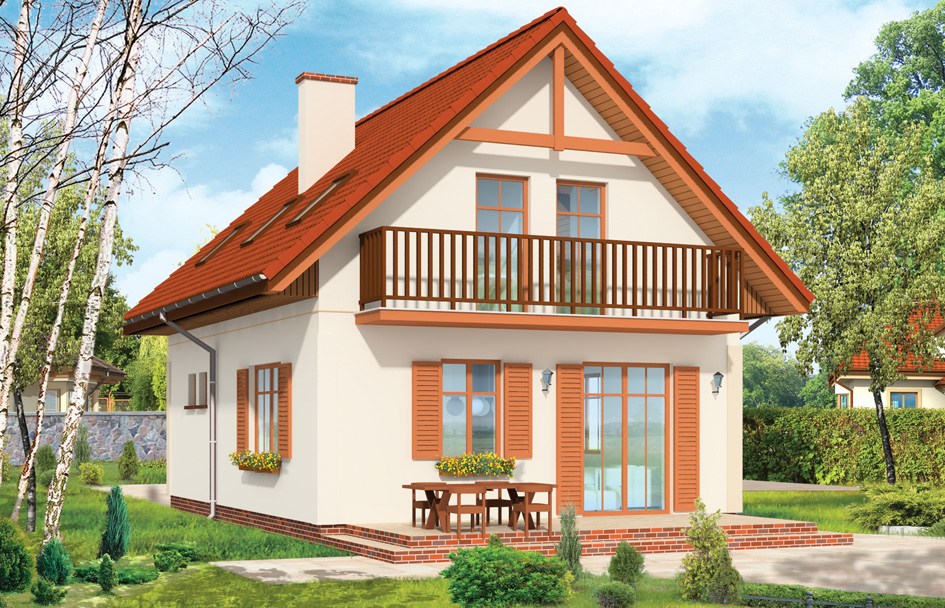

First house plan is a proposition for your first house. Fit on a small area and a small budget, you get everything what you could expect from real house. This house plan has on the ground floor a large living room with semi-open kitchen, utility room, and in the attic there are three bedrooms and a bathroom. We have also a version with a garage at the front and on the side of the house. There is also available mirror version of this house plan.
Specifications:
- Cubature: 380 m3 / 13417,8 ft3
- Built-up area: 67,2 m2 / 723,07 ft2
- Total area: 110,8 m2 / 1192,21 ft2
- Net area: 93,6 m2 / 1007,14 ft2
- Usable area: 89,16 m2 / 959,36 ft2
- Roof area: 130 m2 / 1398,80 ft2
- Roof slope: 42 degrees
- Height of the building: 7,40 m (7,72 m with foundation) / 24,27 ft (25,32 ft with foundation)
- Wide of the building: 7 m / 22,96 ft
- Length of the building: 9,6 m / 31,49 ft
- Minimum plot width: 15 m / 49,2 ft
- Minimum plot length: 17,65 m / 57,89 ft
-
Height of rooms: 2,63 m / 8,63 ft
Materials:
- Foundations - concrete bench
- External walls - aerated concrete + polystyrene
- Internal walls - aerated concrete
- Ceiling - reinforced concrete Teriva
- Elevation - thin-layer plaster
- Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 22 700,00 EUR |
| The raw state closed | 34 300,00 EUR |
| The cost of finishing works | 41 600,00 EUR |
| Execution of turnkey home | 75 800,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan First house - detailed file - mirror
House plan First house - detailed file
