Viking 3 house plan

Usable area: 119.34 m2   /   The cost of the realization: 97 060 EUR

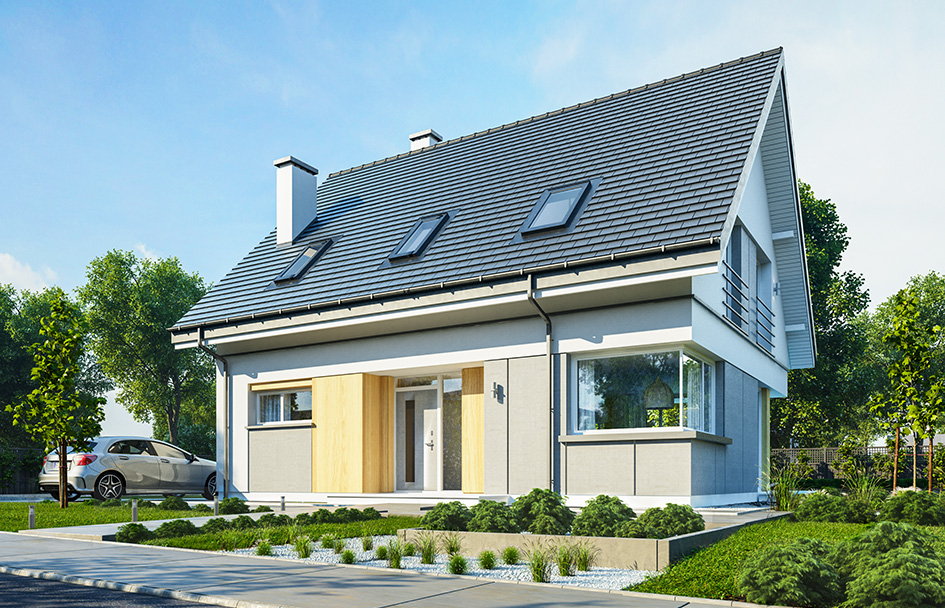

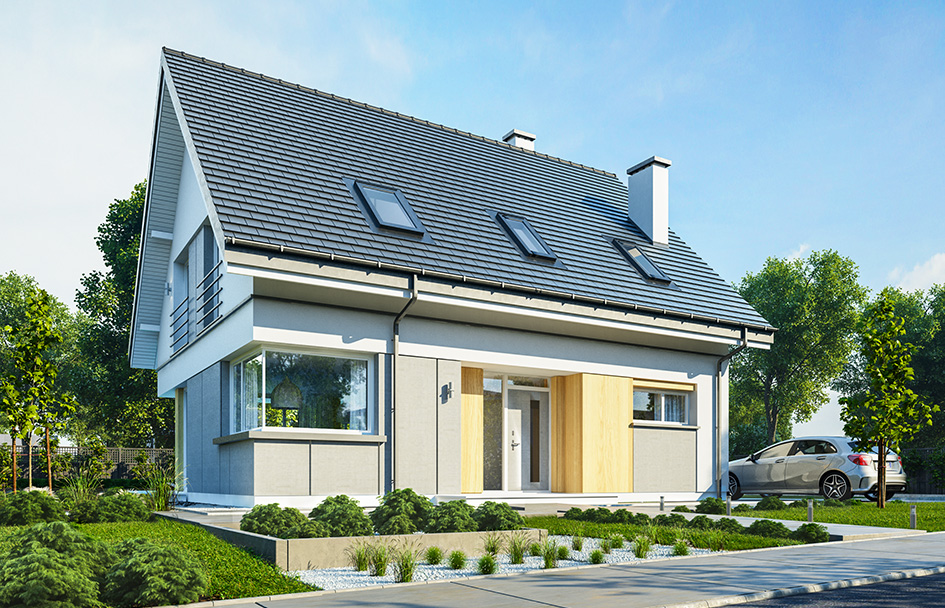

House plan Viking 3 - front visualization

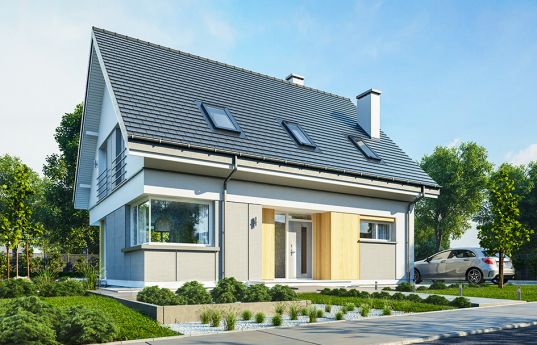

Show mirror image

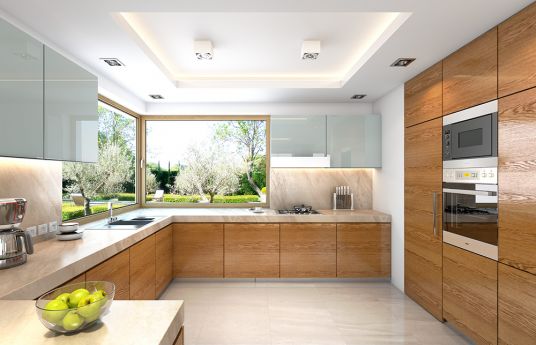

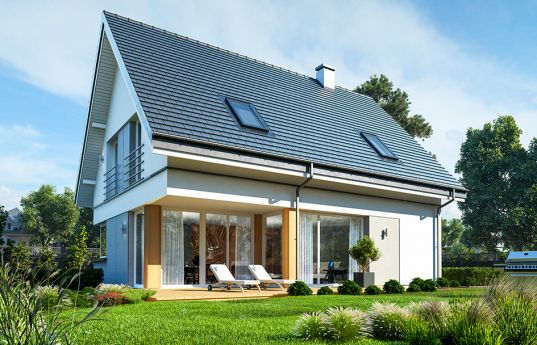

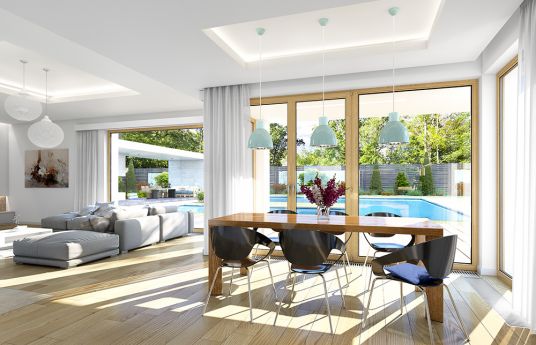

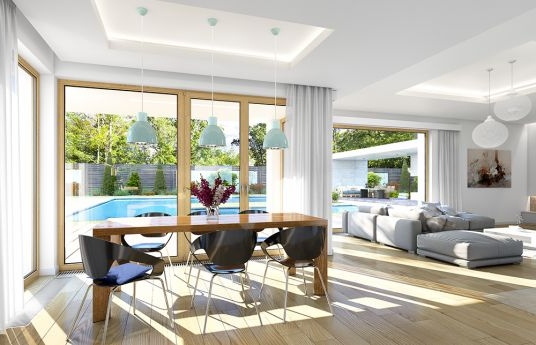

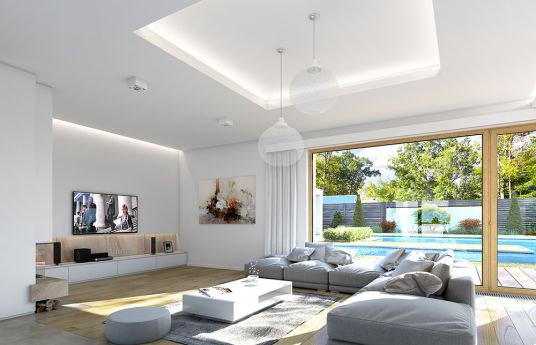

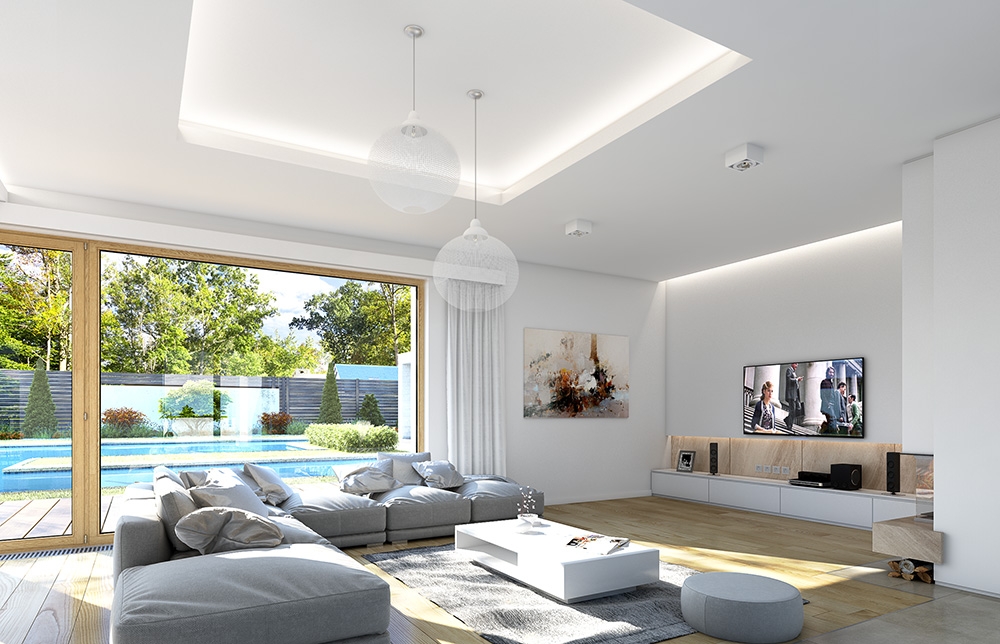

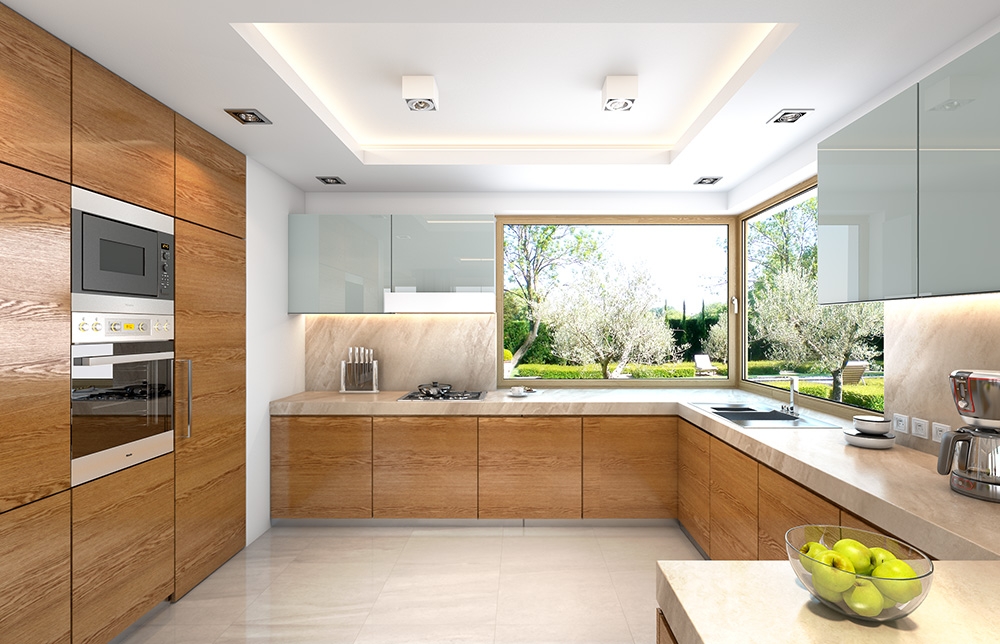

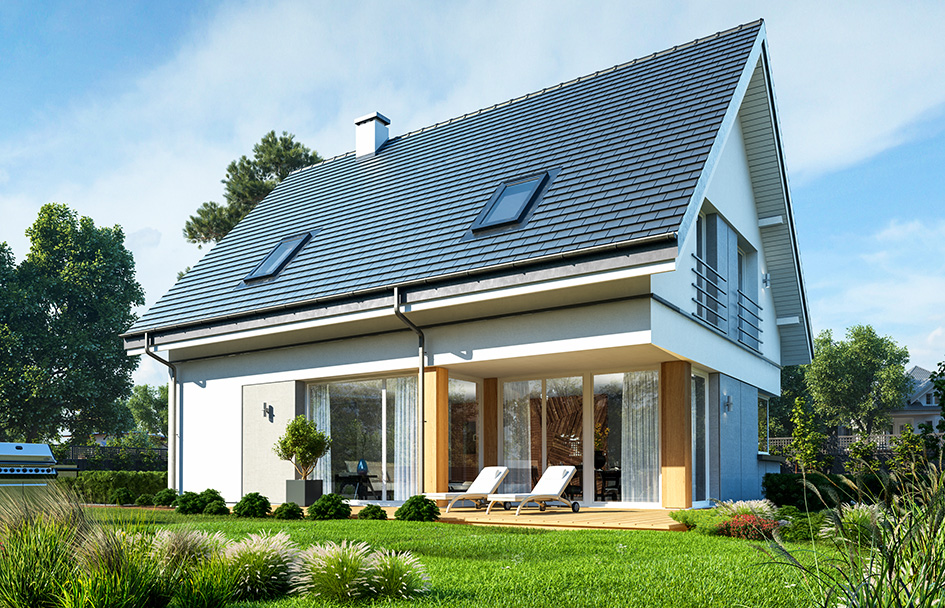

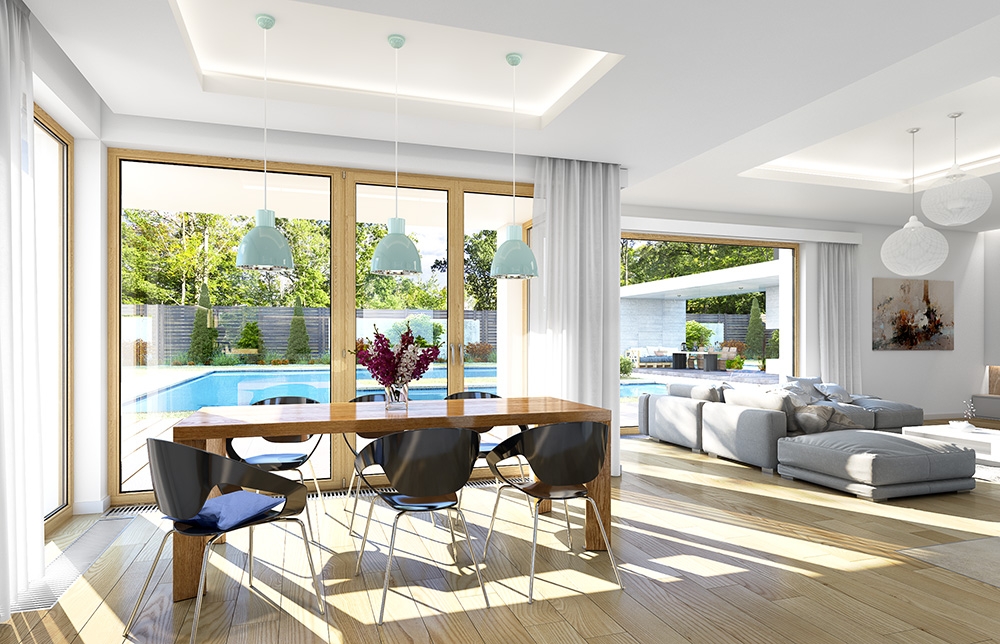

Project Viking House 3 is another house with a series of Viking - this time, the smallest of the collection, ground-floor house with a loft, without a garage, designed for a family of 3-4 people. The building has a compact rectangular body covered with a symmetrical gable roof. Modern materials and details gives Viking 3 dynamic and charming appearance. Large glazing, wood and fiber-cement wall cladding, facades division into horizontal strips diversified facades of the building. Entrance is emphasized by arcade with large doors. The garden elevation is decorated with wide glazing living room and dining room, opening the interior to the garden, and a corner arcade forming partially roof terrace. The interior of the house: on the ground floor has a living room with dining area, connected to the hall, kitchen with pantry, a boiler room and toilet. From the lobby are comfortable stairs to the attic. At the top we have three bedrooms with a bathroom and a laundry room. Master bedroom has a dressing room, and the other bedrooms - wardrobes. Viking 3 is a simple, modern and functional house. This house is inexpensive to build and subsequent maintenance. This is a proposal for Investors who are do not have too much plot and cannot or do not want to spend big money to build. House plan Viking 3 is available in mirror version and in basic version (Viking house plan), without single garage (house plan Viking 2), with a roof above the garage (house plan Viking 4), and the largest one (house plan Viking 5)

  • Cubature: 561 m3/19808 ft3
  • Built-up area: 89,65 m2/964,63 ft2
  • Total area: 154,84 m2/1666,08 ft2
  • Net area: 123,45 m2/1328,32 ft2
  • Usable area: 119,34 m2/1284,10 ft2
  • Roof area: 173,33 m2/1865,03 ft2
  • Roof slope: 45 degrees
  • Height of the building: 8,94 m (9,14 m with foundation)/29,32 ft (29,98 ft with foundation)
  • Building dimensions: 10,82 m/35,49 ft x 9,04 m/29,65 ft
  • Plot dimensions: 18,82 m/61,73 ft x 17,04 m/55,89 ft
  • Height of rooms: 2,7 & 2,6 m/8,86 & 8,53 ft
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls – brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling - monolithic
  • Elevation - thin-layer plaster on polystyrene
  • Roof - ceramic tile


The costs of implementing:
The raw state open 35 670,00 EUR
The raw state closed 49 770,00 EUR
The cost of finishing works 48 670,00 EUR
Execution of turnkey home 97 060,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Viking 3 - detail drawings

House plan Viking 3 - detail drawings mirror
