Emerald 2 house plan

Usable area: 133.87 m2   /   The cost of the realization: 129 200 EUR

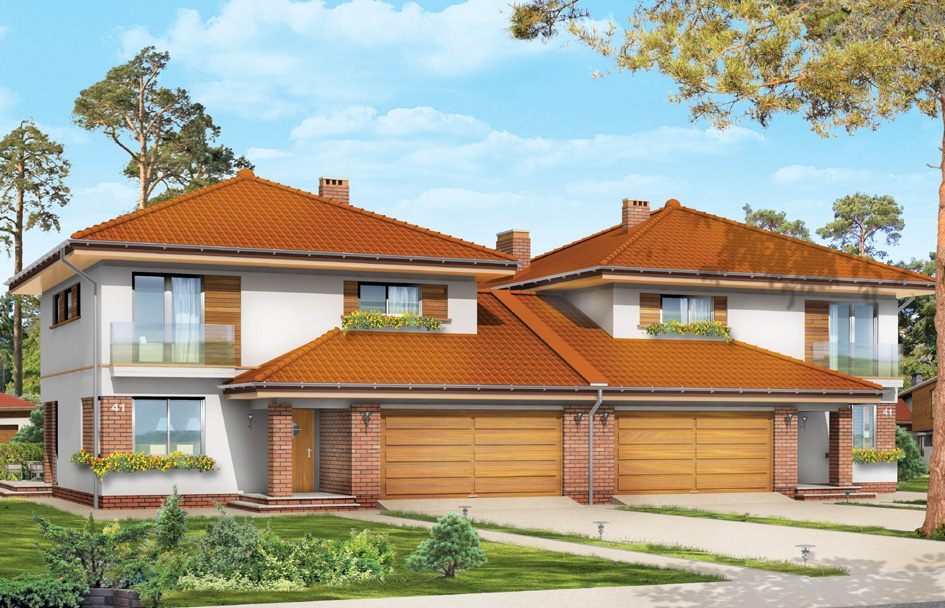

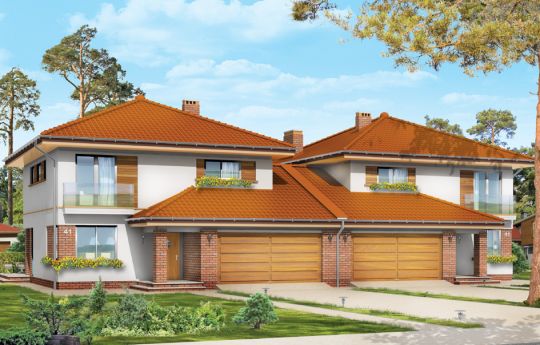

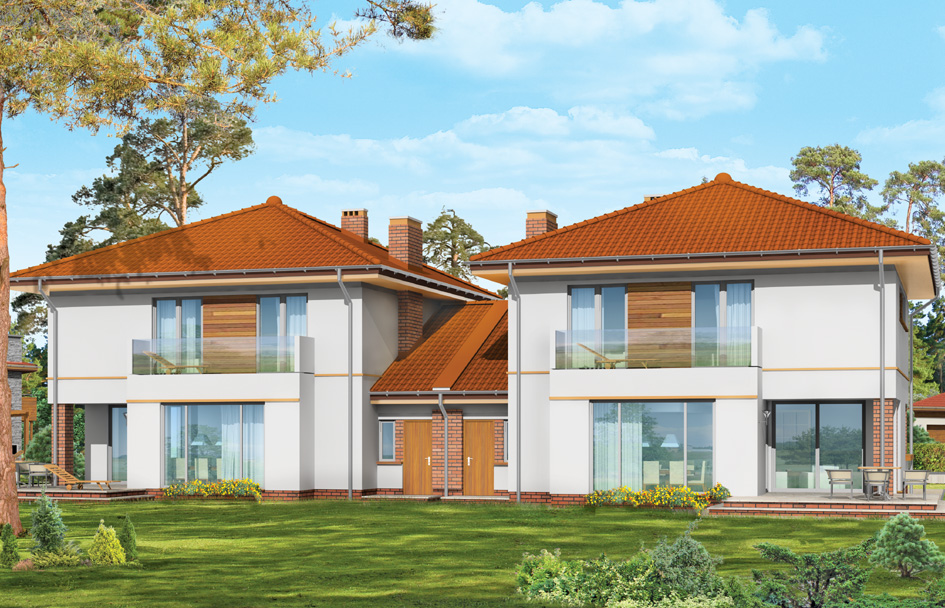

House plan Emerald 2 - front visualization

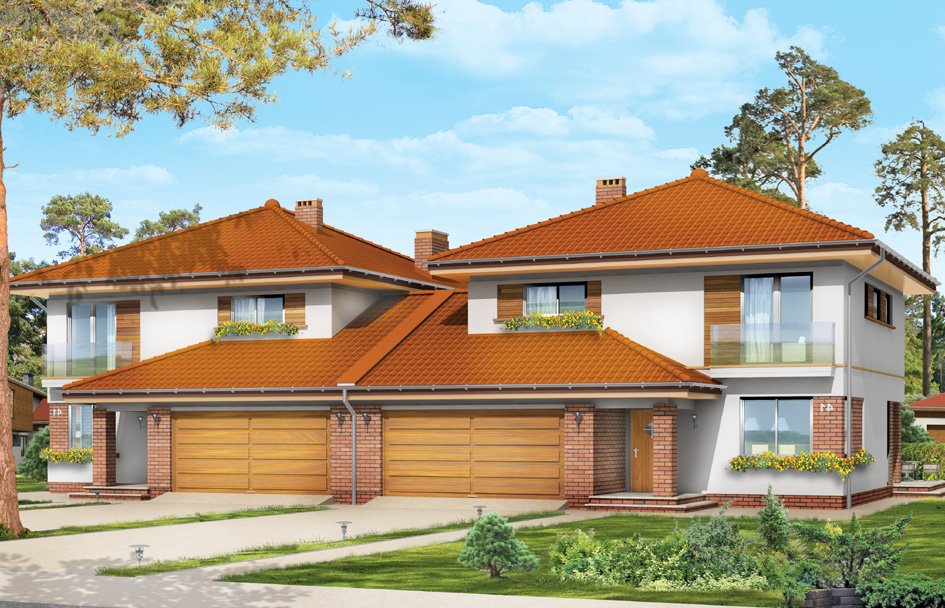

Show mirror image

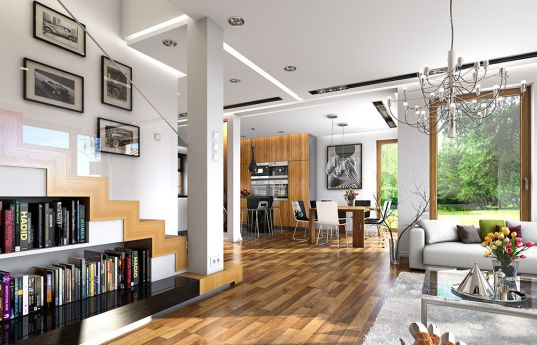

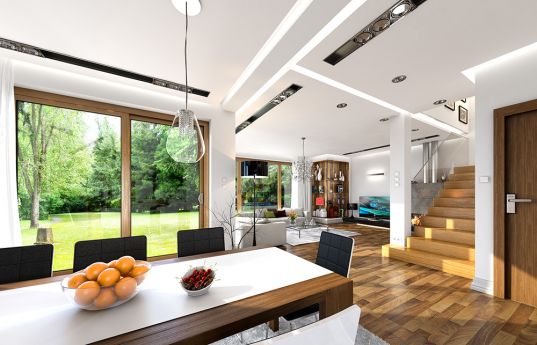

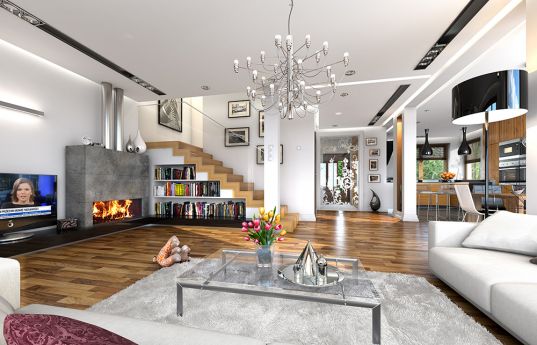

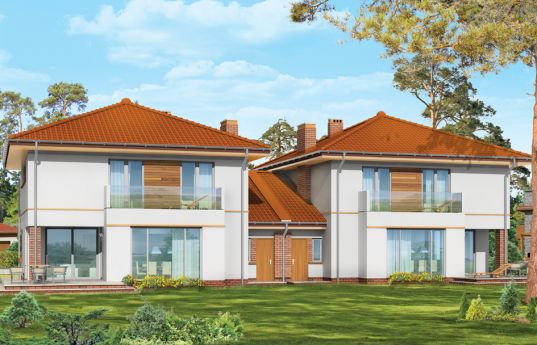

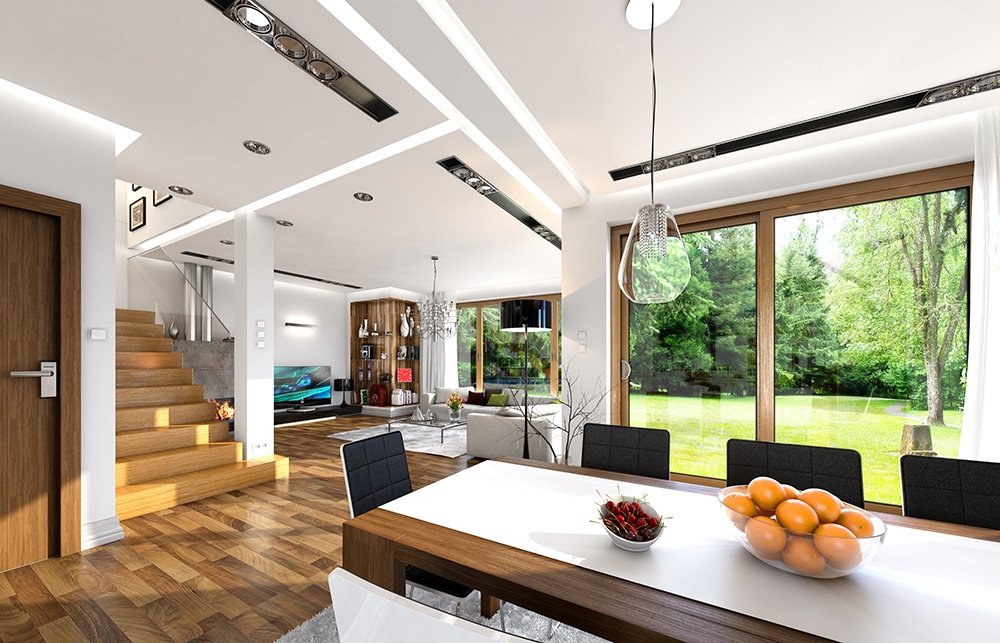

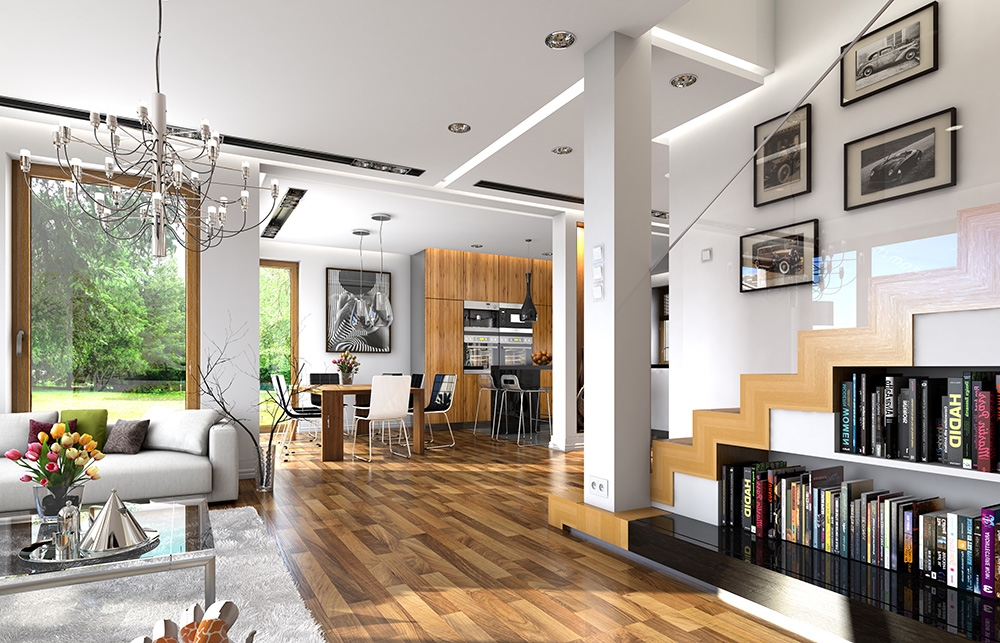

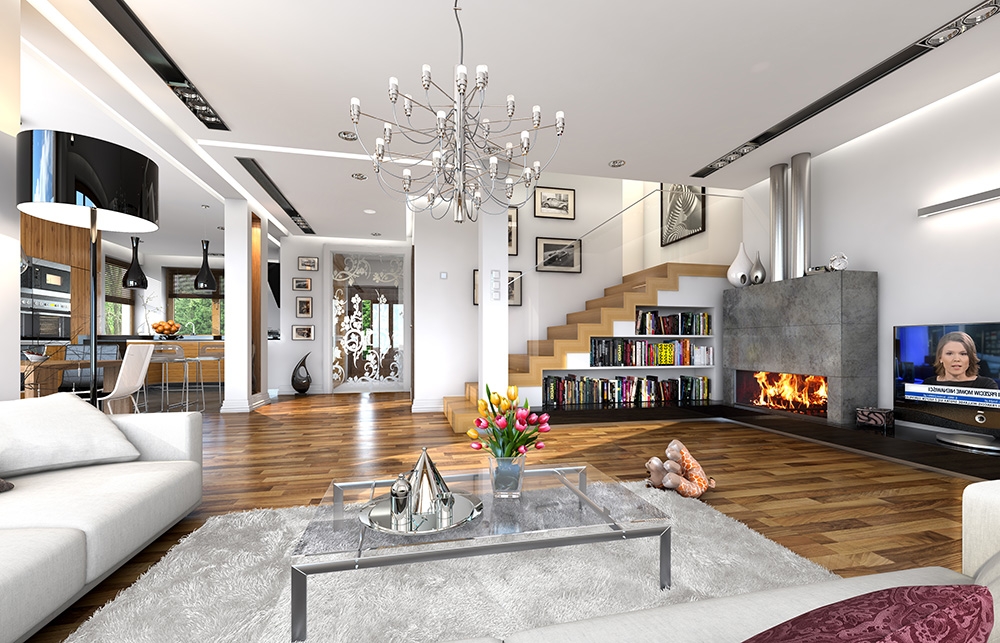

Emerald 2 house plan is a variant version of Emerald house plan. This time is designed as twin. The modern form of the building with attractive details harmonizes with the simple form, built on a square body. Two parts of the twin covered by roofs envelop are combined by garages completed by pitched, lower roof. Thanks to this, house halves allows are visually separated from each other. The principal body of house is enriched with partially protruding garage, entrance arcade and garden, bay window and balcony. Emerald, as a whole, creates a coherent, clear composition. The modern appearance of the building in a harmonious way corresponds to the interior, where on the ground floor is a single, open, daily space: hall, dining room and living room, with large glazed to garden. Dining room is partially combined with the kitchen. On the ground floor there is also a double garage and boiler room. In an apartment on the first floor there are three bedrooms and a bathroom. There is also an extra room that could serve as an study, guest bedroom or dressing room.

  • Cubature: 683 m3/ 24116,73 ft3
  • Built-up area: 130,3 m2 / 1402,03 ft2
  • Total area: 227,52 m2 / 2448,12 ft2
  • Net area: 141,45 m2 + garage / 1522,00 ft2 + garage
  • Usable area: 133,87 m2 / 1440,44 ft2
  • Roof area: 192,72 m/ 2073,67 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,70 m (9,05 m with foundation) / 28,53 ft (29,68 ft with foundation)
  • Wide of the building: 11,75 m / 38,54 ft
  • Length of the building: 13,31 m / 43,66 ft
  • Minimum plot width: 15,75 m / 51,66 ft
  • Minimum plot length: 21,31 m / 69,90 ft
  • Height of rooms: 2,80 m / 9,18 ft
  • Foundations – poured concrete
  • External walls - bilayer porotherm 25 + 18 polystyrene (or mineral wool)
  • Ceiling - reinforced concrete  Teriva
  • Roof -  tile or meatal roofing tile
  • Elevation - thin-layer plaster



The costs of implementing:
The raw state open 42 800,00 EUR
The raw state closed 64 800,00 EUR
The cost of finishing works 64 500,00 EUR
Execution of turnkey home 129 200,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Emerald 2 - detailed file

Emerald 2 house plan 2501 Monika_H
2012.03.28 0 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.

Emerald 2 house plan 2505 Gmitrzuk Katarzyna
2012.03.20 0 Pozytywny komentarz Negatywny komentarz

I was looking for a simple, functional home, and reviewing the offers of various architectural studios. This house is quite ok. The area of the house and the layout of the rooms perfectly suits us. I think that will be just right for my family.

Emerald 2 house plan 798 Florentynka_K
2012.02.21 0 Pozytywny komentarz Negatywny komentarz

Nice house plan, we really like it, we will not make any changes.
