Cassiopeia 2 house plan

Usable area: 151.2 m2   /   The cost of the realization: 143 400 EUR

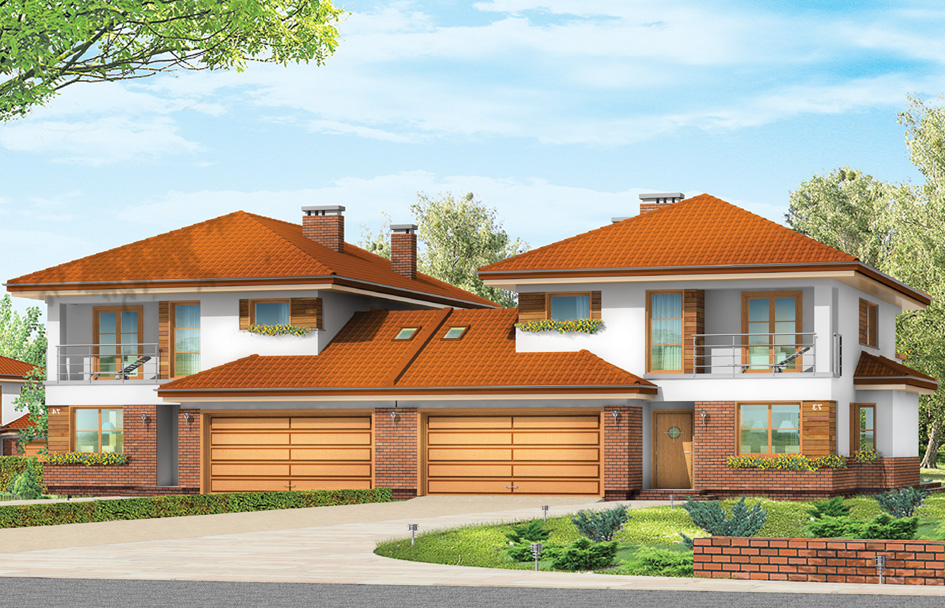

House plan Cassiopeia 2 - front visualization
Show mirror image

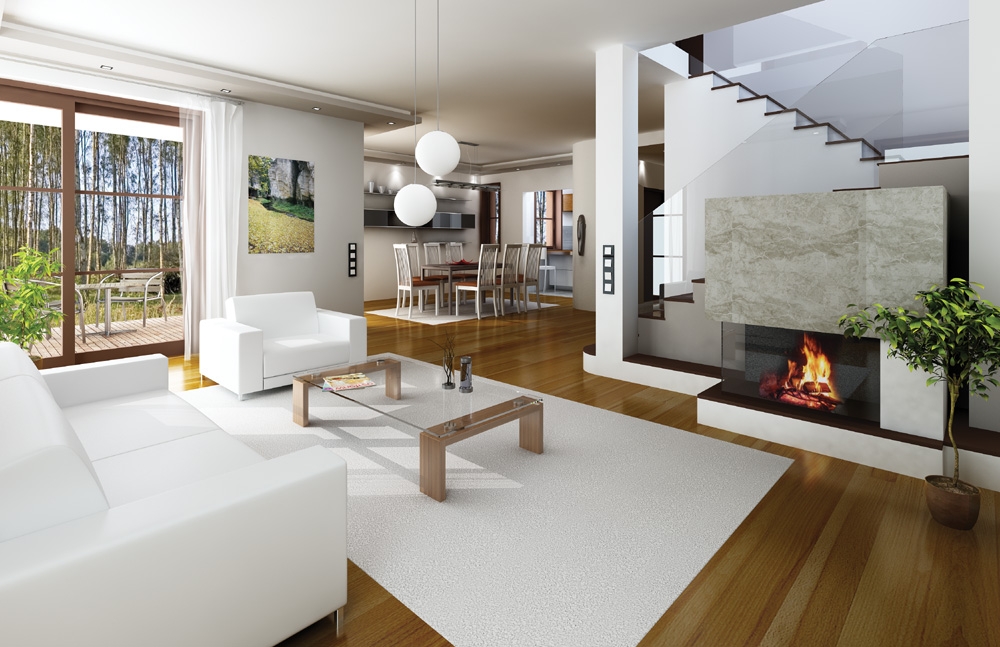

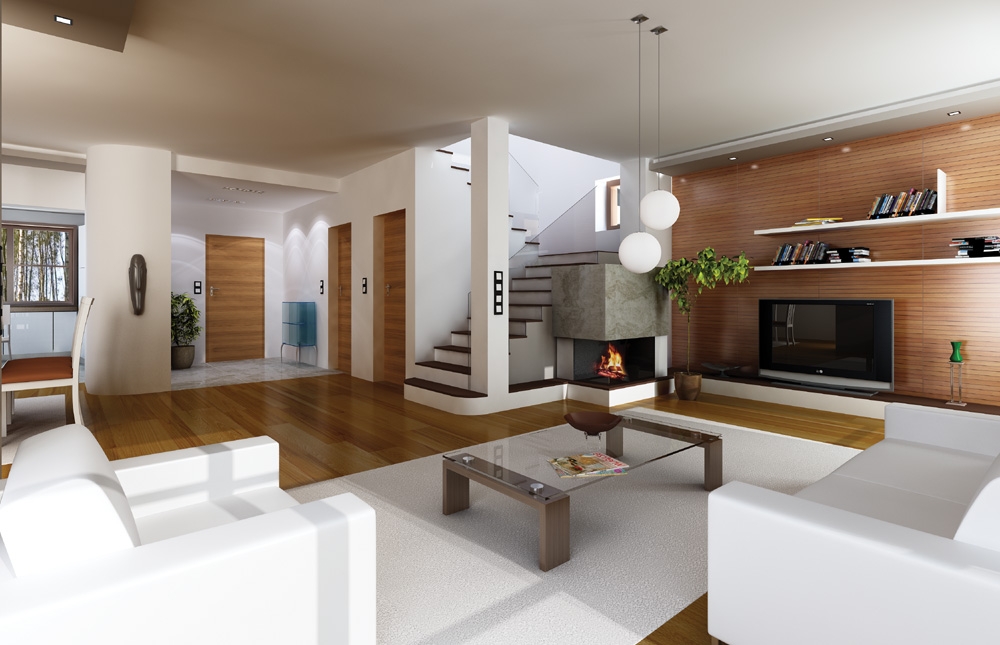

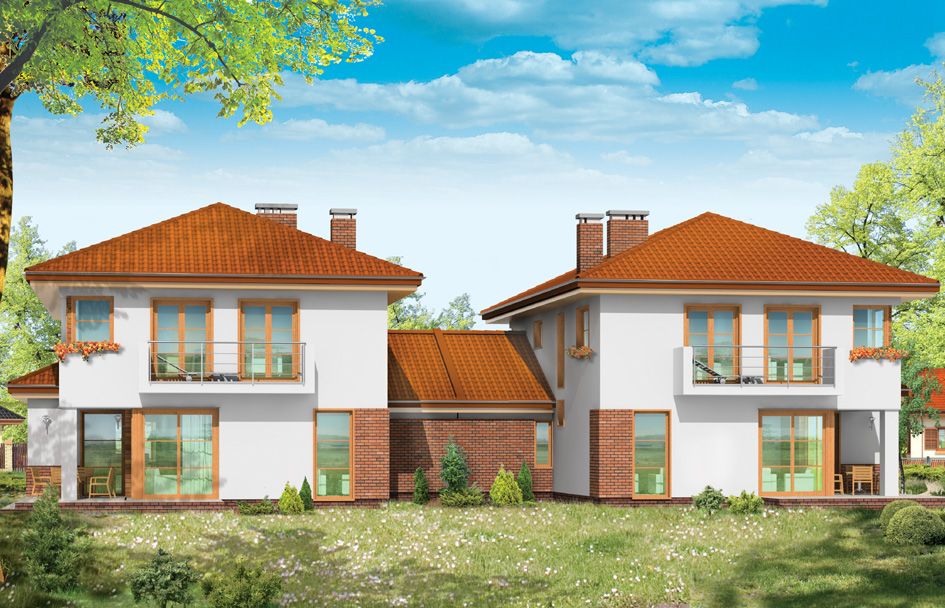

Cassiopeia 2 house plan was designed as a semi-detached house. Two halves of two-storey house  were joined by a double garage with a gable roof. Thanks to that, both parts of the building are separated from each other visually - do not constitute a single, confluent block. A simple form of home in the form of a rectangular prism was varied protruding bay windows and roofs, as well as arcades, balconies and loggia. House undoubtedly will appeal to customers who take delight in modern architectural forms, but with a degree of conservatism. The interior of the ground floor are: living area consisting of a living room with dining area, lounge area, partly open kitchen and utility room and garage. On the first floor are: parent’s apartment with bathroom, dressing room and balcony, two children’s bedrooms with a  bathroom. Additionally there is a room that can be used as an office to work, or possibly a guest bedroom or large dressing room. Cassiopeia 2 house plan has also a mirror version.

  • Cubature: 784 m3 / 27683,04 ft3
  • Built-up area: 144,37 m2 / 1553,42 ft2
  • Total area: 256,41 m2 / 2758,97 ft2
  • Net area: 161,59 m2 / 1738,71 ft2
  • Usable area: 151,2 m2 / 1626,91 ft2
  • Roof area: 219,06 m2 / 2357,09 ft2
  • Roof slope: 25 degrees
  • Height of the building: 8,25 m (8,55 m with foundation) / 27,06 ft (28,04 ft with foundation)
  • Wide of the building: 12,57 m / 41,23 ft
  • Length of the building: 14,49 m / 47,53 ft
  • Minimum plot width: 15,57 m / 51,07 ft
  • Minimum plot length: 22,94 m / 75,24 ft
  • Height of rooms: 2,7 m / 8,86 ft
  • Foundations - poured concrete
  • External walls - bilayer porotherm 25 + 20 polystyrene (or mineral wool)
  • Ceiling – TERIVA
  • Elevation - thin-layer plaster on polystyrene
  • Roof – tile or metal tile



The costs of implementing:
The raw state open 49 800,00 EUR
The raw state closed 73 700,00 EUR
The cost of finishing works 69 800,00 EUR
Execution of turnkey home 143 400,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Cassiopeia 2 - detailed file

Cassiopeia 2 house plan 1711 Gosiaczek_Ru
2012.03.18 1 Pozytywny komentarz Negatywny komentarz

Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)

Cassiopeia 2 house plan 1713 Matti78
2012.03.05 1 Pozytywny komentarz Negatywny komentarz

The project is great well planned interior (maximum functional), and this simple home architecture without complicated solutions that will reduce the costs of building, a great house at a reasonable price.

Cassiopeia 2 house plan 433 Adrian Baneszek
2012.02.07 1 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.
