Amethyst 2 house plan

Usable area: 139.98 m2   /   The cost of the realization: 118 700 EUR

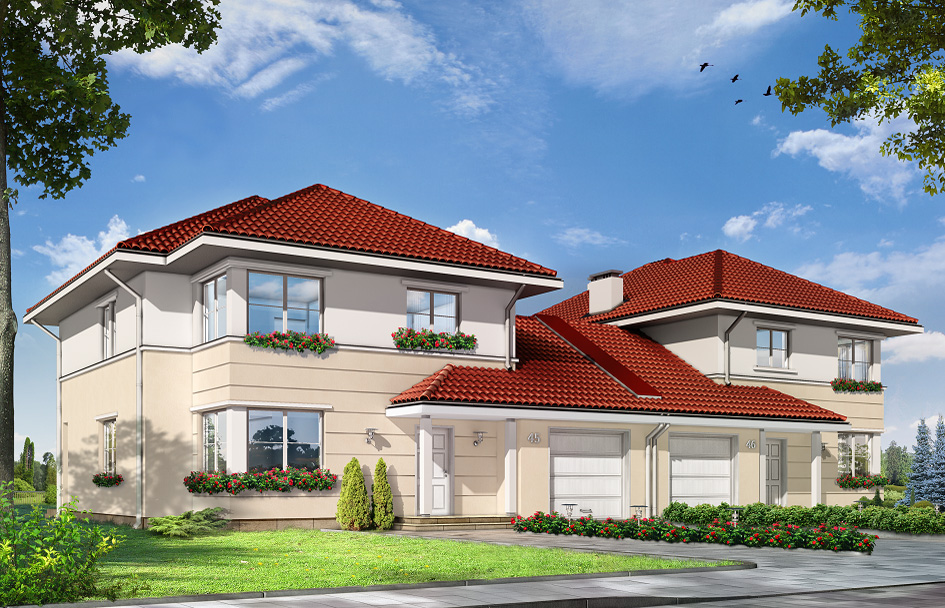

House plan Amethyst 2 - front visualization

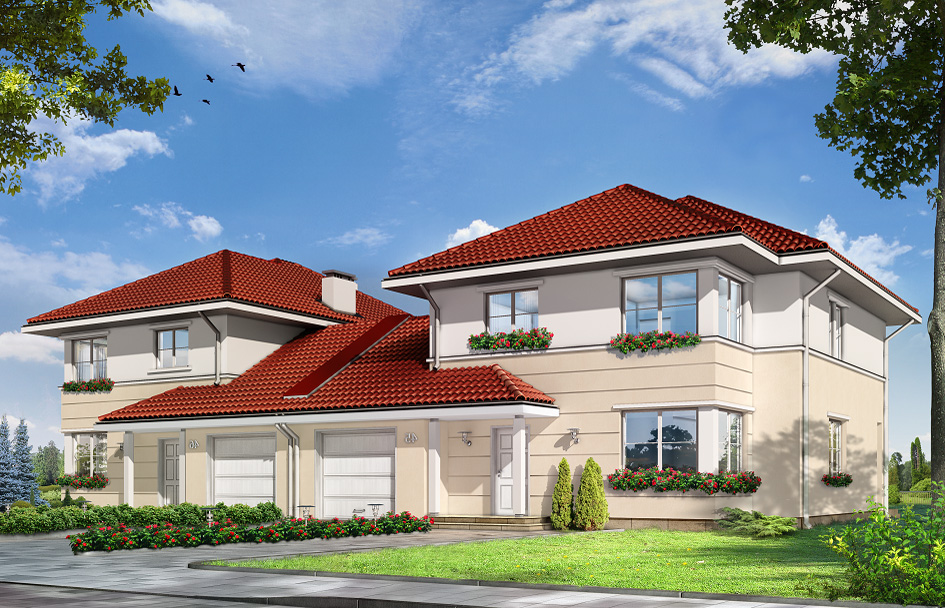

Show mirror image

Amethyst 2 house plan is a semi-detached house for the family of 4 to 6 people. This storey house was covered by the hipped roof. This house plan is a compact, easy to build body of the building, composed of the two two-storey halves connected by the one-story garages connector, has been also varied by wall fragments with the rustication, and two arcades. The subtle decorative elements add the Amethyst 2 some discrete elegance. The interior was designed with the clarity divisions – no needless space. All rooms have a functional shape. On the ground floor living room with dining room and lobby, with a partially open kitchen was planned. There is also an extra room - study or guest bedroom. In the usable part of the house there is also double garage and utility room - you can also opt out of the garage and in its place design a large utility room. On the first floor there are three bedrooms with dressing-room and built-in wardrobes and a large bathroom. It is also a possible to save up additional fourth room on the first floor – by eliminating wardrobe. There is also a mirror version of Amethyst 2.

  • Cubature: 659 m3/ 23269,29 ft3
  • Built-up area: 133,1 m2/ 1432,16 ft2
  • Total area: 228,7 m2/ 2460,81 ft2
  • Net area: 142,34 m2 + garage / 1531,58 ft2 + garage
  • Usable area: 139,98 m2/ 1506,18 ft2
  • Roof area: 197,46 m2/ 2124,67 ft2
  • Roof slope: 30 degrees
  • Height of the building: 8,67 m (8,97 m with foundation) / 28,44 ft ( 29,42 ft with foundation)
  • Wide of the building: 12,82 m / 42,05 ft
  • Length of the building: 23,61 m / 77,44 ft
  • Minimum plot width: 20,82 m / 68,29 ft
  • Minimum plot length: 31,61 m / 103,68 ft
  • Height of rooms: 2,7 i 2,6 m / 8,86 ft and 8,53 ft

• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling -  Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof -  tile


The costs of implementing:
The raw state open 39 000,00 EUR
The raw state closed 58 300,00 EUR
The cost of finishing works 60 500,00 EUR
Execution of turnkey home 118 700,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Amethyst 2 - detailed file

Amethyst 2 house plan 6394 cyllox
2015.07.02 5 Pozytywny komentarz Negatywny komentarz

Hello! I already have this house pIan and want to start the building of this house soon. I would be grateful for any information.

Amethyst 2 house plan 2647 Nylonny89
2012.03.28 1 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.

Amethyst 2 house plan 77 yzxlly_w
2012.01.31 1 Pozytywny komentarz Negatywny komentarz

I was looking for a simple, functional home, and reviewing the offers of various architectural studios. This house is quite ok. The area of the house and the layout of the rooms perfectly suits us. I think that will be just right for my family
