House plan Villa Florida 2

Usable area: 262.39 m2   /   The cost of the realization: 271 530 EUR

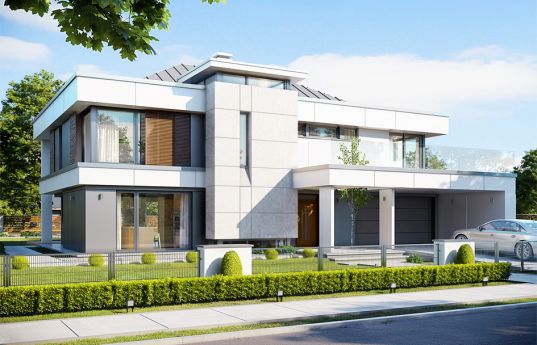

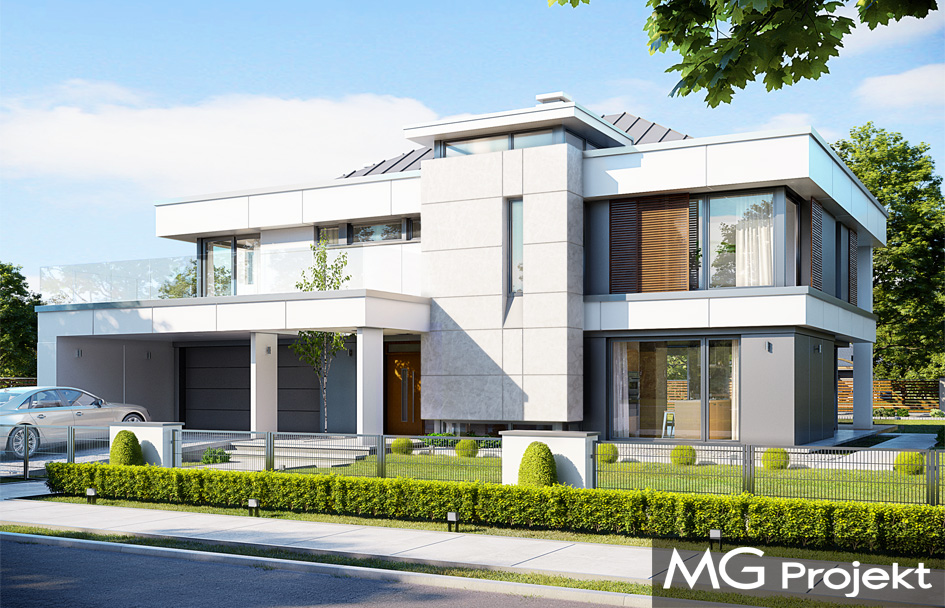

Projekt domu Willa Floryda 2 - wizualizacja frontu logo

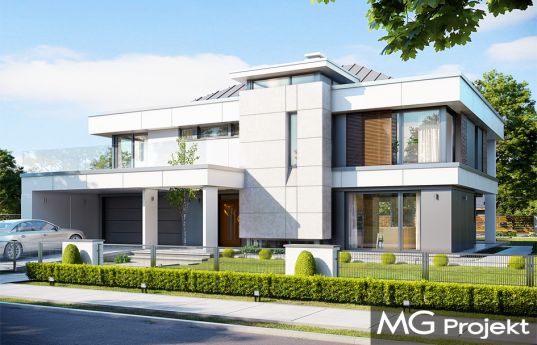

Show mirror image

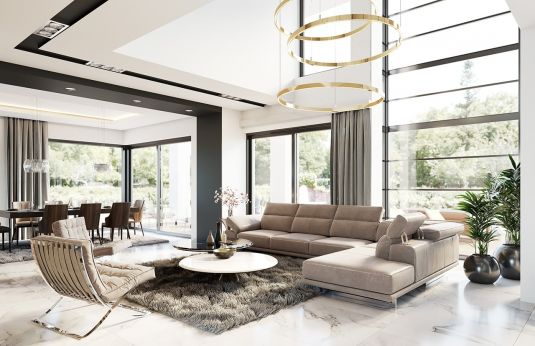

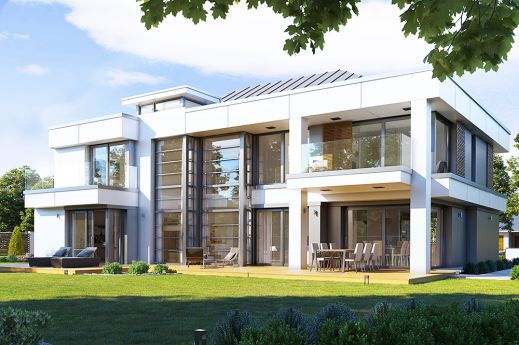

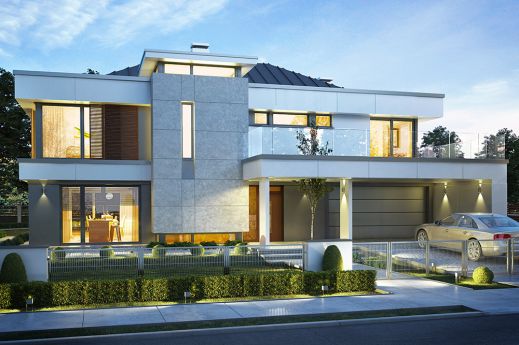

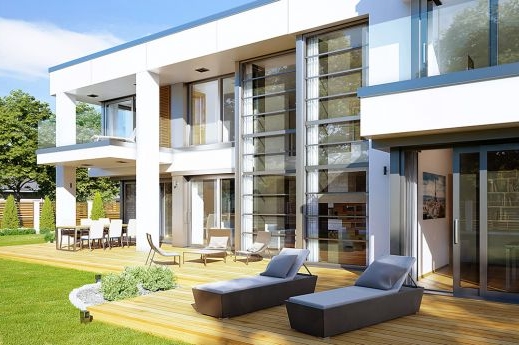

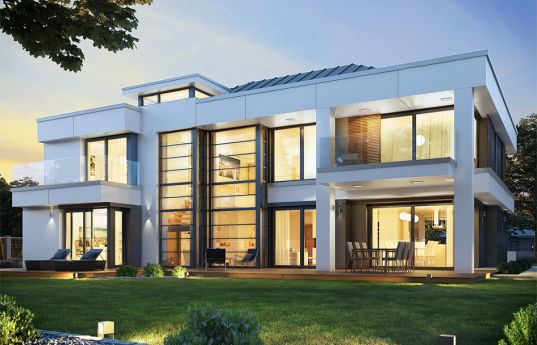

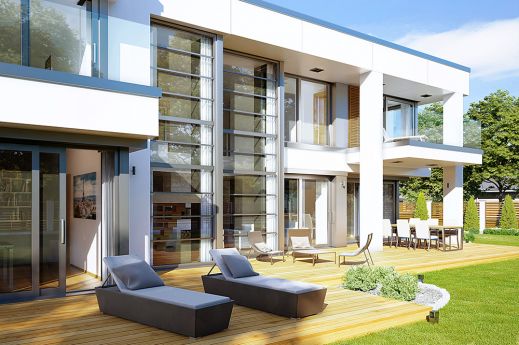

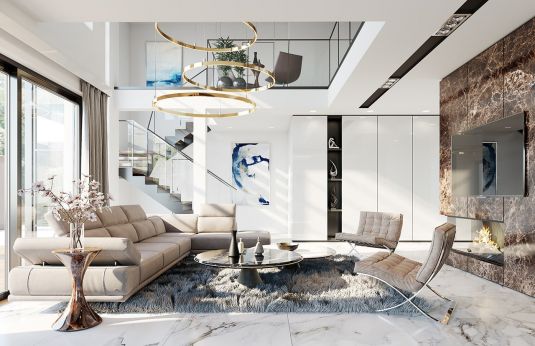

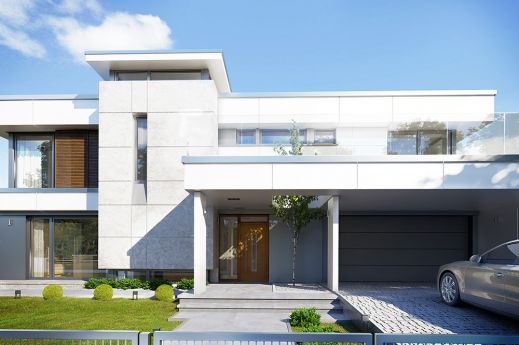

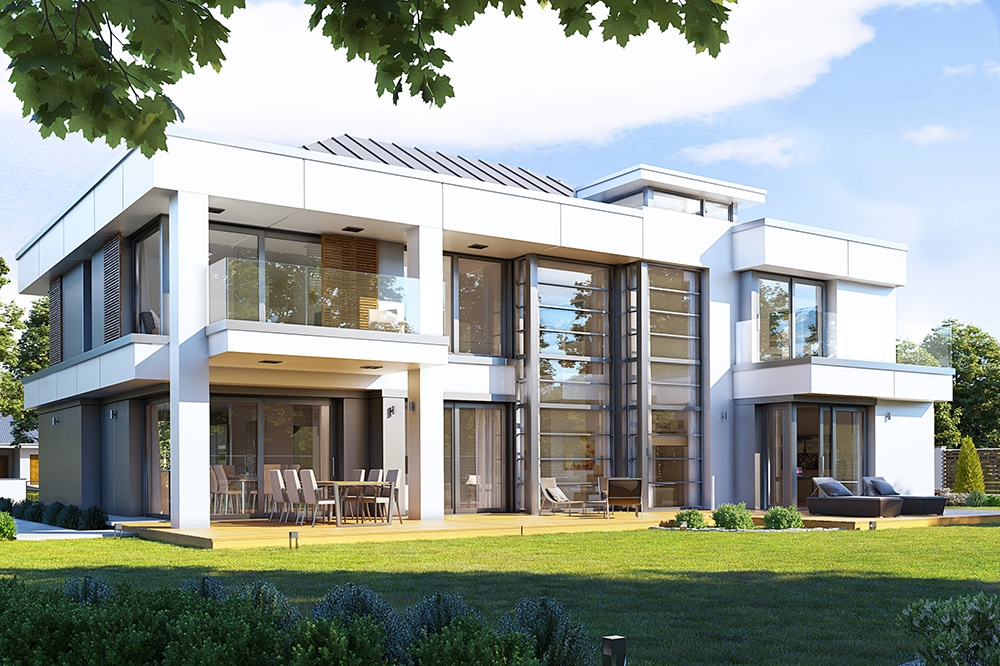

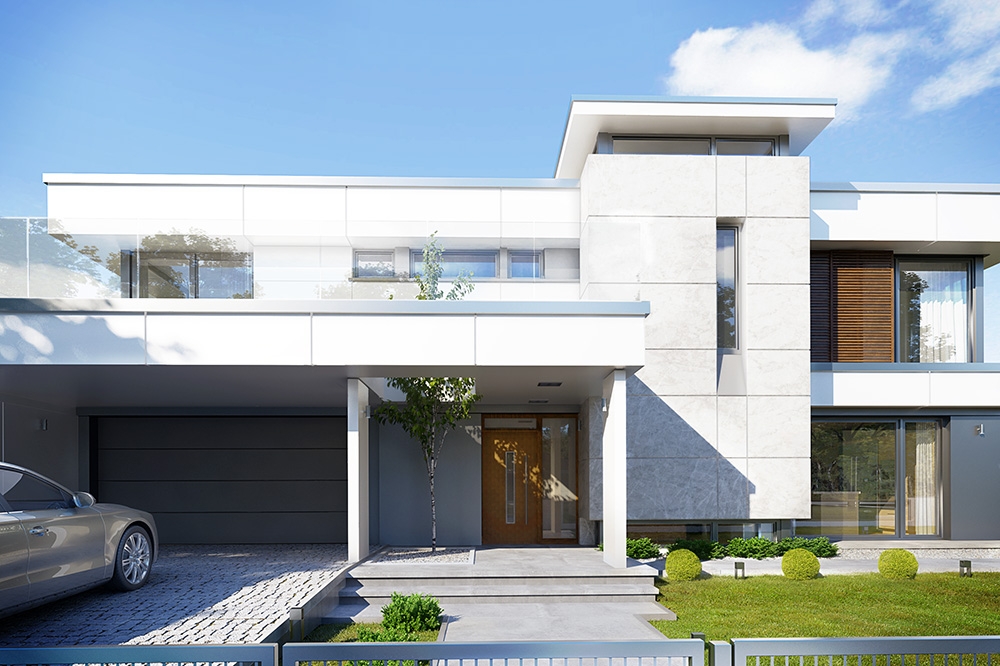

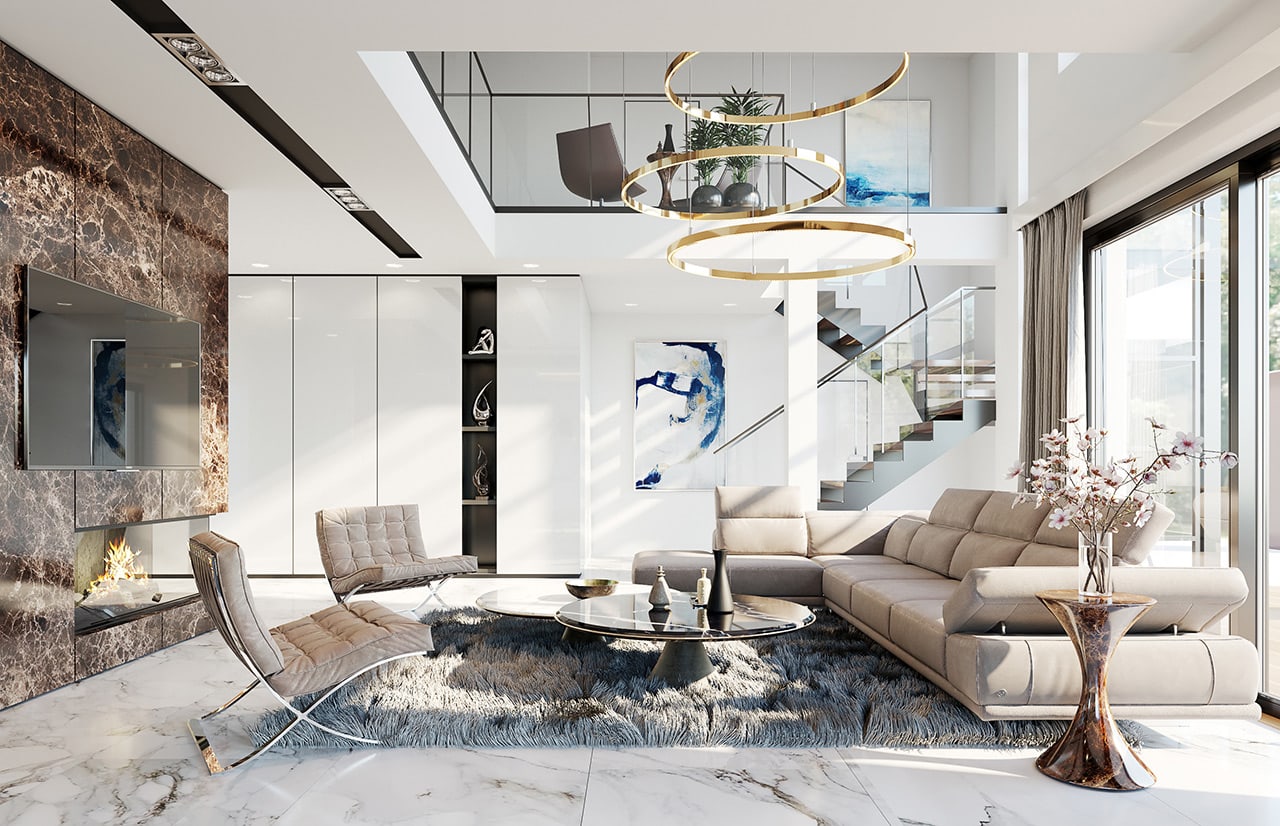

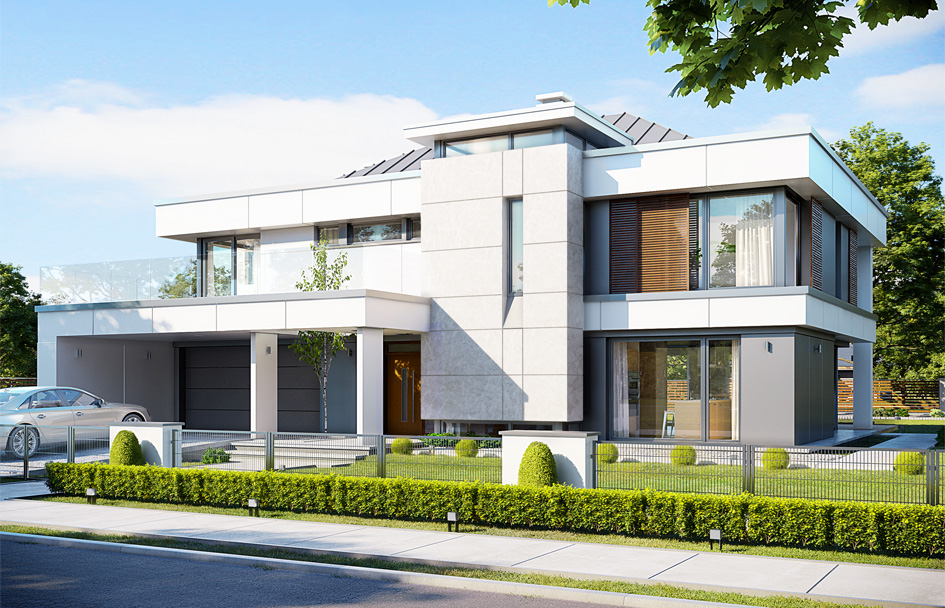

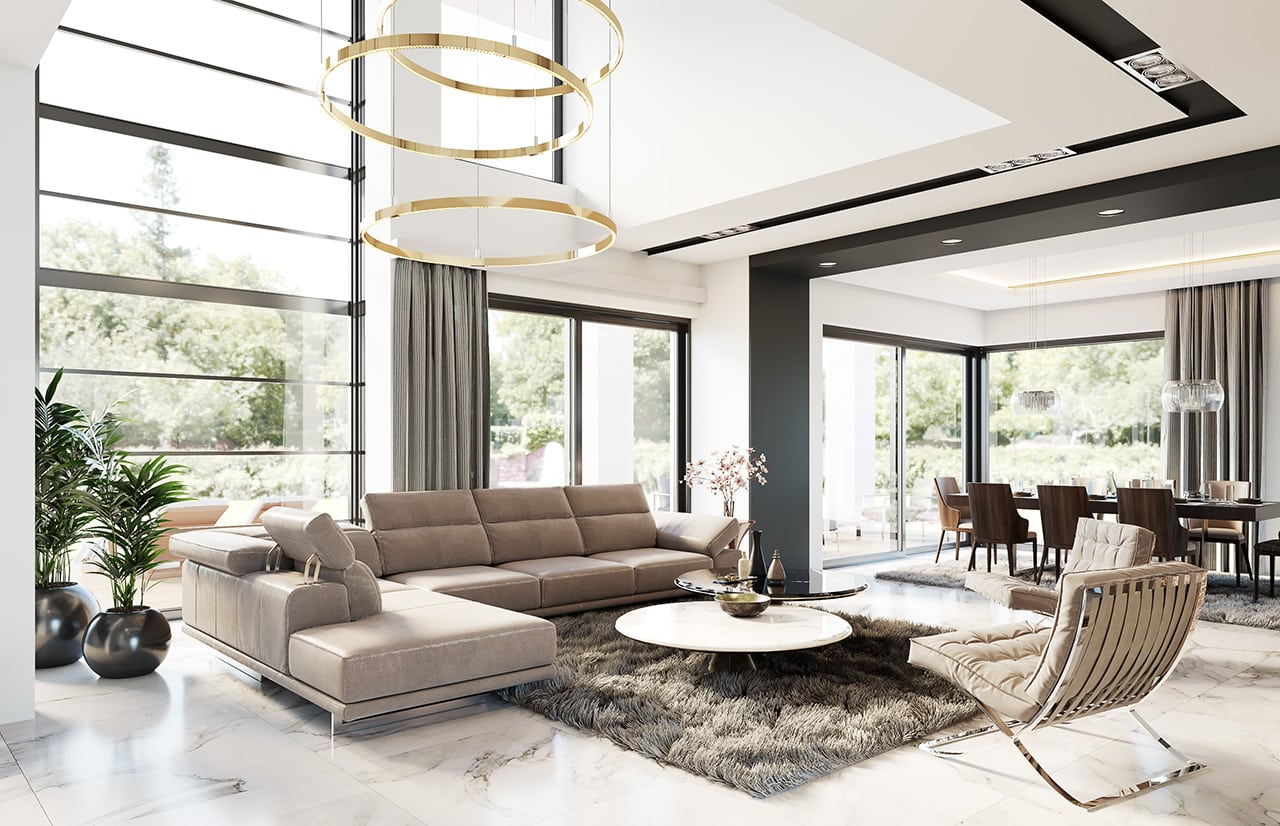

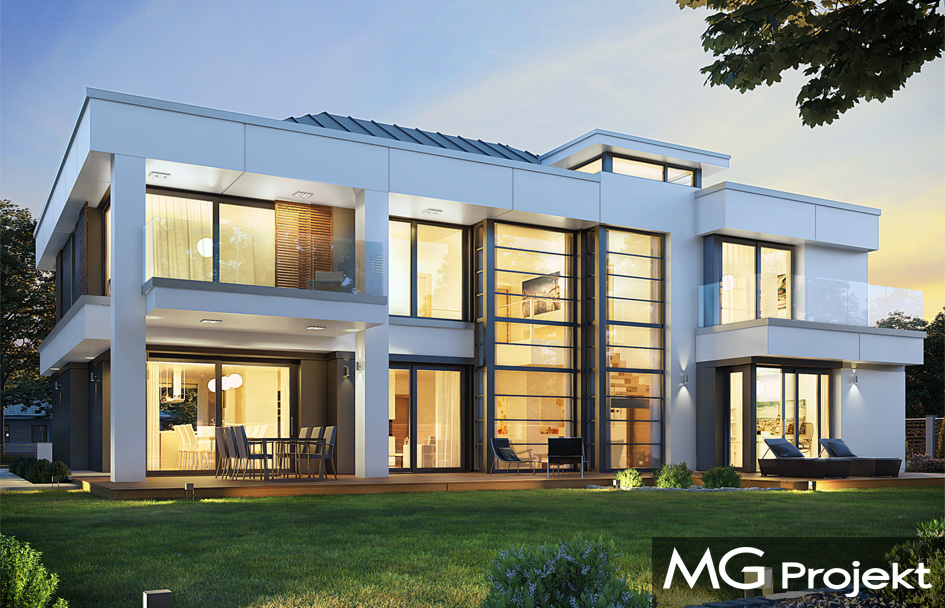

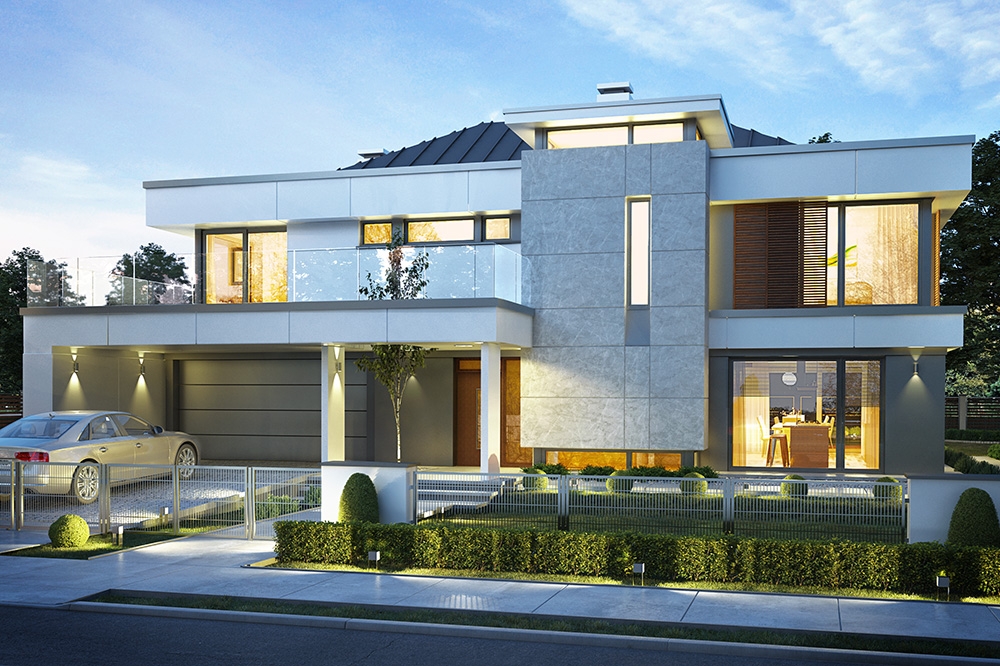

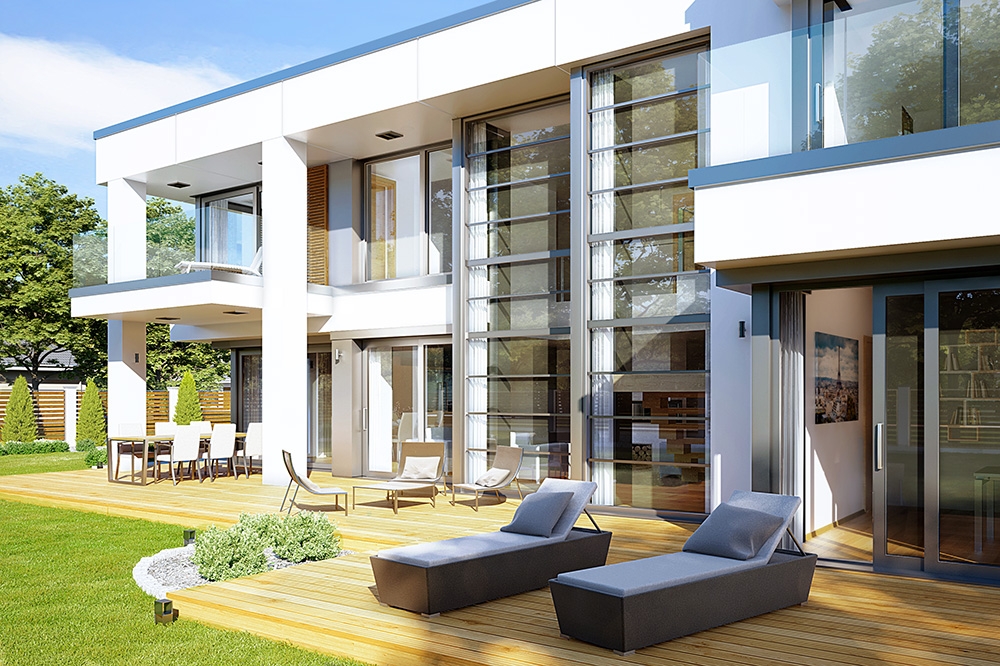

Willa Florida 2 house plan is smaller by over 100 m2, it has smaller external dimensions, which does not mean that it in any way gives way to its predecessor in terms of functionality or aesthetics. The house has interesting architecture, and on a smaller scale it is no less neat and interesting. The building is storied, rectangular in shape, with a sill protruding from the front elevation in front of the garage, and a small one-storey part from the garden. The house is covered by a hip roof, which, thanks to the deep cornices, is hardly visible - it does not dominate the modernist modern structure. The entrance was heavily accentuated by a wide front door with a shutter and a massive wall finished with a stone "floating" on the bottom panes at the height of the foundation. The elevations were divided by contrasting horizontal stripes. Large glazing in elevations, including corner windows, add a lightness and transparency to the house's silhouette. From the garden side the façade is decorated with a beautiful two-storey glazed living room with emptiness - this large window beautifully opens the interior to the garden surrounding the house. Modern architecture and the form of the house are combined here with a thoughtful function. Everything has its place and meaning. The interior of the house is designed around a beautiful living room with an open two-storey cubage, above which the mezzanine towers, extending the living room to the upper floor. We enter the house through the vestibule with the cloakroom - with connection to the garage and boiler room - straight ahead, to the hall and the living room. The living space, consisting of a hall, kitchen, dining room and living room, has a total of over 90 m2! The kitchen with a beautiful island and a wall with full buildings is connected with an additional large pantry - a warehouse. In turn, next to the living room, next to the elegant staircase there is an additional room - a study room, with access to the terrace and garden. Upstairs, we have four private apartments - each with its own bathroom and own wardrobe. In addition, from the lobby, which can be used as a home gallery, or a library visible from the living room downstairs, we have access to a laundry room. Willa Florida 2 is an elegant modern residence - luxurious and comfortable. At the same time, it was designed on a reasonable scale, much smaller than the original Willa Florida. Not every investor has at least such a large plot of land. Certainly, the Florida 2 house plan is a reasonable proposal for those who want luxury but without exaggeration. The house is, of course, energy-saving - it will be cheap in future operation

Specifications:
  • Cubature: 1346 m3 /  47527,26 ft3
  • Built-up area: 212,94 m2 / 2291,23 ft2
  • Total area: 393,74 m2 / 4236,64 ft
  • Net area: 271,16 m2 + garage 36,00 m2 /  2917,68 ft2 + garage 387,36 ft2
  • Usable area: 262,39 m2 /  2823,32 ft2
  • Roof area: 116,80 m2 + flat roof 166,36 m2 / 1256,77 ft2 + flat roof 1790,03 ft2
  • Roof slope: 30 degreesi + flat roof
  • Height of the building: 9,00 m (9,35 m with foundation) / 29,52 ft (30,67 ft with foundation)
  • Building dimensions: 18,10 m x 17,58 m / 59,37 x 57,66 ft
  • Plot dimensions: 25,10 x 24,58 m / 82,33 x 80,62 ft
  • Height of rooms: 2,88 m / 9,45 ft
Materials:
  •     Foundations - concrete bench and foundation walls with concrete blocks
  •     External walls – brick walls – porotherm 25 blocks + polystyrene + thin-layer plaster
  •     Ceiling - monolithic reinforced concrete
  •     Elevation - thin-layer plaster on polystyrene
  •     Roof - sheet metal seam (or tile)




The costs of implementing:
The raw state open 97 060,00 EUR
The raw state closed 156 800,00 EUR
The cost of finishing works 114 730,00 EUR
Execution of turnkey home 271 530,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Villa Florida 2 - detailed drawings

House plan Villa Florida 2 - detailed drawings - mirror
