Villa Nova

Usable area: 374.23 m2   /   The cost of the realization: 340 000 EUR

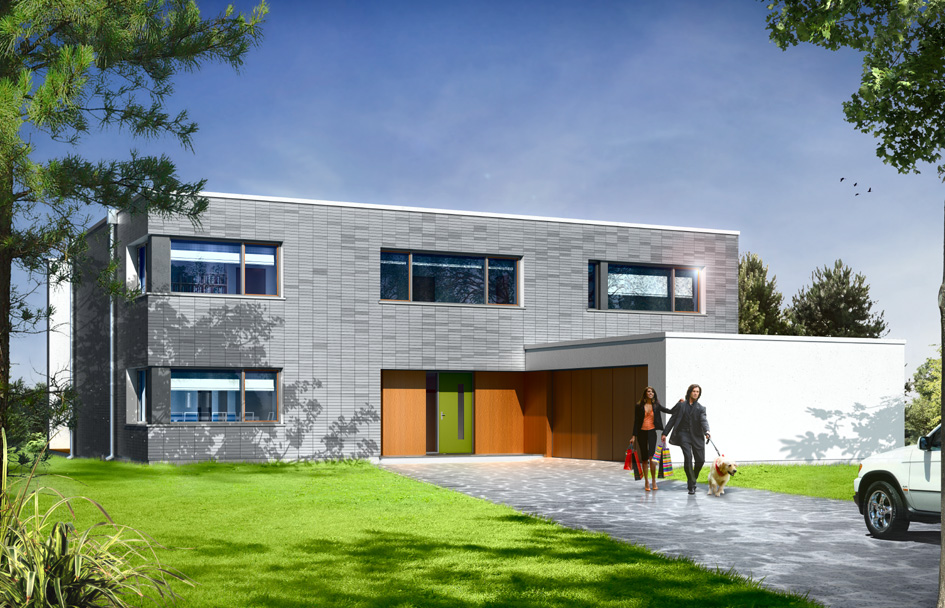

House plan Villa Nova - front visualization

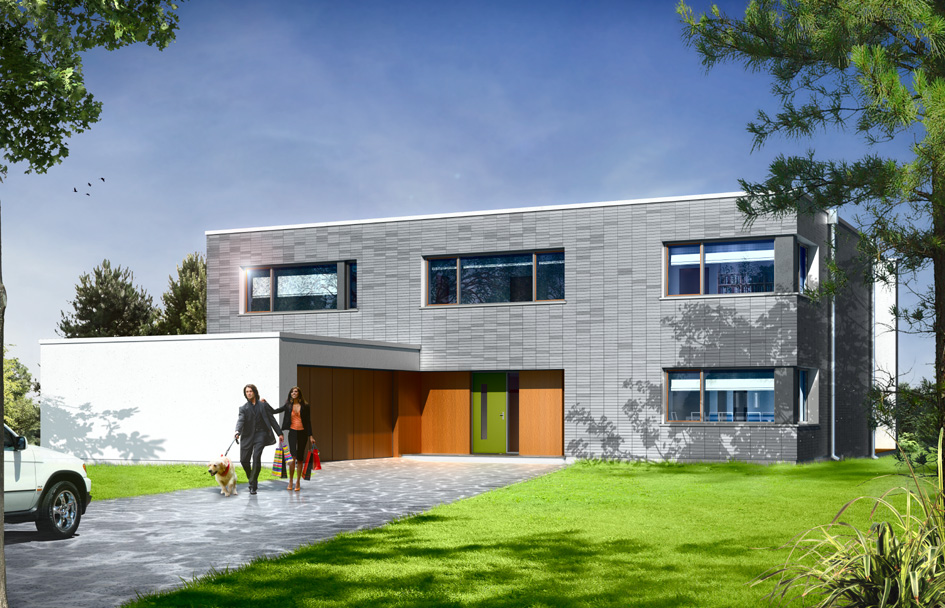

Show mirror image

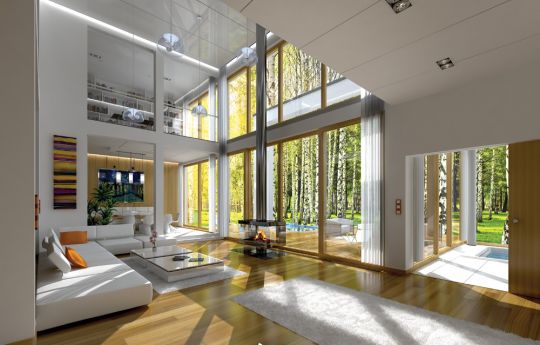

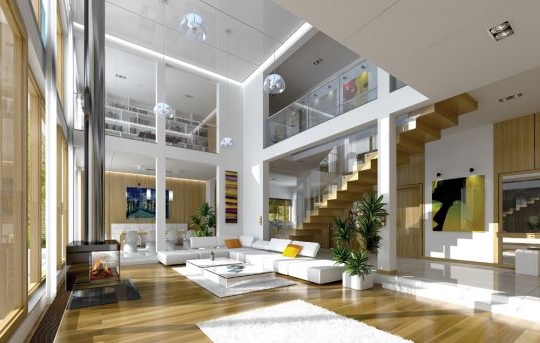

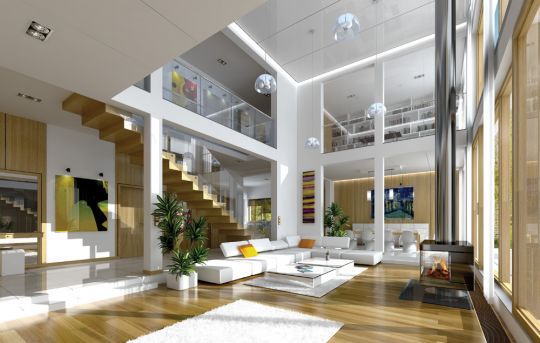

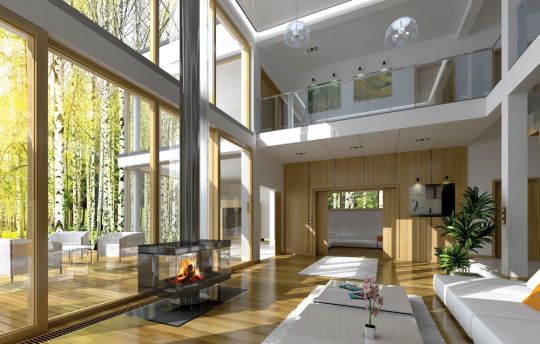

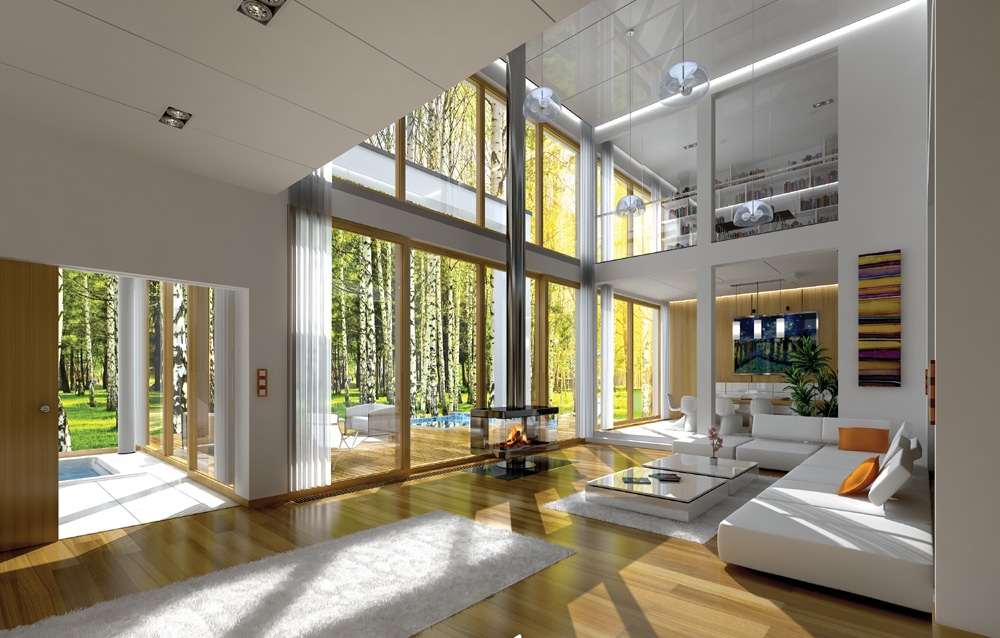

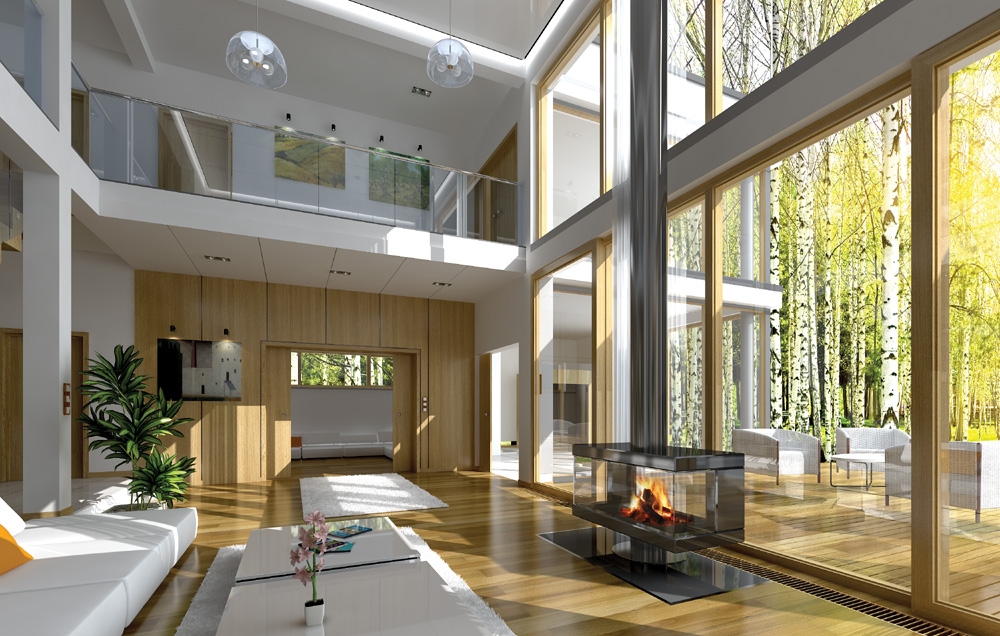

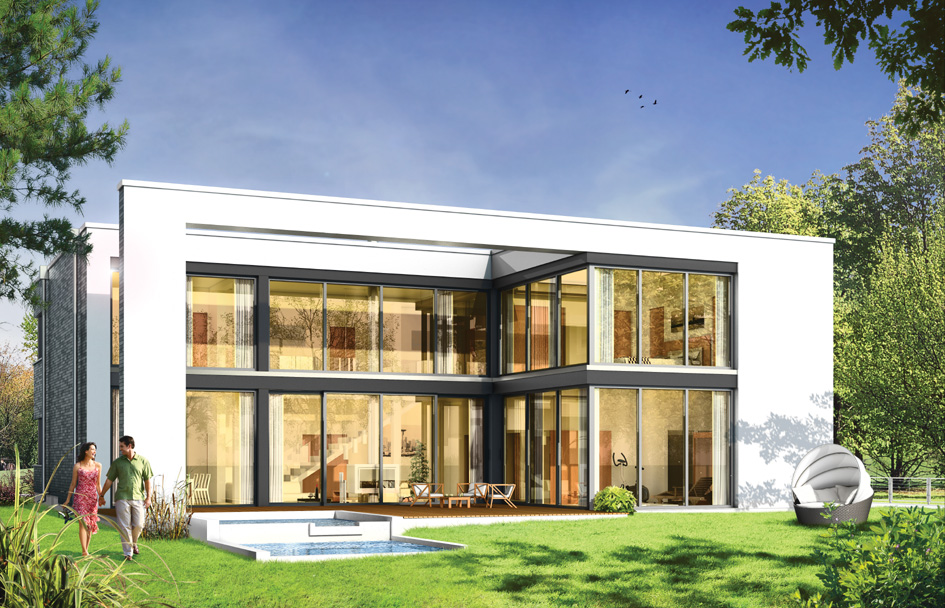

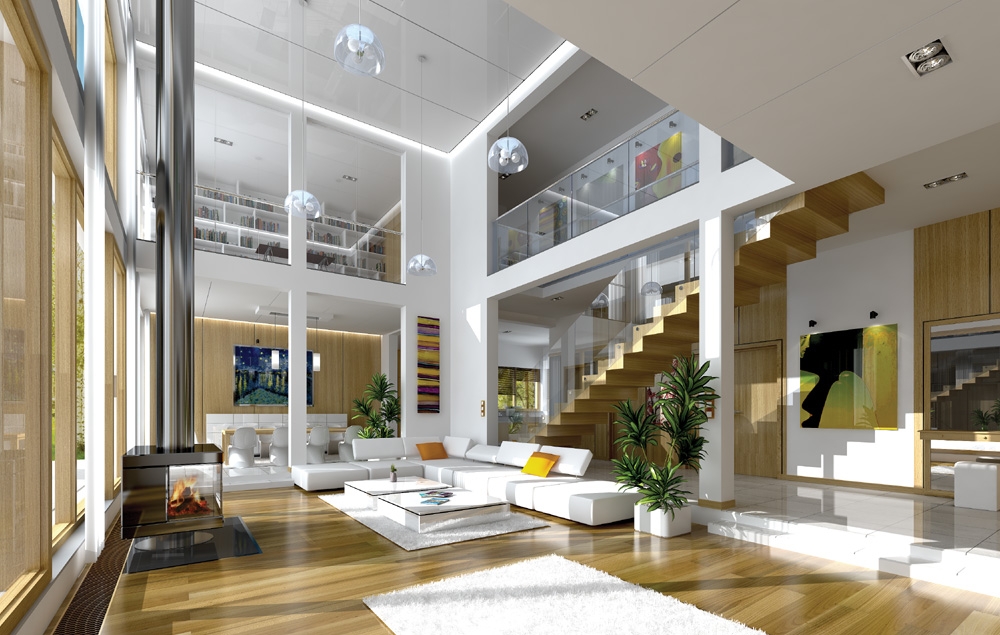

Villa Nova is a luxury modern detached house for a family of 4-7 people. This very comfortable and spacious residence has everything you would expect from a comfortable house. The whole are designed in a logical, thoughtful way. Functional interiors compose here with good proportions of solid and consistent, minimalist aesthetic. Villa Nova, despite modern form, is restrained and warm. The villa has two faces: the front elevation of the house is discreet and monumental, garden elevation has lots of glass surfaces, with a conservatory between the interior with wooden patio, terrace and swimming poo. Large glazed of living room bring light into the house and the surrounding nature. The basic principles of forming the external appearance were the rhythm of the facades, and fine natural materials. Villa Nova gently speaks to the viewer by good taste. The interior of the villa is organized around a high-living room, which with the surrounding rooms on the ground floor and a mezzanine on the first floor creates a luxurious living space. The rooms are large, full of light, comfortable bedrooms with walk-in closets or large wardrobes. Number of rooms, bathrooms and utility rooms is optimal for each family. In addition, partitions can be freely adjusted by arranging the interior in their own way. Very good thermal insulation, mechanical ventilation with recuperation, solar panels, heat pump - all this means that the house is "green" and cheap to run.There is also available mirror version of this house plan.

  • Cubature:  1820 m3 / 64264,2 ft3
  • Built-up area:  313,36 m2 / 3371,75 ft2
  • Total area:  541,42 m2 / 5825,68 ft2
  • Net area:  390,59 m2 + garage / 4202,75 ft2 + garage
  • Usable area:  374,23 m2 / 4026,71 ft2
  • Roof area:  313,36 m2 / 3371,75 ft2
  • Roof slope:  flat roof
  • Height of the building:  7,11 m (7,31 m with foundation) / 23,32 ft (23,98 ft with foundation)
  • Wide of the building: 18,48 m / 60,61 ft
  • Length of the building: 24,87 m / 81,57 ft
  • Minimum plot width: 26,48 m / 86,85 ft
  • Minimum plot length: 31,87 m / 104,53 ft
  • Height of room: 2,95 i 2,75 m / 9,68 and 9,02 ft
  • Foundations - concrete bench and foundation walls
  • External walls –  brick walls – porotherm ceramic blocks + polystyrene + thin-layer plaster / wall clinker
  • Ceiling -  monolithic reinforced concrete
  • Elevation - thin-layer plaster on polystyrene, wall clinker, fiber cement slab
  • Roof -  tar roofing




The costs of implementing:
The raw state open 126 100,00 EUR
The raw state closed 199 700,00 EUR
The cost of finishing works 140 400,00 EUR
Execution of turnkey home 340 000,00 EUR

Net notified costs, do not include VAT

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Villa Nova- detailed drawings - mirror

House plan Villa Nova - detailed drawings

Villa Nova 5524 Z.J
2014.01.04 1 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.

Villa Nova 5523 Z.J
2014.01.03 0 Pozytywny komentarz Negatywny komentarz

I was looking for a simple, functional home, and reviewing the offers of various architectural studios. This house is quite ok. The area of the house and the layout of the rooms perfectly suits us. I think that will be just right for my family.

Villa Nova 2612 Marzena Gołębiewska
2012.03.25 0 Pozytywny komentarz Negatywny komentarz

Nice house plan, we really like it, we will not make any changes.
