Luxury house plan

Usable area: 402.65 m2   /   The cost of the realization: 277 300 EUR

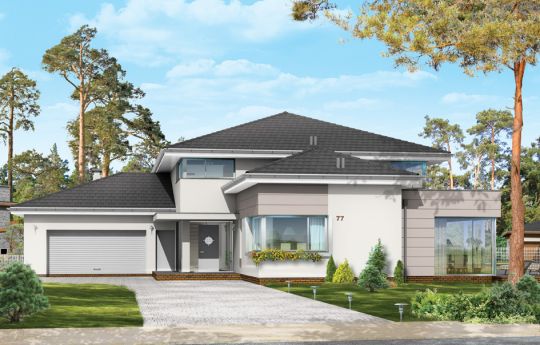

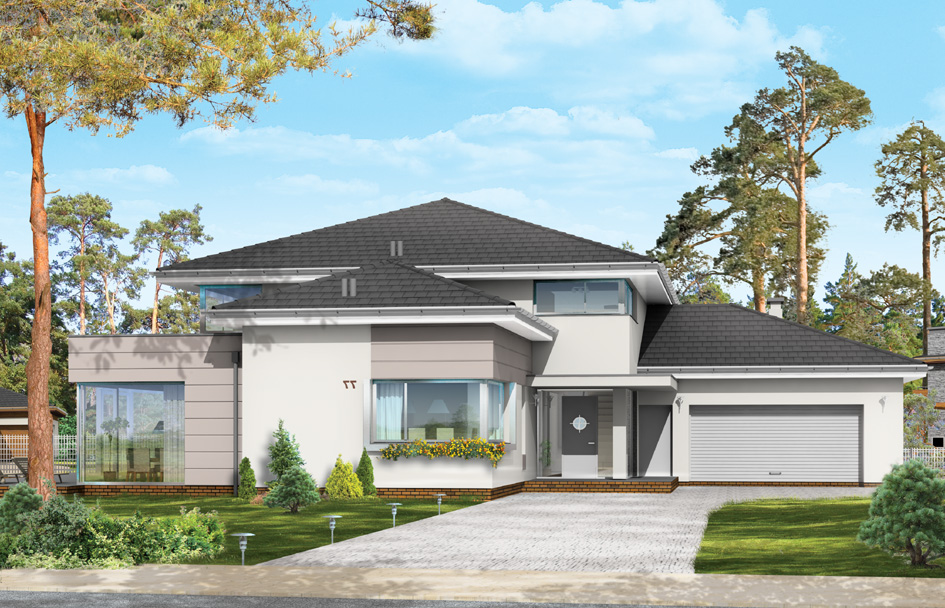

House plan Luxary - front visualization
Show mirror image

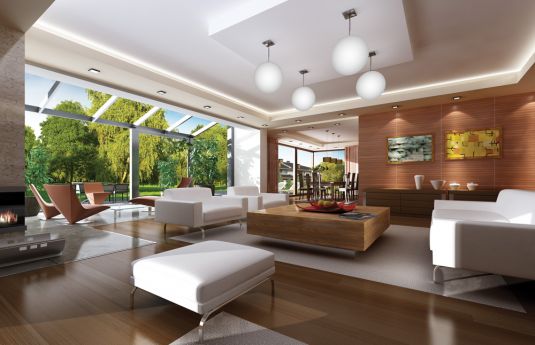

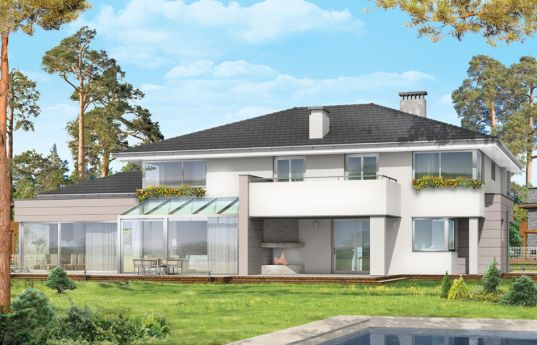

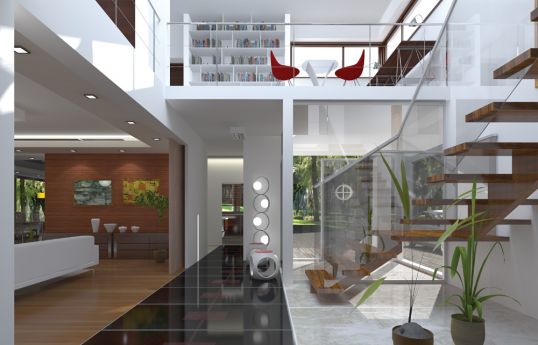

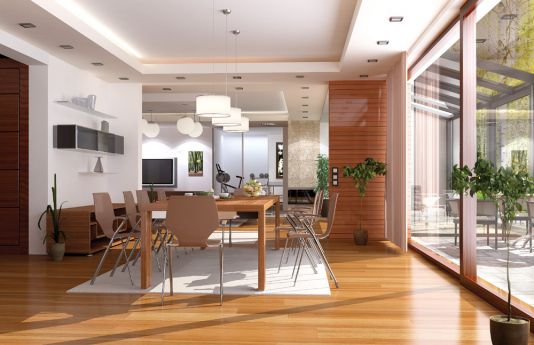

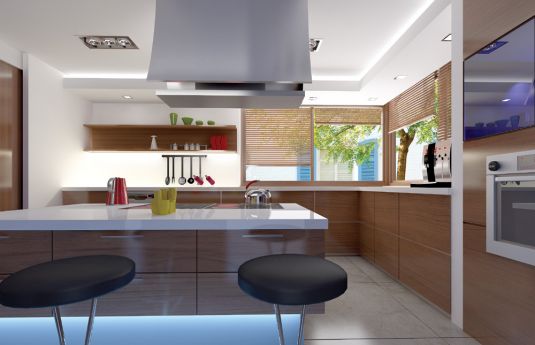

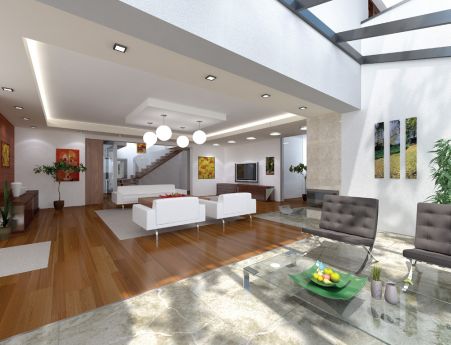

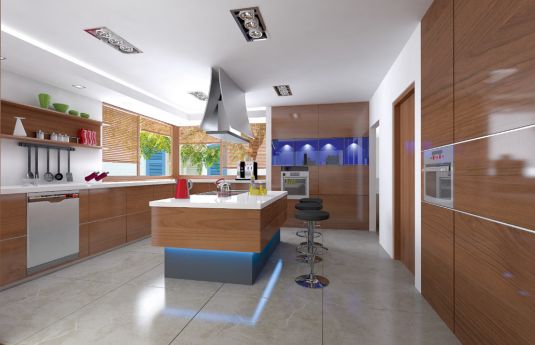

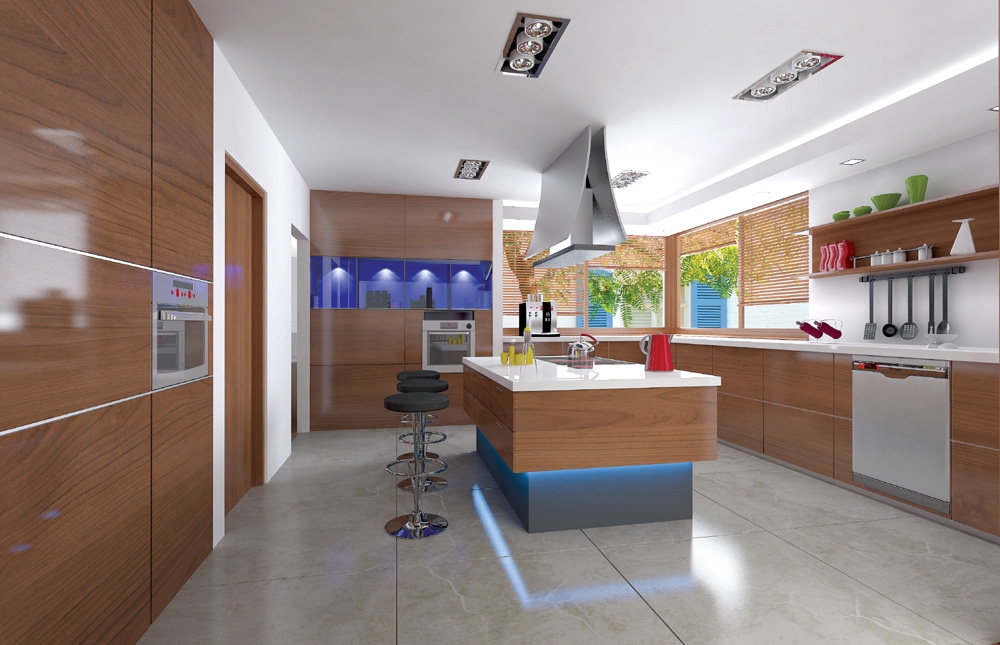

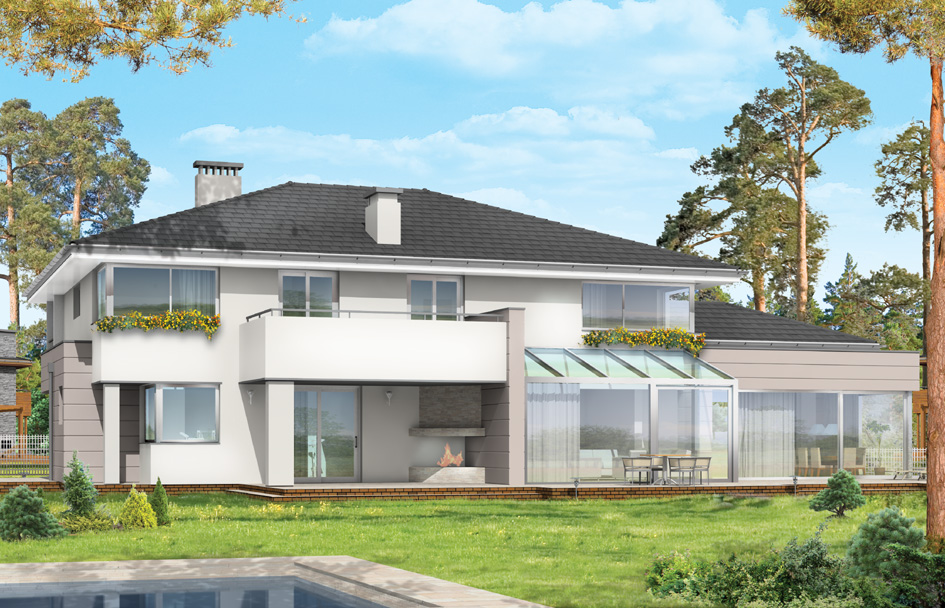

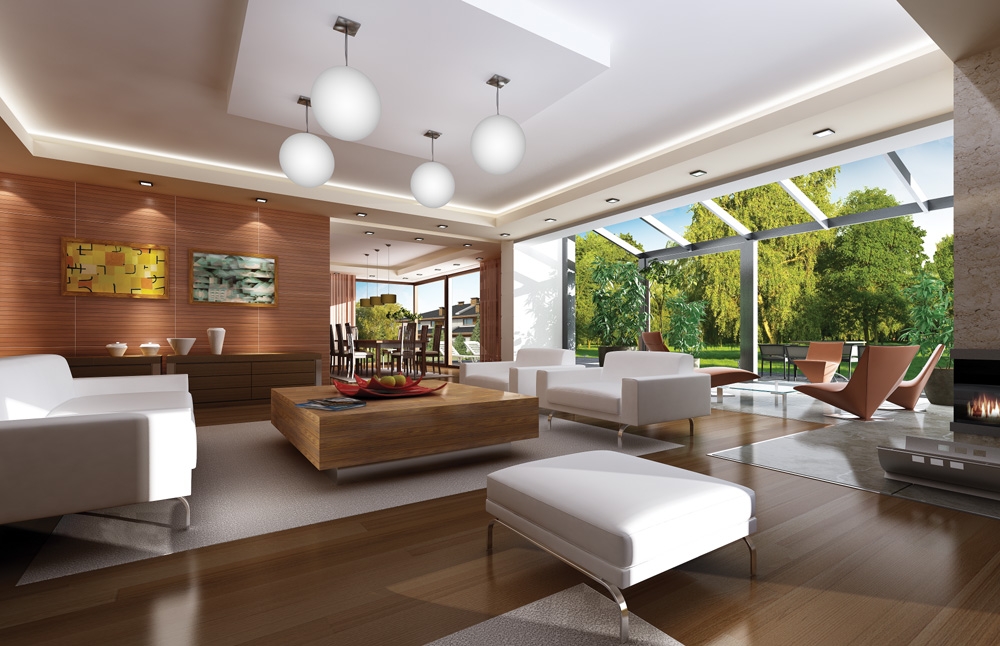

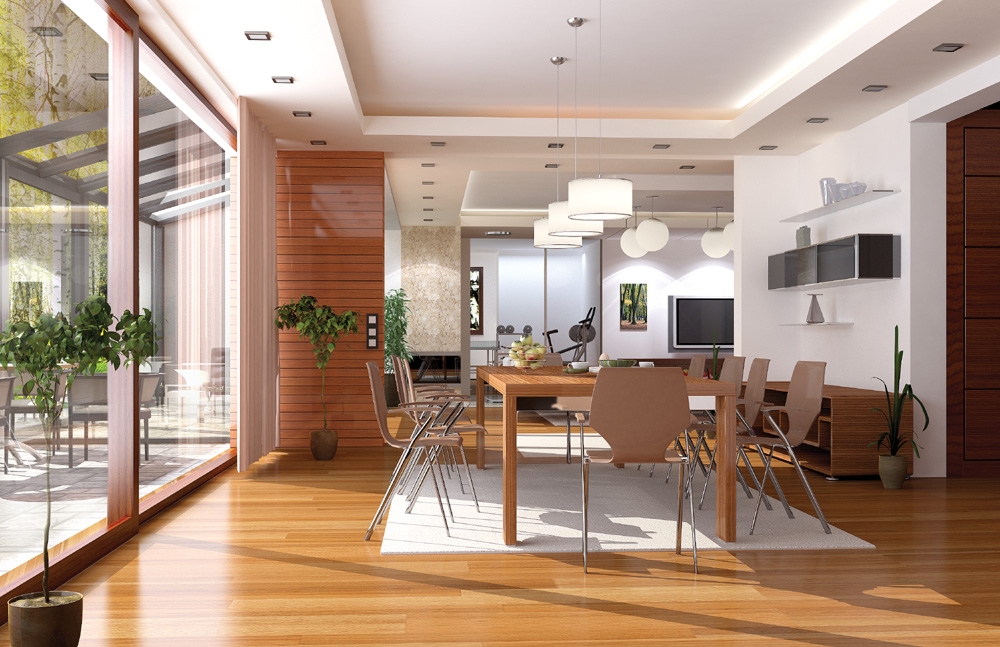

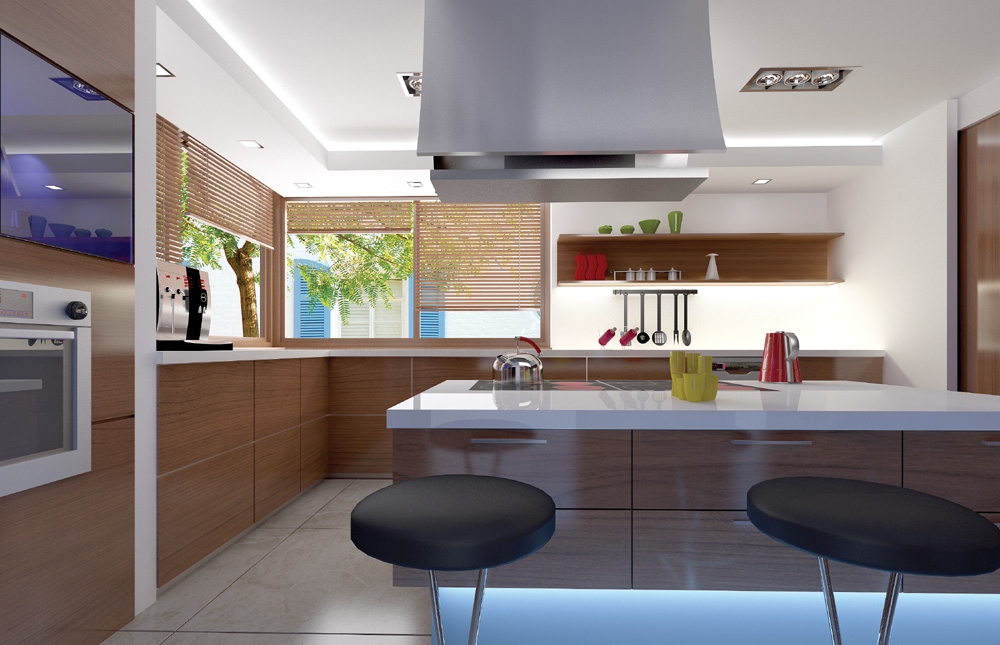

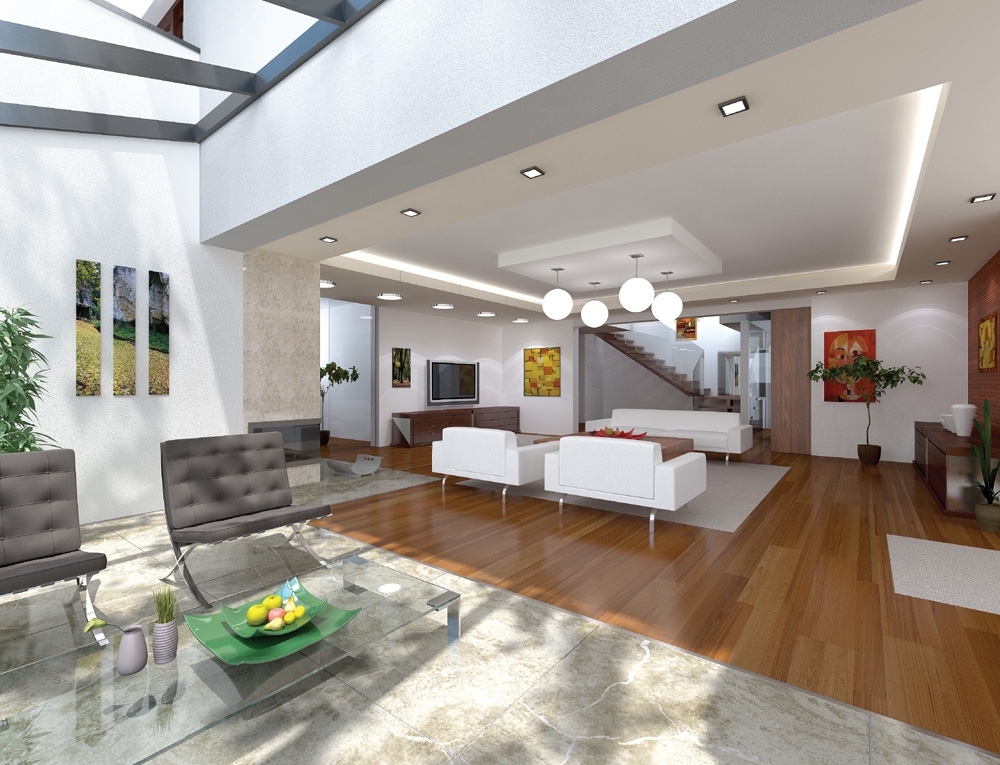

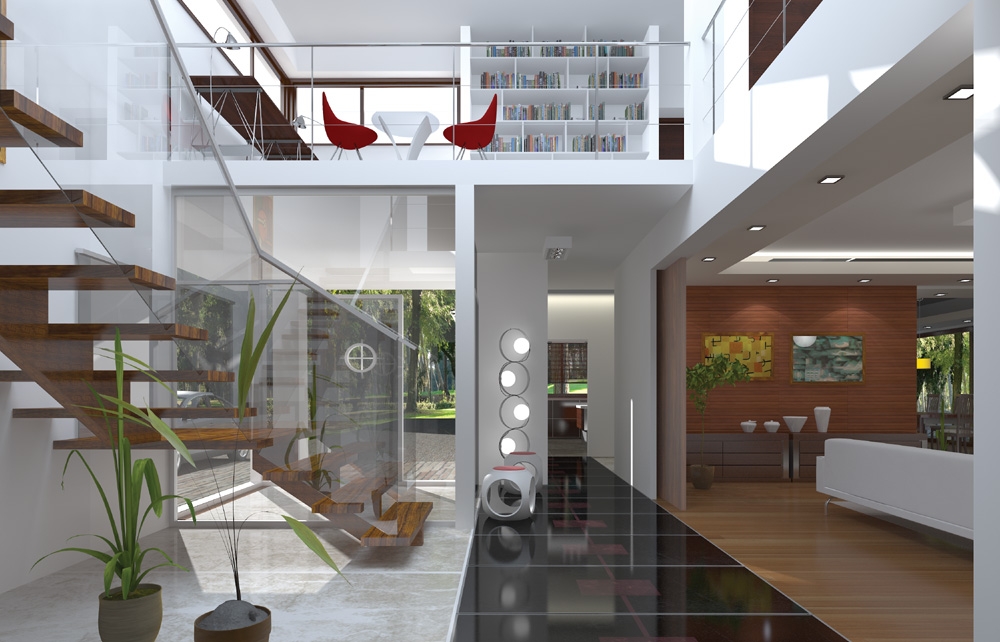

Luxury house plan is one of the largest and most comfortable houses in our offer. Designed as a modern, two-storey villa, with fragmented, expanded block. House is provided for a large family of 4 to 7 people. The outer body is a combination of-story house with added storey wings and a winter garden and a covered terrace on the garden side. Modernist design details such as fragments of flat roofs, terraces on the first floor, large glass or corner windows give the house a very elegant, timeless character. Luxury house interior was designed by separated living area on the ground floor from the intimate part with bedrooms. On the ground floor was placed a large living room open to the garden conservatory, combined with beautifully lit dining room and a lobby with representational staircase and opening space to the mezzanine on the first floor, as well as a sports room combined with a covered arcade with outdoor fireplace. From the lobby and dining we reach to the comfortable kitchen with island and pantry. From the corner kitchen window you can watch the entrance to the building. Entrance vestibule is completely glazed - so that the entrance to the house had a maximum representative character. In the house plan Luxury on the ground floor there is a master bedroom with a dressing rooms, a bathroom, its own terrace, and an additional guest room. In a separate part of the house was placed utility rooms and a garage. First floor is the kingdom of children - there are four bedrooms, including one with its own bathroom, and a study-library, with a lovely corner window overlooking the front of the plot. There is also available mirror version of this house plan.

Specifications:
  • Cubature: 1760 m3 / 62145,6 ft3
  • Built-up area: 365,5 m2 / 3932,78 ft2
  • Total area: 581,37 m2 / 6255,54 ft2
  • Net area: 433,49 m2 + garage / 4664,35 ft2 + garage
  • Usable area: 402,65 m2 / 4332,51 ft2
  • Roof area: 424,12 m2 / 4563,53 ft2
  • Roof slope: 22 degrees
  • Height of the building: 8,47 (8,75 m with foundation) / 27,78 ft (28,7 ft with foundation)
  • Wide of the building: 24,20 m / 79,38 ft
  • Length of the building: 23,12 m / 75,83 ft
  • Minimum plot width: 32,20 m / 105,62 ft
  • Minimum plot lengthi: 30,12 m / 98,79 ft
  • Height of rooms: 2,80 m / 9,18 ft
Materials:
  • Foundations – poured concrete
  • External walls - bilayer walls - porotherm 25 blocks + polystyrene (or mineral wool)
  • Ceiling -  monolithic reinforced concrete
  • Roof - tile
  • Elevation - thin-layer plaster






The costs of implementing:
The raw state open 102 500,00 EUR
The raw state closed 144 700,00 EUR
The cost of finishing works 132 700,00 EUR
Execution of turnkey home 277 300,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Luxary - detailed file

House plan Luxary - detailed file - mirror

Comment
Luxury house plan 2189 Worzyński Błażej
2012.03.05 0 Pozytywny komentarz Negatywny komentarz

Hello! I want to start the building of this home soon. I already got a house plan and I’m fixing a building permit. I am very pleased that the looking for the project is behind me :), it’s not so easy ;). I ask the benevolent people to share their experience. I would be grateful for any information;)

Luxury house plan 628 stefania1962
2012.02.10 0 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Luxury house plan 630 kozi_kooziolek
2012.02.10 0 Pozytywny komentarz Negatywny komentarz

Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.
