Adam house plan

Usable area: 89.2 m2   /   The cost of the realization: 78 000 EUR

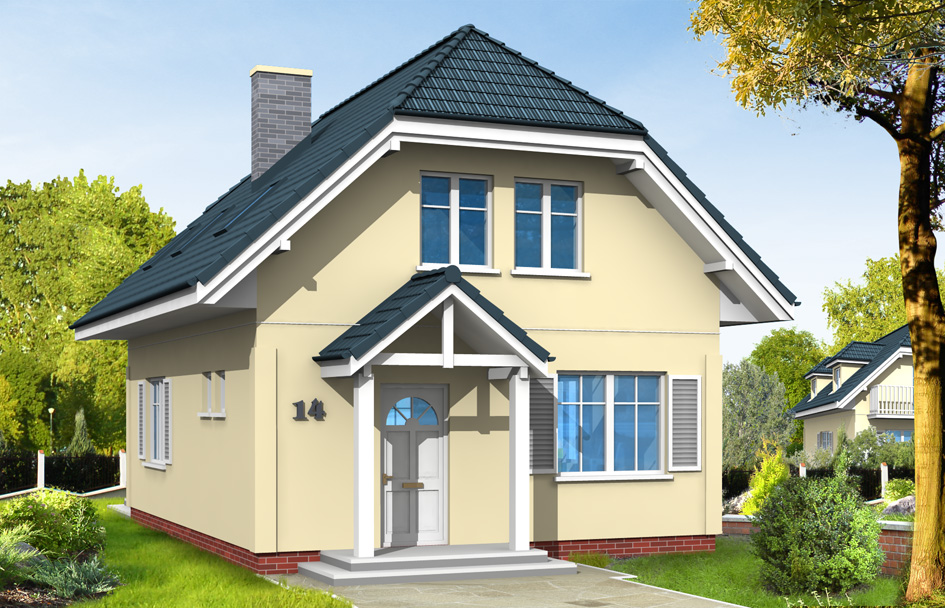

House plan Adam - front visualization

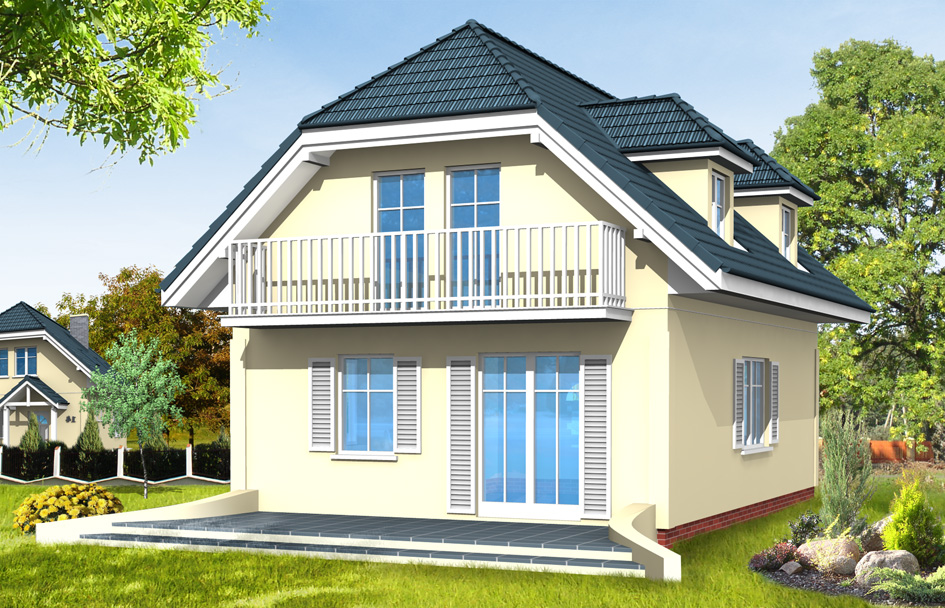

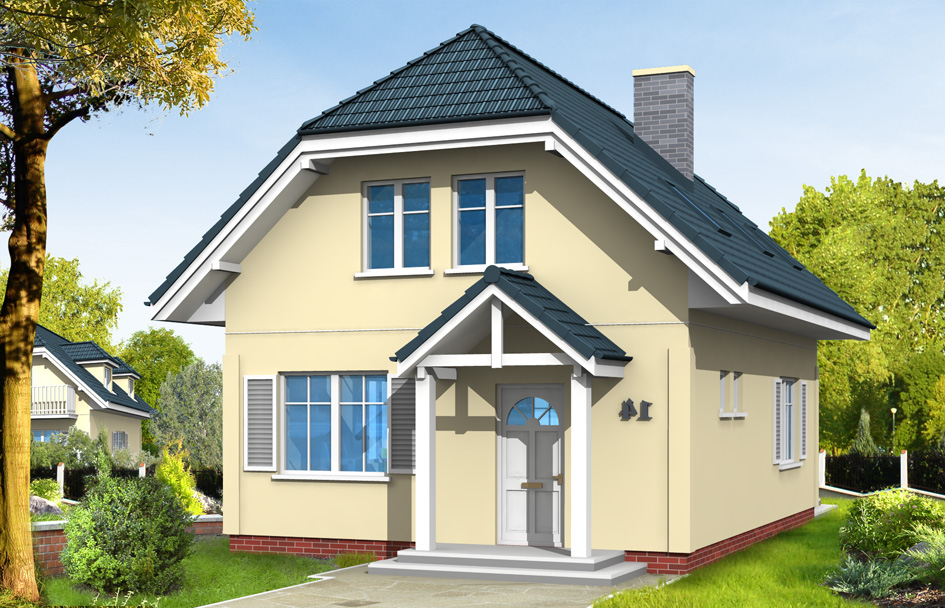

Show mirror image


Adam house plan is ideal for a family of four. This house has been design with the pediment roof. The interior is formed with the division on the general, living part with the living room, a private part and a night part with three bedrooms and a bathroom. There is available a mirror version of this house plan. Adam’s house plan is available in the variant version with a garage built on the side of the house or with the garage in the front elevation (D03 with garage) -  a proposal for a very narrow plot.

Specifications:
  • Cubature: 363 m3/12817,53 ft3
  • Built-up area: 67,2 m2/723,07 ft2 (with a terrace)
  • Total area: 110,8 m2/1192,21 ft2
  • Net area: 93,6 m2/10007,14 ft2
  • Usable area: 89,2 m2/959,79 ft2
  • Roof area: 134 m2/1441,84 ft2
  • Roof slope: 42 degrees
  • Height of the building: 7,40 m (7,70 m with fundation) /24,70 ft (25,26 ft with fundation)
  • Wide of the building: 7 m/22,96 ft
  • Lenght of the building: 9,6 m/31,49 ft
  • Minimum plot width: 15,00 m/49,20 ft
  • Minimum plot length: 17,65 m/57,89 ft
  • Height of rooms: 2,63 m/8,63 ft
Materials:

Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• Exterior walls - brick walls - aerated concrete + polystyrene + thin-layer plaster
• Ceiling - reinforced concrete TERIVA
• Elevation - thin-layer plaster on polystyrene
• Roof - metal roofing tile, tile






The costs of implementing:
The raw state open 24 000,00 EUR
The raw state closed 36 100,00 EUR
The cost of finishing works 41 900,00 EUR
Execution of turnkey home 78 000,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Adam - detailed drawings

House plan Adam - detailed drawings - mirror

Comment
Adam house plan 5008 dudu
2014.01.10 1 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward for shipment and thank you for your kind support.

Adam house plan 5240 Eva [email protected]
2014.01.07 0 Pozytywny komentarz Negatywny komentarz

This is a hit project. I appeal to people who have already built it or are during the building of the opportunity to see it in live. Thank you in advance!

Adam house plan 21 angi
2011.12.06 3 Pozytywny komentarz Negatywny komentarz

I was looking for a simple, functional home, and reviewing the offers of various architectural studios. This house is quite ok. The area of the house and the layout of the rooms perfectly suits us. I think that will be just right for my family.
