Agnes 3 house plan

Usable area: 186.46 m2   /   The cost of the realization: 166 600 EUR
House plan Agnes 3 - front visualization
Show mirror image

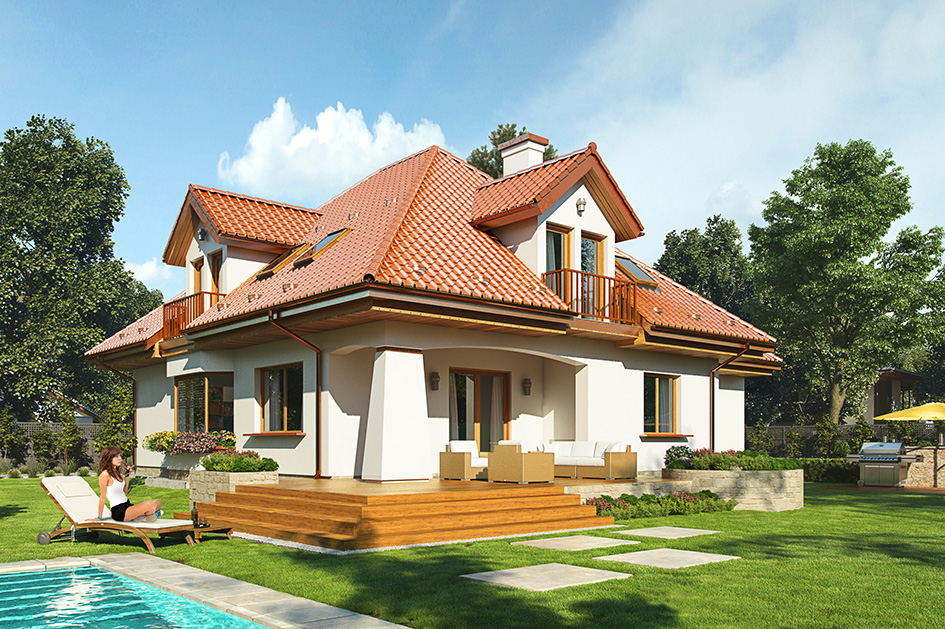

House plan Agnes 3 is a variant version of the house plan Agnes. The storey house plan with an attic, for 4-6 person family. The building consists of main body covered by a hipped roof, and built another garage. Architecture of the house is a combination of modern materials, details and colors, from the traditional form of the house with an attic. Agnieszka 3 is proved, representative house with a comfortable interior. Front of house is decorated by entrance arcade with buttress, and dormer attic. From the garden side also has an extensive arcade partly roofed terrace and large windows (with a bay dining room) with balconies and dormers in the attic. The interior of the house on the ground floor is a large living room with dining area, connected to the lobby and spacious kitchen. From the atrium with a convenient cloakroom we go straight to the lobby with beautiful wide staircase to the attic. From the front is located kitchen with island and pantry. On the ground floor there is also an extra room with bathroom and a practical storage. From the locker room we can go into double garage and boiler room. On the attic are three bedrooms and two bathrooms. Children's bedrooms with wardrobes and parents’ bedroom with its own bathroom, dressing room and a balcony overlooking the garden. Above the garage is an attic to any adaptation. Agnes 3 house plan a shapely and compact building, simple and inexpensive in construction - considering the resulting surface. The house is very well insulated, it contains energy-efficient solutions. You can easily customize it to the NF40 standard. Agnieszka 3 is an excellent choice for those planning a building of representative house with an attic, large but for reasonable money.

Specifications:
  • Cubature: 925 m3/32661,75 ft3
  • Built-up area: 178,60 m2/1921,74 ft2
  • Total area: 309,03 m2/3325,16 ft2
  • Net area: 221,26 m2 + garage/2380,76 ft2 + garage
  • Usable area: 186,46 m2/2006,31 ft2
  • Roof area: 330,50 m2/3556,18 ft2
  • Roof slope: 40 degrees
  • Height of the building: 8,70 m (9,40 m with foundation)/28,54 ft (30,83 ft with foundation)
  • Building dimensions: 16,78 m/55,04 ft x 13,32 m/43,69 ft
  • Plot dimensions: 23,78 m/78,00 ft x 21,32 m/69,93 ft
  • Height of rooms: 2,80 m/9,18 ft
Materials:
  • Foundations - reinforced concrete
  • External walls –  bilayer porotherm  25 + 12 polystyrene (or wool)
  • Ceiling -  reinforced concrete Teriva
  • Elevation - thin-layer plaster
  • Roof -  metal roofing tile or ceramic tile




The costs of implementing:
The raw state open 57 240,00 EUR
The raw state closed 86 170,00 EUR
The cost of finishing works 80 440,00 EUR
Execution of turnkey home 166 600,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Agnes 3 - detailed drawings

House plan Agnes 3 - detailed drawings - mirror
