Albatross 2 house plan

Usable area: 127.55 m2   /   The cost of the realization: 119 130 EUR

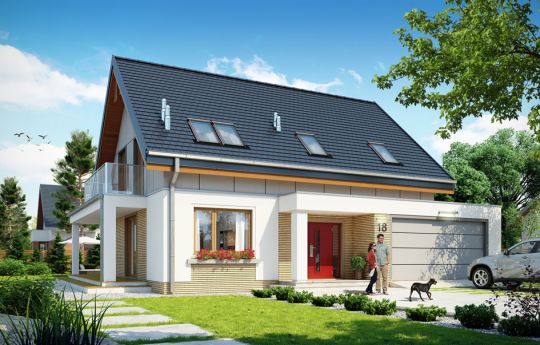

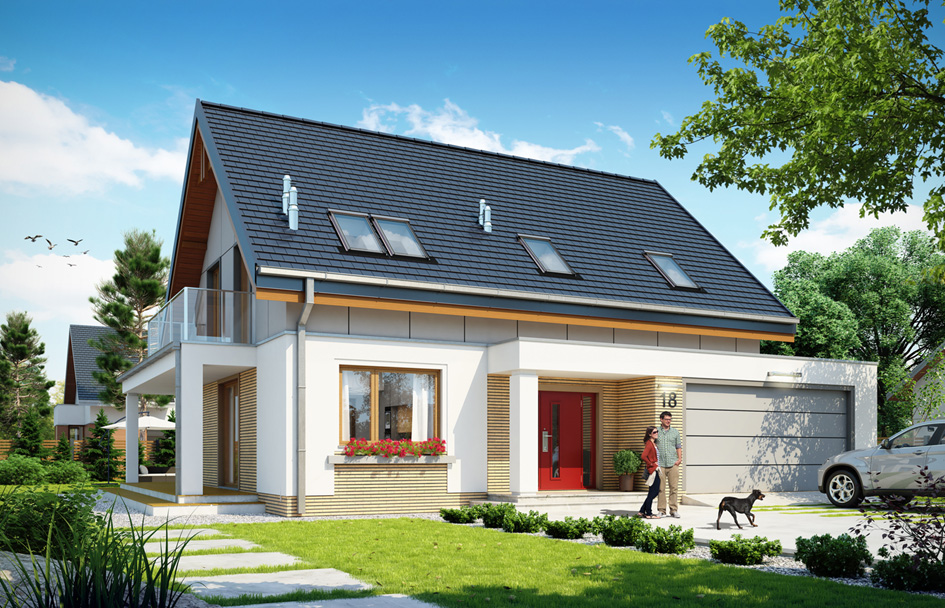

House plan Albatross 2 - front visualization
Show mirror image

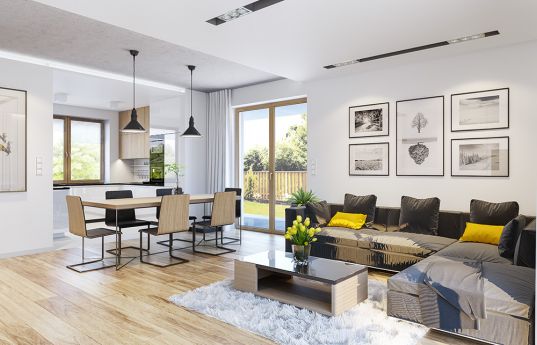

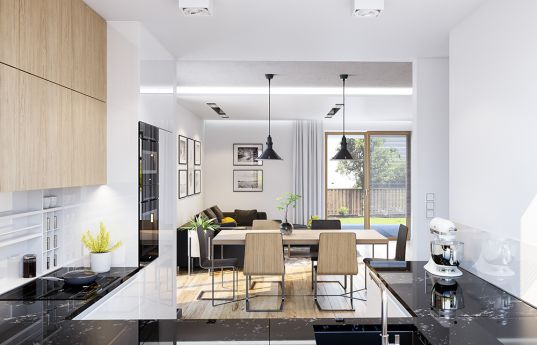

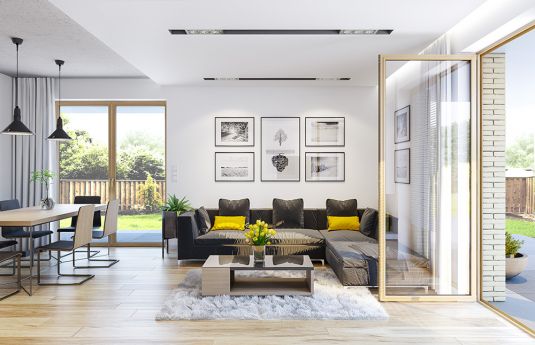

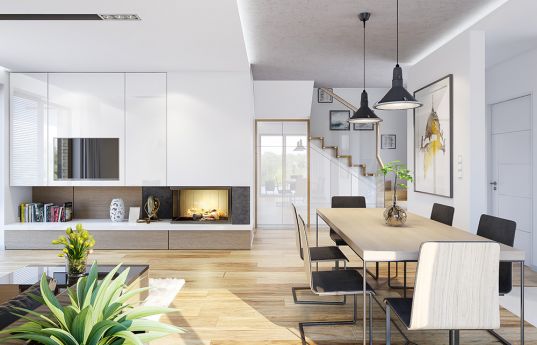

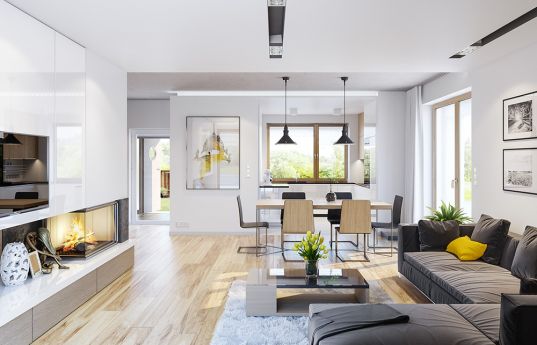

House plan Albatross 2 is a variant version of the popular  house plan Albatross with double garage. It is a simple in building and inexpensive house with usable attic for the family of 4-5 people. The body of building was designed on a rectangular plan – to the main body was build another double garage. Attic is topped with a symmetrical gable roof. This project is a connection of the economic and functional solutions, with a modern and interesting aesthetics of the building. The house has this "something": interestingly selected materials, good proportions, the right size of the windows, and above all – functional, reasonably planned interior. Ground floor of house is the living space comfortable with living room, central hall with ornate staircase, kitchen partially open to the living room and an extra room - study or guest bedroom and the economic part of the house i.e. garage and boiler room. On the attic, thanks to the high elbow walls three are spacious bedrooms, including a parents' bedroom with a separate bathroom and a dressing room. In addition, there is provided a place for laundry - possibly storage. Albatross 2 despite of a small area house is spacious and comfortable and will provide luxury conditions for life, even for a large family. Energy efficiency solutions - good insulation, compact shape of the building – allow to reduce future exploitation costs, and the simple construction of house ensures less stress during construction.

Specifications:
  • Cubature: 623 m3 / 21998,13 ft3
  • Built-up area:
    • without arcade 130,10 m2 / 1399,88 ft2
    • with arcade 159,97 m2 / 1721,28 ft2
  • Total area: 205,95 m2 / 2216,02 ft2
  • Net area: 133,40 m2 + garage 35,34 m2 / 1435,38 ft2 + garage 380,26 ft2
  • Usable area:
    • 127,55 m2 + attic wg PN-70/B-02365 / 1372,44 ft2 + attic wg PN-70/B-02365
    • 133,27 m2 + garage wg PN-ISO 9836:1997 / 1433,99 ft2 + garage wg PN-ISO 9836:1997
  • Powierzchnia dachu: 166,25 m2 (+ 52 m2 flat roof / balcony) / 1788,85 ft2 (+ 559,52 ft2 flat roof / balcony)
  • Roof slope: 42 degrees
  • Height of the building: 8,58 m (8,88 m with foundation) / 28,14 ft (29,13 ft with foundation)
  • Wide of the building: 13,95 m / 45,76 ft
  • Length of the building: 10,60 m / 34,77 ft
  • Minimum plot width: 21,34 m / 69,99 ft
  • Minimum plot length: 19,70 m / 64,62 ft
  • Height of rooms: 2,6 m / 8,53 ft
Materials:
  • Foundations - concrete bench and foundation walls with concrete blocks
  • External walls –  brick walls –porotherm 25 blocks + polystyrene + thin-layer plaster
  • Ceiling -  Teriva
  • Elevation - thin-layer plaster on polystyrene
  • Roof -  sheet metal seam (alternatively tile)






The costs of implementing:
The raw state open 40 340,00 EUR
The raw state closed 61 470,00 EUR
The cost of finishing works 57 660,00 EUR
Execution of turnkey home 119 130,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Albatross 2 - detailed drawings

House plan Albatross 2 - detailed drawings - mirror
