Bambi house plan

Usable area: 62.75 m² / The cost of the realization: 69 400 EUR

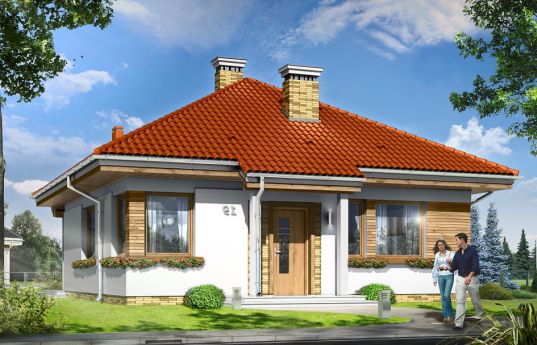

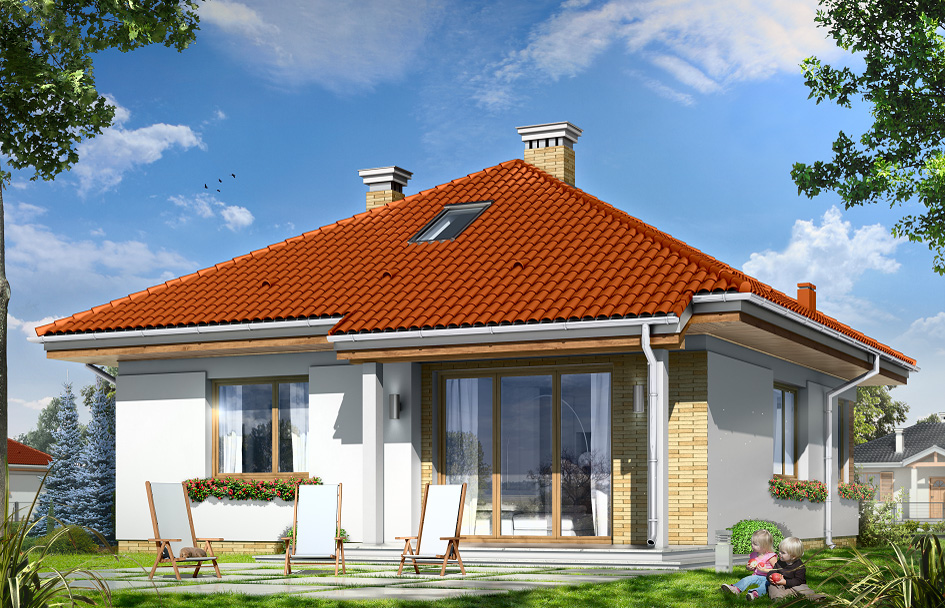

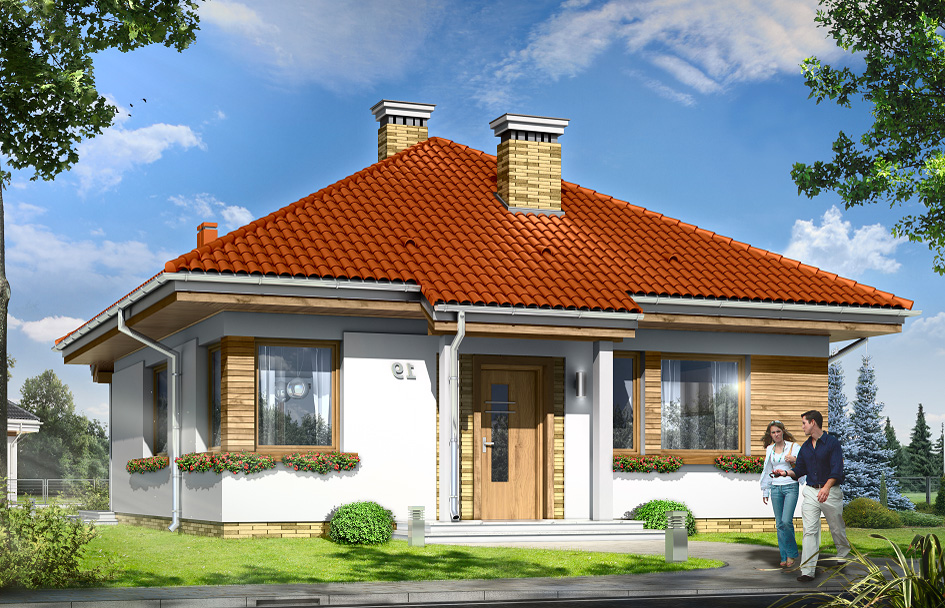

Show mirror image

Price: 870 EUR

Description Plans Elevations Situations Animation Variants (0) Realizations (6) Detailed drawings List of materials Comments (3)

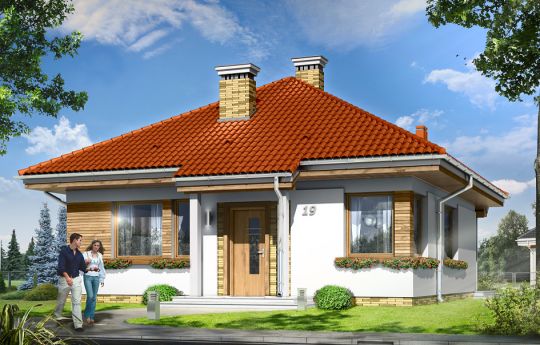

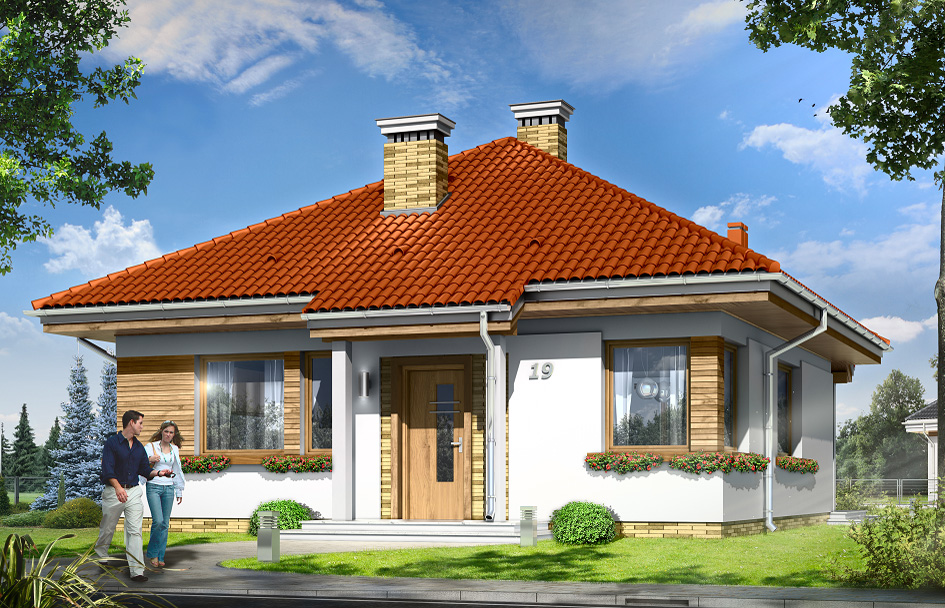

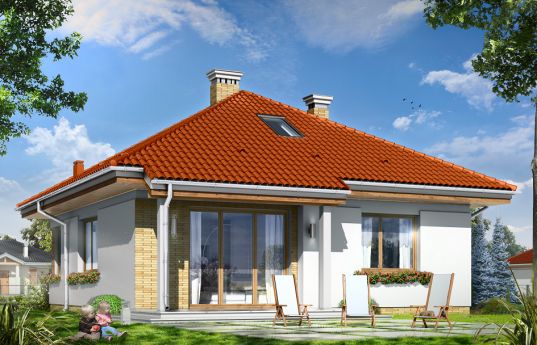

Bambi house plan is a small, one –storey house for the family of 3 – 4 people. The building has a been covered by a hipped, envelope roof. Very simple body of building, based on a square plan and envelope roof, combined with a well-chosen proportions and interesting architectural details form a cohesive, attractive whole. Bambi house is easy to build, thanks to the compact body of building it is also inexpensive in heating. In this project the floor space was divided into an open living area with kitchen, living room and hall, and the night part with two bedrooms and a bathroom. From the living room wide patio doors lead to the terrace and garden. The terrace is partly covered. In the center of the house the fireplace was located, which alternatively can warm the entire interior. From the hall stairs lead to the big attic above the ground floor, which alternatively can be adapted to a small room in the attic. Bambi can be both a single-family house, but also can be summer. There is a mirror version of Bambi house plan.

Specifications:

Cubature: 357 m³/ 12605,67 ft³
Built-up area: 85,06 m²/ 915,25 ft²
Total area: 85,06 m²/ 915,25 ft²
Net area: 64,96 m²/ 698,97 ft²
Usable area: 62,75 m²/ 675,19 ft²
Roof area: 138,93 m²/ 1494,89 ft²
Roof slope: 30 degrees
Height of the building: 6,21 m (6,46 m with foundation) / 20,37 ft ( 21,19 ft with foundation)
Wide of the building: 9,29 m / 30,47 ft
Length of the building: 9,29 m / 30,47 ft
Minimum plot width: 17,29 m / 56,71 ft
Minimum plot length: 17,29 m / 56,71 ft
Height of rooms: 2,7 m / 8,86 ft

Materials:

• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - aerated concrete blocks 24 cm + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - ceramic tile

The costs of implementing:

The raw state open	24 700,00 EUR
The raw state closed	36 400,00 EUR
The cost of finishing works	33 000,00 EUR
Execution of turnkey home	69 400,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Projekt domu Bambi - zestawienie materiałowe

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Bambi - detailed file

House plan Bambi - detailed file - mirror
