Usable area: 68.32 m2 / The cost of the realization: 63 200 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Detailed drawings
List of materials
Comments (3)

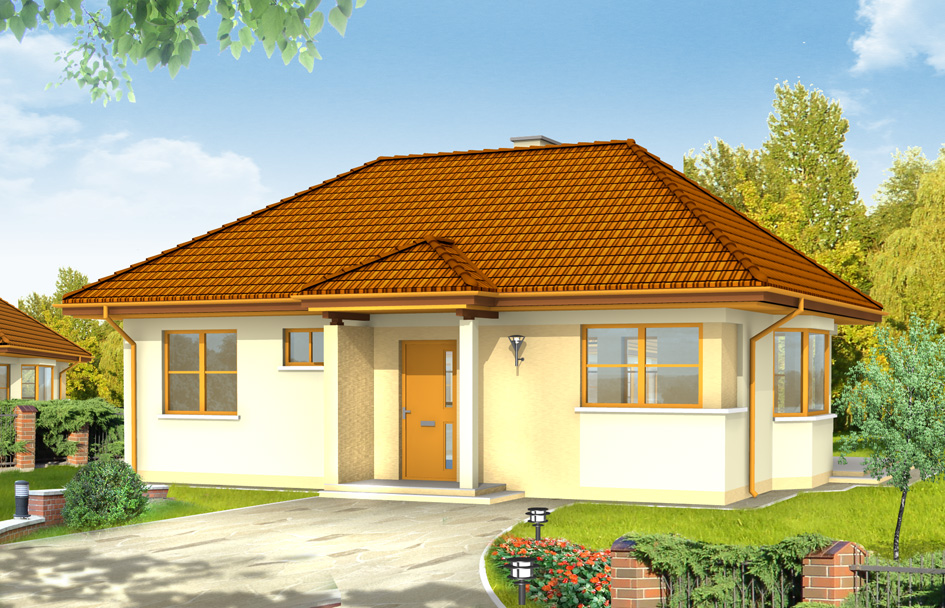

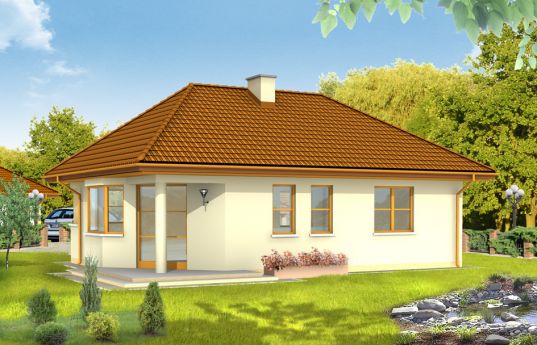

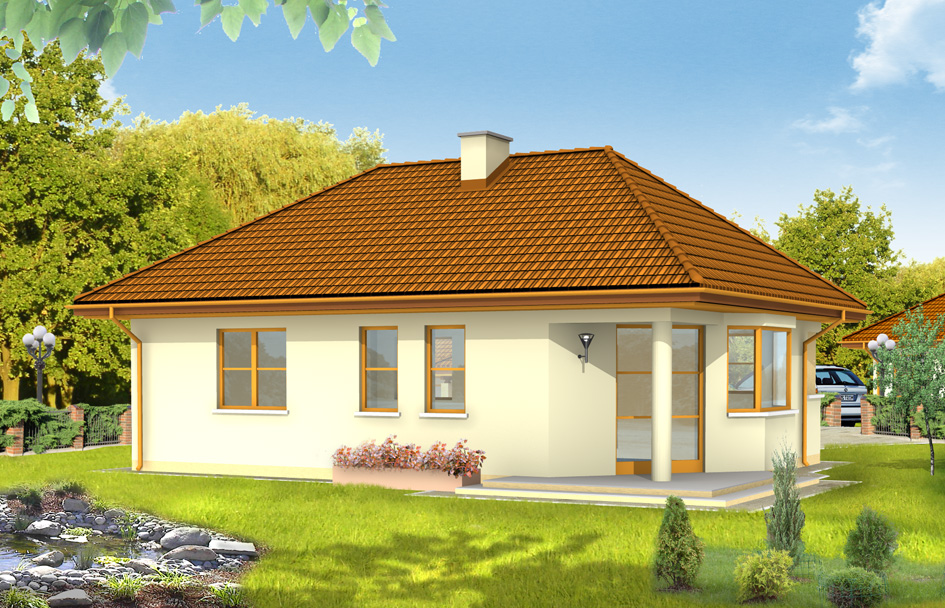

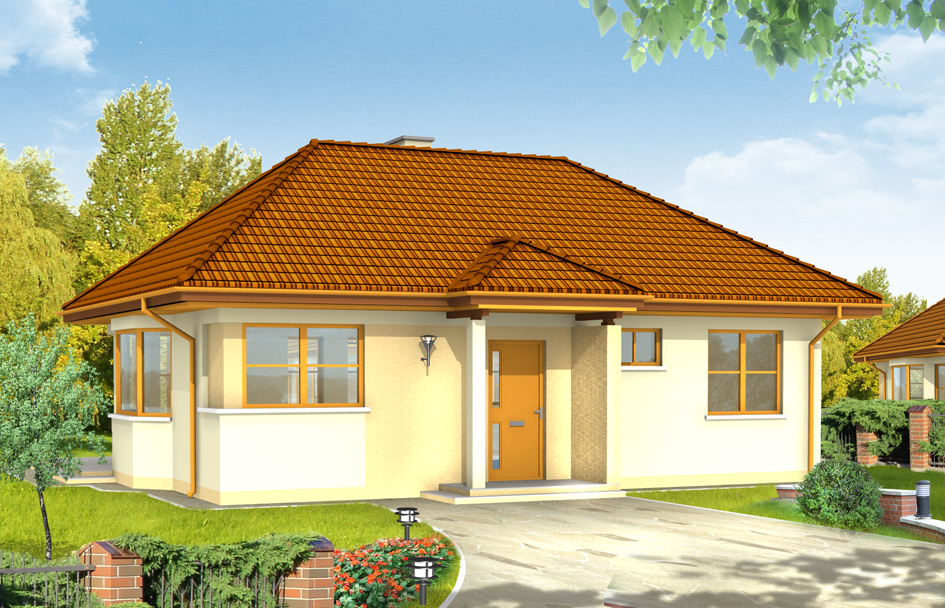

Jewel house plan is a small building for a family of 3 or for a young couple with small children. It can also be used as a cottage house. A simple shape of house without decorations is easy and inexpensive in building. The architectural details matched with the taste makes the house look pleasant. The interior is designed with the division into two zones, daily and nightly. We also have this house plan in a mirror version.
Specifications:
- Cubature: 389 m3/13735,59 ft3
- Built-up area: 84,04 m2/ 904,27 ft2
- Total area: 84,04 m2/ 904,27 ft2
- Net area: 68,32 m2/ 735,12 ft2
- Usable area: 68,32 m2/ 735,12 ft2
- Roof area: 143,6 m2/ 1545,14 ft2
- Roof slope: 30 and 38 degrees
- Height of the building: 5,76 m (6,06 m with foundation)/ 18,89 ft (19,88 ft with foundation)
- Wide of the building: 10,86 m / 35,62 ft
- Length of the building: 8 m / 26,24 ft
- Minimum plot width: 17,86 m / 58,58 ft
- Minimum plot length: 17,20 m / 56,42 ft
- Height of rooms: 2,60 m / 8,53 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - double layer ceramic airbrick MAX + polystyrene
• Ceiling - wood truss girders
• Elevation - thin-layer plaster on polystyrene
• Roof - ceramic tile, steel tile
The costs of implementing:
| The raw state open | 23 400,00 EUR |
| The raw state closed | 34 400,00 EUR |
| The cost of finishing works | 28 800,00 EUR |
| Execution of turnkey home | 63 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Jewel - detailed file - mirror
House plan Jewel - detailed file
