By using this website you consent to the use of cookies, according to the current browser settings.D05 house plan
Usable area: 109.01 m2 / The cost of the realization: 92 000 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Realizations (4) Detailed drawings
List of materials
Comments (3)

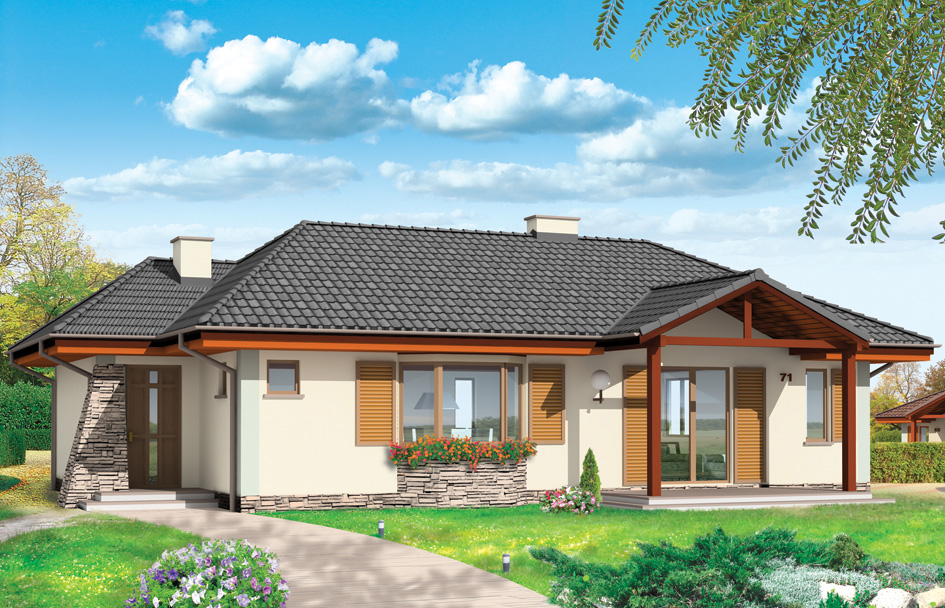

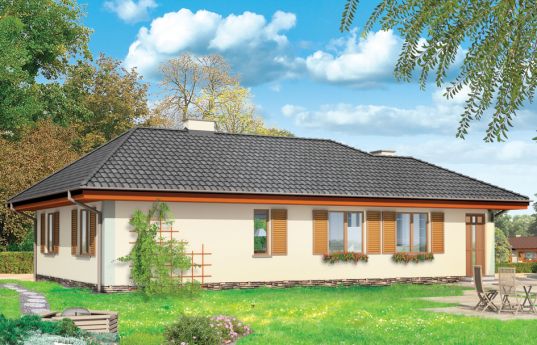

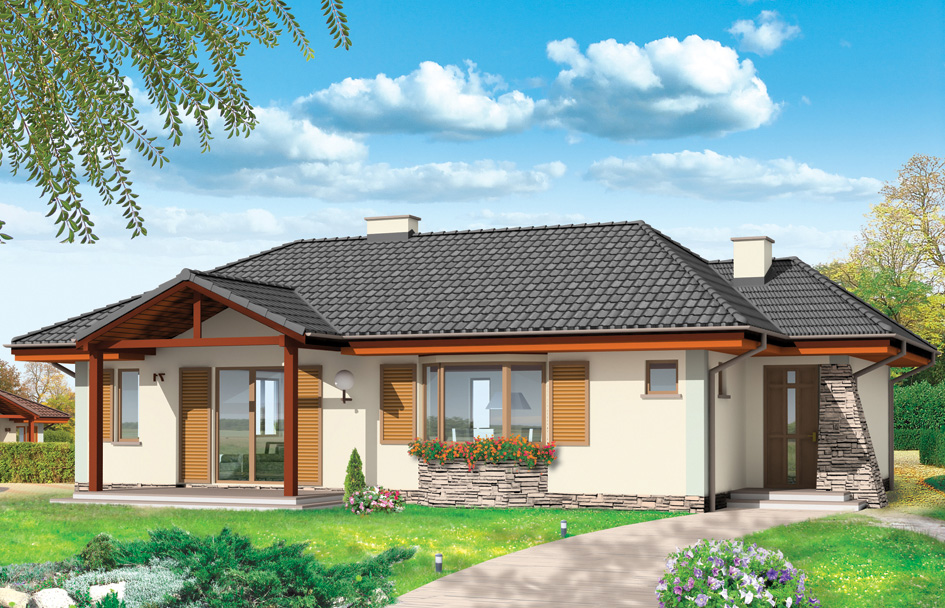

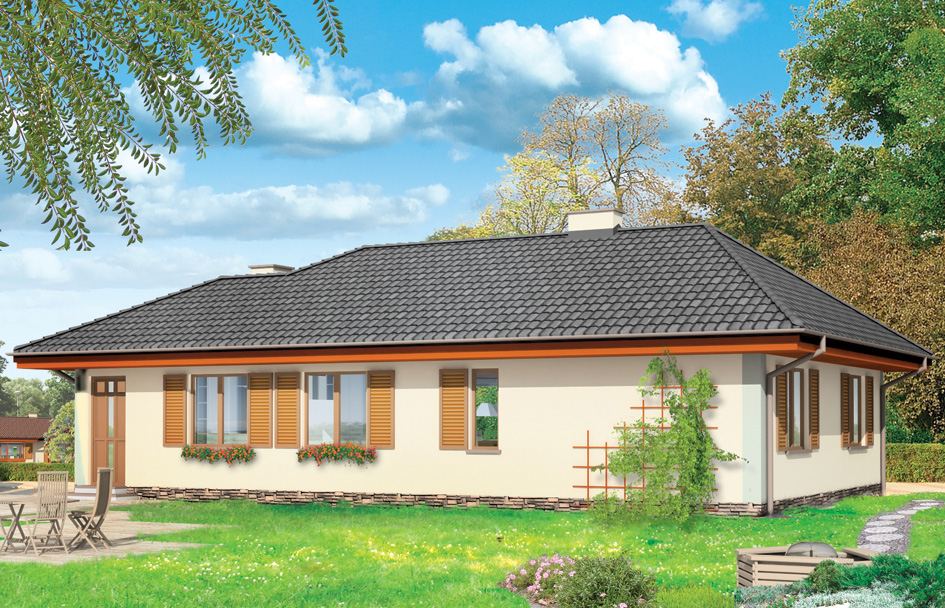

D05 house plan is one-storey building for the family of 4 - 5 people, designed for a difficult plot with access road on the south side, or for a narrow plot of land (a variant of plot plan). In this house plan you can adapt the attic. On the ground floor there is a living room, partially connected to the hall and kitchen with access to the terrace with arcades. Large kitchen with dining area opens to a space in front of the house by a glazed bay window. The boiler room is available from the porch and has a separate outside exit. Utility room next to the kitchen can be used for laundry or pantry. There is a version of this house plan suitable for a narrow plot, the plot of the entrance from the garden. There is also a mirror version of the D05 house plan.
Specifications:
- Cubature: 420 m3/ 14830,2 ft3
- Built-up area: 144,38 m2/ 1553,53 ft2
- Total area: 144,38 m2/ 1553,53 ft2
- Net area: 118,02 m2/ 1269,90 ft2
- Usable area: 109,01 m2/ 1172,95 ft2
- Roof area: 181,5 m2/ 1952,94 ft2
- Roof slope: 24 degrees
- Height of the building: 5,75 m (6,07 m with foundation)/ 18,86 ft (19,91 ft with foundation)
- Wide of the building: 15,50 m / 50,84 ft
- Length of the building: 9,66 m / 31,68 ft
- Minimum plot width: 22,50 m / 73,8 ft
- Minimum plot length: 18,46 m / 60,55 ft
- Height of rooms: 2,60 m / 8,53 ft
Materials:
• Foundations - concrete
• Foundations - reinforced concrete
• External walls - aerated concrete blocks + polystyrene
• Ceiling - wooden or trussed girders
• Elevation - thin-layer plaster
• Roof - ceramic tile, metal roofing tile
The costs of implementing:
| The raw state open | 27 600,00 EUR |
| The raw state closed | 42 800,00 EUR |
| The cost of finishing works | 49 200,00 EUR |
| Execution of turnkey home | 92 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan D05 - detailed file - mirror
House plan D05 - detailed file
