Melody house plan

Usable area: 115.19 m² / The cost of the realization: 78 600 EUR

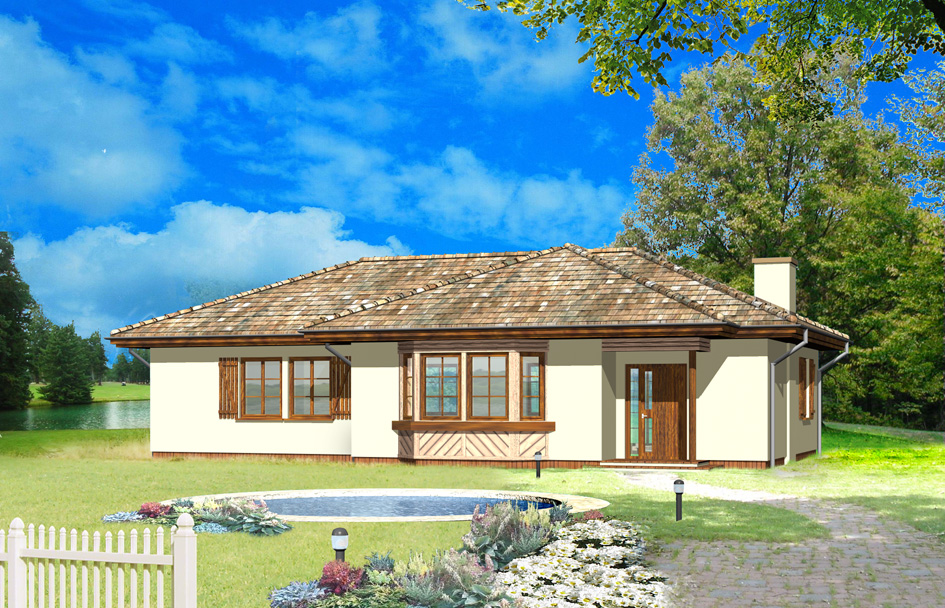

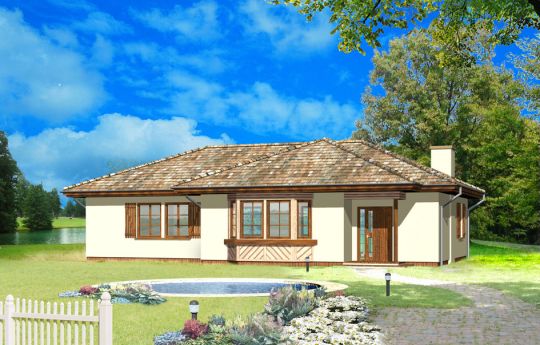

House plan Kujawiak - front visualization

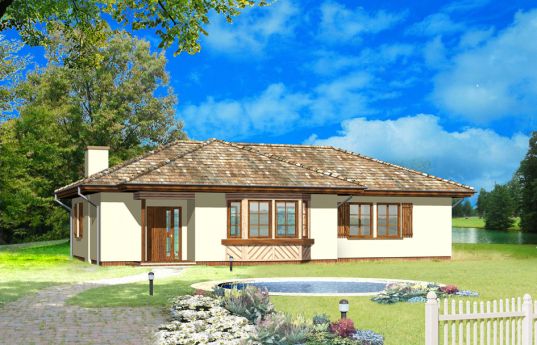

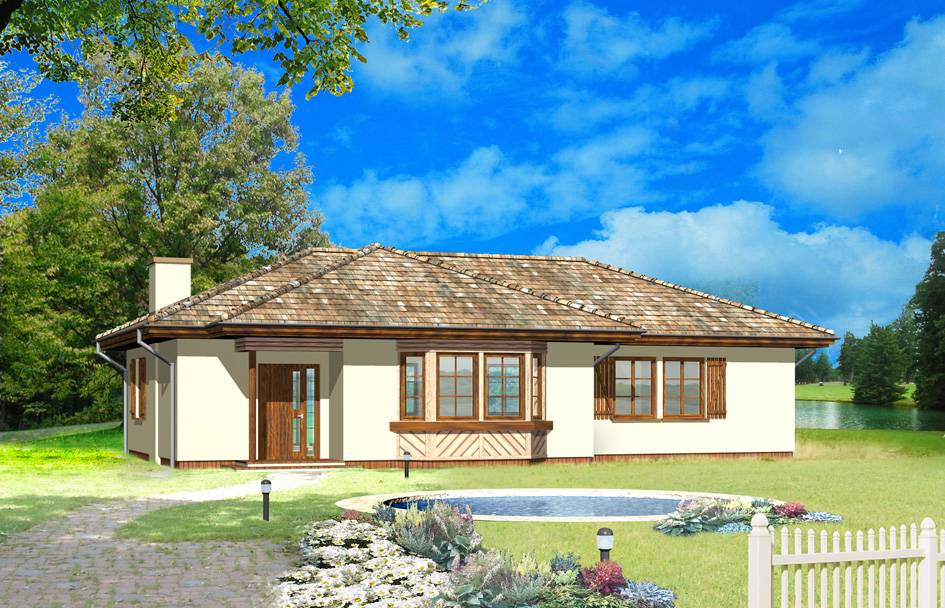

Show mirror image

Price: 900 EUR

Description Plans Elevations Situations Variants (0) Realizations (1) Detailed drawings List of materials Comments (3)

Melody house plan is comfortable, spacious bungalow for a family of 4 to 5 people. This house plan has an extensive front elevation, emphasizing the representative character of the building. Kujawiak thanks to untypical interior configuration is suitable for a plot with entrance and garden from the front, as well as on a plot with a garden behind the building. Melody house plan is also available in a mirror version.

Specifications:

Cubature: 417 m³ / 14724,27 ft³
Built-up area: 133,22 m² / 1433,45 ft²
Total area: 133,15 m² / 1432,69 ft²
Net area: 115,19 m² / 1239,44 ft²
Usable area: 115,19 m² / 1239,44 ft²
Roof area: 189,9 m²/ 2043,32 ft²
Roof slope: 24 degrees
Height of the building: 5,10 m (5,32 m with foundation) / 16,73 ft (17,45 ft with foundation)
Wide of the building: 15,5 m / 50,84 ft
Length of the building: 9,7 m / 31,82 ft
Minimum plot width: 23,5 m / 77,08 ft
Minimum plot length: 17,7 m / 58,06 ft

Materials:

External walls – wooden skeleton + thin-layer plaster on OSB
Strop - flat roof wooden truss, gypsum headlining
Roof - tile or meatal roofing tile

The costs of implementing:

The raw state open	16 400,00 EUR
The raw state closed	31 000,00 EUR
The cost of finishing works	47 700,00 EUR
Execution of turnkey home	78 600,00 EUR

Net notified costs, do not include VAT

Order

Additions to the project:

Energy-saving package free

Ventilation and fireplace package 90,00 EUR

Central vacuum package 70,00 EUR

The electronic version of the project 120,00 EUR

Solar installation package 70,00 EUR

Underfloor heating package 80,00 EUR

Heat pump package 70,00 EUR

Water jacket package 70,00 EUR

Boiler for solid fuel package 80,00 EUR

Air conditioning package 80,00 EUR

Fencing projects 140,00 EUR

Septic tanks sealed package free

Kujawiak - kosztorys

To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.

House plan Kujawiak - detailed file

House plan Kujawiak - detailed file - mirror
