Usable area: 117.6 m2 / The cost of the realization: 83 900 EUR

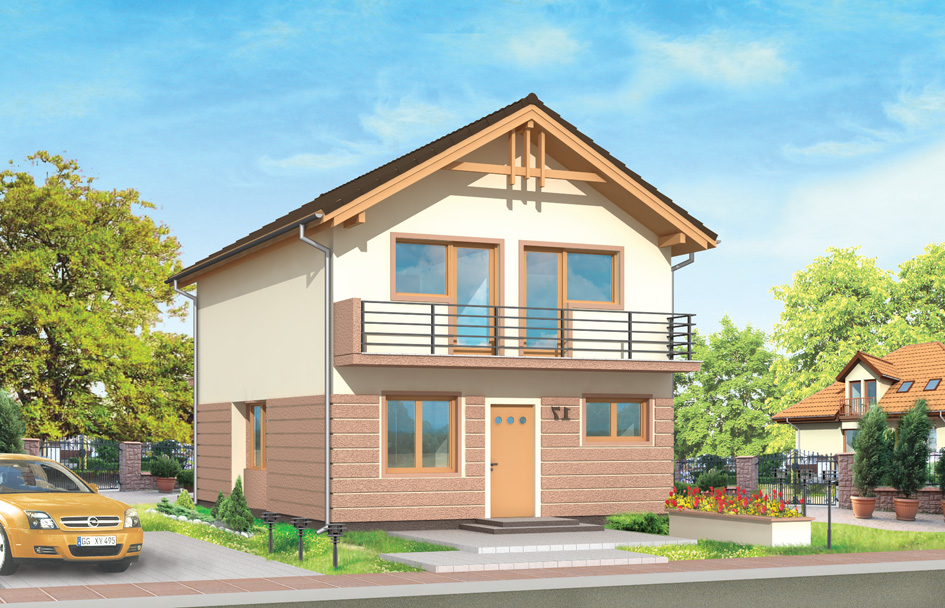

Show mirror image
Price: 940 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

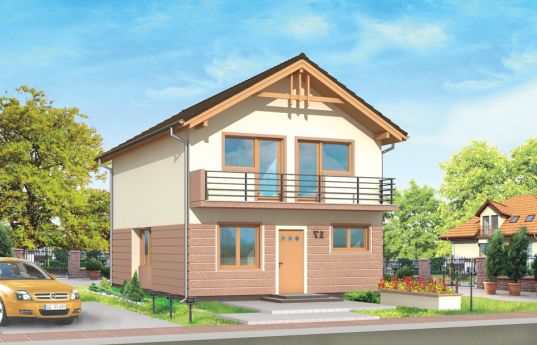

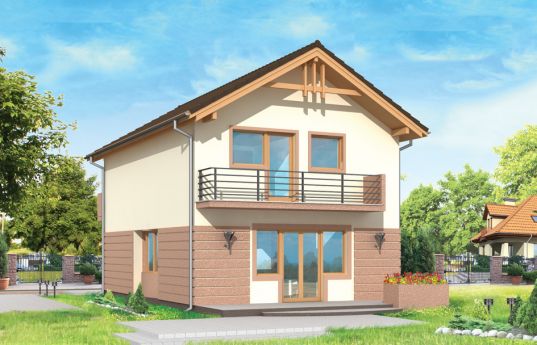

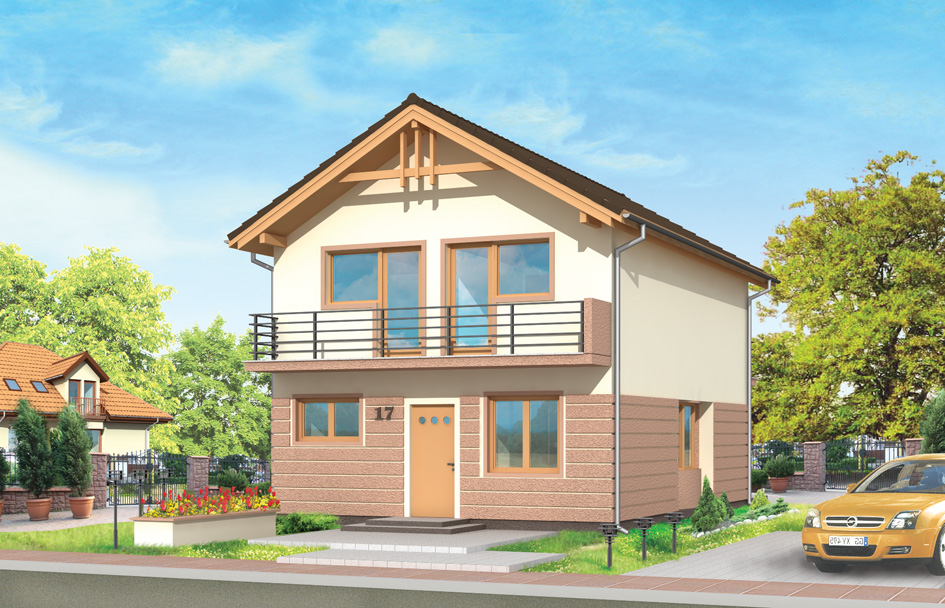

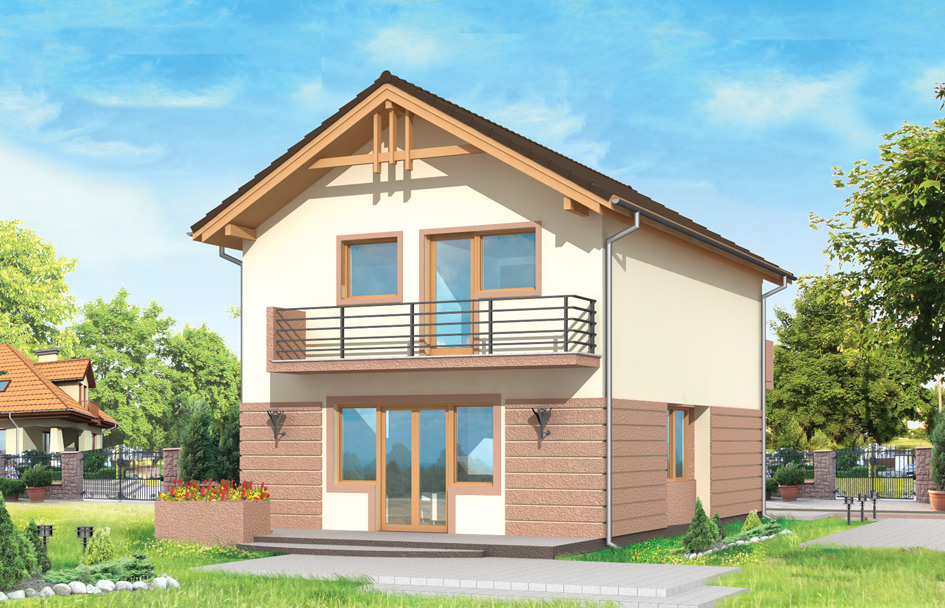

House plan with one floor is a storey building for a family of 4 with a simple shape and unpretentious architecture. Suitable for narrow plot, especially among the existing close buildings. On the ground floor there is a large open living space and technical facilities. Upstairs, there are three comfortable bedrooms - without slant - a bathroom and dressing room. There is also a mirror version of this house plan.
Specifications:
- Cubature: 465 m3/ 16419,15 ft3
- Built-up area: 79,92 m2/ 859,94 ft2
- Total area: 159,84 m2/ 1719,88 ft2
- Net area: 125,79 m2/ 1353,50 ft2
- Usable area: 117,6 m2/ 1265,38 ft2
- Roof area: 137,5 m2/ 1479,50 ft2
- Roof slope: 30 degrees
- Height of the building: 8,44 m (8,76 m with foundation)/ 27,68 ft (28,73 ft with foundation)
- Wide of the building: 7,4 m / 24,27 ft
- Length of the building: 10,8 m / 35,42 ft
- Minimum plot width: 14,4 m / 47,23 ft
- Minimum plot length: 18,8 m / 61,66 ft
- Height of rooms: 2,80 m / 9,18 ft
Materials:
• Foundations - Concrete
• External walls - bilayer: aerated concrete + styrofoam or porotherm + wool
• Internal walls – porotherm
• Ceiling - Teriva
• Roof - ceramic tile or metal roofing tile
The costs of implementing:
| The raw state open | 29 500,00 EUR |
| The raw state closed | 41 300,00 EUR |
| The cost of finishing works | 42 700,00 EUR |
| Execution of turnkey home | 83 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan with one floor - detailed file - mirror
House plan with one floor - detailed file
