Usable area: 84.84 m2 / The cost of the realization: 92 400 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

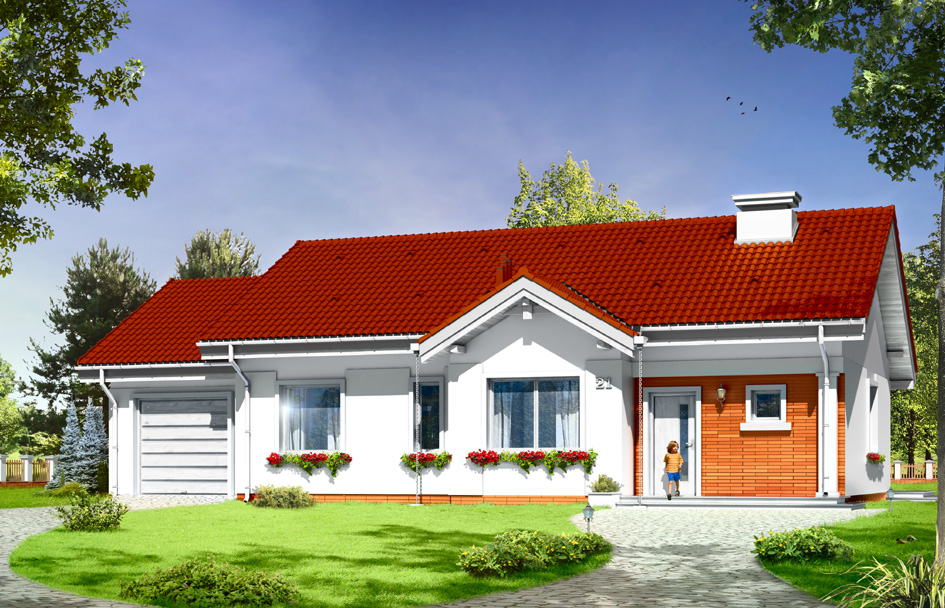

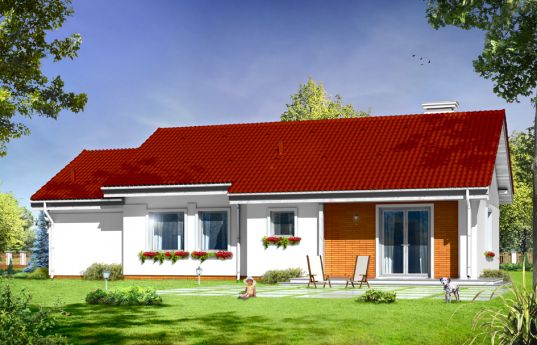

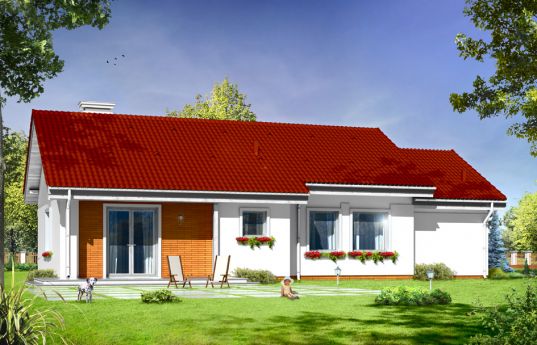

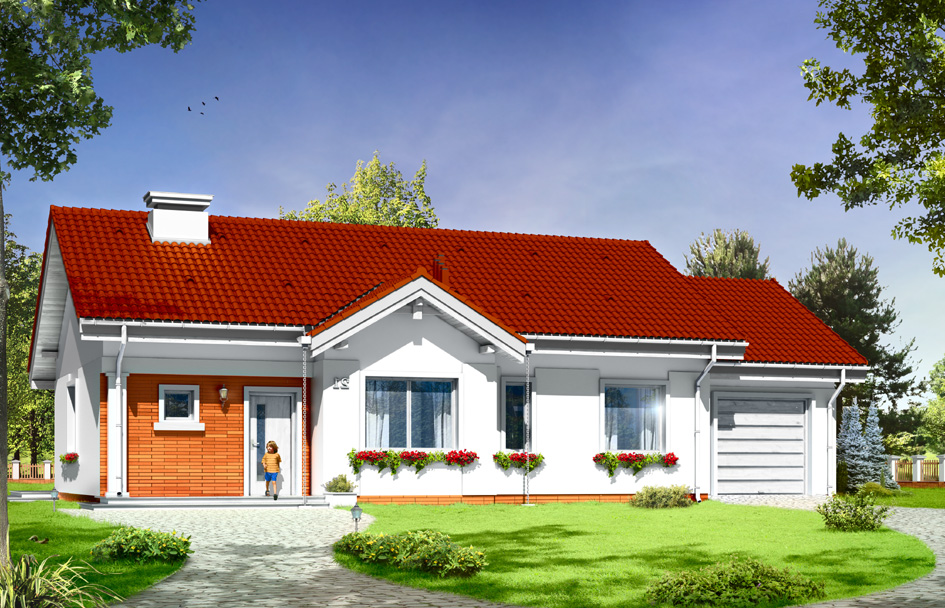

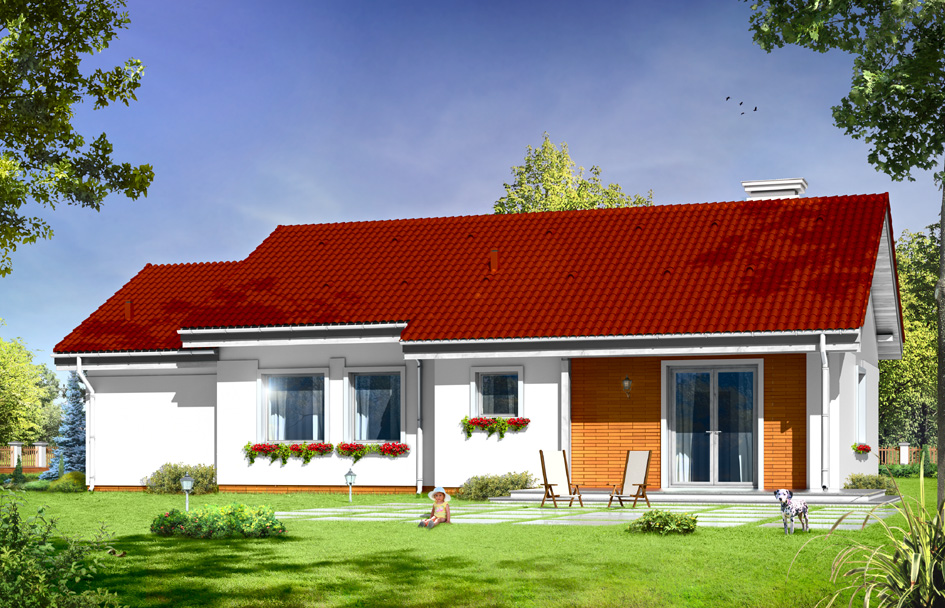

Cypisek 4 is another version of the popular house Cypisek. This is a one-story house for a family of 4 people covered by a simple gable roof, with a non-usable attic, which can be adapted to the usable attic. The front elevation has been nicely varied by a corner entrance and a covered bay window of kitchen. The garden elevation is enriched by a wide exit doors from the living room to the terrace, and an arcade above the part of the terrace. The whole shape of the building is simple but curiously composed. Traditional roofs, together with modern detail and materials. The interior of the ground floor was divided into day and night part - with three bedrooms and a bathroom. In the living room a corner fireplace and a convenient kitchen with dining table in the bay window was planned. The boiler will be a comfortable place for a gas boiler, but also an alternative solid fuel boiler. Stairs from the hall lead to the attic, which can be easily adapted to usable attic. There is also a mirror version of the Cypisek 4.
Specifications:
- Cubature: 690 m3/ 24363,9 ft3
- Built-up area: 141,11 m2/ 1518,34 ft2
- Total area: 141,11 m2/ 1518,34 ft2
- Net area: 89,89 m2 + garage/ 967,22 ft2 + garage
- Usable area: 84,84 m2/ 912,88 ft2
- Roof area: 210,59 m2/ 2265,95 ft2
- Roof slope: 30 degrees
- Height of the building: 6,14 m (6,39 m with foundation)/ 20,14 ft (20,96 ft with foundation)
- Wide of the building: 17,02 m / 55,83 ft
- Length of the building: 9,83 m / 32,24 ft
- Minimum plot width: 24,02 m / 78,79 ft
- Minimum plot length: 17,83 m / 58,48 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 34 900,00 EUR |
| The raw state closed | 48 400,00 EUR |
| The cost of finishing works | 44 000,00 EUR |
| Execution of turnkey home | 92 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Cypisek 4 - detailed file
House plan Cypisek 4 - detailed file - mirror
