Usable area: 79.66 m2 / The cost of the realization: 90 400 EUR
Show mirror image
Price: 870 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Detailed drawings
List of materials
Comments (3)

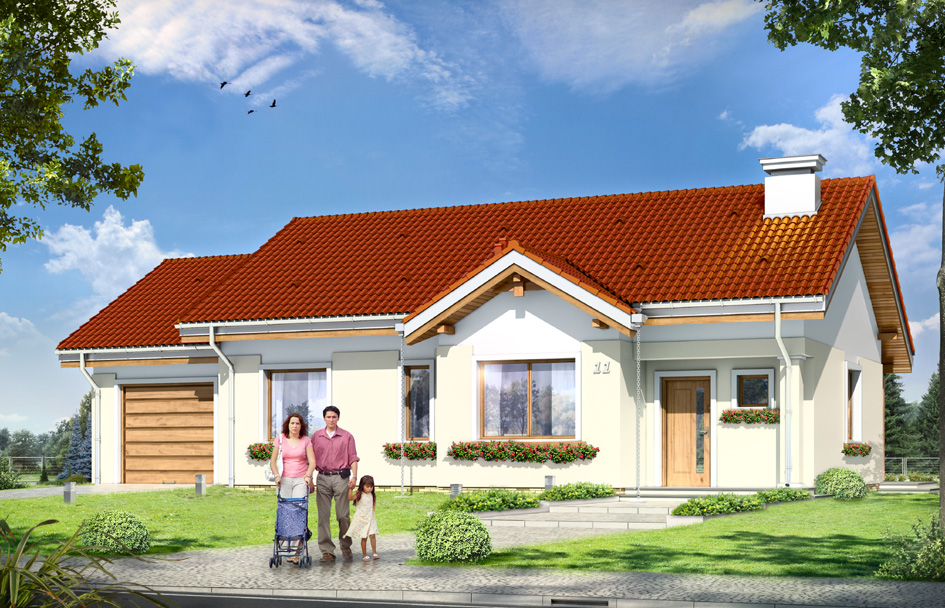

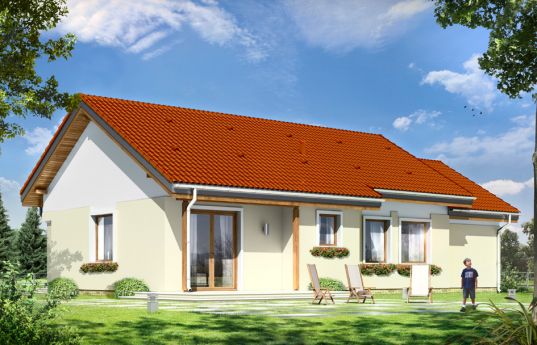

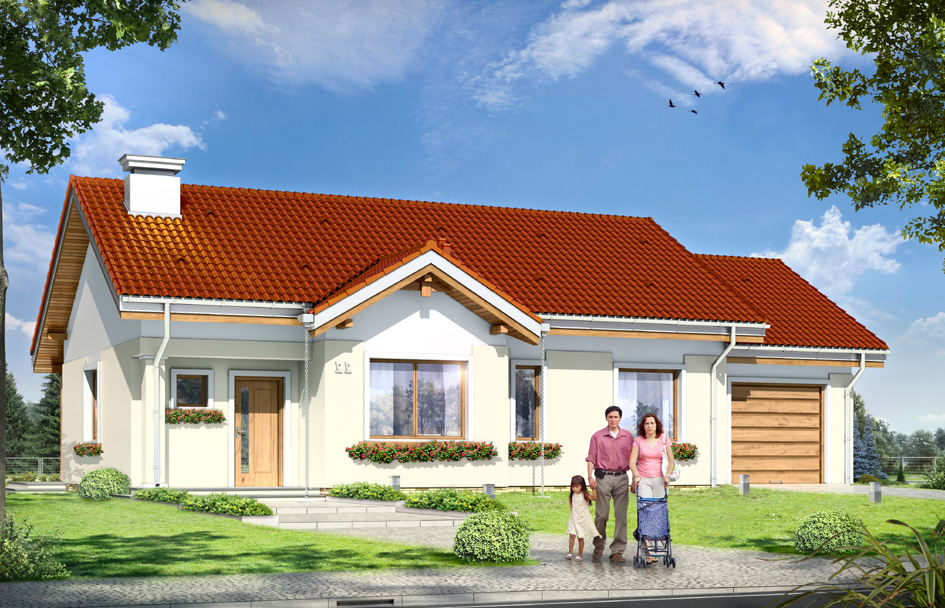

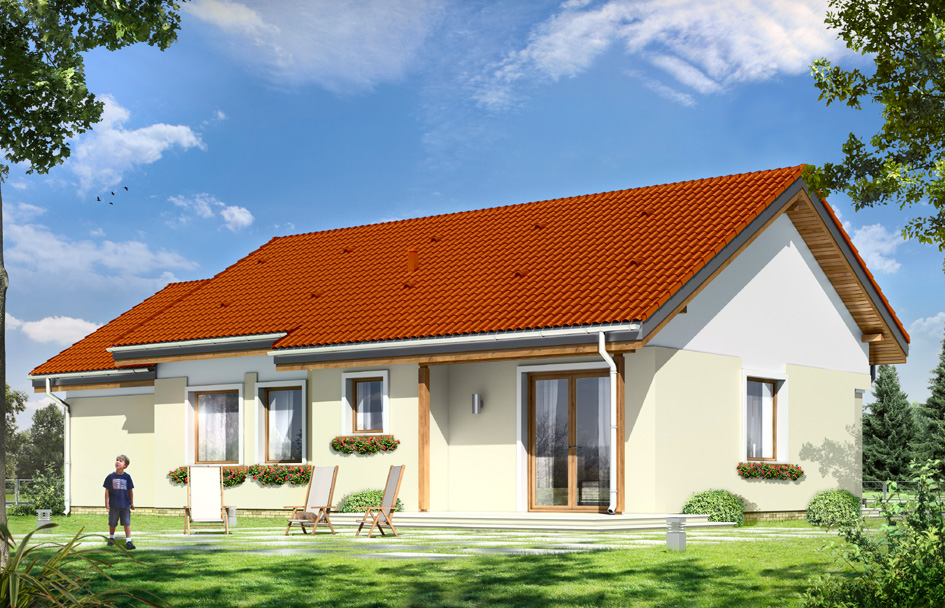

Cypisek 3 is an enlarged version of the Cypisek. From the basic version differs it a built garage. The house is suitable for the family of 4 – 5 people. Cypisek 3 is a one-storied house covered by a gable roof. The garage also has a gable roof. Above the ground floor of the house is non-usable attic, which can easily be adapted to the usable attic. On the ground floor three bedrooms with bathroom was planned, and - in the living area - living room with corner fireplace and a kitchen with a dining table placed in the front of the bay window was designed. In this house plan a boiler room was planned next to the porch. The entrance to the house emphasizes a covered platform with a corner column, and the kitchen bay window. From the garden side covered terrace is an extension of the living room connecting to the wide glass doors. There is a mirror version of the project Cypisek 3.
Specifications:
- Cubature: 643 m3/ 22704,33 ft3
- Built-up area: 131,06 m2/ 1410,21 ft2
- Total area: 131,06 m2/ 1410,21 ft2
- Net area: 81,75 m2 + garage/ 879,63 ft2 + garage
- Usable area: 79,66 m2/ 857,14 ft2
- Roof area: 196,62 m2/ 2115,63 ft2
- Roof slope: 30 degrees
- Height of the building: 6,14 m (6,39 m with foundation) / 20,14 ft (20,96 ft with foundation)
- Wide of the building: 16,02 m / 52,55 ft
- Length of the building: 9,83 m / 32,24 ft
- Minimum plot width: 23,02 m / 75,51 ft
- Minimum plot length: 17,83 m / 58,48 ft
- Height of rooms: 2,7 m / 8,86 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• External walls - brick walls - porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - Teriva
• Elevation - thin-layer plaster on polystyrene
• Roof - tile
The costs of implementing:
| The raw state open | 34 900,00 EUR |
| The raw state closed | 48 500,00 EUR |
| The cost of finishing works | 36 600,00 EUR |
| Execution of turnkey home | 90 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Cypisek 3 - detailed file
House plan Cypisek 3 - detailed file - mirror
