Usable area: 102.58 m2 / The cost of the realization: 141 000 EUR
Show mirror image
Price: 1000 EUR
Description
Plans
Elevations
Situations
Animation Variants (1)
Detailed drawings
List of materials
Comments (3)

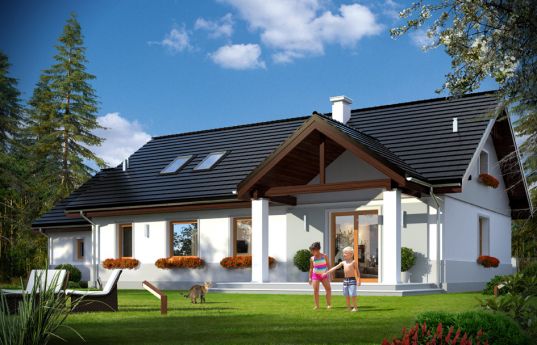

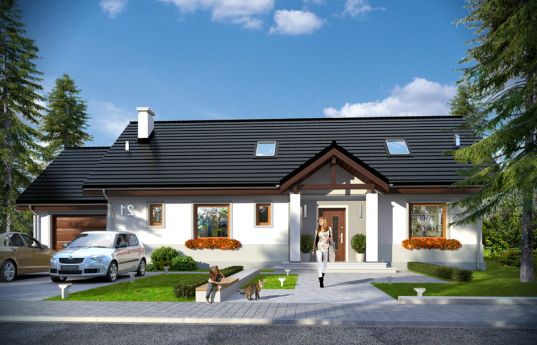

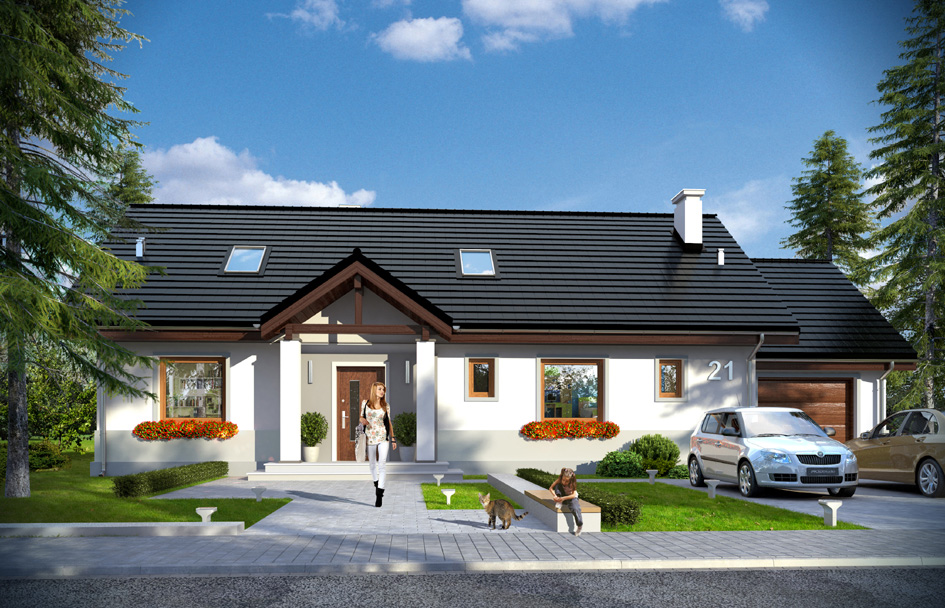

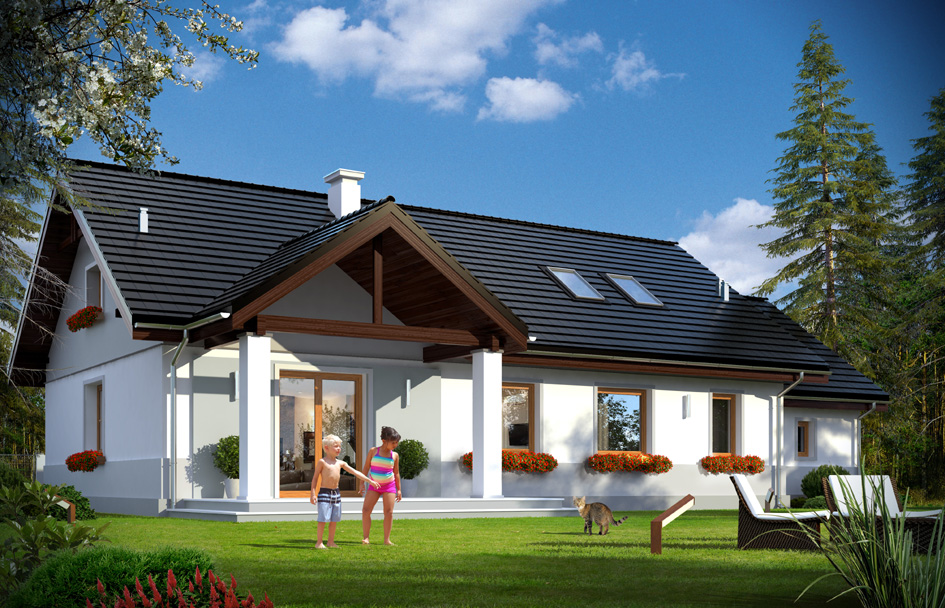

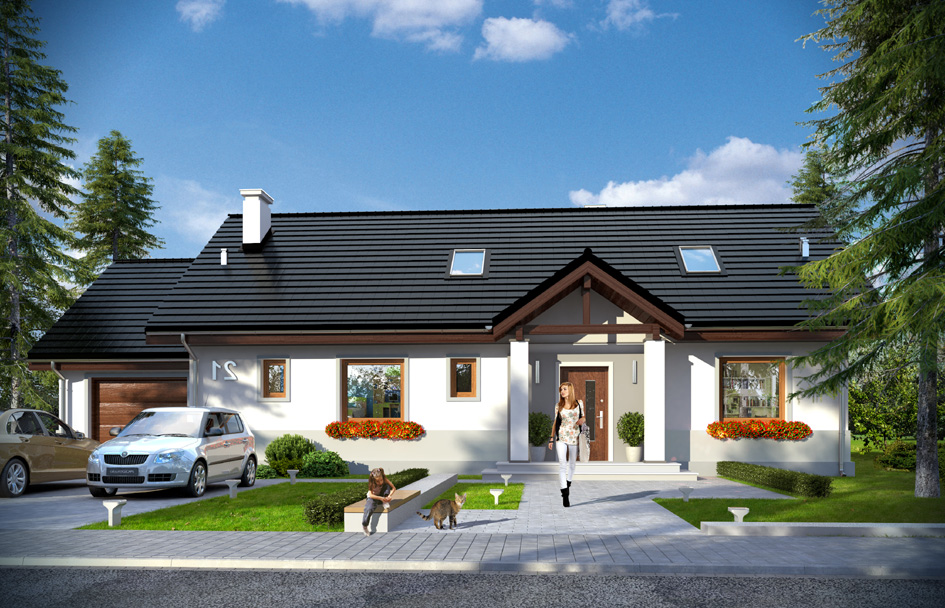

Anatol 2 house plan is the next edition of the popular single-family house Anatol. It is a one-story house designed for the family of 4 – 6 people. Thanks to the large attic, which can be adapted to the usable attic, this house ideally suited for the development, growing family, whose needs may increase. This house plan has attic which can be easily adapt to obtain an extra living space. Architecturally, the house is a simple timeless body of the building, built on a rectangular plan covered by a gable roof. Well-balanced proportions of the facade, and modern finishes, give the house an attractive and pleasing appearance. Functional interior, including all living and technical rooms on the ground floor also makes this house more attractive. On the ground floor there is a living area with living room, kitchen, hall and bedrooms - three bedrooms and an extra room to work. There are also bathrooms, wardrobe, pantry, boiler room and a garage planned. To get to the attic you can use stairs in the boiler room. The attic can be freely planned – you can design 2-3 additional rooms or undivided surface. The house has a simple structure, easy to build. Thanks to that the implementation costs should not be high. With its compact shape and good isolation house is warm and energy-efficient. The cost of living in Anatol 2 will not be high.
Specifications:
- Cubature: 692 m3/ 24434,52 ft3
- Built-up area: 166,71 m2/ 1793,80 ft2
- Total area: 166,71 m2/ 1793,80 ft2
- Net area: 111,42 m2 + garage 22,68 m2/ 1198,88 ft2 + garage 244,04 ft2
-
Usable area:
- 102,58 m2 by PN-70/B-02365 (+ attic) / 1103,76 ft2 by PN-70/B-02365 + attic
- 111,42 m2 by PN-ISO 9836:1997 (+ attic) / 1198,88 ft2 by PN-ISO 9836:1997 + attic
- Roof area: 275,36 m2/ 2962,87 ft2
- Roof slope: 35 degrees
- Height of the building: 6,80 m (7,15 m with foundation) / 22,30 ft (23,45 ft with foundation)
- Wide of the building: 18,57 m / 60,91 ft
- Length of the building: 9,3 m / 30,50 ft
- Minimum plot width: 25,57 m / 83,87 ft
- Minimum plot length: 18,87 m / 61,89 ft
- Height of rooms: 2,65 m / 8,69 ft
Materials:
• Foundations - Concrete benches and foundation walls of concrete blocks
• Walls - brick walls - porotherm 25 blocks + polystyrene + thin-layer plaster
• Ceiling - monolithic reinforced concrete
• Elevation - thin-layer plaster on polystyrene
• Roof - ceramic tile
The costs of implementing:
| The raw state open | 49 700,00 EUR |
| The raw state closed | 75 400,00 EUR |
| The cost of finishing works | 65 600,00 EUR |
| Execution of turnkey home | 141 000,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Anatol 2 - detailed file - mirror
House plan Anatol 2 - detailed file
