Usable area: 52.5 m2 / The cost of the realization: 46 400 EUR

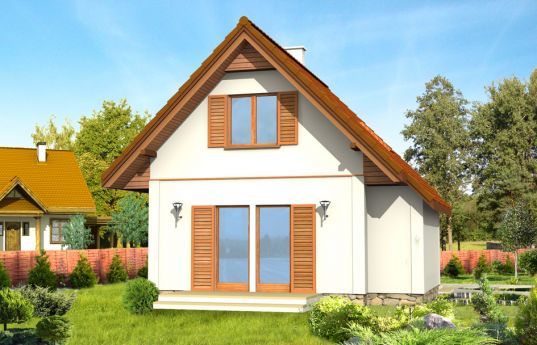

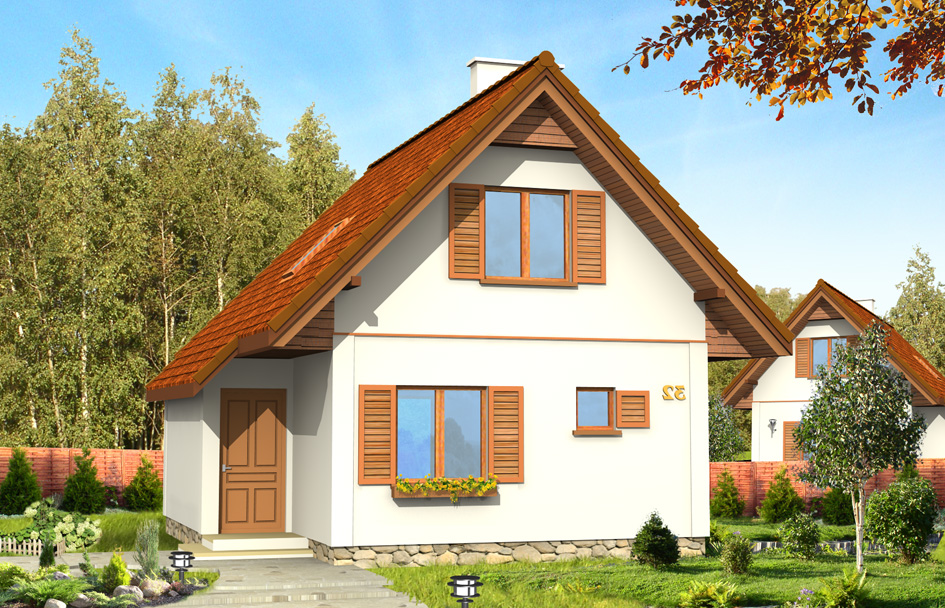

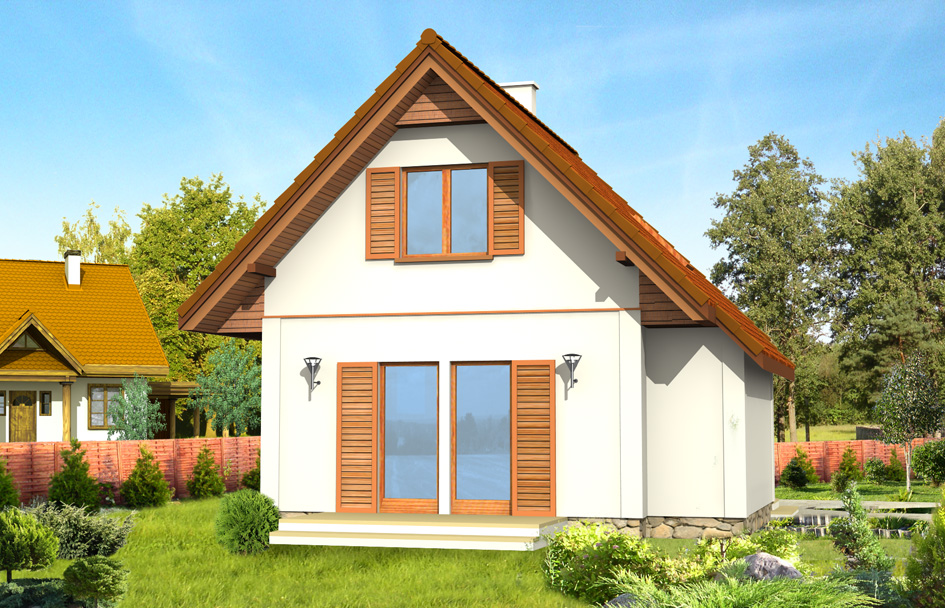

Show mirror image
Price: 830 EUR
Description
Plans
Elevations
Situations
Animation Interiors Variants (0)
Realizations (15) Detailed drawings
List of materials
Comments (3)

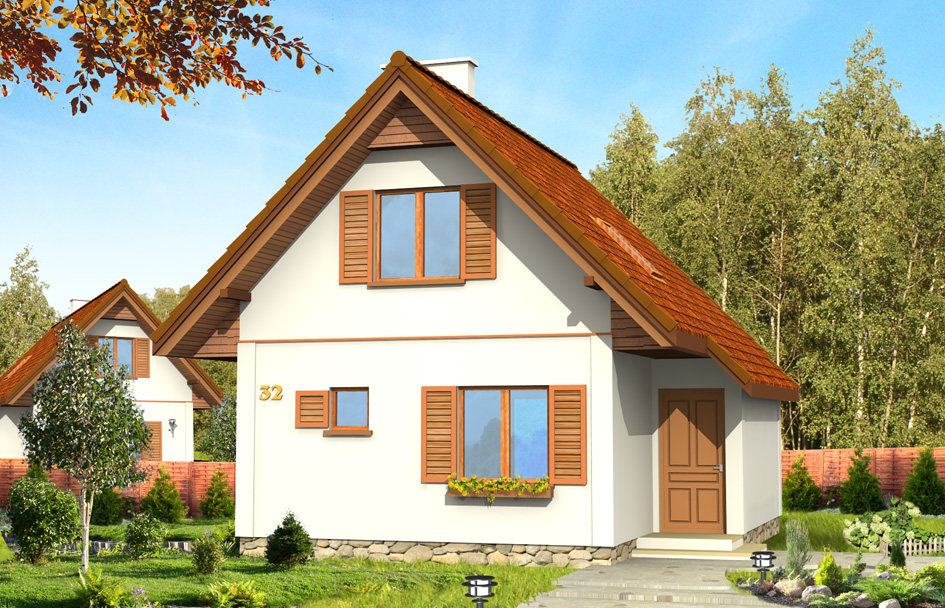

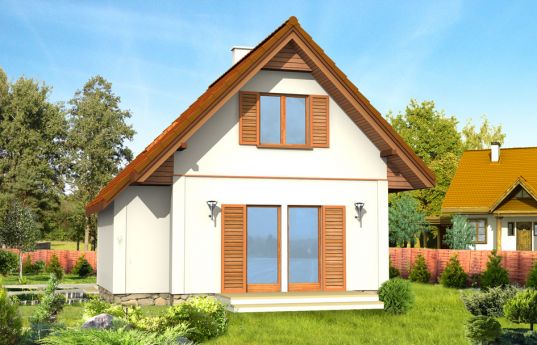

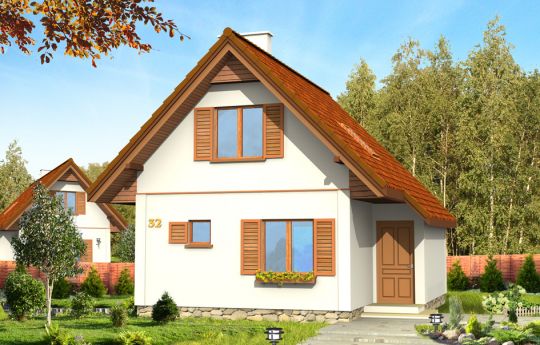

Francik house plan is a detached or holiday family house. Easy and cheap to build. House was covered with a gable roof and one roof slope is extended, under which there are: entrance hall and utility room. On the ground floor this house plan has a large living room with fireplace, kitchen and bathroom. On the top floor there are two bedrooms. Entrance to the house can be placed both on top of the building as well as from the side (from the roof slope). In this way the house built on the basis of the Francik house plan can be positioned on any plot
Specifications:
- Cubature: 196 m3/ 6920,76 ft3
- Built-up area: 50,22 m2/ 540,37 ft2
- Total area: 69,34 m2/ 746,10 ft2
- Net area: 52,51 m2/ 565,01 ft2
- Usable area: 52,5 m2/ 564,90 ft2
- Roof area: 99,81 m2/ 1073,96 ft2
- Roof slope: 45 degrees
- Height of the building: 6,56 m (6,88 m with foundation)/ 21,52 ft ( 22,57 ft with foundation)
- Wide of the building: 6,85 m/ 22,47 ft
- Length of the building: 7,80 m/ 25,58 ft
- Minimum plot width: 12,85 m/ 42,15 ft
- Minimum plot length: 15,80 m/ 51,82 ft
- Height of rooms: 2,54 m/ 8,33 ft
Materials:
Materials:
• Foundations - concrete benches and foundation walls with concrete blocks
• Exterior walls - aerated concrete + polystyrene or timber frame
• Internal walls - aerated concrete or wooden
• Ceiling – a wooden beam
• Elevation - thin-layer plaster
• Roof - tile
The costs of implementing:
| The raw state open | 14 100,00 EUR |
| The raw state closed | 22 000,00 EUR |
| The cost of finishing works | 24 400,00 EUR |
| Execution of turnkey home | 46 400,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Francik - detailed file
House plan Francik - detailed file - mirror
