By using this website you consent to the use of cookies, according to the current browser settings.Francik with the terrace
Usable area: 56 m2 / The cost of the realization: 51 200 EUR

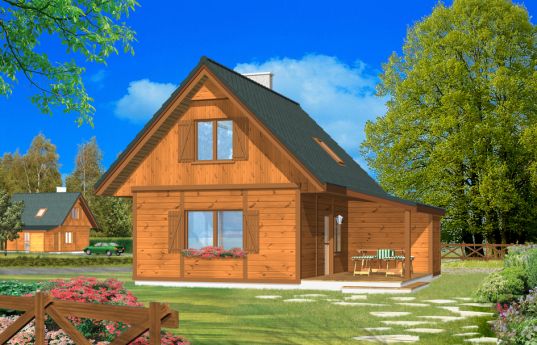

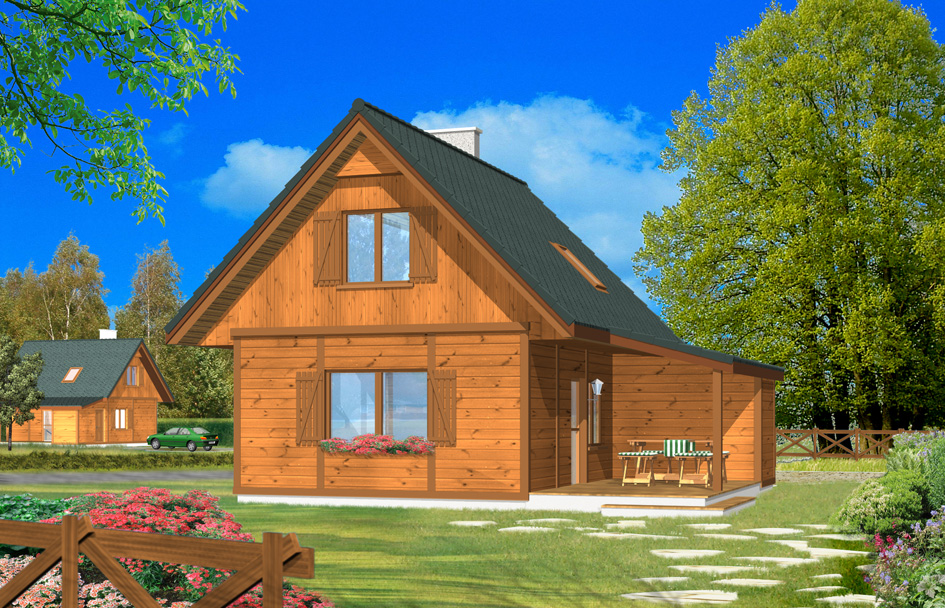

Show mirror image
Price: 830 EUR
Description
Plans
Elevations
Situations
Interiors Variants (1)
Realizations (6) Detailed drawings
List of materials
Comments (3)

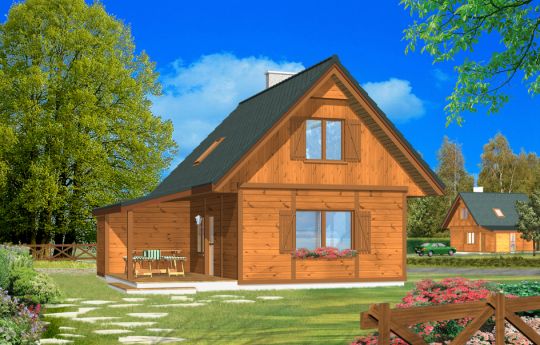

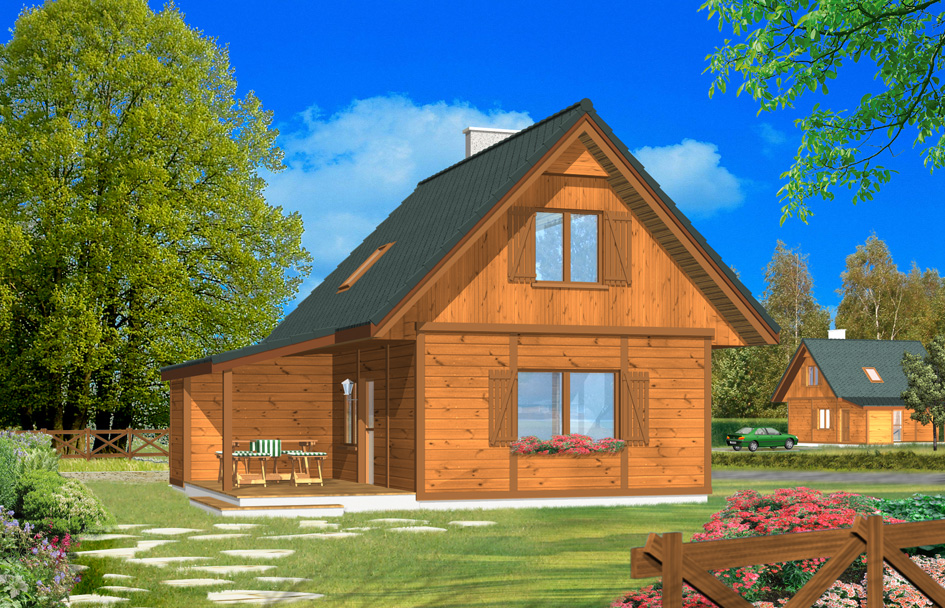

Francik house plan with the terrace is a small house with a simple, inexpensive block, covered with a gable roof with covered terrace. Decoration of the house is a terrace with an area of more than 12 m2, representing an extension of the living room. On the ground floor there is a living room with a fireplace and a kitchen, bathroom and utility room accessible from the outside. On the top floor are two bedrooms. There is available a variant version of this house plan Francik with a terrace in version without a covered terrace – in the technology of brick and wood.
Specifications:
- Cubature: 181 m3/6391,11 ft2
- Built-up area : 59,8 m2/ 643,45 ft2
- Total area: 71,34 m2/ 767,62 ft2
- Net area: 60,53 m2/ 651,30 ft2
- Usable area: 56 m2/ 602,56 ft2
- Roof area: 132,2 m2/ 1422,47 ft2
- Roof slope: 45 degrees
- Height of the building: 6,53 m (6,85 m with foundation)/ 21,42 ft (22,47 ft with foundation)
- Wide of the building: 7,6 m/ 24,93 ft
- Length of the building: 8,45 m/ 27,72 ft
- Minimum plot width: 15,6 m/ 51,17 ft
- Minimum plot length: 16,45 m/ 53,96 ft
- Height of rooms: 2,54 m/ 8,33 ft
Materials:
Materials:
• Foundations - concrete benches and foundation walls with concrete blocks
• Exterior walls - skeletal structure + thin-layer plaster on OSB or other technologies
• Ceiling – a wooden beam + headlining + floor on OSB or other technologies
• Elevation - thin-layer plaster
• Roof - tile or metal roofing tile
The costs of implementing:
| The raw state open | 16 100,00 EUR |
| The raw state closed | 24 000,00 EUR |
| The cost of finishing works | 27 200,00 EUR |
| Execution of turnkey home | 51 200,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Francik with the terrace - detailed file
House plan Francik with the terrace - detailed file - mirror
