By using this website you consent to the use of cookies, according to the current browser settings.Pine house plan
Usable area: 53.43 m2 / The cost of the realization: 42 100 EUR

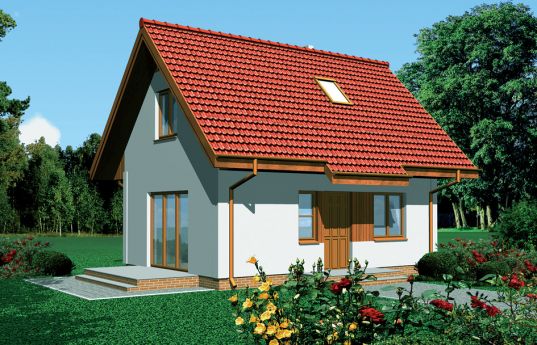

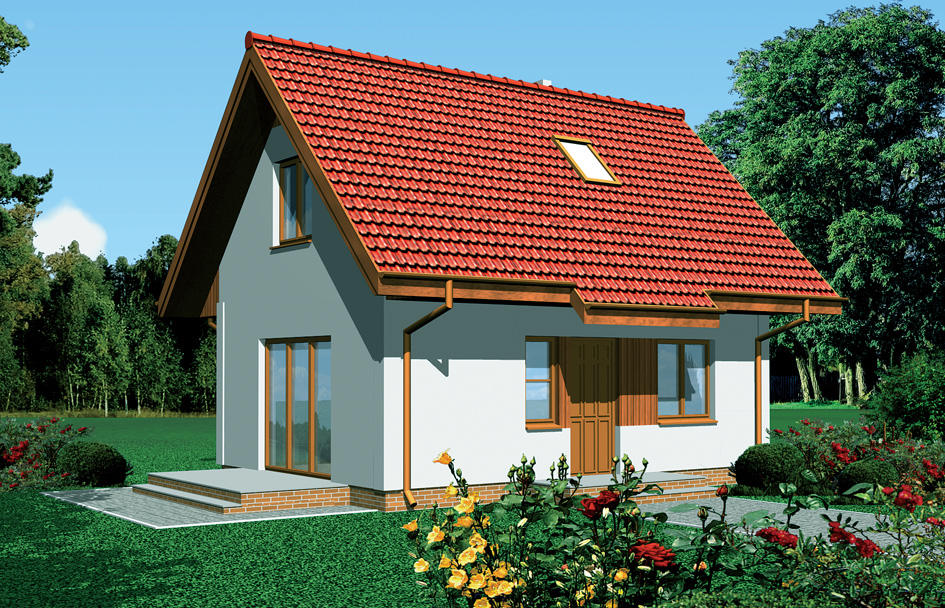

Show mirror image
Price: 820 EUR
Description
Plans
Elevations
Situations
Interiors Variants (9)
Realizations (18) Detailed drawings
List of materials
Comments (3)

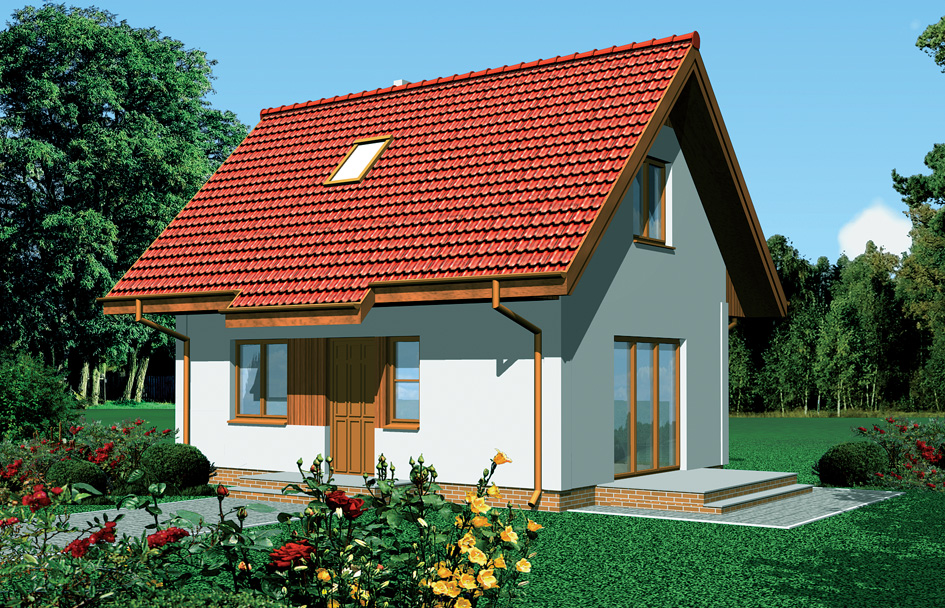

Pine house plan is a small, shapely house, which could serve as a holiday or a year-round house. Its advantages are the right proportions, fit the esthetic appearance of the building, functional interior and a simple, inexpensive in build construction. We have developed several versions of the Pine house plan: increased by 1 meter, with a later extension of a garage or carport, with a porch entrance, with a balcony and an arcade above the terrace, or with utility room. We have this house in the versions of brick and frame technology. Pine house plan is also available in the mirror.
Specifications:
- Cubature: 193 m3 / 6814,83 ft3
- Built-up area: 44,07 m2 / 474,19 ft2
- Total area: 67,55 m2 / 726,84 ft2
- Net area: 53,43 m2 / 574,91 ft2
-
Usable area:
- 53,43 m2 wg PN-70/B-02365 / 574,91ft2 wg PN-70/B-02365
- 53,43 m2 wg PN-ISO 9836:1997 / 574,91 ft2 wg PN-ISO 9836:1997
- Roof area: 96,96 m2 / 1043,29 ft2
- Roof slope: 45 degrees
- Height of the building: 6,56 m (6,88 m with foundation) / 21,52 ft (22,57 ft with foundation)
- Wide of the building: 7,8 m / 25,58 ft
- Length of the building: 5,65 m / 18,53 ft
- Minimum plot width: 15,8 m / 51,82 ft
- Minimum plot length: 13,65 m / 44,77 ft
- Height of rooms: 2,54 m / 8,33 ft
Materials:
• Foundations – monolithic concrete
• External walls – aerated concrete + polystyrene or wooden skeleton
• Interior walls - aerated concrete or wooden
• Ceiling - wooden
• Elevation - thin-layer plaster or shutter
• Roof - tile or meatal roofing tile
The costs of implementing:
| The raw state open | 10 800,00 EUR |
| The raw state closed | 18 100,00 EUR |
| The cost of finishing works | 24 100,00 EUR |
| Execution of turnkey home | 42 100,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
Sosenka - plik szczegółowy
Sosenka - plik szczegółowy - odbicie lustrzane
Related Projects
2012.03.10 0
I must admit that despite the small area the house has a lot of functions. For me, a very shapely and interesting house plan.
2012.03.09 0
I wonder about the purchase this project, but I want to set up solar panels, whether it is possible in this house?
Hello. In this house you can easily install the solar system - you can buy it from us as the addition to the basic version the package of solar installation. MG
2012.02.16 0
Despite the small area this house has a number of functions and is very nice. I have just order this house plan.
