Usable area: 170.92 m2 / The cost of the realization: 115 900 EUR
Show mirror image
Price: 970 EUR
Description
Plans
Elevations
Situations
Animation Variants (0)
Detailed drawings
List of materials
Comments (3)

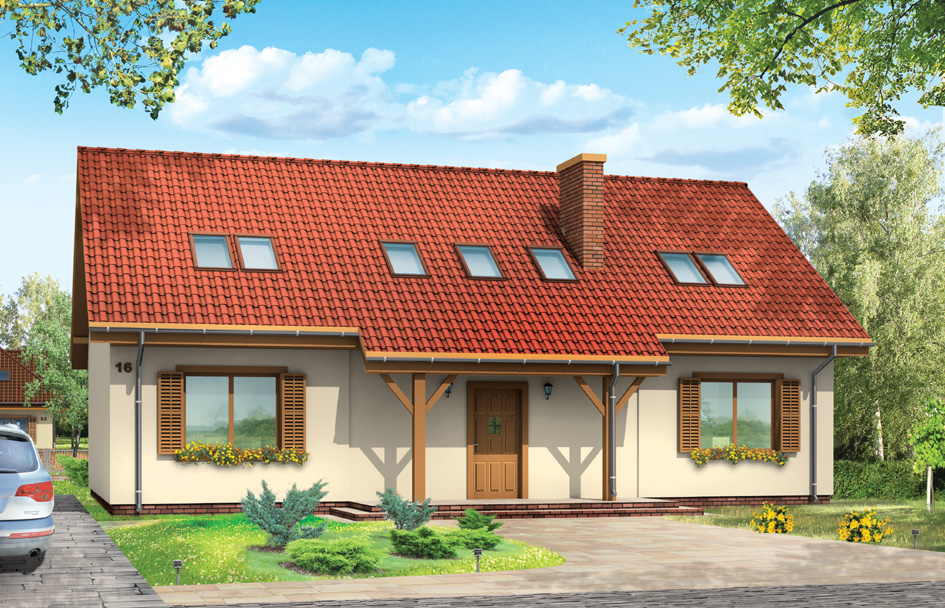

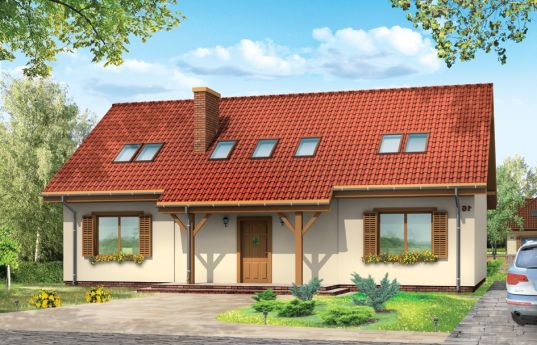

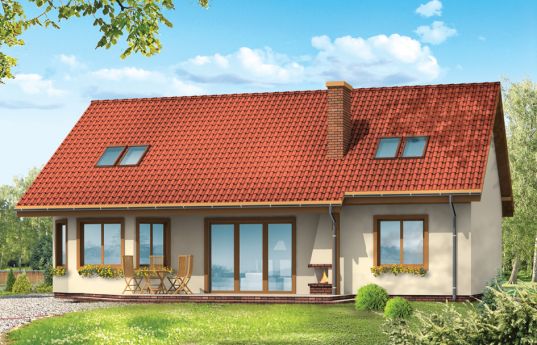

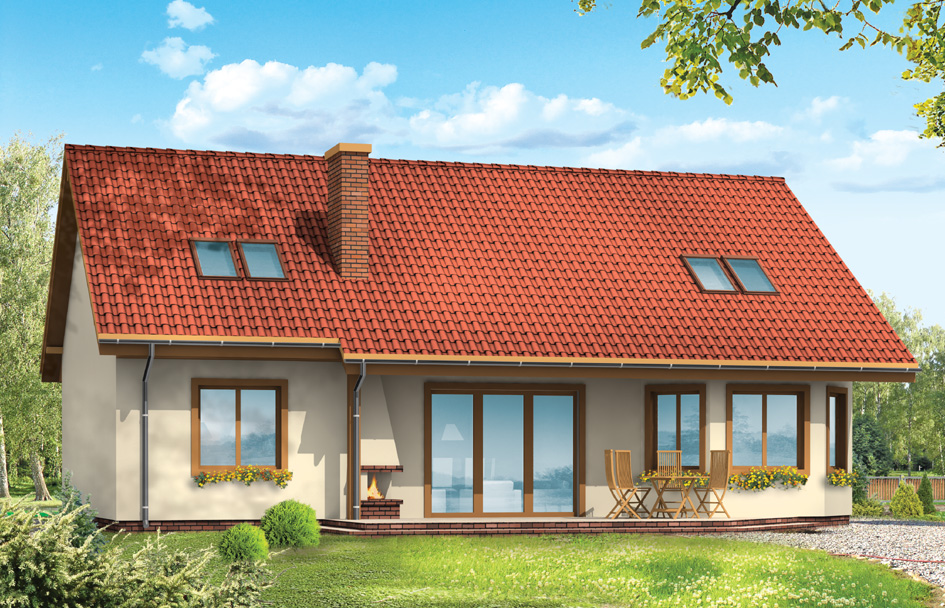

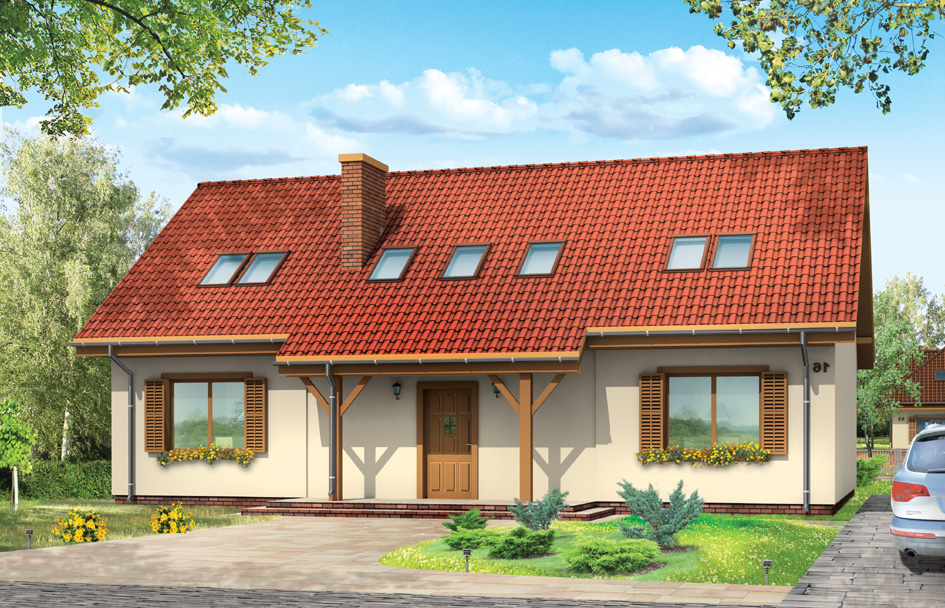

Sparkle house plan is a simple solid covered with a gable roof. This house plan was created for a family of four-five people. There are no windows in the side elevations so the house can be built in a plot with a width of 20.7 m. On the ground floor there is a large living room with fireplace (additional fireplace is on the terrace) connected with a dining room and two other rooms. On the attic there are three bedrooms with bathroom and a dressing room. The construction of the house allows to adopt rooms on the ground floor at the garage with utility room, or save up extra bathroom. Sparkle house plan is also available in a mirror version.
Specifications:
- Cubature: 679 m3/ 23975,49 ft3
- Built-up area: 137,6 m2/ 1480,58 ft2
- Total area: 216,74 m2/ 2332,12 ft2
- Net area: 180,2 m2/ 1939,95 ft2
- Usable area: 170,92 m2/ 1839,10 ft2
- Roof area: 214 m2/ 2302,64 ft2
- Roof slope: 35 degrees
- Height of the building: 7,25 m (7,52 m with foundation)/23,78 ft ( 24,6 ft with foundation)
- Wide of the building: 14,71 m/ 48,25 ft
- Length of the building: 10,01 m/ 32,83 ft
- Minimum plot width: 20,71 m/ 67,93 ft
- Minimum plot length: 18,25 m/ 59,86 ft
- Height of rooms: 2,70 m/ 8,86 ft
Materials:
• Foundations: concrete benches, walls of concrete blocks
• External walls: bilayer airbrick porotherm
• Ceiling: Teriva
• Elevations: thin-layer plaster
• Roofing: ceramic tile
The costs of implementing:
| The raw state open | 40 300,00 EUR |
| The raw state closed | 58 700,00 EUR |
| The cost of finishing works | 57 300,00 EUR |
| Execution of turnkey home | 115 900,00 EUR |
Net notified costs, do not include VAT
Additions to the project:
To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.
House plan Sparkle - detailed file
House plan Sparkle - detailed file - mirror
