Comfortable 3 house plan

Usable area: 134.81 m2   /   The cost of the realization: 148 900 EUR

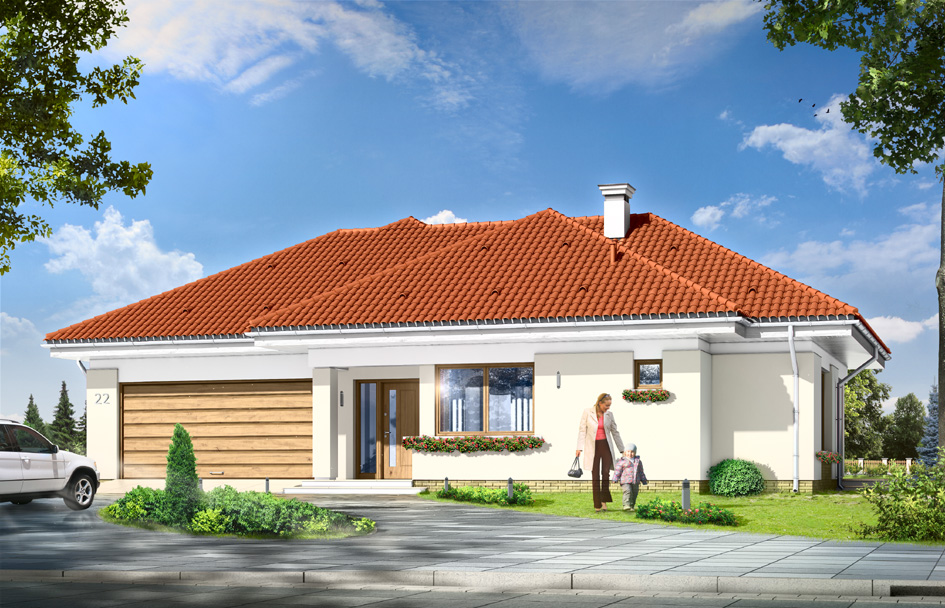

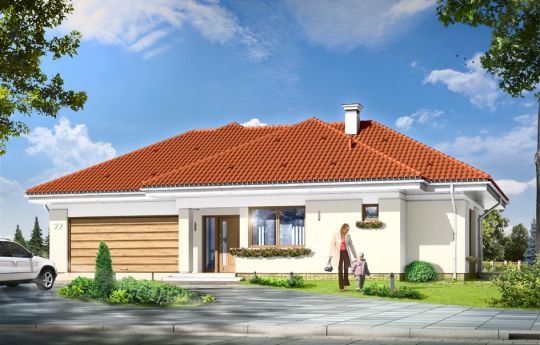

House plan Comfortable 3 - front visualization

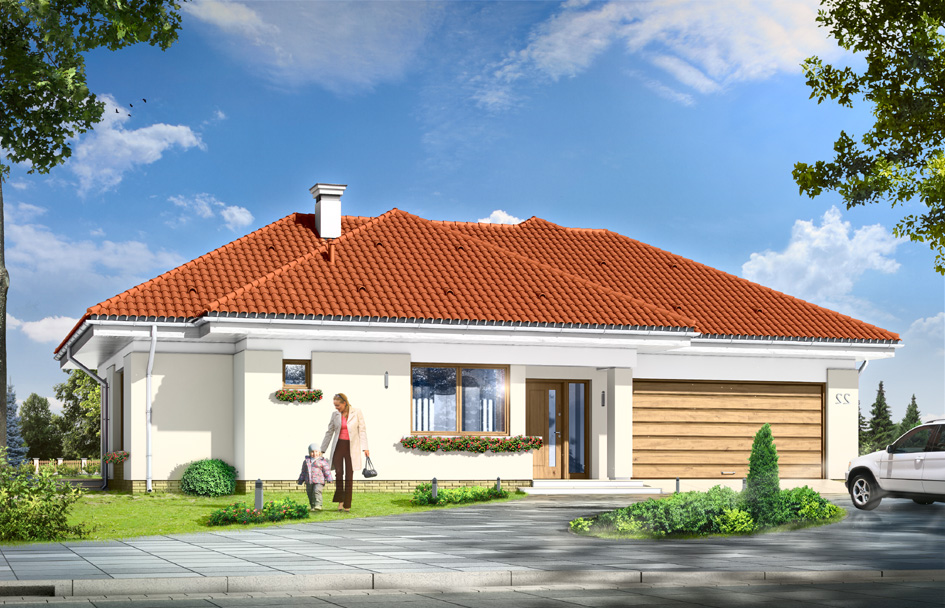

Show mirror image


Comfortable 3 house plan is a single family house is for a 4 to 5 people. This is a one-storey building, covered by a hipped roof with the attic, which can be adapted for usable attic. The house is a smaller version of the popular house plan Comfortable. Exterior appearance of house combines modern and traditional elements. The traditional tiled roof combined with low-storey walls, with lots of glazing and corner floor-length windows, create successful combination. The house blends into the surrounding garden and retains a human scale. From all the rooms there is a direct view and contact with the garden. Because the house is a bungalow - all rooms are on one level, giving unparalleled ease for residents. The interior is divided into a day part - a living room, and the night part - with the bedrooms. In addition, the utility space was also isolated, with two cars garage and boiler room - accessible from the atrium. The living room, with a centrally located fireplace, and a beautiful corner glazing – with the opening to the garden, combined with the dining room, hall and kitchen, create a huge living space for your use. An aadditional decoration are undoubtedly the stairs to the attic. The attic can be closed as no usable, or adapt as an extra studio with the void above the living room. In the night part there are three bedrooms, master bedroom with its own dressing room and terrace, a large bathroom and an extra room – e.g. office. We also have this house plan in a mirror version.





Specifications:
  • Cubature: 868 m3 / 30649,08 ft3
  • Built-up area: 216,38 m2 / 2328,25 ft2
  • Total area: 260,44 m2 / 2802,33 ft2
  • Net area: 140,39 m2 + garage+ attic / 1510,60 ft2 + garage+ attic
  • Usable area: 134,81 m2 / 1450,56 ft2
  • Roof area: 323,06 m2 / 3476,13 ft2
  • Roof slope: 30 degrees
  • Height of the building: 6,45 m (6,75 m with foundation) / 21,16 ft  (22,14 ft with foundation)
  • Wide of the building: 16,66 m / 54,64 ft
  • Length of the building: 17,75 m / 58,22 ft
  • Minimum plot width: 23,66 m / 77,60 ft
  • Minimum plot length: 25,75 m / 84,46
  • Height of rooms:  2,8 m / 9,18 ft
Materials:
  • Foundations: concrete benches and foundation walls with concrete blocks
  • External walls: brick walls - airbricks porotherm 25 + polystyrene + thin-layer plaster
  • Ceiling: Teriva
  • Elevations: thin-layer plaster on polystyrene
  • Roofing: tile




The costs of implementing:
The raw state open 52 000,00 EUR
The raw state closed 86 600,00 EUR
The cost of finishing works 62 300,00 EUR
Execution of turnkey home 148 900,00 EUR

Net notified costs, do not include VAT



To see simplified technical drawings of the house plan, please click on the link below. Select the house plan version that you interest - the basic or mirror version. The pdf file with dimensional drawings: floor plans, sections and elevations will open in a separate window. You can zoom in, zoom out and move the drawings on the screen. You can also print or save the drawings.



House plan Comfortable 3 - detailed file

House plan Comfortable 3 - detailed file - mirror

Comment
Comfortable 3 house plan 1775 Kuliberda Marta
2012.03.11 0 Pozytywny komentarz Negatywny komentarz

Very cool interior layout of this house is the main advantages. I think it would be great for our family. I look forward to shipment and thank you for your kind support.

Comfortable 3 house plan 1774 Tumasz Elwira
2012.03.06 1 Pozytywny komentarz Negatywny komentarz

We decided on this house plan together with my husband. In the spring of next year we start its building. To choose this project encouraged us the architecture of this house (we really like), and secondly, we have a small plot.

Comfortable 3 house plan 457 magdalena kwiatkowska
2012.02.08 2 Pozytywny komentarz Negatywny komentarz

Hello everyone! I already ordered the project. We are currently awaiting for a building permit. This house is ideal in every respect, and most importantly, that we can build it without taking a loan.
